New Portable Scissor Lift (ORPL27)
Yancheng Sunrise Import & Export Co., Ltd.- Lifting Capacity：2700kgs
- Driving Type：Hydraulic
- Certification：CE, ISO
- Driving Motor Number of Mechanical Lift：1
- Condition：New
- Brand：Orient
Base Info
- Model NO.：ORPL27
- Design：Scissor
- Max Lifting Height：1200mm
- Min Height：110mm
- Transport Package：Standard Export Packaging
- Specification：CE & ISO
- Trademark：Orient
- Origin：China
- HS Code：84254290
- Production Capacity：500units, Month
Description
Basic Info.
Model NO. ORPL27 Design Scissor Max Lifting Height 1200mm Min Height 110mm Transport Package Standard Export Packaging Specification CE & ISO Trademark Orient Origin China HS Code 84254290 Production Capacity 500units/ MonthProduct Description

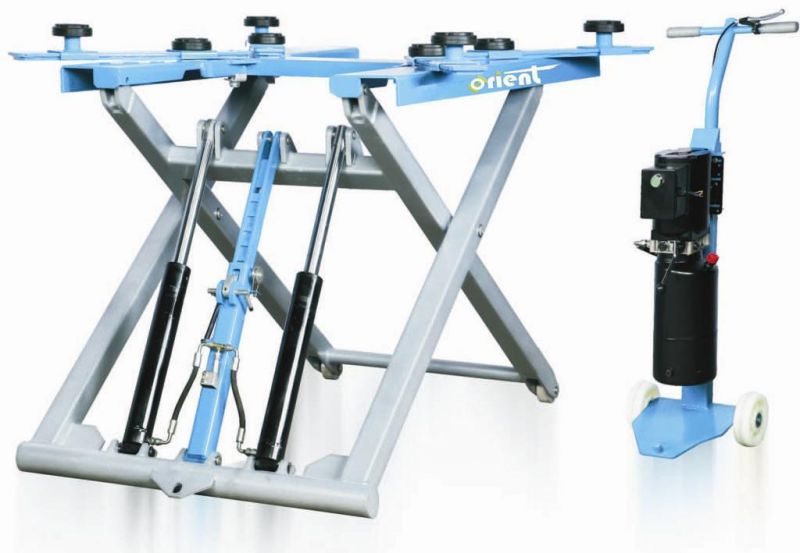

NEW portable car scissor lift
FEATURES:
*Good choice for body shop or low ceiling shio and Worshop.
*Lifting plantform equipped with activity wheels and movable hydraulic power unit ,flexible and convenient.
*Adopt daul-cylinder structure design.
*2700kg/6000lbs lifting capacity.
*Manual lock devices.
*Adopt Manual safety lock release.
*Truck adapter included.
*Flexible lifting arms.
*Dynamic testing with115% of rated capacity and static testing with 150% of rated capacity.
*CE approved.

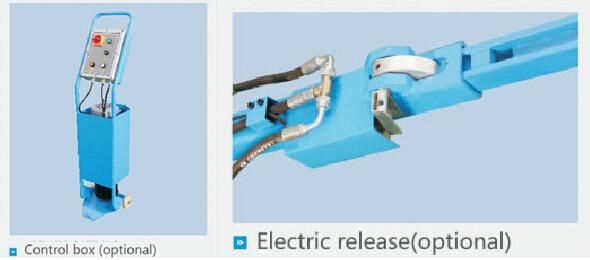

Optional accessories:

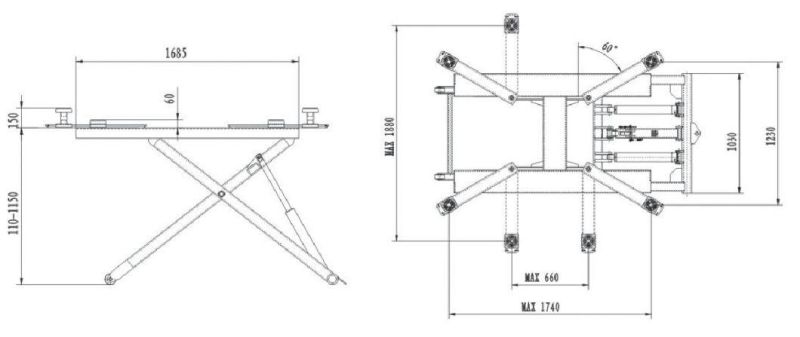

Overall Dimensions:
| Lifting Capacity | 2700kg/6000lbs |
| Lax.Lifting Height | 1200mm |
| Min. Height | 110mm |
| Width | 1003mm-1400mm |
| Length | 1750mm-2000mm |
| Lifting Time | 30s |
| Air Supply | 6-8bar |
| Motor Power | 2.2kw |
| power supply | 110V/220V/380V |
| weight | 360kg |
| Packing Size | 2300*1050*230+900*400*500mm |
