High Quality Reasonable Price Big Travel Vetical CNC Milling Machining Type
SHANDONG LUNAN MACHINE TOOL EQUIPMENT CO., LTD.- After-sales Service：Quickly Feed Back on Time
- Warranty：One Year Warranty
- Transport Package：Steel Pallet with Ply Wood Cover
- Specification：800x500x600
- Trademark：SDLN
- Origin：Tengzhou
Base Info
- Model NO.：VMC850SL
- HS Code：8457101000
- Production Capacity：1000 Sets
Description

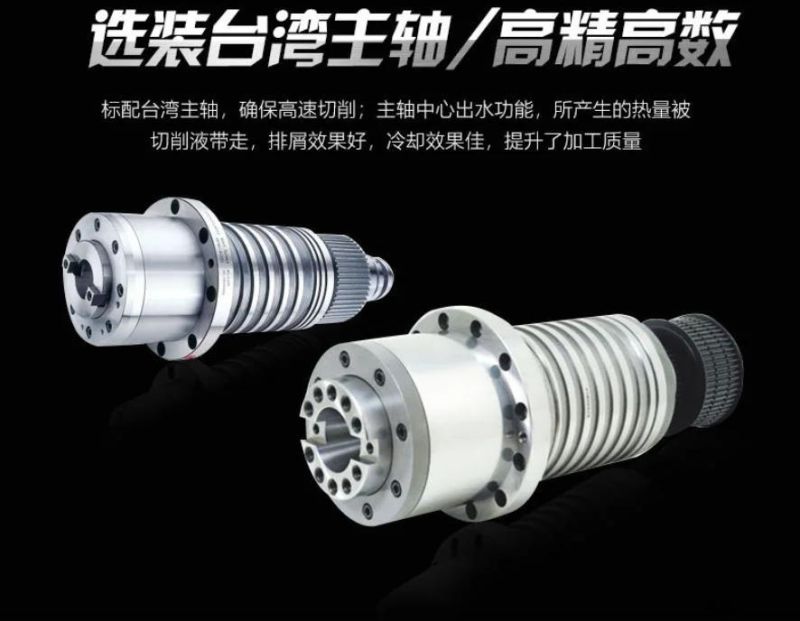

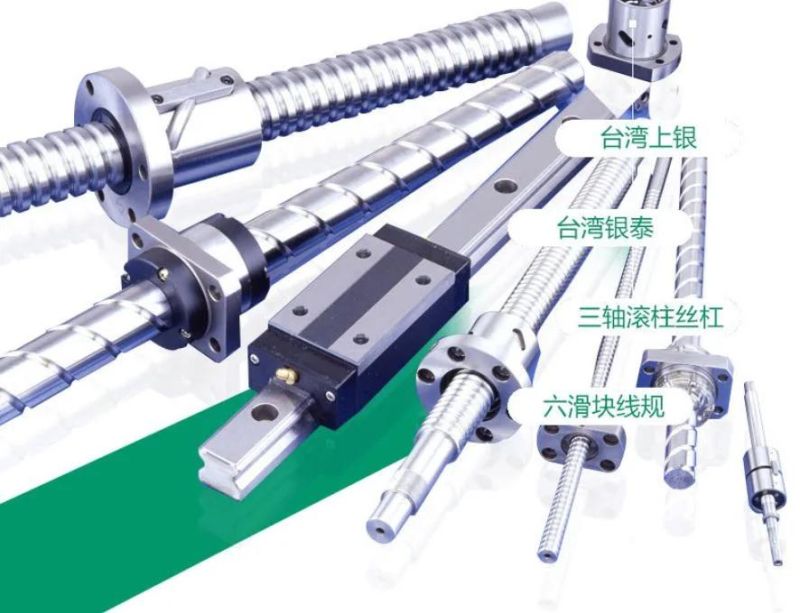

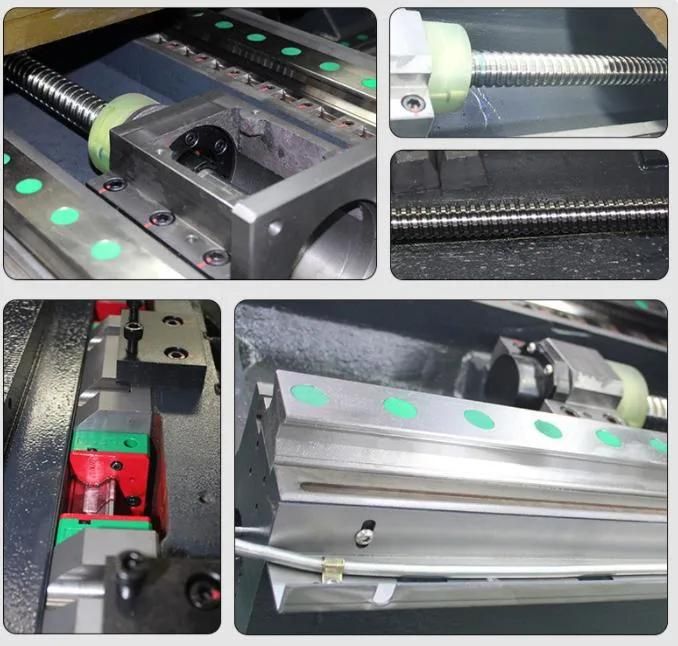

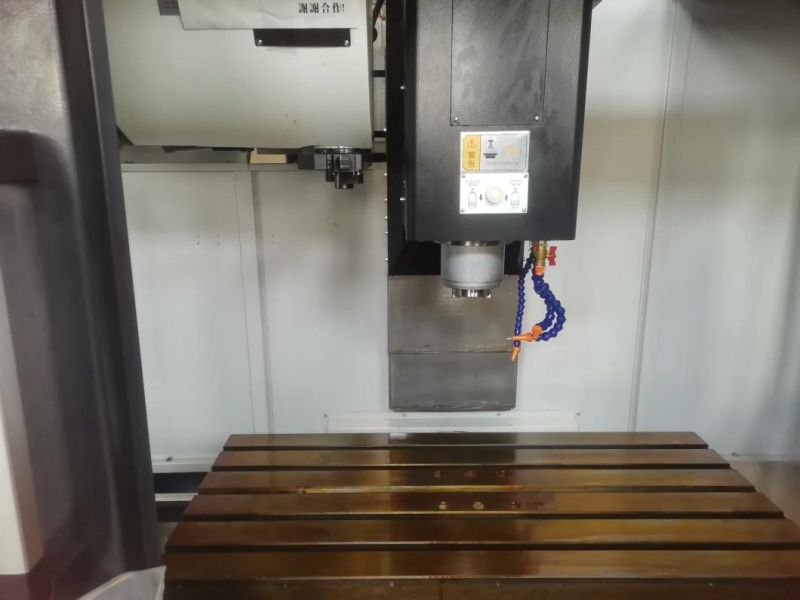

ITEMSUNIT VMC850SL Work area X-axis travel mm 800 Y-axis travel mm 500 Z-axis travel mm 600 Spindle nose totable mm 170-770 Spindle center to column rail surface mm 580 Work table Table size mm 1100*500 T-slot size mm 5-18-100 Max.loading capacity of table kg 600 Spindle Spindle speed range r/min 60-8000 Spindle nose taper BT40 Main motor KW 7.5/11 Feeding Rapid feeding of X,Y axis m/min 32 Rapid feeding of Z axis m/min 24 Accuracy Type 3-axis roller linear guide(option:ball linear guide) Positioning accuracy X/Y/Z mm 0.012/0.010/0.010 Re-positioning accuracy X/Y/Z mm 0.008/0.006/0.006 Magezine

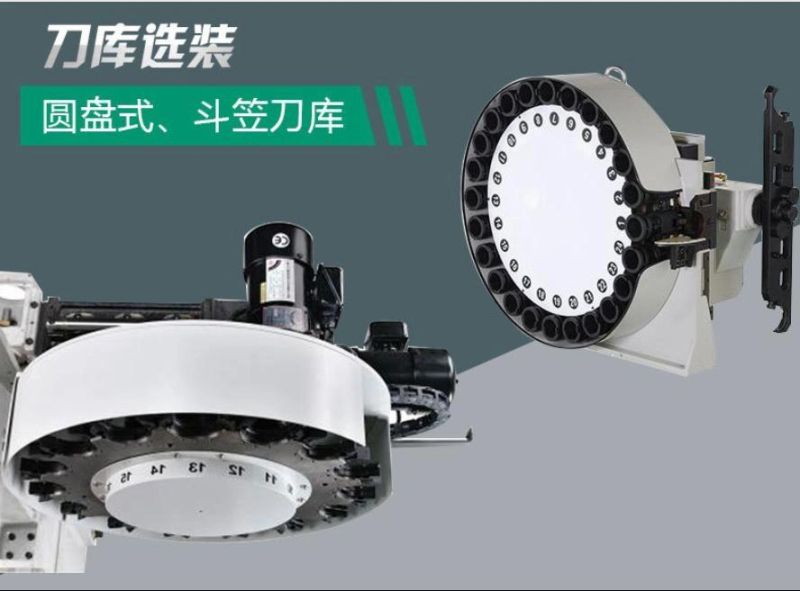

tool Tools number(standard/option) Pcs. 16/24 Max.diameter of tools(T-T/T-hollow) mm φ80/φ130 φ80/φ125 Max.length of tools mm 300 Max.weight of tools kg 6 Other Net weight kg 5700 Overall dimension Mm 2700×2300×2500
tool
