• Model NO.：CTCS-13
• Air Supply：0.5-0.6 MPa
• Dimensions (mm)Nsions (mm)：2700*750*400
• Transport Package：Metal Frame
• Specification：CE
• Trademark：AA4C
• Origin：China
• HS Code：8479899990
• Production Capacity：100units,Month

Basic Info.

Model NO. CTCS-13 Air Supply 0.5-0.6 MPa Dimensions (mm)Nsions (mm) 2700*750*400 Transport Package Metal Frame Specification CE Trademark AA4C Origin China HS Code 8479899990 Production Capacity 100units/Month

Product Description

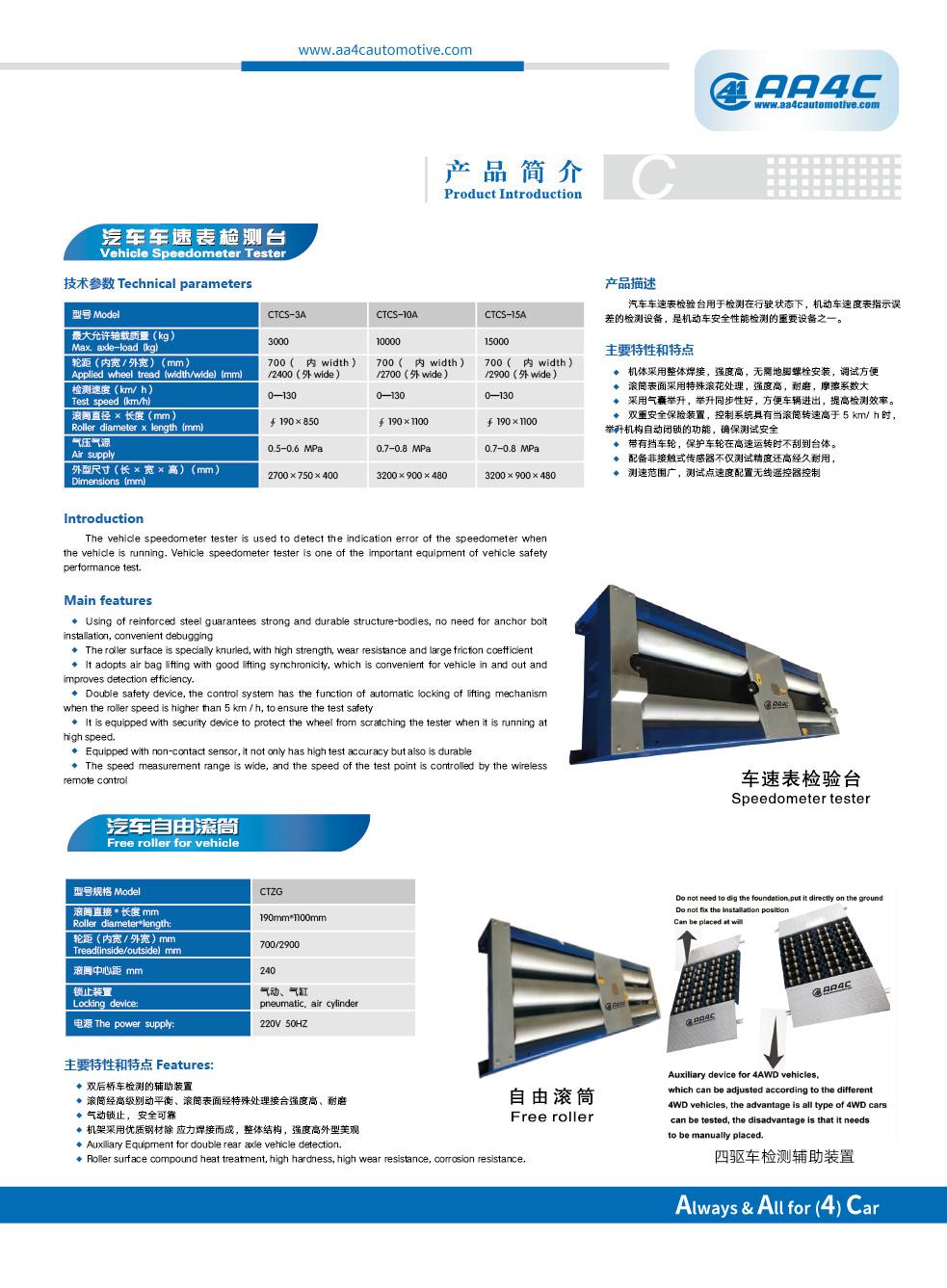

AA4C auto car vehicle test line Vehicle Speedmeter Tester CTCS-13

Model	CTCS-3A	CTCS-10A	CTCS-15A
Max. axle-load (kg)	3000	10000	15000
Applied wheel tread (width/wide) (mm)	700(width)/2400(wide)	700(width)/2700(wide)	700(width)/2900 wide)
Test speed (km/h)	0-130	0-130	0-130
Roller diameter x length (mm)	∮190×850	∮190×1100	∮190×1100
Air supply	0.5-0.6 MPa	0.7-0.8 MPa	0.7-0.8 MPa
Dimensions (mm)	2700×750×400	3200×900×480	3200×900×480

 Introduction:
The vehicle speedometer tester is used to detect the indication error of the speedometer when the vehicle is running. Vehicle speedometer tester is one of the important equipment of vehicle safety performance test.


Main features:
Using of reinforced steel guarantees strong and durable structure-bodies, no need for anchor bolt installation, convenient debugging
The roller surface is specially knurled, with high strength, wear resistance and large friction coefficient
It adopts air bag lifting with good lifting synchronicity, which is convenient for vehicle in and out and improves detection efficiency.
Double safety device, the control system has the function of automatic locking of lifting mechanism when the roller speed is higher than 5 km / h, to ensure the test safety
It is equipped with security device to protect the wheel from scratching the tester when it is running at high speed.
Equipped with non-contact sensor, it not only has high test accuracy but also is durable
The speed measurement range is wide, and the speed of the test point is controlled by the wireless remote control
