• Type：Code Reader
• Transport Package：Carton Box
• Origin：China

Basic Info.

Type Code Reader Transport Package Carton Box Origin China

Product Description

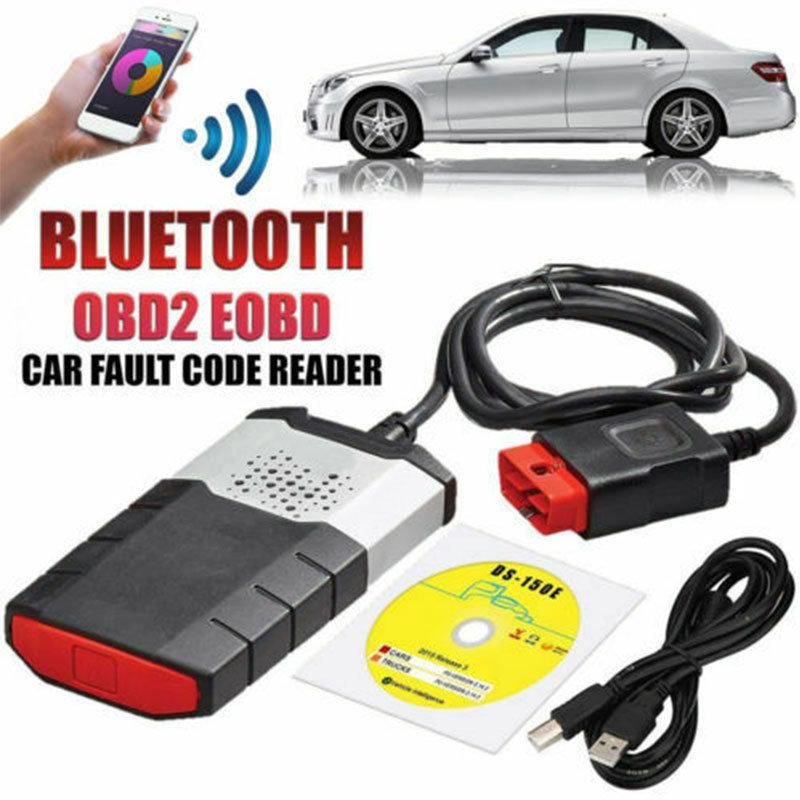

2020.23/2017.R3 DELPHI DS150 Diagnostic Tool for Cars/Trucks and OBD2 Verison With bluetooth

  About Software:

1.NEW Arrival 2020.23 :Is the newest software on market now,add some more car support before 2020 years,But 2020.23 NOT Keygen on cd, need send a file to mail to active.
2.2017.R3 (with keygen) : support before 2017 years,2017.R3 with keygen on cd or link,you can activate the software yourself without sending files to the seller.

Car Maker: For Multi-Cars and Trucks



About System:
support computer system:XP,WIN7,WIN8 (32 bit and 64 bit), WIN 10 system 32 bit system more stable,WIN10 system 64 bit system depends on the computer configuration.

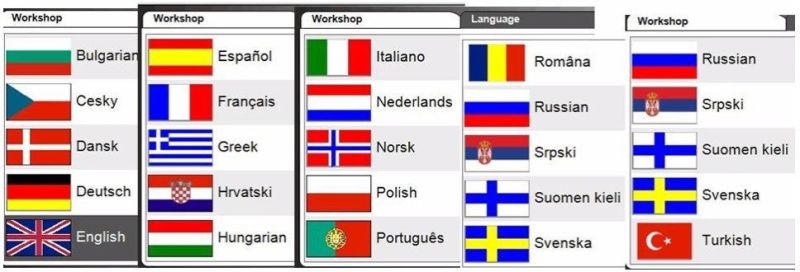

Full Translate Language :
English , Cesky, Dansk, Deutsch, Espanol, Francais, Greek, Hollands, Hungarian, Italiano, Norsk, Polish, Romania,Russian, Srpski, Suomen kieli, Svenska, Turkish

 support computer system: XP,WIN7,WIN8 (32 bit and 64 bit), WIN 10 system 32 bit system more stable,WIN10 system 64 bit system ,tablet ,depends on the computer configuration.VD TCS CDP can do the following:*Manufacture specific serial diagnose*Scan function*EOBD/OBDII communication*Serial Systems*Engine*Ignition*Climate*ABS*Service reset*SRS*Immobilizer*Instrument*Comfort system*Gear-box etc  Features:With CARS, you are able to perform brand specific diagnostics for cars and light vans from 1988 onwards. A total of 47 different brands. With TRUCKS software package, you are able to perform brand specific diagnostics for light and heavy commercial vehicles, buses and trailers from 1995 onwards. A total of 37 different brands. The diagnostic program GENERIC is designed for the legislation based diagnostics, specially targeted for emission related fault codes. GENERIC is included in CARS and TRUCKS packages. Multiplexer function, 2xHS CAN (ISO 11898-2), SW CAN (SAE J2411), K/L (ISO 9141-2), VPW (J1850), PWM (J1850), RS485 (J1708), TTL and (SPI, analog in, 5volt out).  Multi-Functions:FLIGHT RECORDERWith the flight recorder function, you can record parameters in real time while you are driving a vehicle. During recording, you can, with a press of a button, highlight the specific error so that you can investigate the detected error at a later time. VD TCS CDP is equipped with built-in memory thus removing the need to bring a computer. Memory cart not include in package .  MULTI-COLORS INDICATORWith the multi-colors indicator on VD TCS CDP, you have full control of the diagnostic process. Different colors and sound communicates the status and the placement of the indicator allows you to see it from a far. For example, if the indicator alternates between blue and green the VD TCS CDP is in communication with the vehicle control unit.  CONNECTOR WITH LEDTo locate the diagnostic connector in the vehicle with ease, even if it's located in a dark and inaccessible place, there is a LED on the 16-pin connector to help you along. The location and the design allows the light to function even when using the adaptor cable for vehicles without a 16-pin diagnostic socket.  VOLTAGE CHECKWhen VD TCS CDP is connected to the vehicle, the unit will check the battery voltage of the vehicle and automatically adjusts itself to the vehicle's voltage level of 12 or 24 volts. If the voltage gets too high or too low, It will warn you with both sound and light and you will also be alerted through the battery icon in our diagnostic software.  CHASSIS NUMBER VINIn our CARS software, we have a smart function that allows you to read out the chassis number from the vehicle that you would like to diagnose. This ensures that the right model and year is selected automatically. In addition, engine code for vehicles, which are commonly available on the markets, is also selected automatically.  ISSIntelligent System Scan (ISS) scans through all the systems in the vehicle and displays the fault codes that are stored in each system. This saves time and you get a quick overview of the actual status of the entire vehicle. When the ISS is complete, you can then select a specific control system to analyse the results further on.  ISIIntelligent System Identification (ISI) identifies and selects automatically the type of controller that is mounted in the vehicle. This ensures that the diagnostic session is performed correctly with the correct parameters as required.  REPORT FUNCTIONUnder this function tab, you will be able to see the adaptations and adjustments that are possible for a specific vehicle without having the vehicle near you. Together with the help texts as a guide, you can plan and be effective in your work; even under complex situations.  OBD-FUNCTIONSVD TCS CDP is equipped with an unique multiplexer technology, which allows it to be used on all types of vehicles, regardless of voltage levels and communication standards. For those vehicles that do not use the standard 16-pin connector, we offer a complete set of certified and customized adapter cables and kits.  UNIVERSAL



For most OBD functions, such as adjustments and programmings, there are detailed instructions and help texts to assist you in your diagnosis work. You will find step by step information about prerequisites, preparation and implementation of various functions; making even the most complex function simple to perform

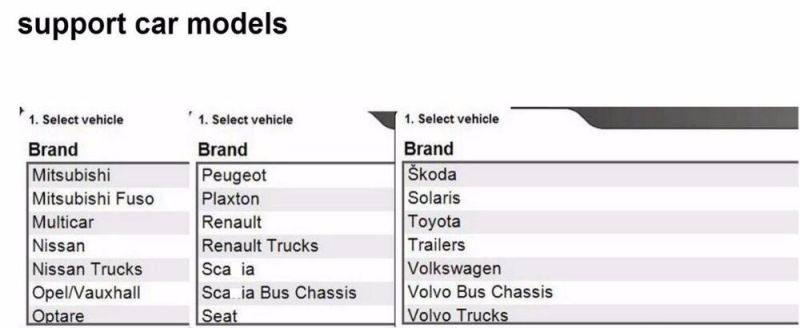

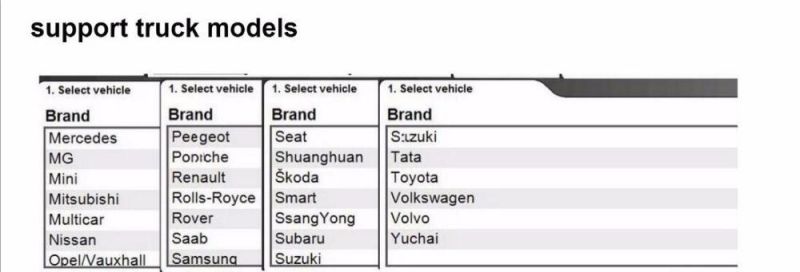

Supported Vehicles

  installtion:

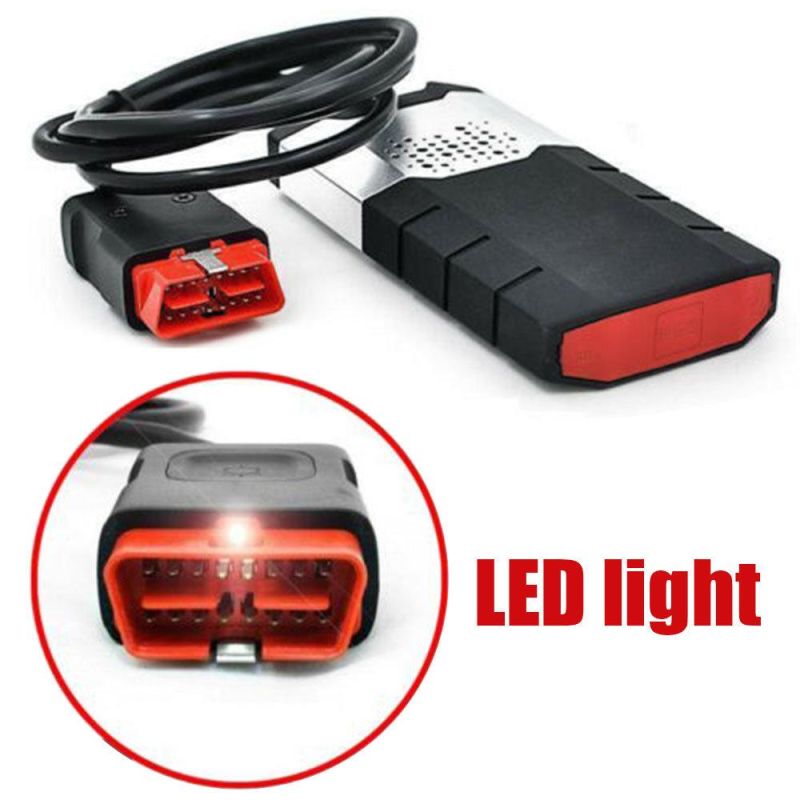

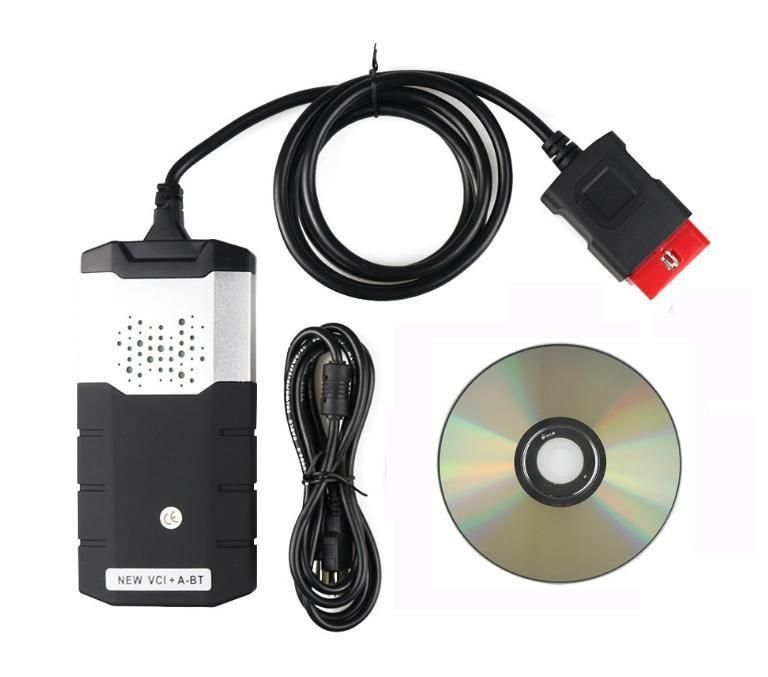

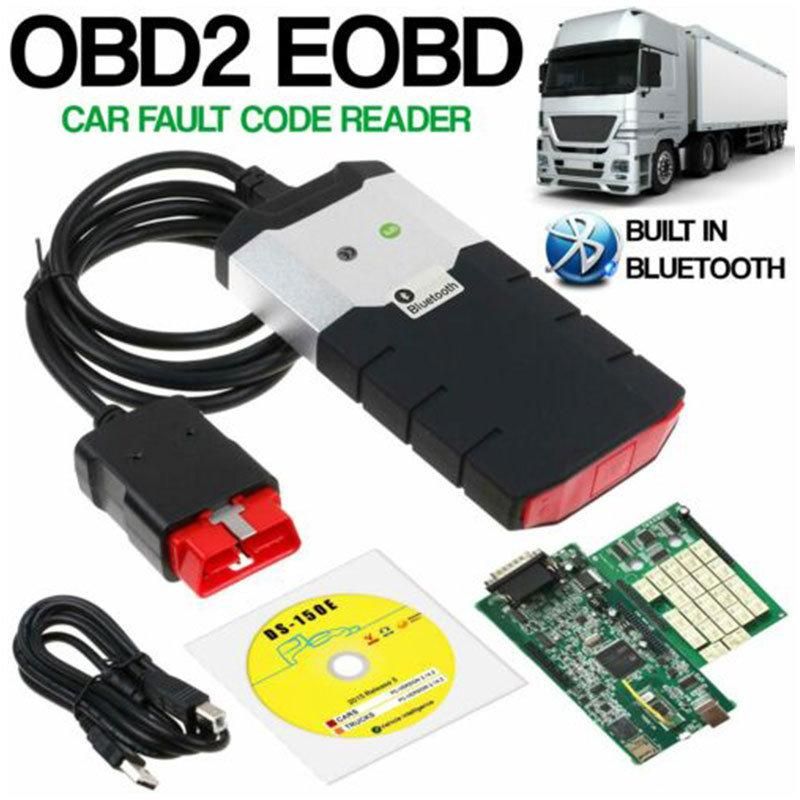

Option 1: Package including: 1. Main unit 2.Software DVD  (2kind of version as you choose)3.USB cable4.Led obd2 cable

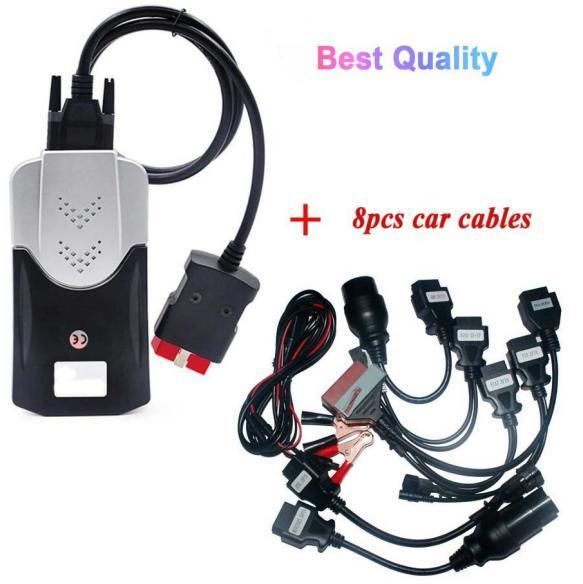

Option 2 (with Car Cables):
Package including:
1pc x  CDP Interface with OBD2 cable
1pc x USB Cable
1pc x Software CD
1 X Carton Box
Car Cables:
1pc x PSA 30P Cable
1pc x PSA-2P Cable
1pc x Audi 2P+2P Cable
1pc x BENZ-38P Cable
1pc x BMW-20P Cable
1pc x OPEL-10P Cable
1pc x FIAT-3P Cable
1pc x Power Cable

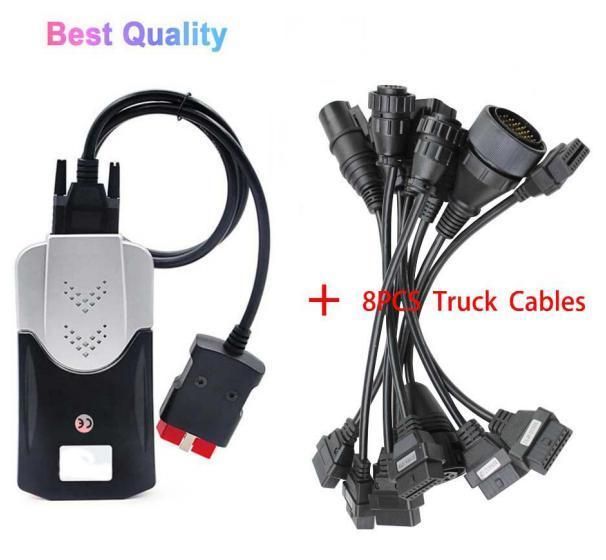

Option 3 (with Truck Cables):
Package including:
1pc x  CDP Interface with OBD2 cable
1pc x USB Cable
1pc x Software CD
1 X Carton Box
Truck Cables:
1pc x7 pin Knorr,Wabco Trailer Cable
1pc x12 pin MAN Cable
1pc x37 pin MAN Cable
1pc xIVECO-30P Cable
1pc xSCANIA -16P Cable
1pc xBENZ-14P Cable
1pc xRenault-12P Cable
1pc xVOLVO-8P Cable

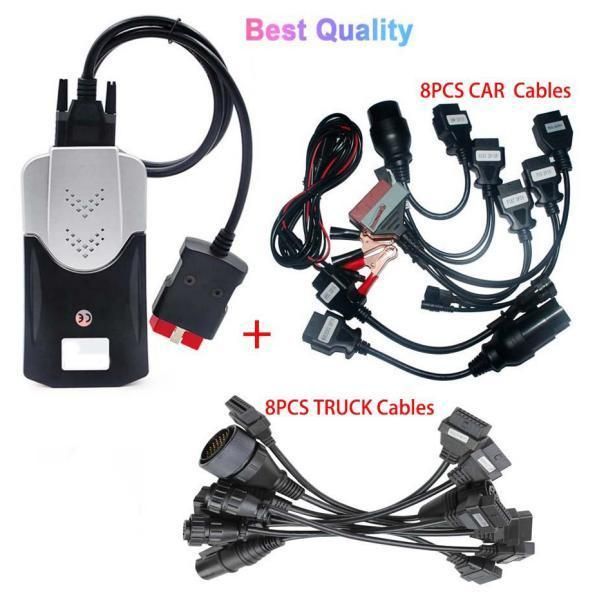

Option 4 (with Car and Truck Cables):
Package including:
1pc x  CDP Interface with OBD2 cable
1pc x USB Cable
1pc x Software CD
1 X Carton Box
Car Cables:
1pc x PSA 30P Cable
1pc x PSA-2P Cable
1pc x Audi 2P+2P Cable
1pc x BENZ-38P Cable
1pc x BMW-20P Cable
1pc x OPEL-10P Cable
1pc x FIAT-3P Cable
1pc x Power Cable
Truck Cables:
1pc x7 pin Knorr,Wabco Trailer Cable
1pc x12 pin MAN Cable
1pc x37 pin MAN Cable
1pc xIVECO-30P Cable
1pc xSCANIA -16P Cable
1pc xBENZ-14P Cable
1pc xRenault-12P Cable
1pc xVOLVO-8P Cable
