• Model NO.：GL3-CE
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Door Height(M)：2.66
• Door Width(M)：3.0
• Air Flow(M3/H)：0.3-0.35
• Color：Orange or Client′s Requirements
• Heating System：Riello Brand Diesel Burner or Gas Burner
• Environmental System：Optional
• Usage：Car Spray Painting and Baking
• Filters：High Efficiency Filter
• Product Brand：Gunagli
• Baking Temperature(Degree Centigrade)：20-80
• Transport Package：Iron Frame and Carton
• Specification：20GP
• Trademark：GUANGLI
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：10, 000 PCS,Year

Basic Info.

Model NO. GL3-CE Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Door Height(M) 2.66 Door Width(M) 3.0 Air Flow(M3/H) 0.3-0.35 Color Orange or Client′s Requirements Heating System Riello Brand Diesel Burner or Gas Burner Environmental System Optional Usage Car Spray Painting and Baking Filters High Efficiency Filter Product Brand Gunagli Baking Temperature(Degree Centigrade) 20-80 Transport Package Iron Frame and Carton Specification 20GP Trademark GUANGLI Origin Guangzhou, China HS Code 8419899090 Production Capacity 10, 000 PCS/Year

Product Description

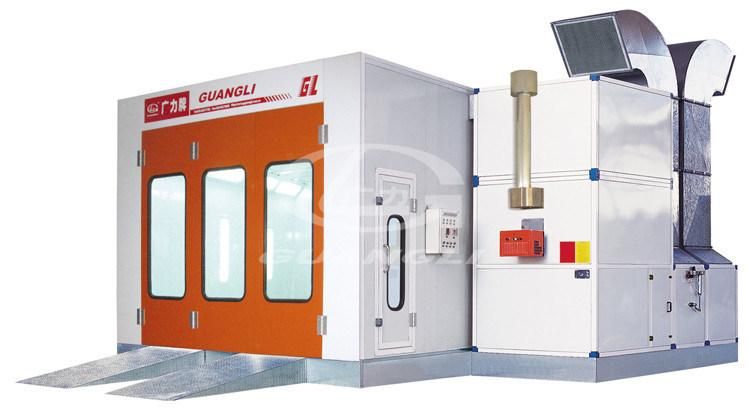

Riello Diesel Burners Car Service Equipment Spray Paint Booth with CE

Product Desciption:

GuangLi Spray Booth Feature

--Wall panel :sandwich style,δ=50mm,rock wool.(Polystyrene is optional)
--Basement :steel strucutre,3 rows of vein board and 2 rows of grids,full grids as optional.
--Door:3 pcs of front door without aluminum side cover.1 pcs of emergency door with pressure lock.
--Ramp:2 pcs of vein board.
--One unit of 7.5kw intake fan and one unit of 5.5kw exhaust fan.
--4m straight exhaust ducts,one 90° bend,and one 60°bend,5m straight chimney and 2 small bends.
--Spraying/baking transition damper,automatically air controlled.
--Heat exchanger:stainless steel.Riello G20 burner(Gas burner available).
--Roof filter:4 pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--2 pcs of floor filter and 1 pcs of outlet filter.
--Upper light :10sets,4*40W per set. Side light:8stes,2*40w.
--Control box:components is import,overload,overheat,phase-lacking protection,engine Y/△ start.
--Automatically stop when preset time is up.Constant temperature spraying.
--Environmental filter:either M style or drawer style active carbon equipment can be adopted.

Model	GL3-CE
External size(m)(LxWxH)	7.0×5.3×3.5
Internal size(m)(LxWxH)	6.9×3.9×2.7
Door width(m)	3.0
Door height(m)	2.66
Air flow ( m3/h)	24000
Inside on-load air speed(m/s)	0.3-0.35
Working temperature(ºC)	20-80
Exhaust type	Full-undershot,Bilateral,Semi-down,Unilaternal etc
Water-based paint device	As optional
Color	Orange Blue Red White or Client's Requirements
Power (kw)	16
Vehicle suited	Saloon car

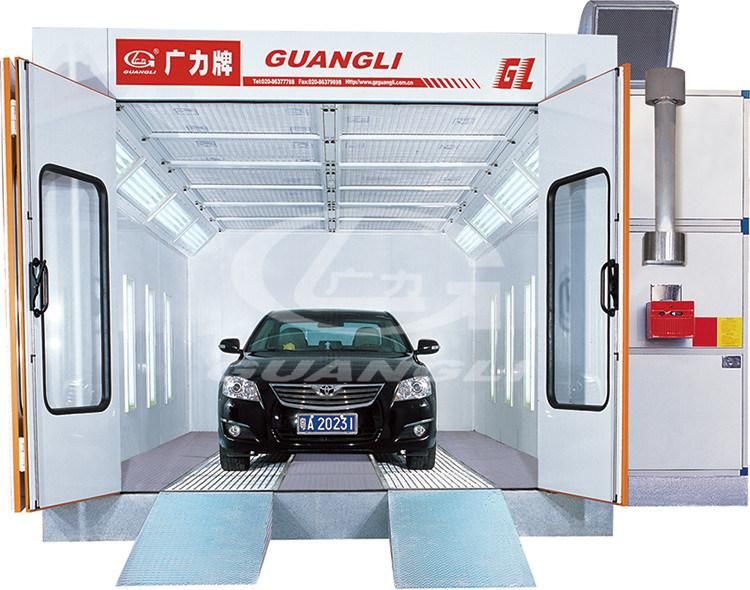

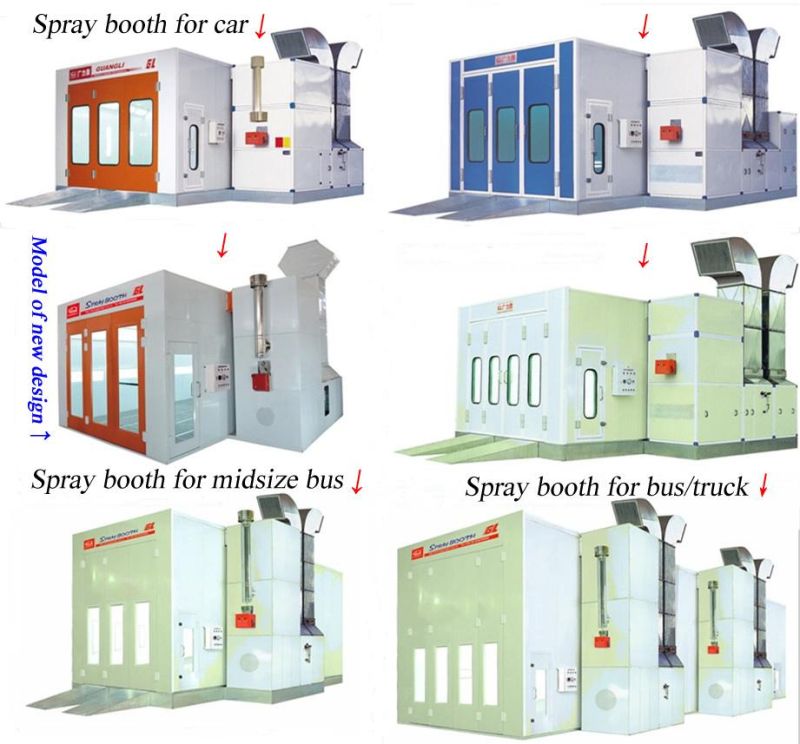

GuangLi Spray Booth Show

Real Case






Why Choose Us

1. More than 20-year experience in Spray booth and car lift field.
2. Superb unique technology and Automatic production line.
3. Large order can be placed.
4. Advanced equipment and exquisite workmanship.
5. Durable and reliable.
6. Excellent pre-sales and after-sales service.

Company Profile
GZ GUANGLI EFE Co., Ltd is the first and the largest auto spray booth manufacturer in China, having a good reputation among Chinese auto-maintenance enterprise. The sales volume of spray booth ranks top in this field over years.
GZ GUANGLI EFE Co., Ltd is professional spray booth and car lift manufacturer in China for more than 20 years technical and production experience. Founded in 1994, Guangli has our own enterprise headquarters and new factory, which covers 58, 000M² of grounding area and 36, 000M² of building area.
All our Spray booth, painting booths and car lifts have passed the CE certificate, CCS certificate and our company has passed ISO9001.
Our products have been used in many car manufacturers' and thought highly of: Guangzhou Honda,
Dongfeng Honda, FAW Toyota, Dongfeng Peugeot, Dongfeng Nissan, BMW South China etc.

Equipment
We adopted the most advanced plate flexible production line imported from Italy, which take the absolutly advantages in the Electromechanicl field, can be called as the pioneer in the sheet metal industrial.





FAQ
1. Q: Are you Manufacturer or Trading company?
A: We are a professional manufacturer with our own export department.
2. Q: Where is your company located? How can I visit there?
A: Our company is located in Guangzhou. All clients, from home and abroad, are warmly welcomed to visit us.
3. Q: How about the quality of the products?
A: With the advanced machines, strong and professional R&D team and material
Sources, our products are excellent in performance and craftsmanship.
4. Q: Can we customize our product?
A: Yes, you can. Customized material and standard are acceptable. We can provide
Different standards according to your market and favor.
5. Q: What's the MOQ for each items?
A: We accept one piece/set each time.
6. Q: What's the delivery time?
A: If the product you ordered is our standard configurations, it's 7 workdays. Warmly welcome to contact:
Sunnie Di
Tel: +86-20-86378972
Mobile: +8613925061383
Website: www. gzguangli. com
