• Model NO.：GL3-CE
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Door Width(M)：3.0
• Door Height(M)：2.66
• Air Flow (M3/H)：24000
• Lighting System：Upper Light and Side Light
• Filters：High Efficiency Filter
• Color：Red Blue Orange White
• Usage：Car Painting Baking
• Vehical Suited：Saloon Car
• Warranty：Yes
• Heating System：Riello Brand Diesel Burner,Gas Burner
• Transport Package：Iron Frame Packing and Carton Packing
• Specification：20GP
• Trademark：GUANGLI
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：10, 000 PCS,Year

Basic Info.

Model NO. GL3-CE Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Door Width(M) 3.0 Door Height(M) 2.66 Air Flow (M3/H) 24000 Lighting System Upper Light and Side Light Filters High Efficiency Filter Color Red Blue Orange White Usage Car Painting Baking Vehical Suited Saloon Car Warranty Yes Heating System Riello Brand Diesel Burner/Gas Burner Transport Package Iron Frame Packing and Carton Packing Specification 20GP Trademark GUANGLI Origin Guangzhou, China HS Code 8419899090 Production Capacity 10, 000 PCS/Year

Product Description

Professional Guangli CE and ISO Approved Durable Water Based Paint Car Spray Painting Booth (GL3-CE)Guangli Spray Booth Feature--Wall panel :sandwich style,δ=50mm,rock wool.(Polystyrene is optional)
--Basement:steel structure,3 rows of vein board and 2 rows of grids,full grids as optional.
--Door:3 pcs of front door without aluminum side cover.1 pcs of emergency door with pressure lock.
--Ramp: 2 pcs of vein board .
--One 7.5kw intake fan and one 5.5kw exhaust fan.
--4m straight exhaust ducts,one 90° bend,and one 60°bend,5m straight chimney and 2 small bends.
--Spraying/baking transition damper,automatically air controlled.
--Heat exchanger:stainless steel. Riello Diesael G20 Burner/Gas Burner.
--Roof filter:4 pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--2pcs of floor filter and 1pcs of outlet filter.
--Upper light:10sets,4*40w per set.side lights:8sets,2*40w.
--Control box:components is import,overload,overheat,phase-lacking protection,straight driven motor.
--Automatically stop when preset time is up.
--Constant temperature spraying.
--Environmental filter:the equipment can be adopted M style activated carbon or drawer style activated carbon as optional.

Model	GL3-CE
External size (m)	7.0x5.3x3.5
Internal size (m)	6.9x3.9x2.7
Entrance width(m)(LxWxH)	3.0
Entrance height(m)(LxWxH)	2.66
Fan capacity( m 3 /h )	24000
Air velocity (m/s)	0.3-0.35
Max Drying Temperature	60-80
Oil consumption (L/unit)	6-8
Water-based Paint Device	As optional
Power (kw)	16
Suitable Automobile Type	Saloon Car

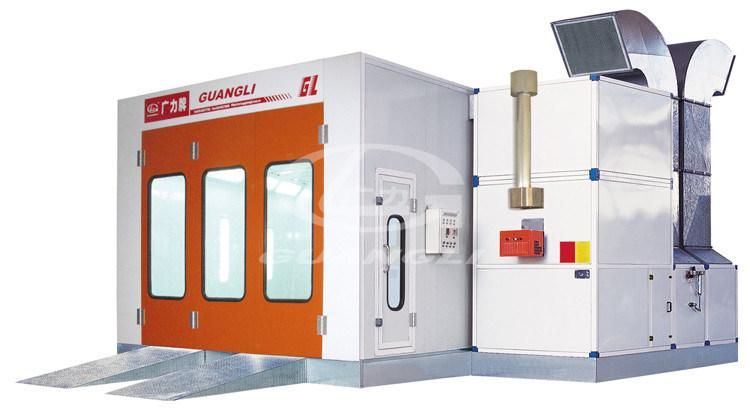

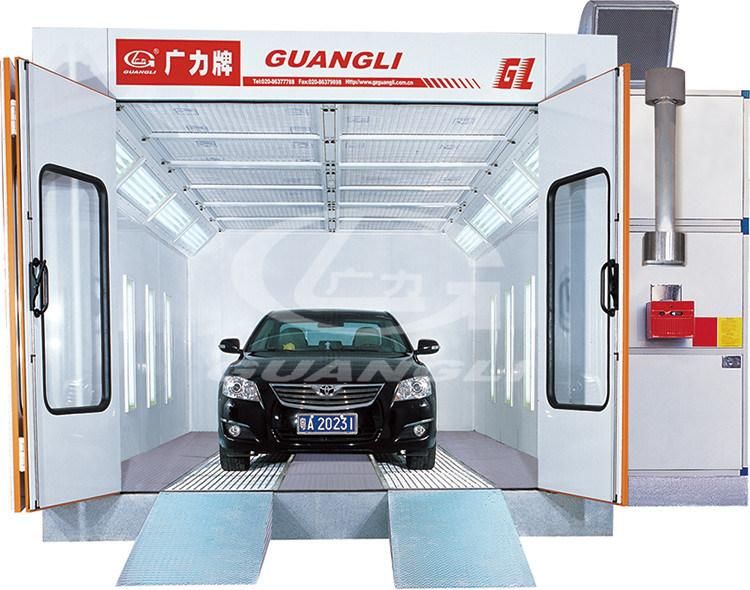

Guangli Spray Booth Show

Why Choose Us

1.More than 20-year experience in Spray booth and car lift field.

2.Superb unique technology and Automatic production line.

3.Large order can be placed.

4.Advanced equipment and exquisite workmanship.

5.Durable and reliable.

6.Good pre-sales and after-sales service.

Company Profile
GZ GUANGLI EFE CO.,LTD is a  professional spray booth and car lift manufacturer in China wtih  more than 22 years technical and production experience.

Founded in 1994, Guangli has our own enterprise headquarters,which covers 58,000M²of grounding area and 36,000M²of building area.

GZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China, having a good reputation among Chinese auto-maintenance enterprise. The sales volume of spray booth ranks top in this field over years.

Equipment

We have imported a Full-auto production line and many facilities from Europe, owning the most advanced production equipment in China.

Exhibitions



Service after the Sale

Our relationships with our customers don't stop once the product has been installed. Guangli offers many options for service and maintenance, and provides a full line of replacement parts and filters to ensure your products operate at peak efficiency.

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in Iron frame packing and Carton packing.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery
time depends on the items and the quantity of your order.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
