on-7214 Two Side Lock Realease 4 Ton Clear Floor Two-Post Car Lift with CE

Guangzhou EOunice Machinery Co., Ltd.
  • Type：Double Cylinder Hydraulic Lift
  • Lifting Capacity：4.5T
  • Driving Type：Hydraulic
  • Driving Motor Number of Mechanical Lift：1
  • Double Cylinder Lift Type：Clear Floor Hydraulic
  • Condition：New

Base Info

  • Model NO.：ON-7214
  • Brand：Eounice
  • Design：Two Post
  • Trademark：Eounice
  • Origin：Guangzhou China
  • HS Code：8425429000
  • Production Capacity：10000

Description

Basic Info.

Model NO. ON-7214 Brand Eounice Design Two Post Trademark Eounice Origin Guangzhou China HS Code 8425429000 Production Capacity 10000

Product Description

on-7214 Two Side Lock Realease 4 Ton Clear Floor Two-Post Car Lift with CE
FEATURES
  1. CE approval.
  2. 4,200Kg (9,300LBS.) lifting capacity.
  3. Dual-point lock release by manual and 24V low voltage operation.
  4. Durable chain drive cylinder in each column carries with anti-surge valves.
  5. Standard with 4 two-stage lifting arms.
  6. Screw-up rubber pads with min height 95mm (3 3/4").
  7. Standard with curtain inside column and foot guard.
  8. Standard with high limit switch.
  9. 1920mm (75 9/16") lifting height suitable for various operators.
  10. Overhead safety protection device.
  11. Automatic arms restraints.
Professional powder coating.

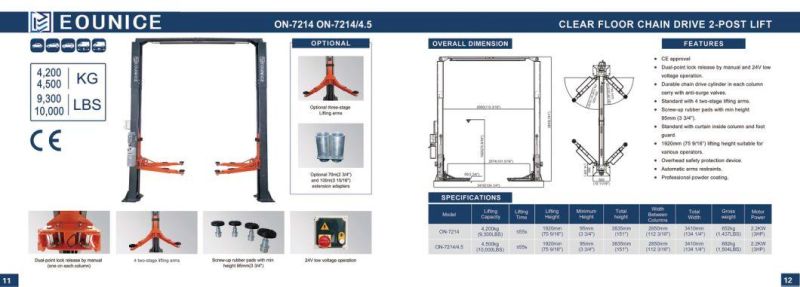

TECHNICAL DATA
ModelLifting CapacityLifting TimeLifting HeightMinimum HeightTotal HeightWidth Between ColumnsTotal WidthGross WeightMotor Power
ON-72144,200kgs (9,300LBS)≤55S1920mm (75 9/16")95mm   (3 3 /4")3835mm (151")2850mm (112 1/4")3410mm (134 1/4")652kgs (1,437LBS)2.2KW (3HP)


CERTIFICATIONS
on-7214 Two Side Lock Realease 4 Ton Clear Floor Two-Post Car Lift with CEEXHIBITION SHOW
on-7214 Two Side Lock Realease 4 Ton Clear Floor Two-Post Car Lift with CE

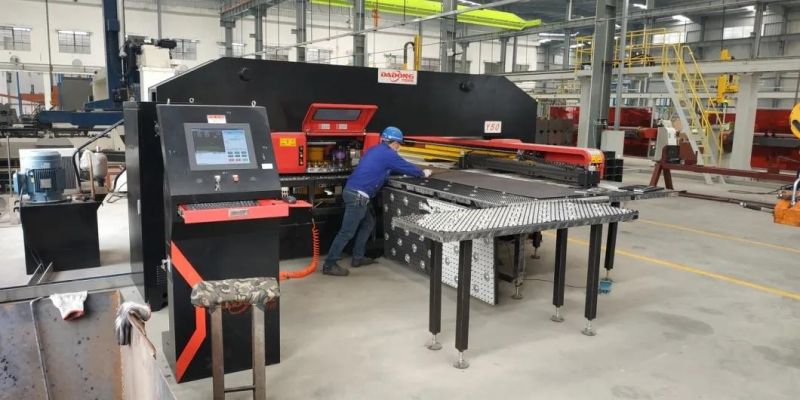

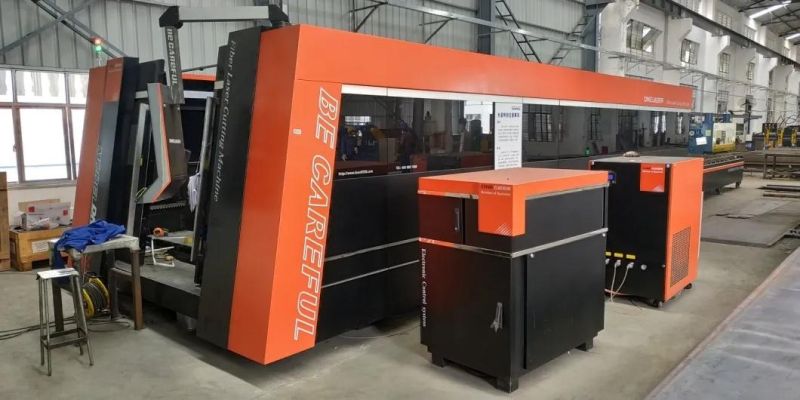

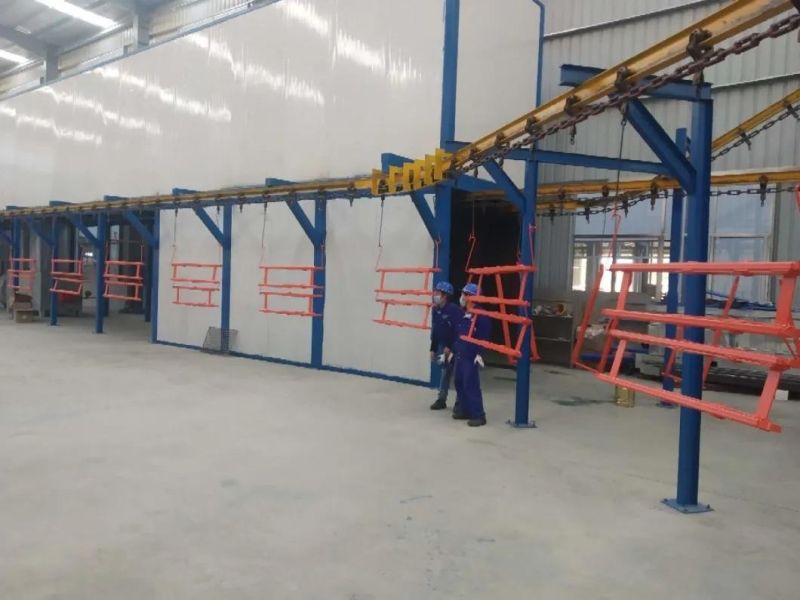

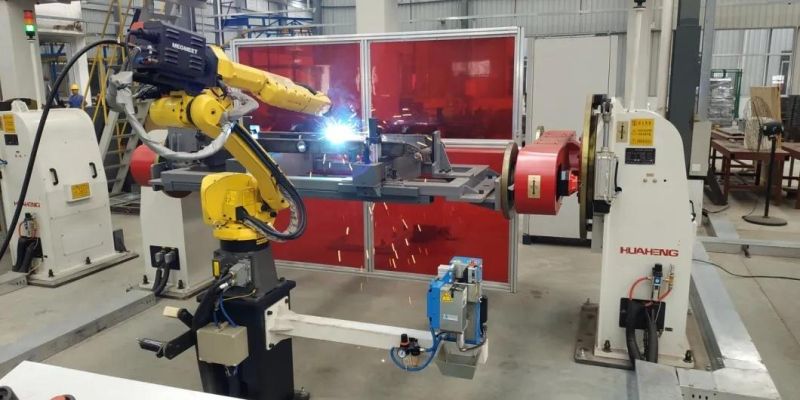

FACTORY PROCESSING AND TECHNOLOGIES
on-7214 Two Side Lock Realease 4 Ton Clear Floor Two-Post Car Lift with CEon-7214 Two Side Lock Realease 4 Ton Clear Floor Two-Post Car Lift with CEon-7214 Two Side Lock Realease 4 Ton Clear Floor Two-Post Car Lift with CEon-7214 Two Side Lock Realease 4 Ton Clear Floor Two-Post Car Lift with CE

Warranty:

 a. Steel structure warranty for five years.
 b. Hydraulic parts, electrical components, slider block,bronze bush, cable,etc warranty for one year.
 c. Consumption parts such as rubber pads etc.are not under warranty


OUR SERVICES

Our Company will Provide you some Services.
1. OEM ODM service.
2. Customized service.
3. Professional aftersales team consultant service for life long time.


FAQ

 Some buyers  may ask ?



A:You are a trading company or a factory?

A: We are a manufacturer and we have our own trade company. So pls don`t worry.



B: How long can our order be finished and delivered?

A:  Usually the lead time is within 30 days after receiving 30% deposit or L/C,



C: What is the regular color? Can I order special color which I like?

A: The regular color is Blue, Red, Yellow.

    Yes, we can also produce machines with special color according to client's request.



D: Can I order for any special size?

A:  Yes,you can.

    The size can be customized, but should be suitable for the inner size of containers.pls understand.
