• Model NO.：C400B
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Intake Fan：1*7.5kw
• Transport Package：Container Loading
• Specification：CE & ISO
• Trademark：Sunrise
• Origin：China
• HS Code：84178090
• Production Capacity：500 Per Year

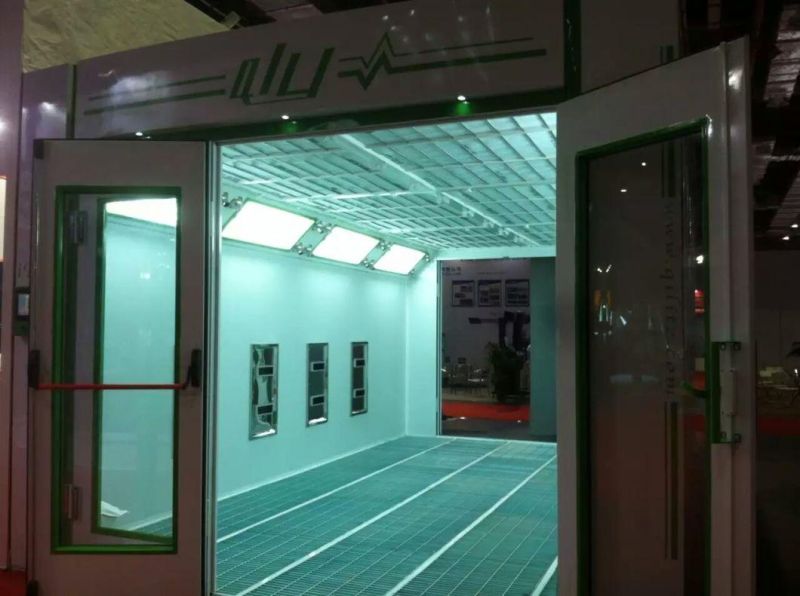

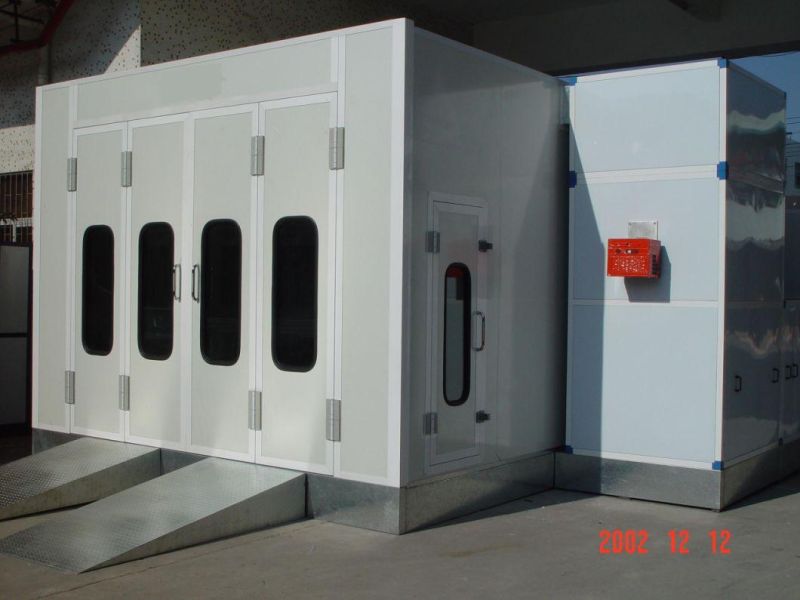

ModelC-400B (Orient-SR7-4B)   Booth DimensionInside:7000  x 4000 x  2800mm (L x W  x H)mmOutside:7000 x 4120  (5420) x 3600mm (L x W x H)mmBooth SystemEntrance Door:3-fold main entrance door, 3000 x 2700mmPersonnel Door:one personnel door, 800 x 2000mm (WXH)

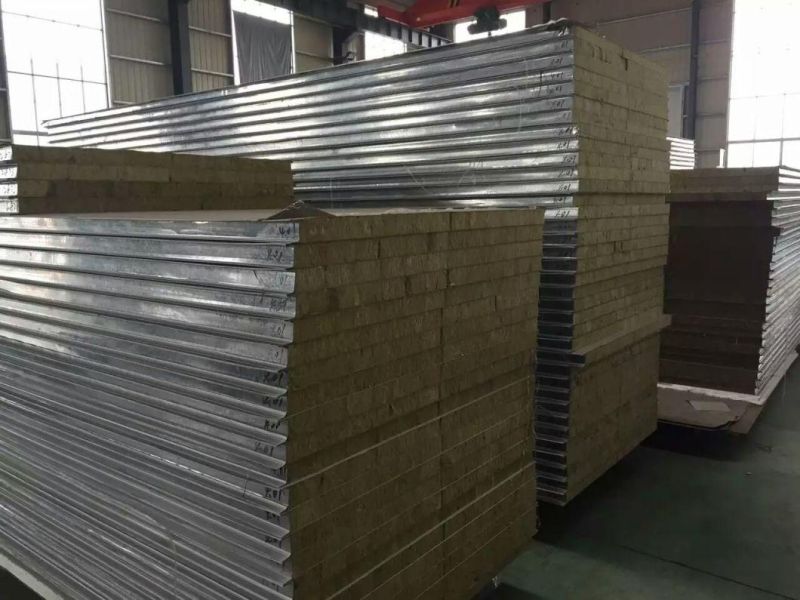

 with pressure latch and automatic door closerWall Panels:Pre-painted steel sheet,
double skinned with 60mm thick  polystyrene insulation  Roof Panels:Pre-painted steel sheet,
double skinned with 45mm thick  polystyrene insulationBasement & Floor:300mm high raised metal-base,

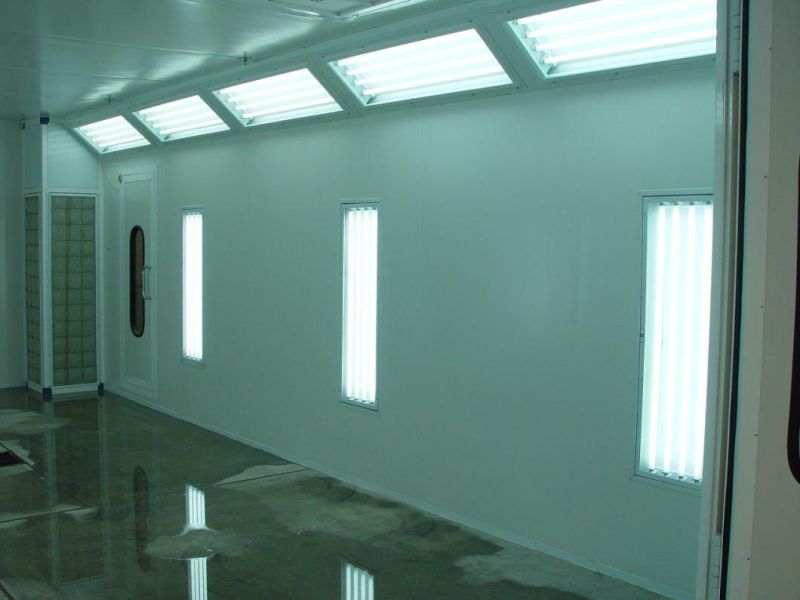

fully arranged grating floorRamps:4 drive in ramps (each 750x2000mm)LightingCeiling light:8 units upper inclined lights,

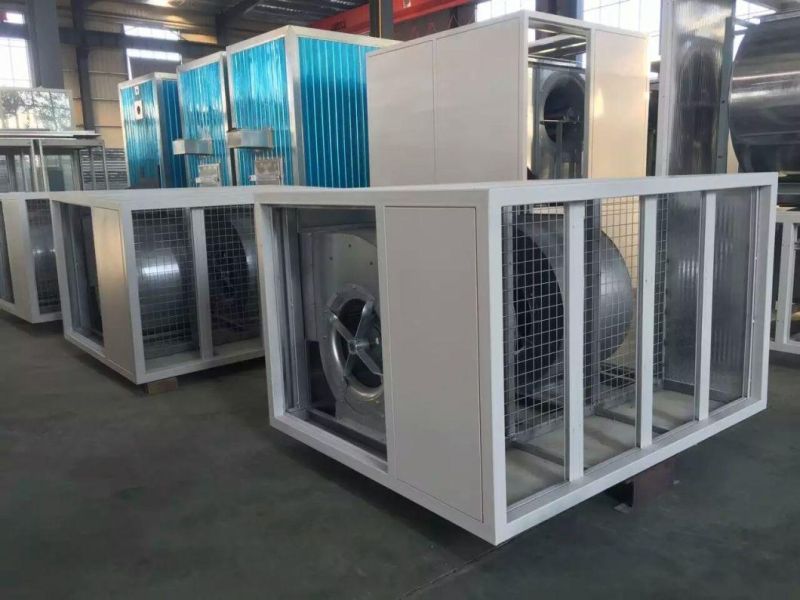

each with 4x36w light tubes.                            Side light:6 units 4x36w vertical side wall lights;    Air Makup UnitIntake:air capacity 25000cmh,

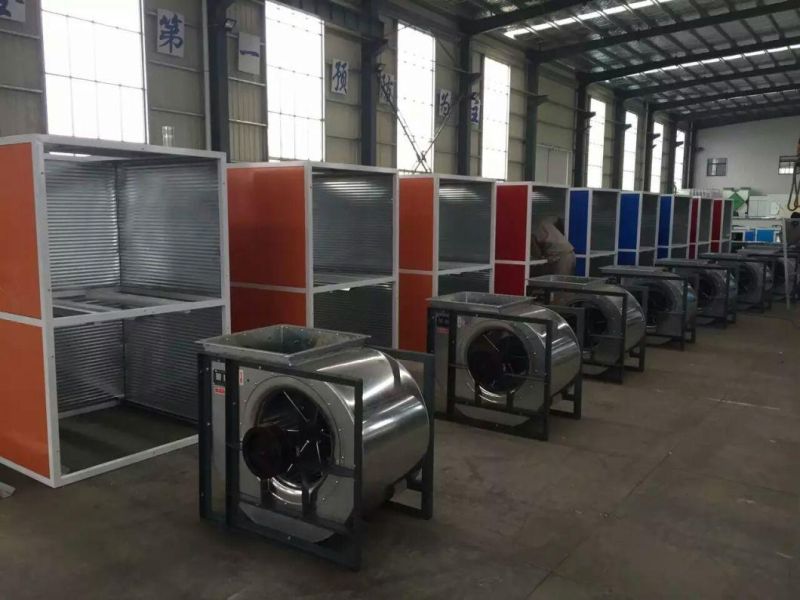

1 backward inclined turbo fan
direct drive, 1x7.5kw motor,                               Extract:air capacity 25000cmh,
direct drive, 1x7.5kw motor,
1 backward inclined turbo fan,      Structure:Aluminum frame structure, colored steel plateBy-pass:Pneumatic damper from spraying to baking cycleHeating SystemBurner:Famous Italy brand Riello RG5S  oil burner,                           capacity 260000Kcal/hHeat exchanger:High efficiency Stainless heat exchangerTemperature:80 degree working temperatureFilter System4 sorts of filters: Pre-filter, ceiling filter, floor paint-stop filter,
extract paint-stop filterControl SystemSwitched control box:digital temperature readout, spray and bake temperature settings, bake timer, spray and bake switch, automatic pressure gauge, hour meter, emergency stop, safety thermostat, failure alarm.

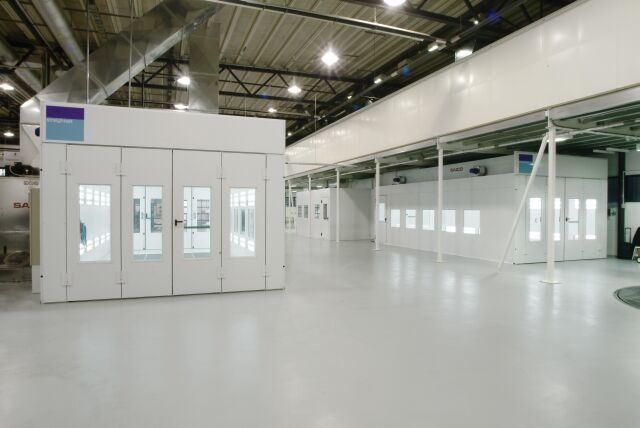

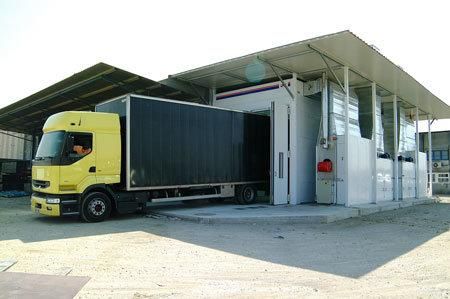

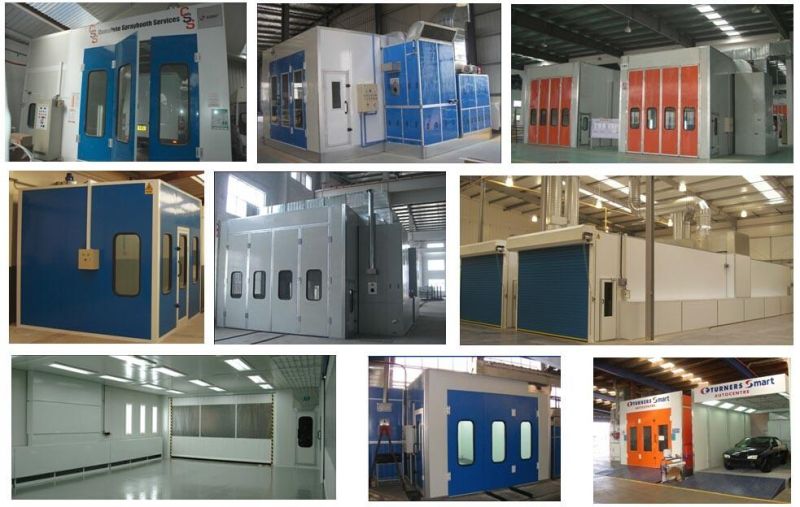

CASES:
