• Model NO.：Non-standard
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Inside Dimension：6900*3900*2650 mm
• Function：Baking and Painting
• Design：European Desgn
• Intake Unit：Turbo Fan
• Transport Package：Export Professional Package
• Specification：CE, SGS
• Trademark：Baoyues
• Origin：Guangdong, China
• HS Code：84198990
• Production Capacity：90 Sets,Month

Basic Info.

Model NO. Non-standard Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Inside Dimension 6900*3900*2650 mm Function Baking and Painting Design European Desgn Intake Unit Turbo Fan Transport Package Export Professional Package Specification CE, SGS Trademark Baoyues Origin Guangdong, China HS Code 84198990 Production Capacity 90 Sets/Month

Product Description

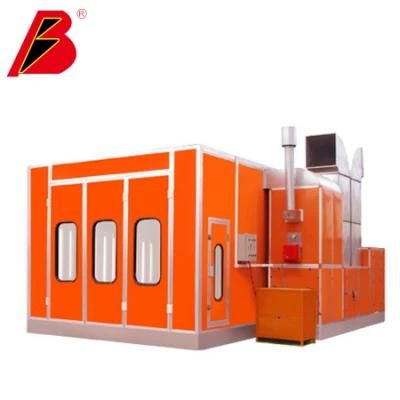

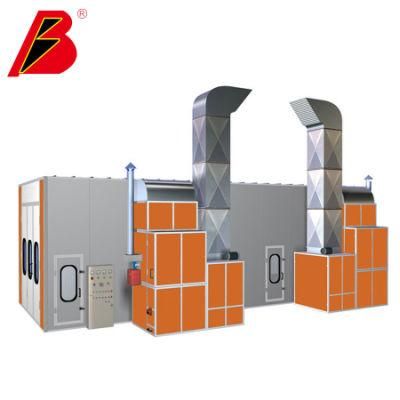

Economic spray booth for car painting and baking
1, CE approved, ISO 9000 safety control
2, Real export manufacture
3, Fibregalss filter
4, Car Paint Room
5, diesel burner and EPS panel


Detail show



Certificate


Customer

Inside Dimension	6900×3900×2650 mm(L×W×H)
Outside Dimension	7000×5250×3400 mm(L×W×H)
Front Door	3-folds, 3000×2600mm(W×H),without any frame, color: blue
Emergency Door	1 unit, 650×1800mm(W×H), color: white
Basement	Galvanized steel, 300mm high, 2 rows of grilles and 3 rows of indented plates, painted. 2 pcs ramps, 520×2000mm(W×L)
Wall Panels	Double skinned, 50mm thick EPS, 0.376mm color steel, tongue and groove interlock structure, width:1150mm, color: white
Light	Ceiling light: 8units×4pcs=32pcs×36W, with electronic ballast, illuminate≥700Lux Side light: Optional
Generator cabinet	Intake from rear side, exhaust from rear upper, quadrate steel frame, galvanized steel cover, with heat preservation material inside.
Intake and exhaust system	Inlet: 1 unit 7.5KW turbo fan, air capacity is 21000m3/h. Outlet: Optional

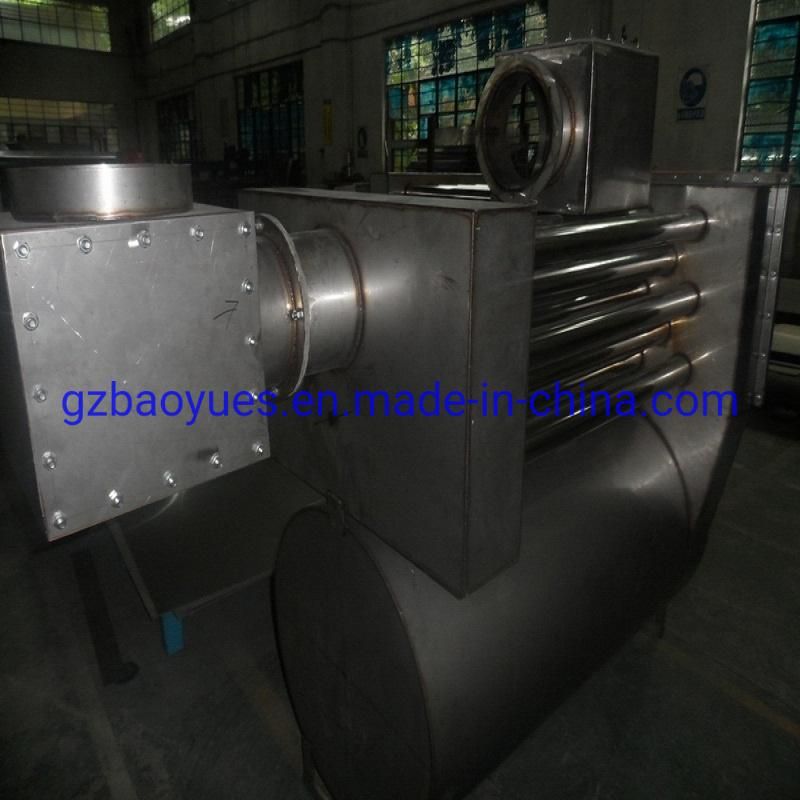

Heating system	BT18 diesel burner, heating productivity is 180000kcal/h, stainless steel heat exchanger, Max.working temperature is 80 degree, pneumatic damper for spraying to baking cycle.
Purification system	.Pre-filter, high efficiency filter (ceiling filter), floor filter (fiberglass filter).
Roof	Galvanized steel

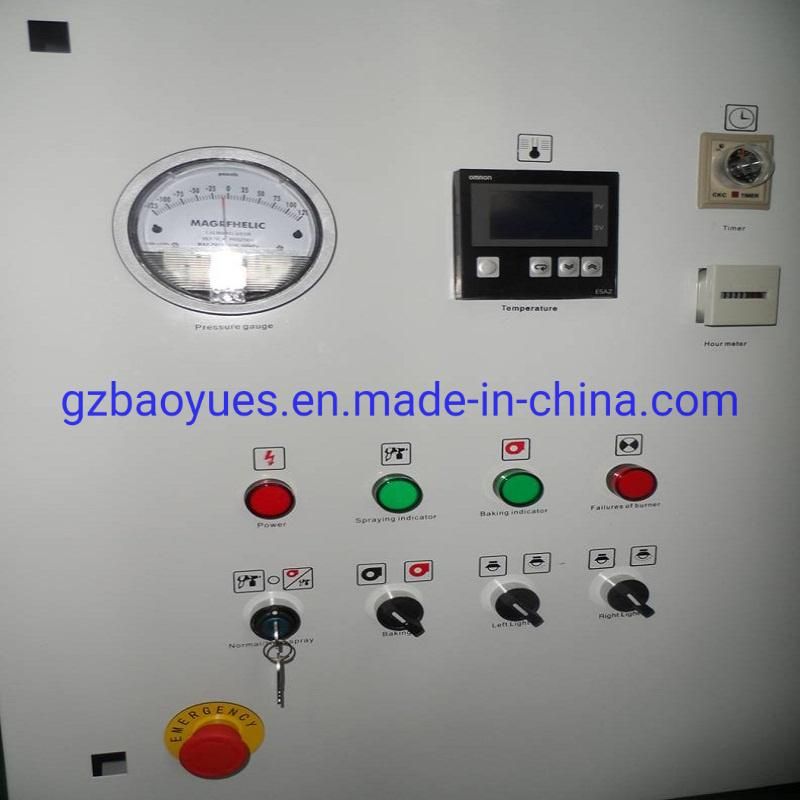

Control system	Spraying, heat spraying, baking, time setting, lighting switch, temperature controller, failure indicator, power supply.
Total power	9.5KW

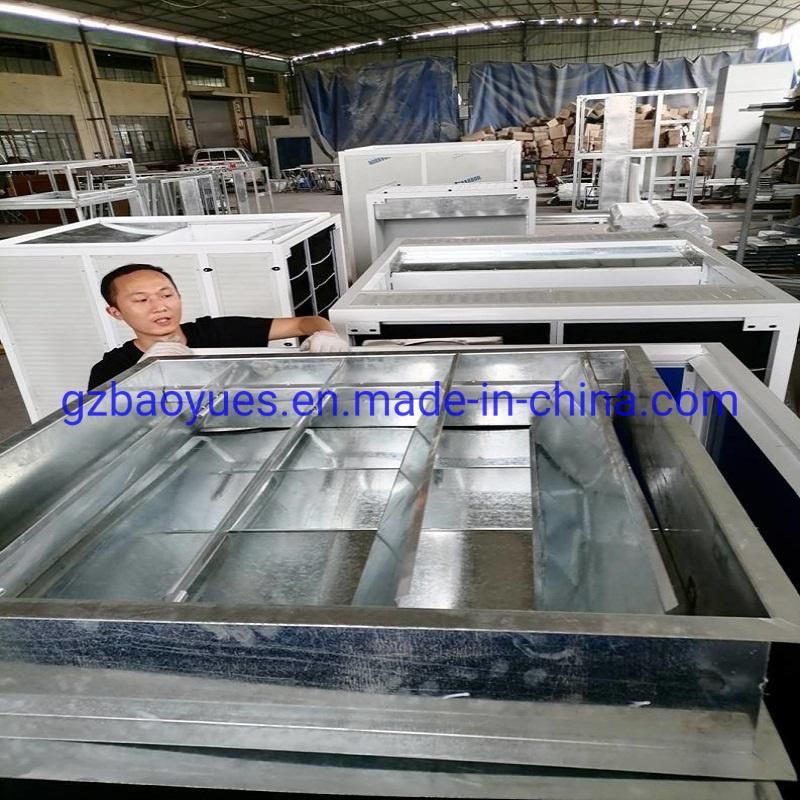

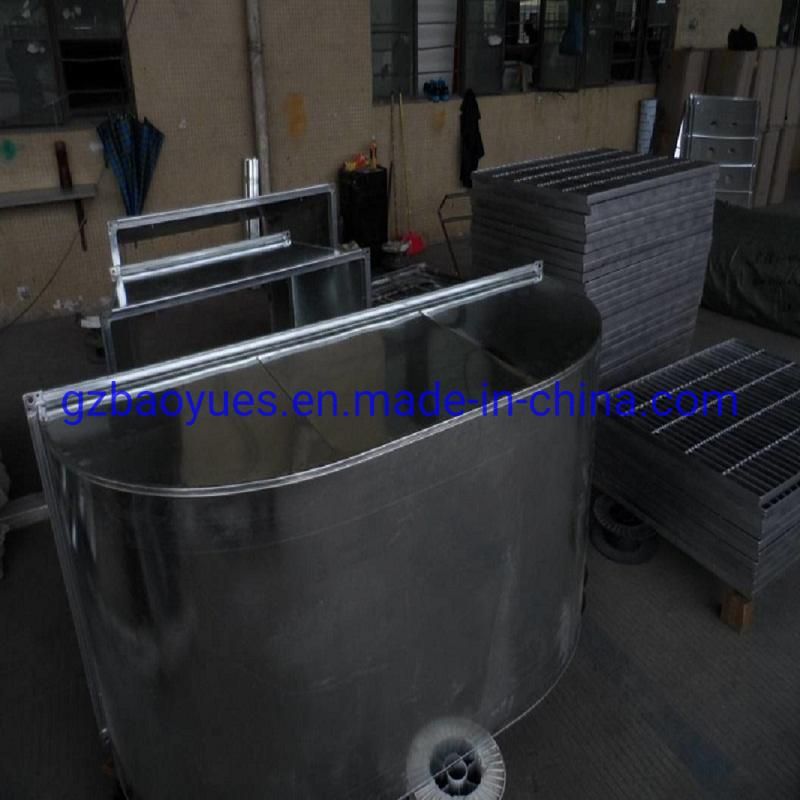

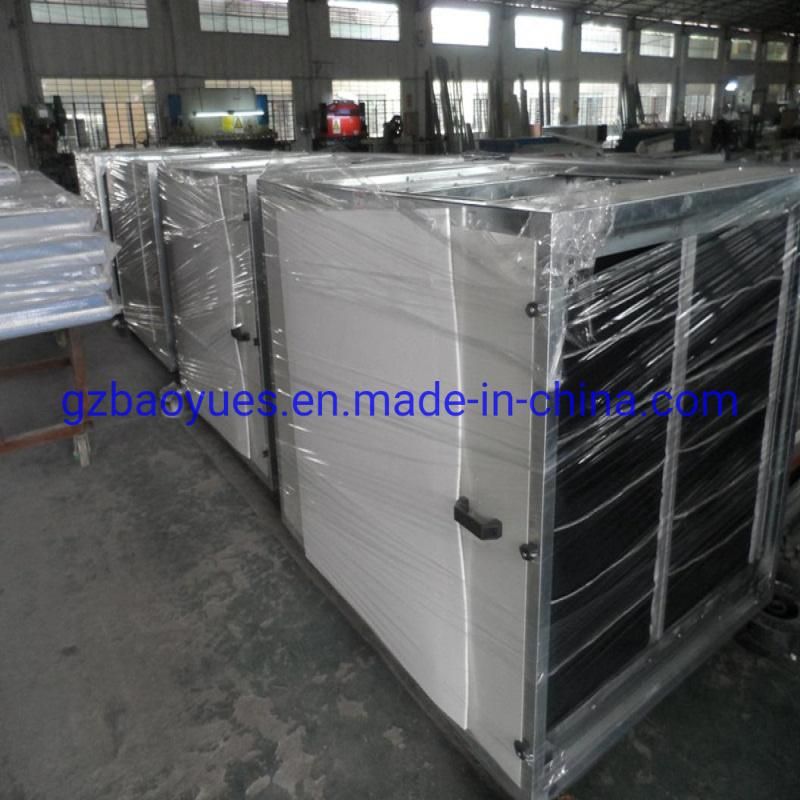

Parts details:

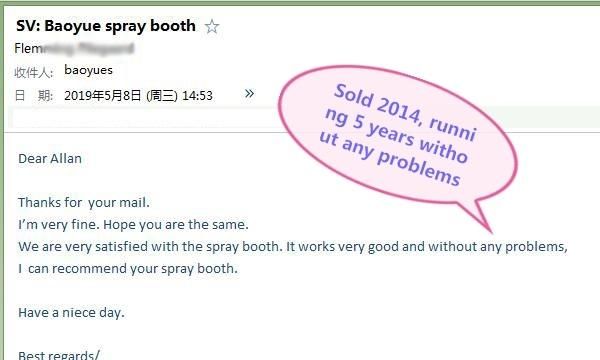

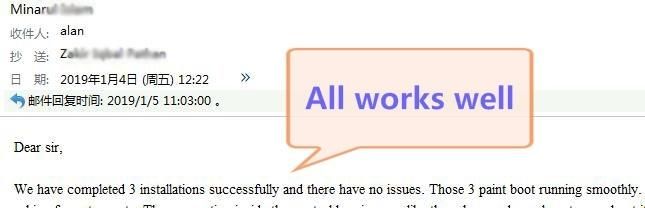

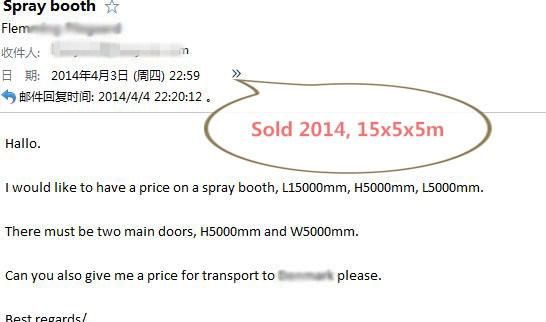

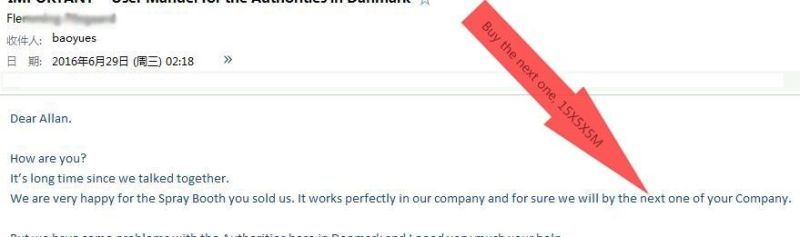

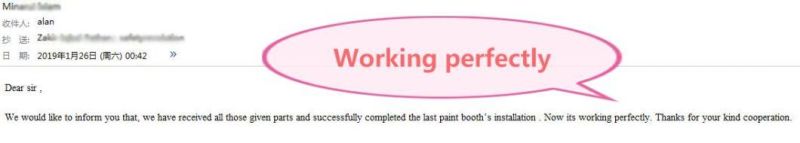

What customers saying:

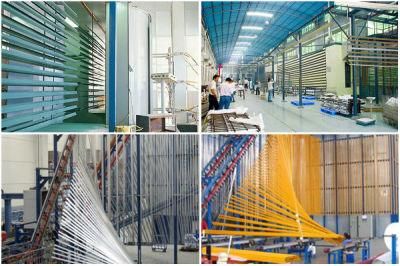

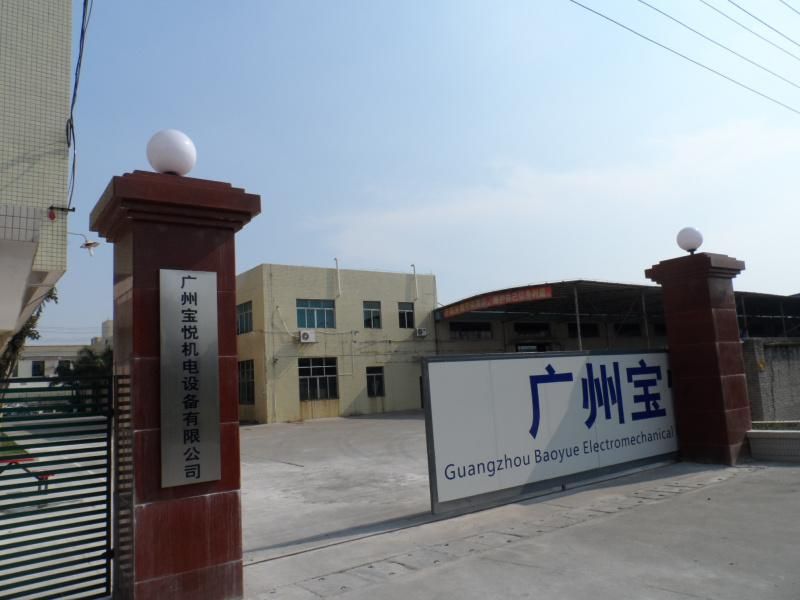

Factory show:
