• Model NO.：BY-15-5
• Brand：Baoyues
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Lights：LED
• Control System：Schneider
• Lift Platform：Move up and Down, Left and Right
• Transport Package：Standard Export Package
• Specification：CE, SGS
• Trademark：Baoyues
• Origin：China
• HS Code：84198990
• Production Capacity：90units,Month
• Package size per unit product：1500.00cm * 500.00cm * 500.00cm
• Gross weight per unit product：10000.000kg

Intake and exhaust
SystemInlet: 4×7.5KWturbo fan, direct drive, air capacity: 25000m 3 /h/fan, with 5m intake stacks. (CE motor, but not Siemens brand) (with electric damper)Outlet: 4×7.5KWturbo fan, direct drive, air capacity: 25000m 3 /h/fan, with 5m exhaust stacks. (CE motor, but not Siemens brand) (with electric damper)Heating systemRiello FS20 gas burner, stainless heat exchanger, pneumatic damper for spraying and baking cycle, heat productive 800000Kcal/h totally, Max temp: 80 degree.Purification systemPre-filter, high efficiency filter (ceiling filter), fiberglass filter, activated carbon filter (pocket)Roof50mm thick EPS heat preservation panels.Control systemSpraying, heating spraying, baking, baking time, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, time meter, ampere meter, voltmeter, temperature limiter, pressure gauge, delta start. (CE components, but not Siemens brand)Total power68KWNoteWith one set electric lift inside the booth (one unit on each side)

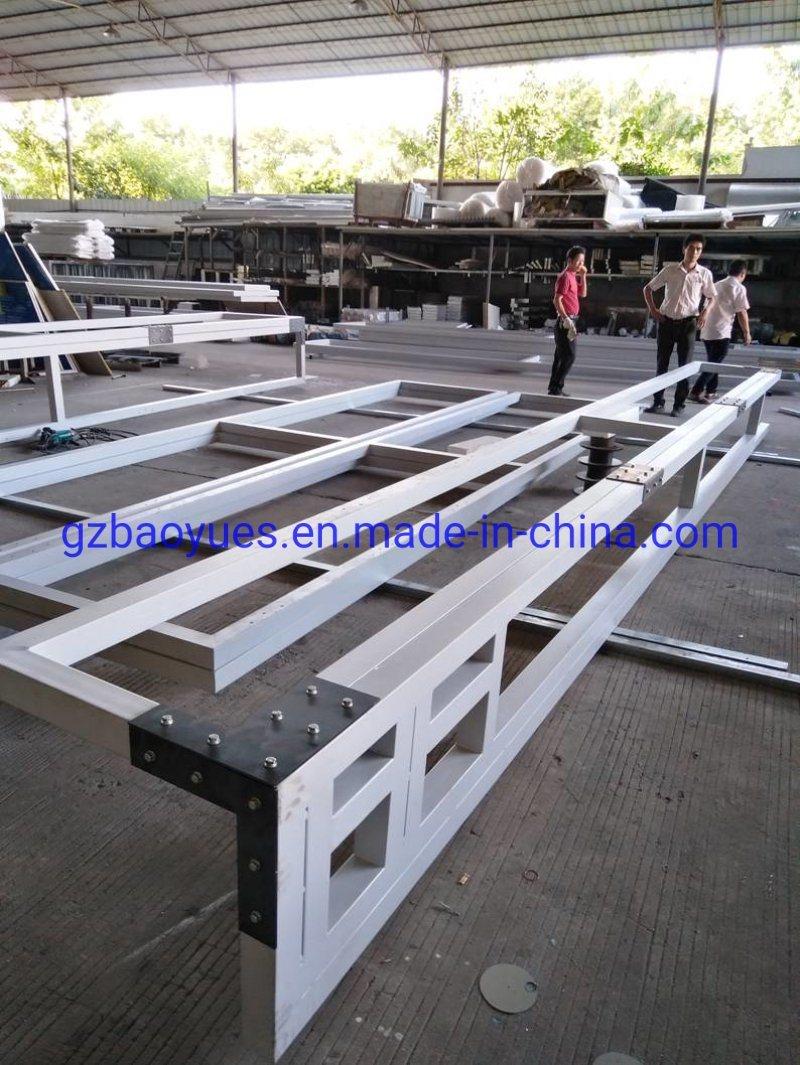

Parts details:

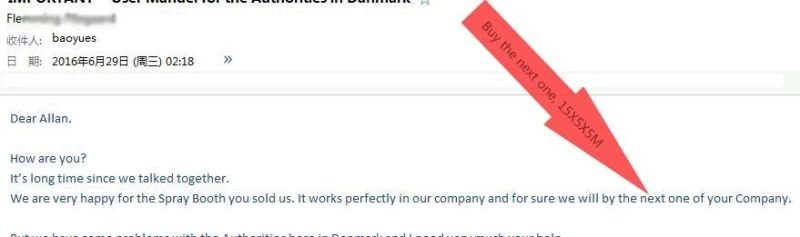

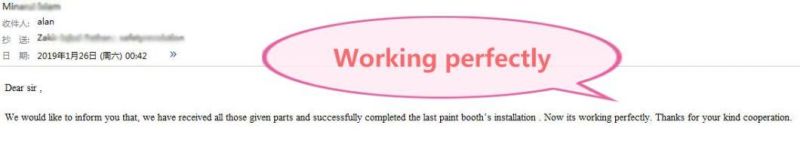

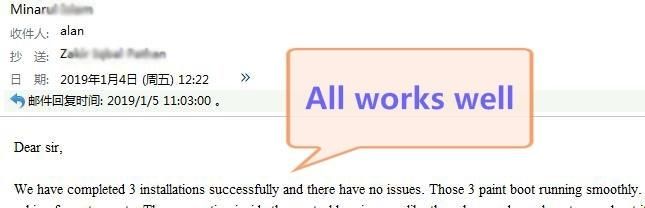

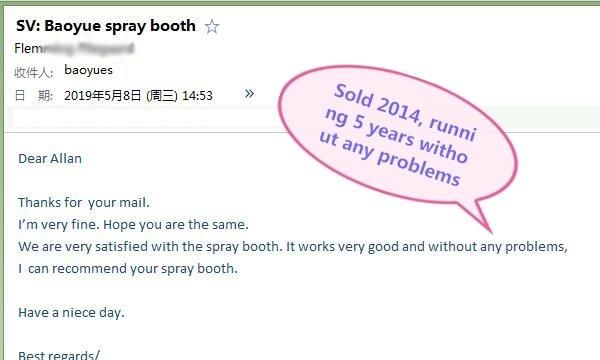

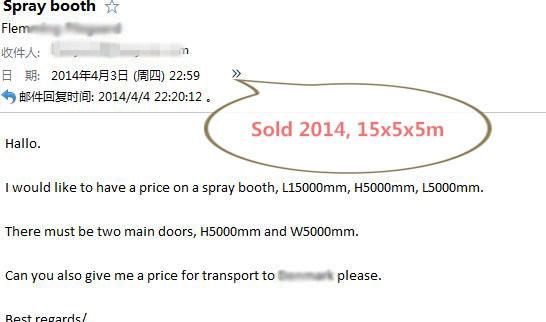

What customer saying:

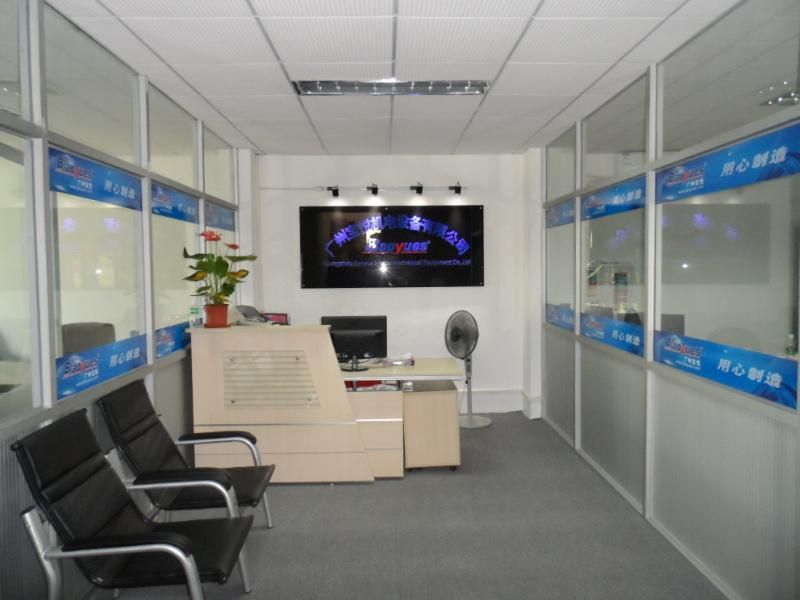

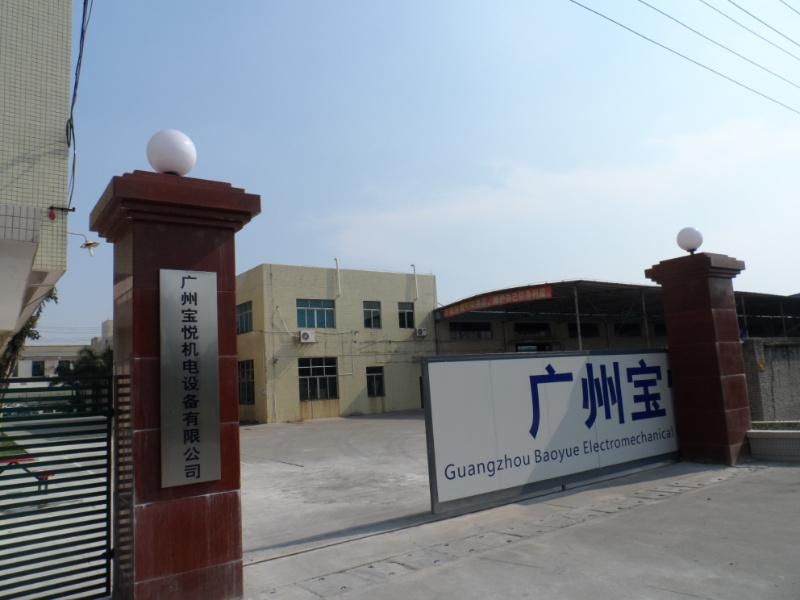

Factory show:
