• Model NO.：AWR32H
• Transport Package：Wooden Case
• Specification：CE, SGS
• Trademark：Crystal
• Origin：China
• HS Code：84581100
• Production Capacity：25 Sets,Month

Basic Info.

Model NO. AWR32H Transport Package Wooden Case Specification CE, SGS Trademark Crystal Origin China HS Code 84581100 Production Capacity 25 Sets/Month

Product Description

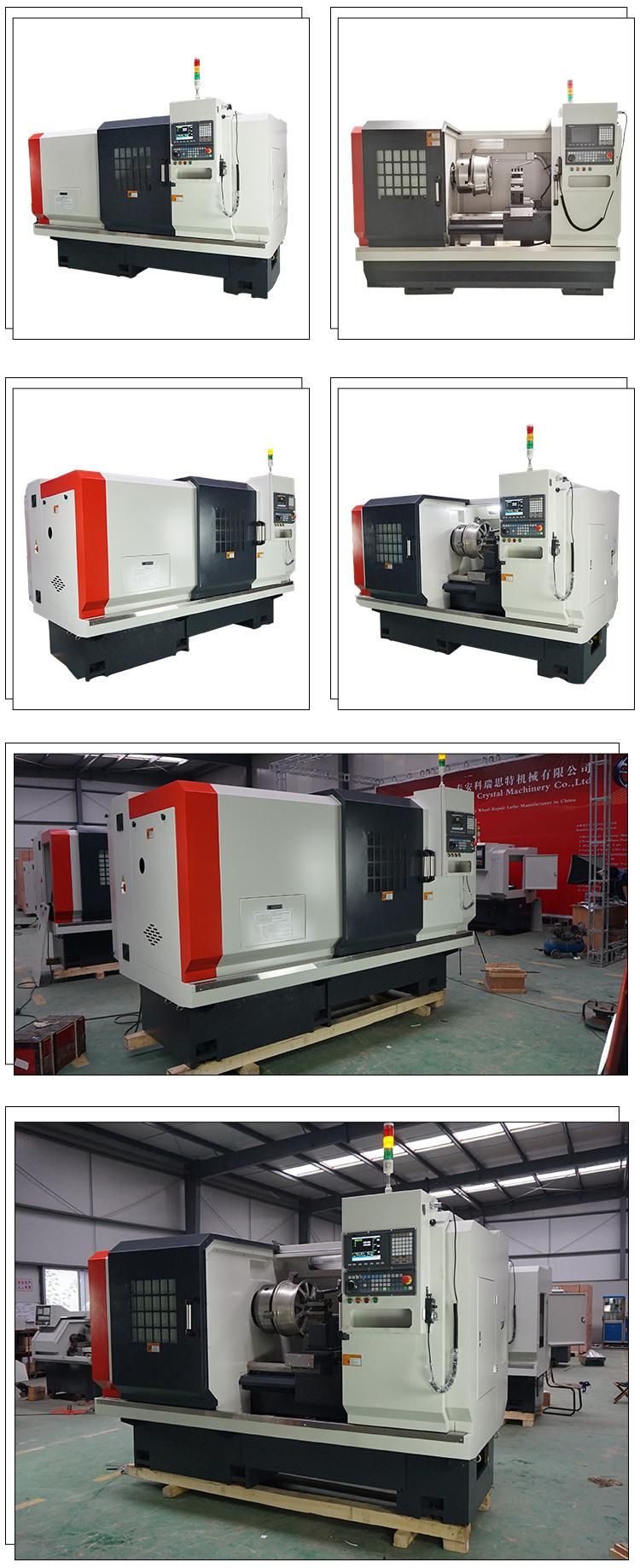

China Supplier Alloy Wheel Surface Repair CNC Lathe Machine AWR32H

Specification:

lSupply repairing Alloy wheel up to Max 32'
lAutomated self plotting Digitization by Probe System
lEasy Operate
lCE Certification
lFree Training video

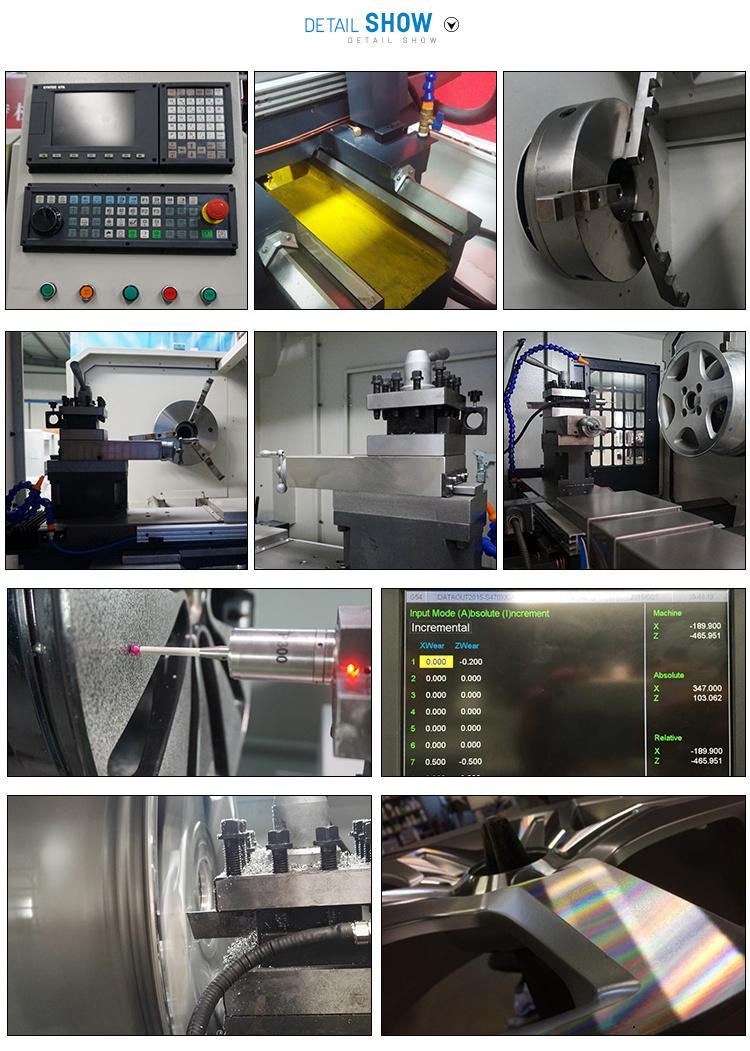

Standard Configuration:

lSYNTEC CNC control system
lPioneer Sensing Probe
l3-Jaws Chuck(With Special Soft Jaws)
lDiamond Cutter 1 set
lAutomatic electronic pump lubrication
lSpecific Digital Optimization Software
lManual Quick Change Toolpost,Four-station


ITEMS	Specifications
Max. swing over bed	Φ880(34')
Max. Size of alloy wheel	Φ820(32')
Adjustable stroke of carrier in X direction	100mm
Cross slide travel (mm)	450
Width of the machine	400
Length of the rail	1650
Size of three-jaw chuck	16'
Range of spindle speed	50~1800
Spindle speed control	Automatic
Spindle bore	Φ82
Taper of spindle bore	1:20(Φ90)
Stations of tool carrier	4 Station
Max. size of tool post	25×25mm
Min. setting unit of motor	(Z) long  0.001mm, (X) cross  0.001mm
Moving speed of post	(Z) long   8 m/min, (X) cross  6 m/min
Machine base (cast iron base)	Separate
Motor power	7.5KW
Machine size	2970×1660×2080
Packing size(length ×width ×height)	3120×1810×2350
Net weight	3200kgs
