• Model NO.：NT919
• Delivering Method：Sea Shipping
• Production Time：20-25 Working Days
• Gurantee：One Year of Free Maintenance for Overall Unit, EQ
• Advantage：Includes Two Monitor Screens and Two Sets Software
• Function：6PCS Injectors Could Be Tested at The Same Time.
• Bip Function：Cam Box Could Includes Bip Sensor
• Transport Package：Plywood Box
• Specification：230CM*130CM*204CM; 1700kgs
• Trademark：NANT
• Origin：China
• HS Code：9031200090
• Production Capacity：1000 Sets,Year

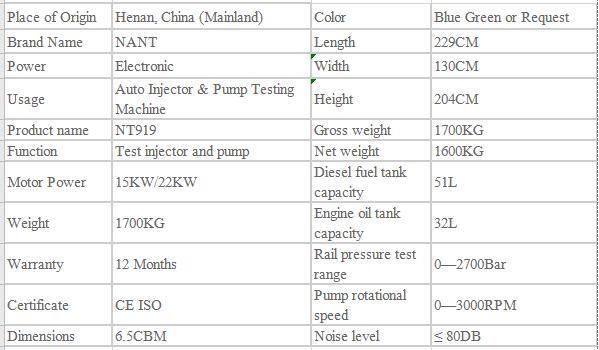

Basic Info.

Model NO. NT919 Delivering Method Sea Shipping Production Time 20-25 Working Days Gurantee One Year of Free Maintenance for Overall Unit, EQ Advantage Includes Two Monitor Screens and Two Sets Software Function 6PCS Injectors Could Be Tested at The Same Time. Bip Function Cam Box Could Includes Bip Sensor Transport Package Plywood Box Specification 230CM*130CM*204CM; 1700kgs Trademark NANT Origin China HS Code 9031200090 Production Capacity 1000 Sets/Year

Product Description

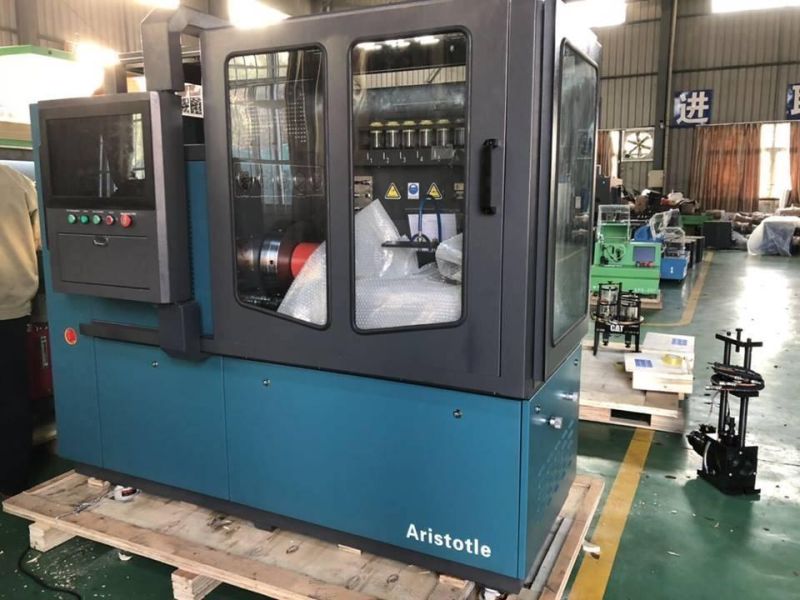

NT919 is practical and innovative design. The operating room workbench is designed as a widened and elongated flat workbench from the original Euro II workbench raised from the air, which completely solves the vibration and noise in the working process of the equipment, increases the stability of the equipment, and ensures The accuracy and repeatability of the test results are improved.

Functions and features:
Automatically test various solenoid valve injectors and piezoelectric injectors.
Automatically test all common rail pumps and HEUI driven pumps.
Automatically test CAT pump and TICSRES4 pump.
Automatically test the performance of the injector solenoid valve.
Automatically test the voltage-current curve of the injector.
Automatically test VP37 and VE37, VP44 pumps
Automatically test the unit pump and pump nozzle series.

Automatically test Bosch, CAT, CUMMINS, DDC, Delphi, Mercedes-Benz, Volvo EUI/EUP and dual valve E3, CUMMINS ISX and other special products, and have a fuel injection response time (BIP) test function, which can quickly and accurately Judge the overall performance of EUI EUP.
Automatically test Denso dual magnetoelectric sensor HPO pump and single magnetoelectric Hall sensor Denso pump, etc.
Automatically test C7/C9/C-9, C3126/3408, Ford power stroke 60L and other medium voltage products.

Main configuration:
NT-919G full-function common rail test bench adopts industrial capacitive touch screen and rotary operation interface.
Use movable sliding doors and side doors. The double door design makes the working space more convenient.
Use movable casters, which can rotate 360 degrees freely.
Wireless network card provides remote technical services
Use Bosch original CP3.3 new oil pump
With test voltage monitor
Industrial air conditioner, dual temperature control stainless steel tank, automatic temperature control system, control the oil temperature at 40±2ºC.
Equipped with original BOSCH original DRV and ZME, German BOSCH EPS815 special temperature control rail pipe, rail pressure is controlled at ±0.5Mpa, temperature control rail pipe, rail pressure range is 0-250Mpa.
Equipped with four German high-precision flow sensors. Test fuel injection, pump supply, pump oil return, and engine oil injection. The flow range is 0.00~4L/min, and the test accuracy is 0.3%.
The main motor is 15kW/18.5kW/22kW, which can provide different power sources for different countries and markets.

System advantages:
Embedded industrial computer system: high-speed operation, high test accuracy and retest accuracy
The original Bosch test bench database can set the current curve. The test accuracy is similar to the world's leading test bench.
The equipment has high reliability and stable performance. Small noise and no vibration
Including Chinese, English, German, Spanish, French, Russian and Portuguese operation interface, suitable for global use.

NT-919G full-function test bench has three unique functions:
1. QR code of Bosch, Siemens, Denso, Delphi;
2. Fuel injection should be tested for time;
3. Delphi E3 and Cummins ISX series test.
It not only helps to improve the accuracy of maintenance, but also provides a higher standard for the inspection and remanufacturing of fuel injector related parts.

Flat work surface
The operating room workbench is innovatively designed from the original Euro II workbench raised from the suspension to a widened and elongated flat workbench, which completely solves the vibration and noise during the working process of the equipment, increases the stability of the equipment, and ensures the accuracy of the test results Degree and good repeatability. The enlarged work surface makes the commonly used work platform immobilized, which changes the repeated disassembly and assembly of equipment during work, and greatly improves the timeliness of work during maintenance.

Dual display, dual system
Using dual oil circuits, dual systems, and multi-motor drives, the high-pressure common rail, medium-pressure common rail, unit pump and pump nozzles are all clamped and fixed in the operating room at the same time. Two independent system operation displays are innovatively designed. Exclusive dual-system synchronization test.

Parts query system
The system has a built-in professional maintenance technical data query system to provide customers with digital technical support for maintenance vehicles

Auto repair and auto parts management system
The built-in auto parts auto repair management software provides soft power support for customers' store operations, with more favorable prices and visible benefits.
