• Model NO.：TK228
• GSM Frequencies：Quad-Band
• Voltage：6V-36VDC
• Offline Data Logger：4MB
• Back-up Battery：250mAh
• Arm/Disarm：Auto
• Bluetooth：Yes
• Anti-Tamper：Yes
• RFID：2.4G
• Wireless Immobilzer：Cut off Engine
• Design：Plug&Play
• Transport Package：Neutral Package
• Specification：5.4*5.1*2.8cm
• Trademark：TOPTEN
• Origin：Guangdong, China
• HS Code：8512301200
• Production Capacity：6000PCS,Month

Basic Info.

Model NO. TK228 GSM Frequencies Quad-Band Voltage 6V-36VDC Offline Data Logger 4MB Back-up Battery 250mAh Arm/Disarm Auto Bluetooth Yes Anti-Tamper Yes RFID 2.4G Wireless Immobilzer Cut off Engine Design Plug&Play Transport Package Neutral Package Specification 5.4*5.1*2.8cm Trademark TOPTEN Origin Guangdong, China HS Code 8512301200 Production Capacity 6000PCS/Month

Product Description

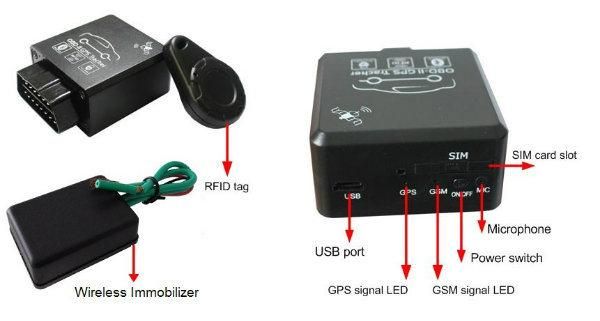

TK228 Plug & Play OBD GPS Tracker is lastest design of 2015.
It's the integration of OBD GPS tracker, RFID Car Alarm, and Bluetooth Diagnostics.



Features& Functions

1. Plug & play design with OBD-II connector, compatible with vehicles with OBD-II connector,
2. It is the integration of GPS tracker + RFID Car alarm + Bluetooth Diagnostics;
3. Arm/disarm by SMS/phone call, or by 2.4G RFID tag automatically;
4. Check the real physical address (such as city name, street name.) directly;

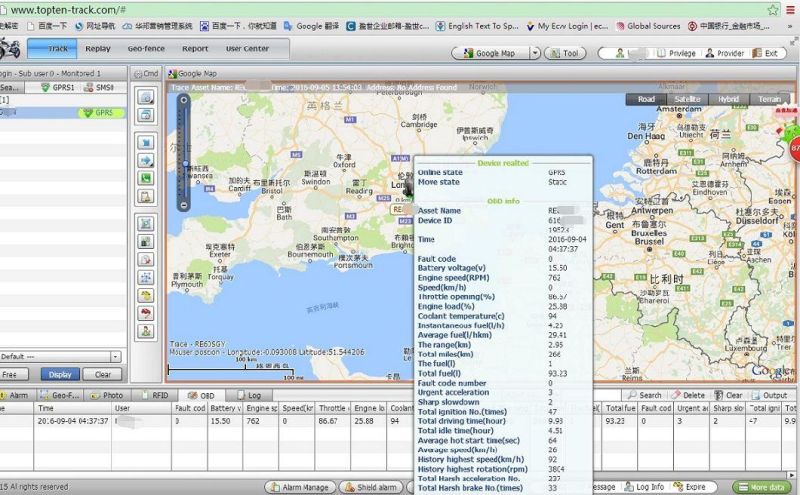

5. Track by SMS/website to get the latitude, longitude, speed, direction & odometer etc.;
6. Movement alarm, Over-speed alarm, Geo-fence alarm;
7. Engine on alarm, power failure alarm, vibration alarm;
8. Anti-tamper alarm, once RFID tag is away, if the device is taken out, it will trigger this alarm;
9. Built-in shock sensor for power saving & triggering vibration alarm;
10. Monitor the voice;
11. Supports 2.4G long-distance contactless RFID ID identification function(optional);
12. Keyless RFID car alarm function(optional);
13. Accurate odometer reading directly via CAN-BUS;
14. Data logger 8Mb for offline GPS waypoint;
15. Industrial design, suitable for extremely harsh condition of work;

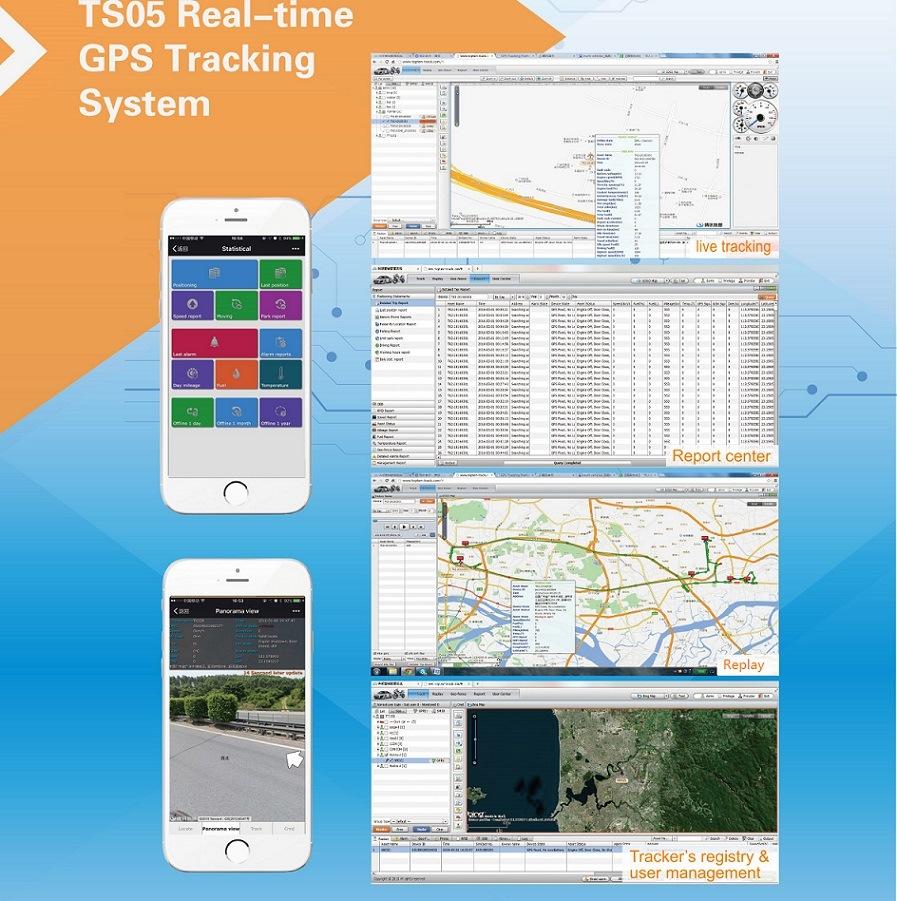

16. With IOS APP and Android APP for tracking;
17. Work with wireless immobilizer to cut off engine and send alarms

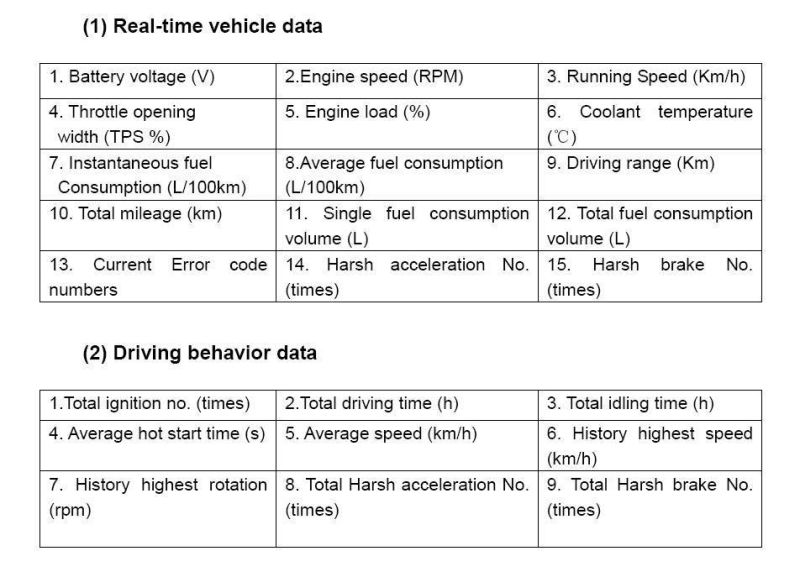

18. Transmission of the following data via blue-tooth or GPRS:
