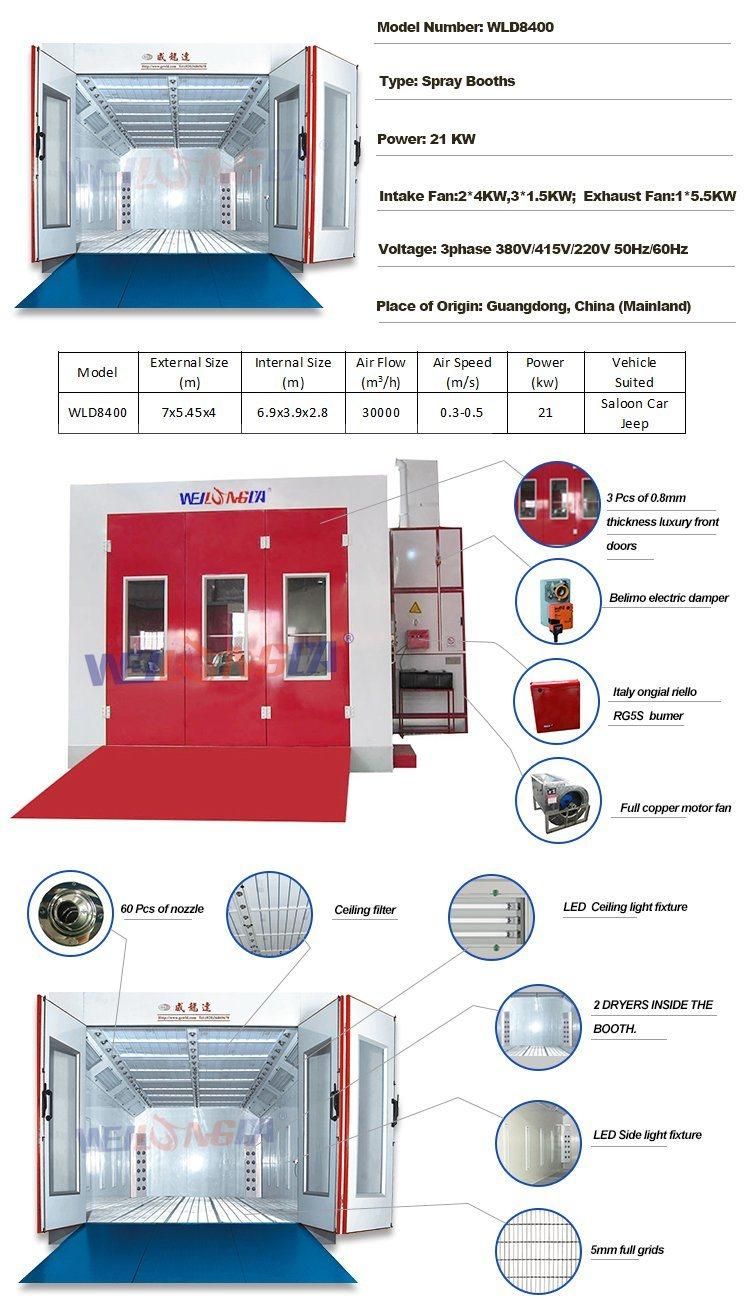

• Model NO.：WLD8400
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Internal Size：6.9X3.9X2.8m
• External Size：7X5.45X4
• Air Flow：30000m³,H
• Air Speed：0.3~0.5m,S
• Power：21kw
• Transport Package：Export Standard
• Specification：Standard Type
• Trademark：WeiLongDa
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：2, 000 PCS,Year

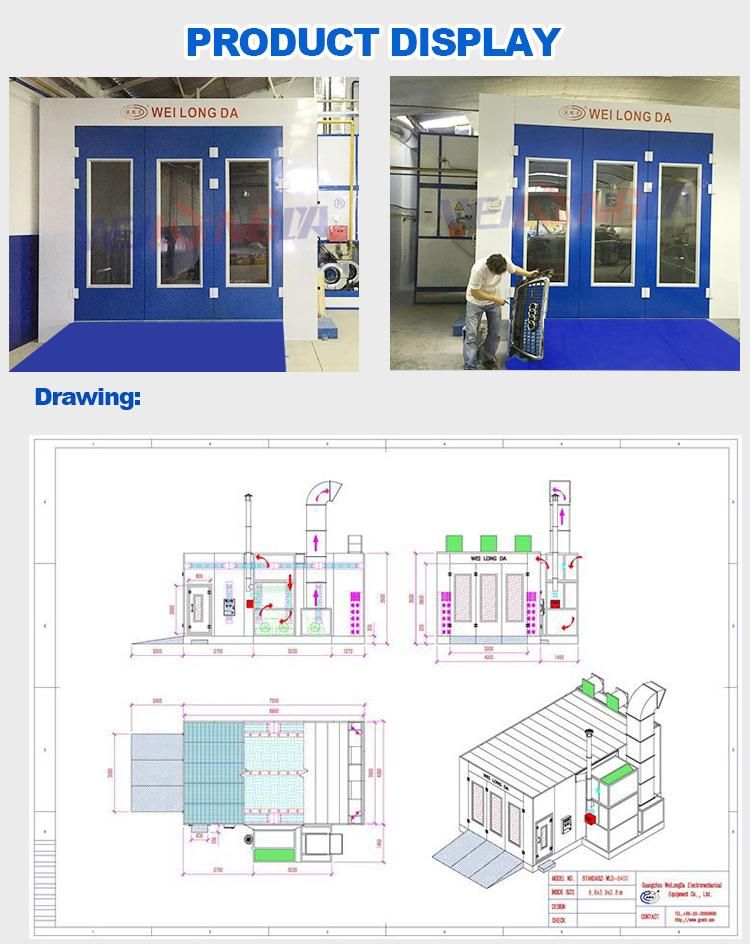

External Size:(mm)     7000x5450x4000Front Door:(mm)
Aluminum Frame3000(w)x2750(h)Internal Size:(mm)6900x3900x2800Total Power:(kw)           21    Cabin      System     WallboardFire-retardant composite molding Sandwich style EPS (epispastics polystyrene) (Rock wool and PU are optional )50mm thickness, EPS foam Density is 14kg/m³ ; The Colorful steel skin boards have been HDG(hot dip galvanizing),service life can reach 20 years without rusting. It keeps high insulation performance. Four colors for your choice, including blue, red, orange and white. High quality galvanized steel roof panel.
      Basement300mm powder coated galvanized steel sheet and square steel pipe construction.Full grids, antirust and strong. The bearing capacity of driving grids up to 1000 kg per wheel; Basement frame is assembly formed by antirust steel square tube, the overall performance is good and strong. Powder coated full ramps.          Door3 pieces of aluminum front doors. Size: 3000(w)*2750(h). 1 piece of emergency door.       Air Circulation   System           Intake Fan2x4kw intake fan. BELIMO 20N electric damper. Siemens technology production, large air volume and low noise. Air flow: 24,000m3/h. The wire core of our fans is full cooper so our fans are very durable.    Exhaust Fan1x5.5kw exhaust fan. Multi-layer fiberglass filter. Siemens technology production, large air volume and low noise. Air flow: 15,500m3/h.        Air PipeMade of Galvanized steel sheet consisted of 4 pieces of straight pipe750*750*1000, and 1piece of elbow.   Water based           system60 units ceiling nozzles with 3 sets of centrifugal fans and 2 sets of dryers inside the booth for drying Water Based Paint. Air Flow: 30,000m3/h. Air Speed: 0.3-0.5m/s.       FilteringMultilayer filtering structure. The primary filter can capture granules larger than10μm. Ceiling filter capture granules bigger than 5μm. The floor filter and filter under exhaust fan can capture paint and dust emission when painting. The air cleanliness in the working environment can reach 98%.  Heating     System             BurnerOriginal Italy Riello RG5S diesel burner, 260000Kcal/h. The heating time 4-5min(20-60°C) Max. temperature at 80°C. Fuel consumption is 4-5kg/ vehicle. Heat ExchangerTwo layers. Made of stainless steel. The heat exchange rate can reach 85%.Two layers to make our heating system safer and get higher heat exchange rate. What is more, we make two wings to make the temperature rise more quickly and save energy.        Air make up             cabinetThe surface plate is powder coated galvanized plate, antirust, strong and beautiful;The frame is treated by hot-dip, antirust and strong, more durable than ordinary surface treatment, more beautiful, nodes with no damage spot, rigidity.   Oil tank supportTank carefully made of high quality steel, the powder coated treatment, beautiful and durable.        Fume pipeFume pipe made of galvanized pipe, diameter of 190mm, 4 pieces of 1000mm long straight pipe, two 90 ° elbows.      LED   Lighting     System       Light tubeCeiling light has 24 pieces of 16w LED lamps. Side light has 16 pieces of 16kw LED lamps. 900 Lux. LED lamps are more bright and durable.The grade of lighting box's dustproof and waterproof reach IP54 grade.        Light boxWelded galvanized plate, powder coated treatment, surface brightness, color
uniformity.  Filtering     System           Pre-filterGrade G2 plate type fiber glass filter ; Dual filtering structure. The pre-filter can capture granules larger than 10μm.    Ceiling filterEU5 grade high efficient filter ;Ceiling filter capture granules bigger than 5μm.The air cleanliness in the working environment can reaches 98%.       Floor filterMultilayer glass Fiber. The air cleanliness in the working environment can reach 98%.    Ceiling filter            support Made of tube steel frame, thickness of 1.2mm, epoxy powder coating, antirust and strong, rigid, beautiful and durable, can be repeated disassembly, not easy to damage, easy to replace filter cotton.Pollution Control        SystemMulti-layer fiberglass filter under exhaust fan to filter paint and dust emission.   Control      system    Control panel  Microcomputer control system       Function Painting, constant temperature painting , drying, lighting, painting time and
drying time setting ;emergency stop switch, failure indication etc,especially with over-temperature and over-pressure alarm device. The electricity will be cut off once alarm devices alert. It makes our booth very safe.
