• Model NO.：WL-D-880S
• Brand：Xinder
• Design：Single Post
• Model：Wl-D-880s
• Max Lifting Height：880mm
• Safety Capacity：350 Kg
• Plaftform Dimension：1150*720,1250*820mm
• Certificate：CE
• Volt：24V or 12V
• Operation：Electric and Hydraulic Control
• Own Weight：135kg
• Packing Size：1240*600*1400mm
• Gross Weight：185kg
• Transport Package：Wooden Case
• Specification：1150*720,1250*820mm
• Trademark：xinder
• Origin：China
• HS Code：8428909090
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. WL-D-880S Brand Xinder Design Single Post Model Wl-D-880s Max Lifting Height 880mm Safety Capacity 350 Kg Plaftform Dimension 1150*720/1250*820mm Certificate CE Volt 24V or 12V Operation Electric and Hydraulic Control Own Weight 135kg Packing Size 1240*600*1400mm Gross Weight 185kg Transport Package Wooden Case Specification 1150*720/1250*820mm Trademark xinder Origin China HS Code 8428909090 Production Capacity 1000 Sets/Month

Product Description

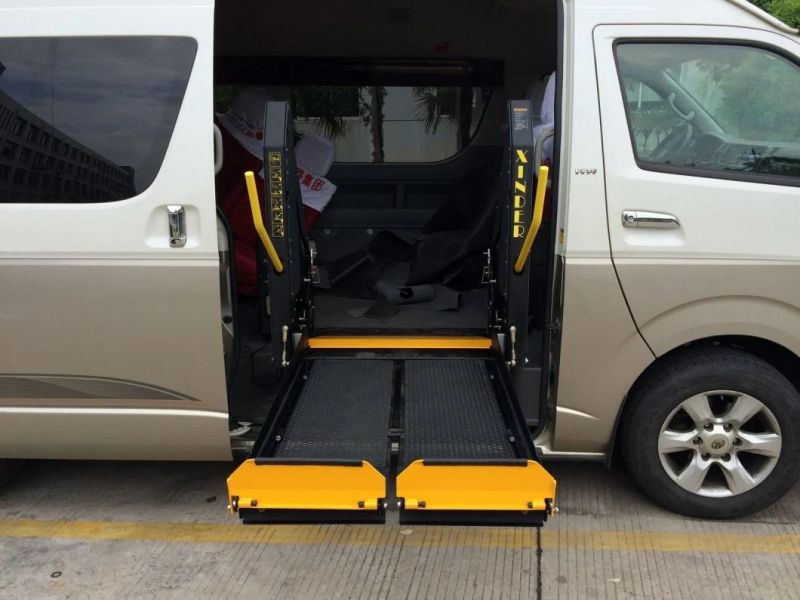

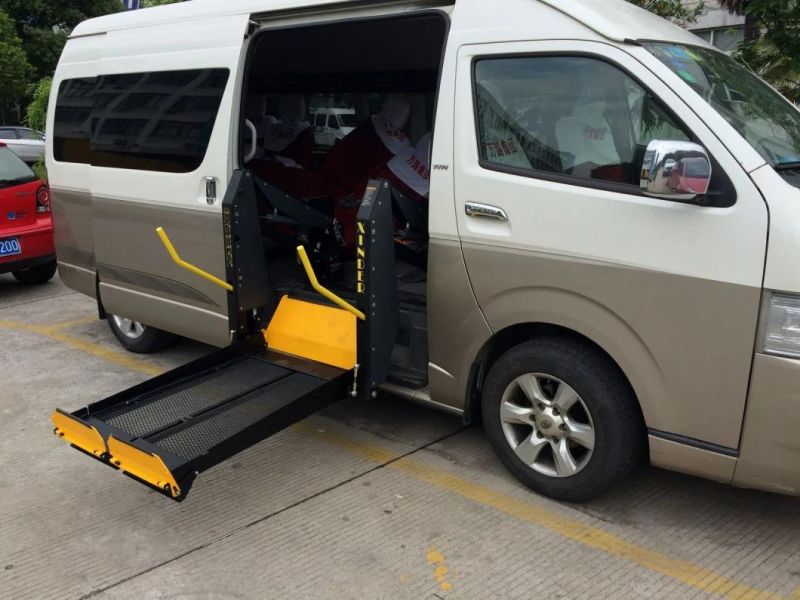

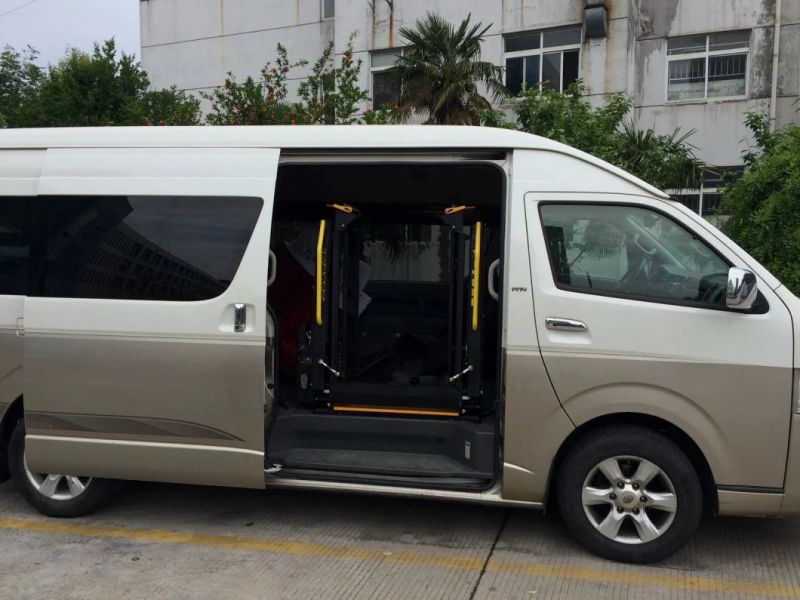

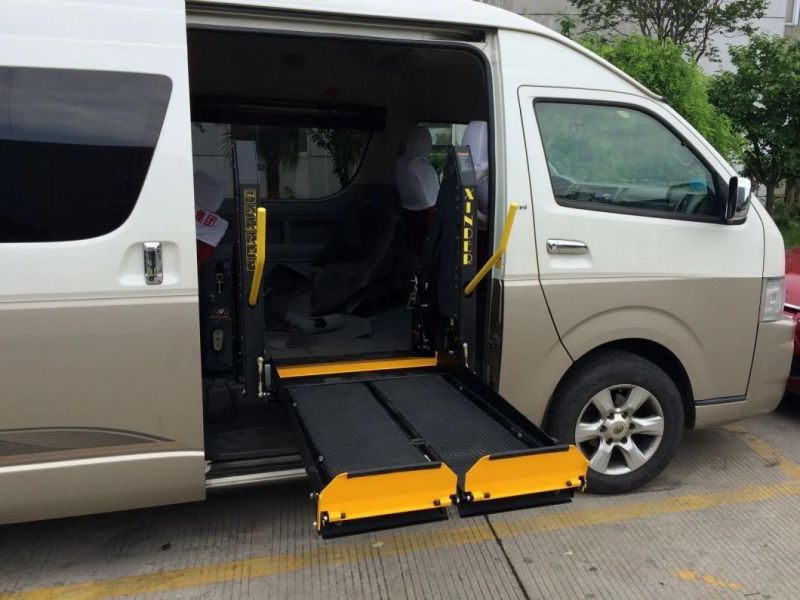

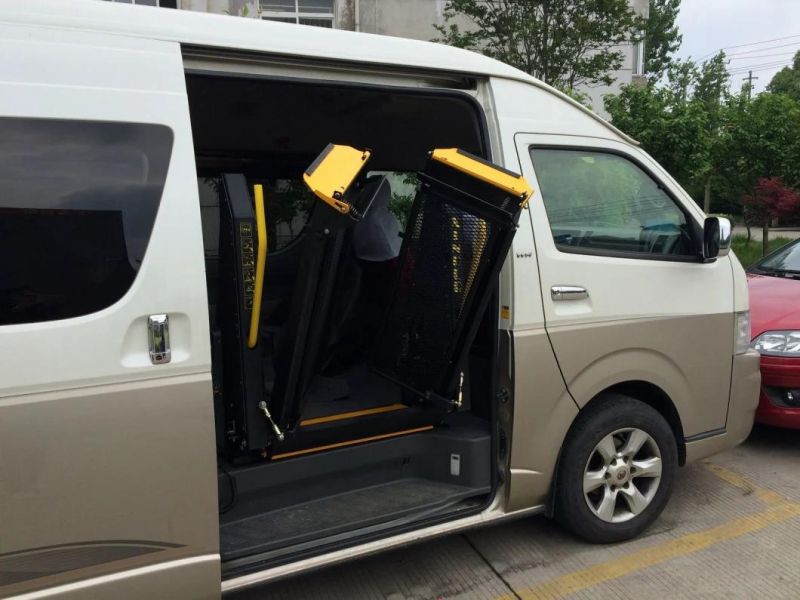

CE Chinese Manufacturer of Electric and Hydraulic Scissor Wheelchair Lift for Disabled

Introductions:

• This series wheelchair lift is to provide car-adaptation solutions for people with reduced or limited mobility.

• It is designed to help wheelchair occupant to get on van while seated on his wheelchair.

• This wheelchair lift can be installed at the rear door or side door.

• Powered by hydraulic system, the movement of lifting, lowering and folding are fully automatic.

• DN-880S wheelchair lift has split platform;

• Provides good visibility both for driver and passengers when stowed;

• Operated by the wired remote control or by your mobilephone;

• It also can be operated manually for emergency;

• CE certified;

• Loading capacity:300kg;



Advantages:

• Split platform provides clear path and good visibility both for passengers and the dricer;

• Mechanical auotomatic roll stops;

• Warning sound during working;

• Powerful hydraulic system ensures smooth and stable movements;

• Equip with handrails to offer increased comfort and security;

• Anti-skid platform;

• Manual backup function;

• Self-locking device;

• CE certificated;

• High-gloss polyester powder coat finish to prevent corrosion;

• Can be controlled by your mobilephone (option);



Technical Specifications:

• Volatge: 12Vdc or 24Vdc;

• Power: 800W;

• Loading capacity: 350kg;



Model	WL-D- 880-1150	WL-D- 880S-1150	WL-D- 880U-1150	WL-D- 880-1250	WL-D- 880S-1250	WL-D- 880U-1250
Platform Size  (A×B)	720×1140	720×1150	720×1140	820×1240	820×1215	820×1240
Overall Width (C)	1137 mm	1137 mm	1137 mm	1237 mm	1237 mm	1237 mm
Overall Height (D)	1215 mm	1235 mm	1200 mm	1315 mm	1300 mm	1200 mm
Overall Length (E)	435 mm	490 mm	500 mm	435 mm	490 mm	500 mm
Max Lifting Height(F)	880 mm	880 mm	880 mm	880 mm	880 mm	880 mm
Rated Voltage	DC12/24V	DC12/24V	DC12/24V	DC12/24V	DC12/24V	DC12/24V
Max Working Pressure	14 MPa	14 MPa	14 MPa	14 MPa	14 MPa	14 MPa
Loading Capacity	300 Kg	300 Kg	300 Kg	300 Kg	300 Kg	300 Kg
Own Weight	135 Kg	135 Kg	135 Kg	135 Kg	135 Kg	135 Kg
