JTS-1060

JTS-1072

JTS-1108

JTS-1144

TANK
DIMENSION(mm)

500x406x500

500x460x550

700x650x650

1000x600x600

1000x900x600

1200x1000x800

OVERALL
DIMENSION(mm)

680x586x850

680x640x900

900x850x1000

1200x800x950

1240x1140x950

1440x1240x1150

MAX. CAPACITY

101L

126L

295L

360L

540L

960L

CONSTRUCTION
CASE

SUS 304 (MIRROR SHINING IMAGE AVAILABLE)

CONSTRUCTION
TANK

SUS 304 / 316L

ULTRASONIC POWER(MAX.)

1500W

1800W

3000W

3600W

5400W

7200W

ULTRASONIC
FREQUENCY

28kHz/40kHz/68kHz/80kHz/120kHz

MAX. HEATING
 TEMP.

20~80C ADJUSTABLE

HEATING POWER

3KW

4.5KW

6KW

9KW

12KW

24KW

TIMER

0~30min adjustable

DRAIN

¾" VALVE

LID & BASKET

TAKE-OFF / STRUT LID; SUS 304

CLEANING TANK'S
POWER
REQUIREMENT

AC220V/380V/415V/440V. 3

GENERATOR'S
POWER
REQUIREMENT

AC110V/ 220V / 240V, 1

GENERATOR

WITH SWEEP MODE AND REMOTE CONTROL

FEATURES

MULTI-DIRECTION CASTORS WITH BRAKE;
1 YEAR WARRANTY

Optional

FILTRATION SYSTEM (PUMP, SUS FILTER,
OIL CATCH CAN)

Skymen 3 stage unit (multi-tank) ultrasonic cleaner machine

Industry

Cleaning objects

jewelry

Jewelry, diamond, gold, silver products,

machinery

Moulds, precision parts, pressing parts, camera parts, bearing, hardware tools

electronics

PCB board, electronic parts, TV parts, computer parts

Auto industry

engine parts, gear box, shock absorber, auto nozzle, cylinder, valve

Dental& Medical

dental tools, medical tools, injector, surgery tools, dropper, glass container

Plating& painting

polishing parts, SUS cutter, tableware, plating

Food industry

Oven tray, boiler, bottles, bottle cap, filters

Optical& watch maker

optical lens, eyeglass, sunglass, metal, gold, jewelry, diamond, watch band, watch cover, watch hand

textile

spinneret plate, rubber parts, plastic molds, toy

others

seal, flapper, coins, pottery, bank card, IGBT

FAQ:

Q: What frequency is better for my parts?

A: Frequency is suggested based on pollutants in the objects.

28kHz frequency is stronger, better for car/motor/truck/vessel parts clean (remove oils, grease, pastes, etc. )

40kHz is better for pcb boards, electronic parts, etc.

Higher precision goods, higher frequency.

Q: Can ultrasonic cleaning damage parts?

A: Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe. No damage to your daily objects.

Q: What cleaning solution should I use?

A:A large variety of different formulas designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to prevent unwanted reactions with the workpiece.

Q: Is rinsing after cleaning cycles?

A: Rinsing is recommended to remove any chemical residue that could be harmful to the part. Details can be rinsed right in your ultrasonic cleaner or in a clean water bath or in a separate sink tap, distilled or deionized water.

Skymen Cleaning Equipment Shenzhen Co., Ltd., which engaged in ultrasonic cleaner field for more than 10 years. Our main products are ultrasonic cleaner with different capacity.

Our company is a famous ultrasonic manufacturer with R&D, production and sales. High quality product and after sales services is available from us.

Not only standard ultrasonic cleaner, any non-standard can be design by our engineer.

Suggestion and drawing is professional for you.

Welcome to visit our factory, provide your precious guidance and conduct business negotiation.

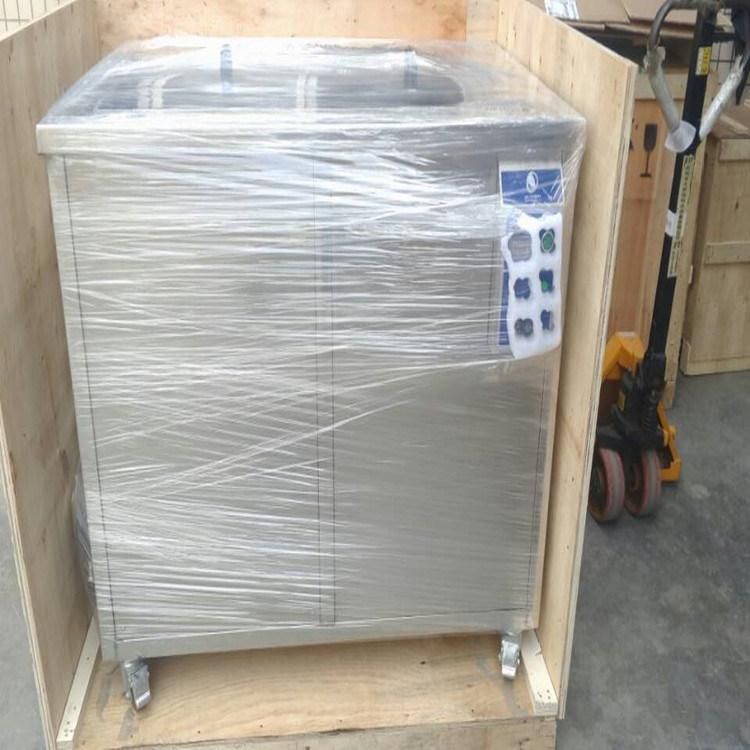

8. Package and Delivery

It will be packed by a wood case with shipping standard.

Pictures attached:

Delivery: it will be sent  20days after your payment.

9.Company Profile

Skymen is the leading manufacturer of ultrasonic cleaner for 10 years. We are offering kinds of specifications and types of ultrasonic cleaners.In North America, the U.S., Canada, Europe and Britain, France, Belgium, Germany, Spain, Japan, China and Asia are selling.

We manufacture products include household ultrasonic cleaners, desktop cleaning machine, small medical ultrasonic cleaners, electronic ironware cleaning machine, jewelry ultrasonic cleaners, ultrasonic vibration plate, etc, we also provide custom service, can offer different specifications according to the customer demand of ultrasonic cleaners.

Company headquarters is located in Asia's financial center Hong Kong, factory set up in shenzhen, China, the geographical position is superior, the beautiful environment, convenient transportation. The company for global customers to provide quality ultrasonic cleaning machine series products, diverse styles and specification complete, the quality is reliable, the price is reasonable, welcome to contact with us, sincere cooperation with you!

10.Certification


ISO certificate:

CE,RoHS,FCC

High Tech Company Certificate
