• Model NO.：GL4000-A1
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Door Width(M)：3.0
• Door Height(M)：2.66
• Air Flow(M3/H)：30000
• Inside on-Load Air Speed(M/S)：0.3-0.5
• Heating System：Riello Brand Diesel Burner
• Lighting System：Upper Lights and Side Lights
• Water-Based Device：as Optional
• Size：Can Be Customized
• Color：Red Blue Orange White
• Power(Kw)：25
• Transport Package：Iron Frame Packing and Carton Packing
• Specification：20GP
• Trademark：Guangli
• Origin：Guangzhou, China
• HS Code：84198990
• Production Capacity：40, 000 PCS,Year

Basic Info.

Model NO. GL4000-A1 Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Door Width(M) 3.0 Door Height(M) 2.66 Air Flow(M3/H) 30000 Inside on-Load Air Speed(M/S) 0.3-0.5 Heating System Riello Brand Diesel Burner Lighting System Upper Lights and Side Lights Water-Based Device as Optional Size Can Be Customized Color Red Blue Orange White Power(Kw) 25 Transport Package Iron Frame Packing and Carton Packing Specification 20GP Trademark Guangli Origin Guangzhou, China HS Code 84198990 Production Capacity 40, 000 PCS/Year

Product Description

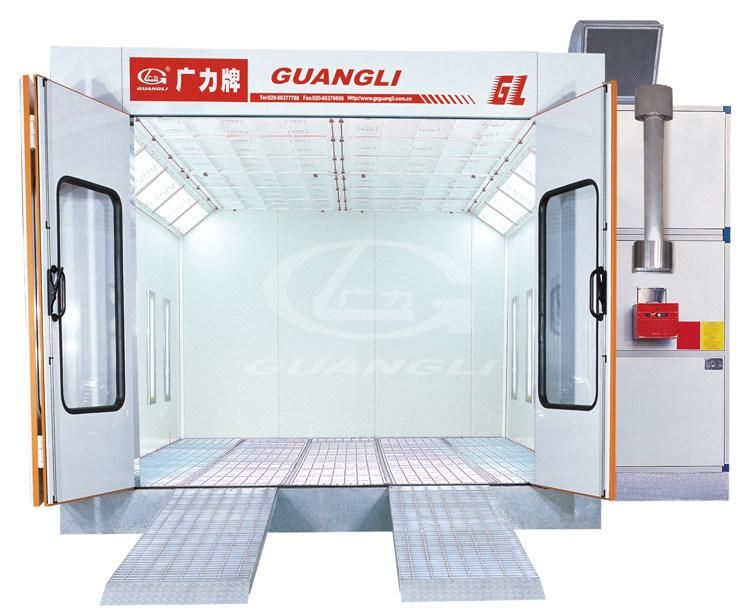

Professional Factory Supply High Quality Spray Painting Room Garage Equipment with CE for Car Body Repair
Specification
--Wall panel: Sandwich style, g=50mm, polystyrene. Rock wool available as required.

--Basement: Steel structure, full grids, ramp: 2 PCS of grids.

--Door: 3 PCS of front door without aluminum side cover. 1PCS of emergency door with pressure lock.

--Lengthen room as optional: Outside size: 7.6*5.6*3.5(m) inside size: 7.5*3.9*2.7(m)

--One 11kw intake fan and one 11kw exhaust fan.

--4m straight exhaust ducts, one 90 degree bend, and one 60 degree bend. 5m straight chimney and 2 small bends.

--1 manual VCD exhaust damper, electrical VCD as optional. One pressure meter.

--Spraying/baking transition damper, automatically air controlled.

--Heat exchanger: Stainless steel. Riello g20 burner.

--Roof filter: 6 PCS of filter, mounted above support frame, which is made of steel and powder coated.

--5 PCS of floor filter and 2 PCS of outlet filter.

--Upper light: 10 sets, 4*40w per set. Side lights: 8sets, 4*40w.

--Control box: Imported components, overload, overheat, phase-lacking, phase-locking protection, engine y/ start.

--Automatically stop when preset time is up.

--Constant temperature spraying.

--Environmental filter: The equipment can be adopted m style activated carbon or drawer style activated carbon.

Model	GL4000-A1
External size (m)	7.0x5.6x3.5
Internal size (m)	6.9x3.9x2.7
Entrance Width(m)	3.0
Entrance Height(m)	2.66
Fan capacity(m3 /h)	30000
Air velocity (m/s)	0.3-0.5
Air ventilation (times/h)	332
Drying Temperature	20-80
Oil consumption (L/unit)	6-8
Power (kw)	25
Suitable Automobile Type	Car

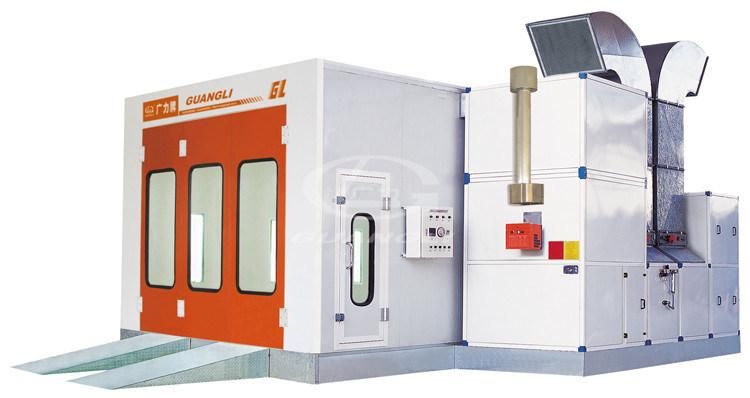

Guangli Spray Booth Show

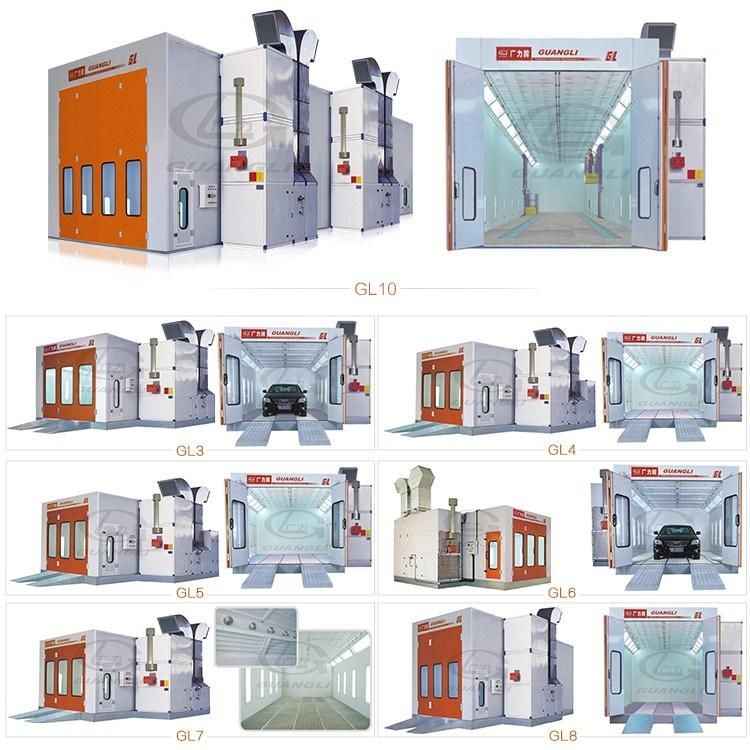

Guangli Spray Booth Models

Equipment

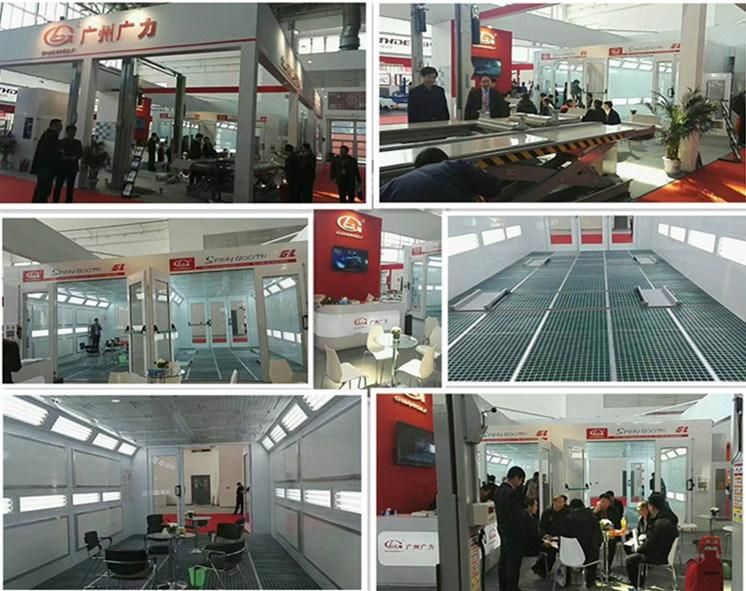

Exhibition

FAQ:
1.Q:Are you Manufacturer or Trading company?
A:We are a professional manufacturer with our own export department.
2.Q:Where is your company located? How can I visit there?
A:Our company is located in Guangzhou.All clients, from home and abroad, are warmly welcomed to visit us.
3.Q:How about the quality of the products?
A:With the advanced machines, strong and professional R&D team and material
sources,our products are excellent in performance and craftsmanship.
4.Q:Can we customize our product?
A:Yes,you can.Customized material and standard are acceptable. We can provide
 different standards according to your market and favor.
5.Q:What's the MOQ for each items?
A:We accept one piece/set each time.
6.Q:What's the delivery time?
A:If the product you ordered is our standard configurations, it's 7 workdays.
