• Model NO.：BY-2
• Brand：Baoyues
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Transport Package：Properly Package
• Specification：CE approved
• Trademark：Baoyues
• Origin：Guangdong, China
• HS Code：8419899090
• Production Capacity：90,Sets Per Month
• Package size per unit product：690.00cm * 390.00cm * 265.00cm
• Gross weight per unit product：3500.000kg

Intake and Exhaust system2× 4KW double-intake centrifugal fans for intake, model YDW4.5L1, air capacity for each fan: 12500m 3 /h.1× 7.5KW double-intake centrifugal fan for exhaust, model YDW4.5M, air capacity: 20000m 3 /h, with manual damper for exhaust air.Heating systemWith short wave infrared lamp heatingPurification systemPre-filter, ceiling filter, fibreglass filter, activated carbon filterRoofGalvanized steel platesControl systemSpraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter. All motors are normal start.Total Power:45KW







  Specification for Prep Station

Outside Dimension	7550× 3550× 3100mm(L× W× H)
Inside Dimension	6300× 3450× 2650mm(L× W× H)
Plenum Dimension	6300× 3450× 450mm(L× W× H)
Room Body	Back side with 50mm EPS wall panels, the other 3 sides with PVC curtains;
Light system	Ceiling lights 8units× 4pcs=32pcs 36W, with electronic ballasts
Generator cabinet	Exhaust air from back side; square steel frame, white coated steel cover.
Intake and Exhaust System	1 unit 5.5KW double intake centrifugal fan, model YDW-4.5S, air capacity: 15500 m 3 /h, electric damper for exhausting.
Purification System	Pre-filter, high efficiency filter, exhaust fiberglass filter
Roof	Galvanized steel plates
Control System	Fan operation switch, lighting switch, emergency stop;
Install way	Steel column supporting;
Total Power	6.7KW

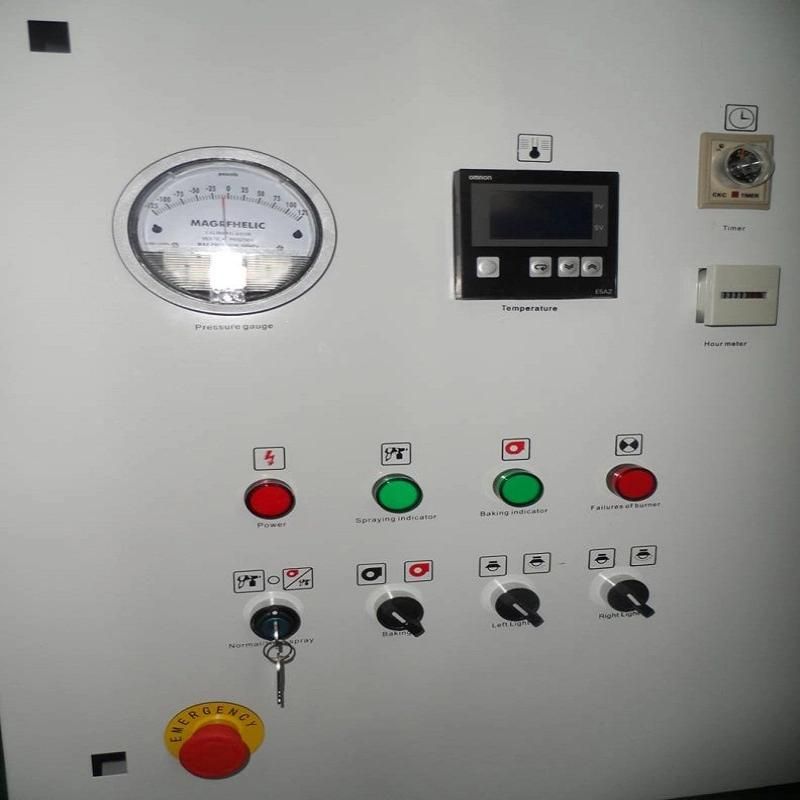

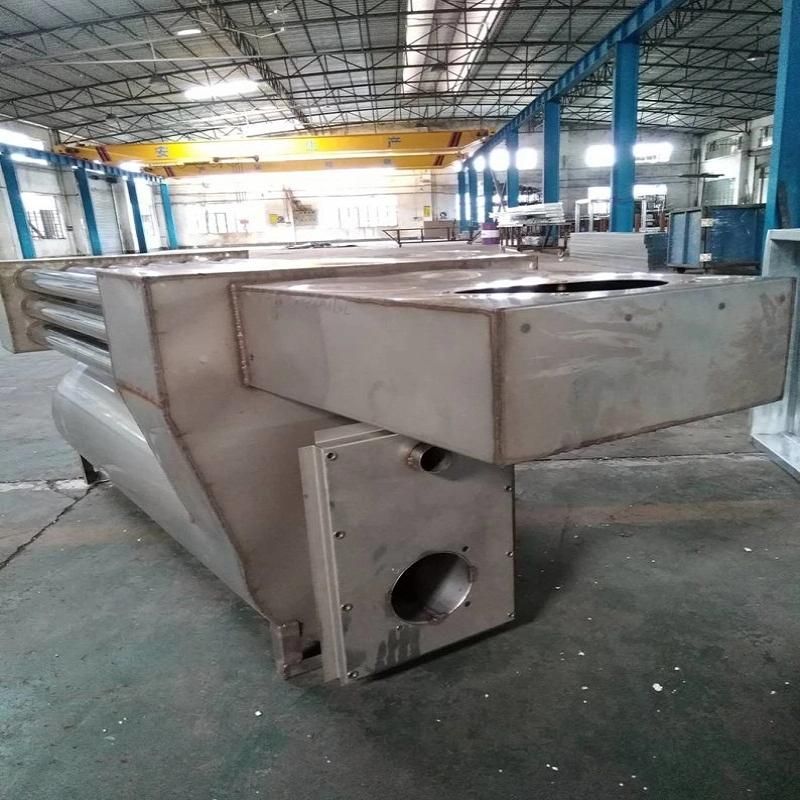

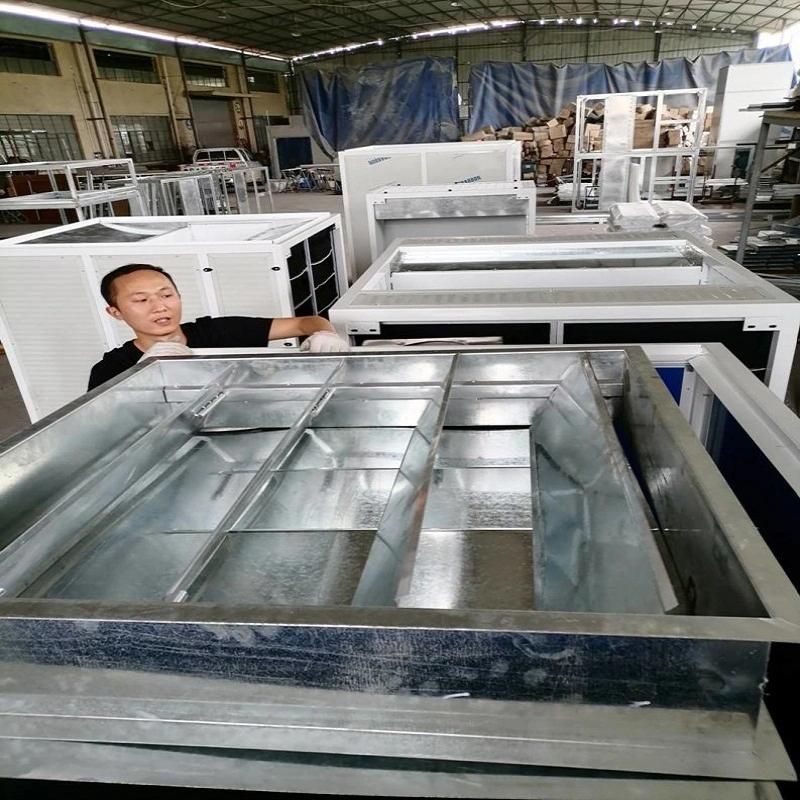

Parts details:

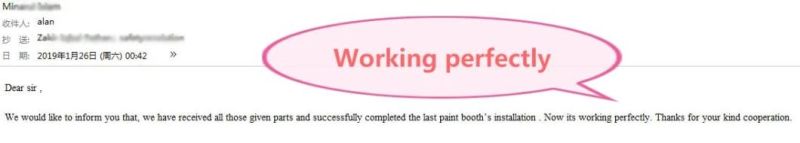

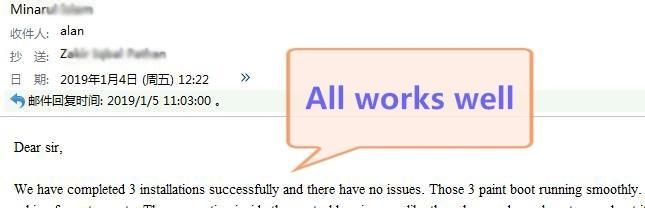

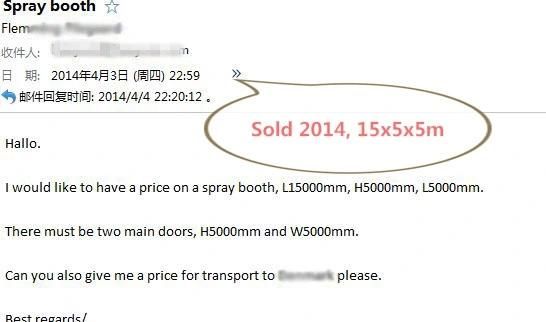

What customer saying:

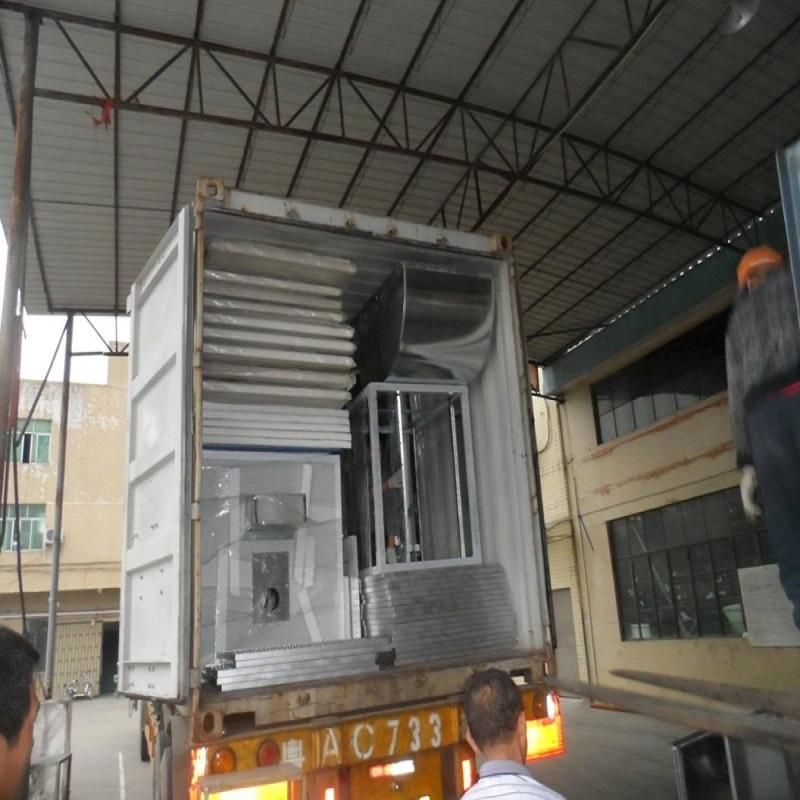

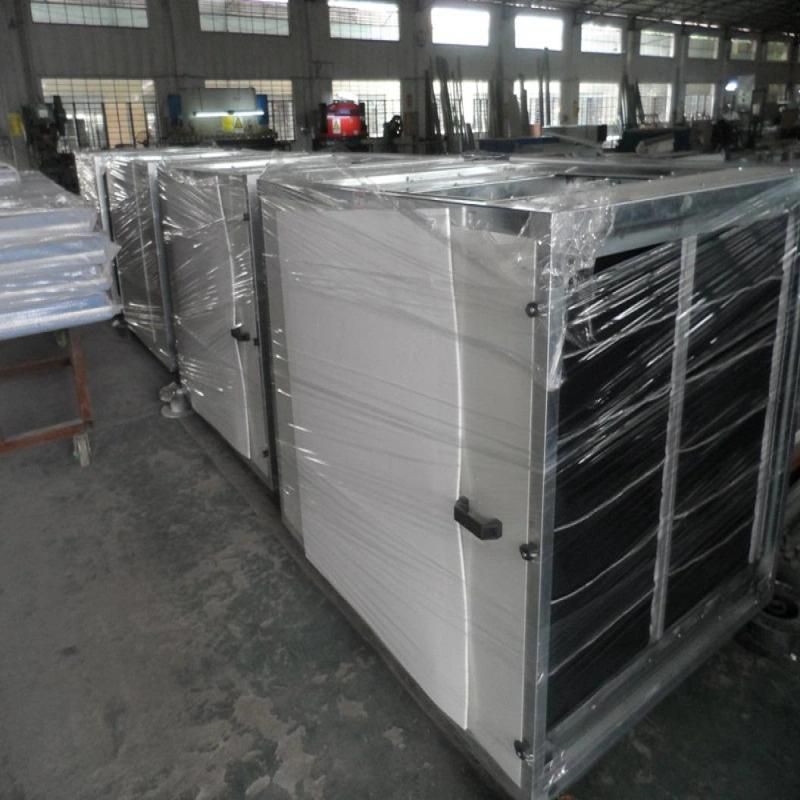

Factory show:
