• Model NO.：CPYE157501
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Internal Size(Lxwxh)：15000X5000X5000mm
• External Size(Lxwxh)：15144X6896X5600mm
• Basement：2 Rows Grilles, 3 Rows Diamond Plate
• Wall：75mm EPS Panel with 0.5mm Steel, Profiled Bar Beam
• Main Door：4000X4500mm (Wxh) Galvanized Steel Cover Frame, Wi
• Service Door：2units, 650X2000 mm(Wxh)
• Intake System：4X7.5kw Double-Intake Centrifugal Fans
• Exhaust Air System：2X11kw Double-Intake Centrifugal Fans
• Heating Type：Riello Rg5s
• Total Power：63kw
• Transport Package：Export Container ,Pallet ,Disassembly with Carton
• Specification：CE, SGS
• Trademark：Captain,OEM
• Origin：Jiangsu, China.
• HS Code：8419899090
• Production Capacity：30sets,Month

Booth Dimension- Internal Size(L×B×H)15000×5000×5000mm & 49'2''X16'4''X16'4''- External Size(L×B×H)15144×6896×5600mm & 49'7''X22'6''X18'4''Foundation and Floor- Grid2 rows air exhust plenum chamber- Metal BasementNeed to build the base construction , 2 rows of pits in the ground for exhaust air,
 dimension of each pit is 12650×760mm(L×W), with galvanized grids made by
 twisted steel and flat bar aboveWall and Door- Steel WallProfiled bar beams in the roof to strengthen the room body.
Double construction with insulations EPS , thickness 75mm,0.5mm steel thickness, width:950mm, tongue and groove interlock structure- Roof PanelSingle profiling galvanization plate- 4-Folded Entrance Door
 With Safety Glass Window1 Unit, 4000×4500mm (WxH) galvanized steel cover frame, with polystyrene(EPS) inside- Operator's Door With

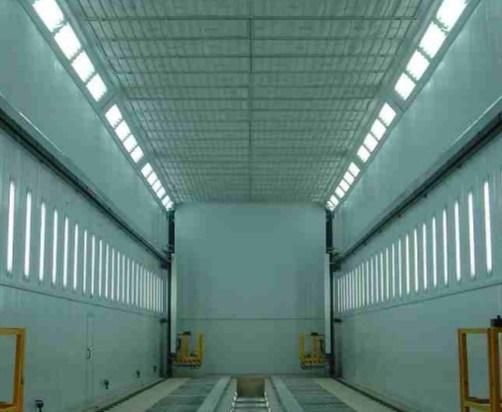

 Safety Glass Window2Units, 650×2000 mm(W×H) Lighting System- Ceiling Lights18Units, each 4×36 W, with electronic ballasts- Side Lights12U22Units, each 4×36W, with electronic ballasts- Brightness>1000LUXFilter System- FilterPre-filter, ceiling filter, exhaust fiberglass filter, activated carbon filter- Filtering area44M2Ventilation System- Intake air system
 (Fresh Air)4×7.5KW double-intake centrifugal fans for intake air,
 model YDW4.5M, total air capacity 42000m3/h- Exhaust
 air system(Exhaust Air)2×11KW double-intake centrifugal fans for exhaust air, with motor outside, belt-drive, model TAE-710H, total air capacity 36000m3/h- Damper actuatesEquip pneumatic damper actuates from spraying to baking cycle,
 manual dampers for exhaust airHeating System- Heating ExchangeStainless Steel- Heating
 Exchange Capacity260000Kcal/h- Max. Drying
 Temperature 80 °C- Heating time 8-10 min (from 20 to 60) by Drying Phase - Heating Type (optional)RIELLO RG5S (260000 kcal/h)Diesel )2setControl Box- Control systemSpraying, heat spraying, baking, time setting, lighting switch, failure indicator,
 thermostat, power supply switch, emergency stop, ampere meter, voltmeter,
 hour meter, temperature limit controller, pressure gauge, exhaust reduction
 voltage motor start- Total power63KW

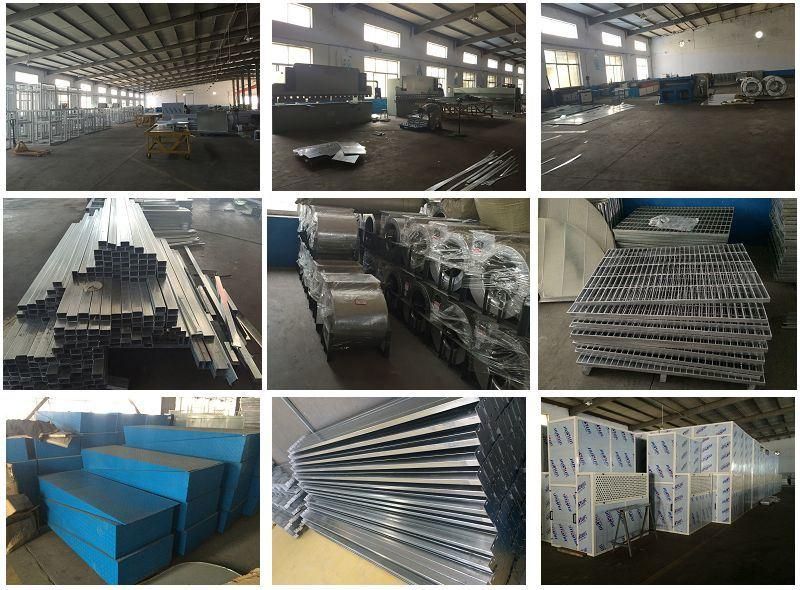

Captain Spray Booth(Qingdao Hua Yushun Commercial Co., Ltd)
Is a professional leading factory in China, who is specializing in manufacture kinds of paint spray room system. And also offering full garage equipments, such as

Car care equipment.

Car spray&baking room system

Bus spray&baking room system

Furnitue spray&baking room system

Industrial painting&baking room system

High temperature baking room system

Customized spray&bake booth and Offer car spray baking booth accossories


Services We Supply

Customized service

More Than 90% Of Our Spraying Booth Is Customized.

1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.

2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.

After-sales service

1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.

2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

3. We provide 2 years warranty.

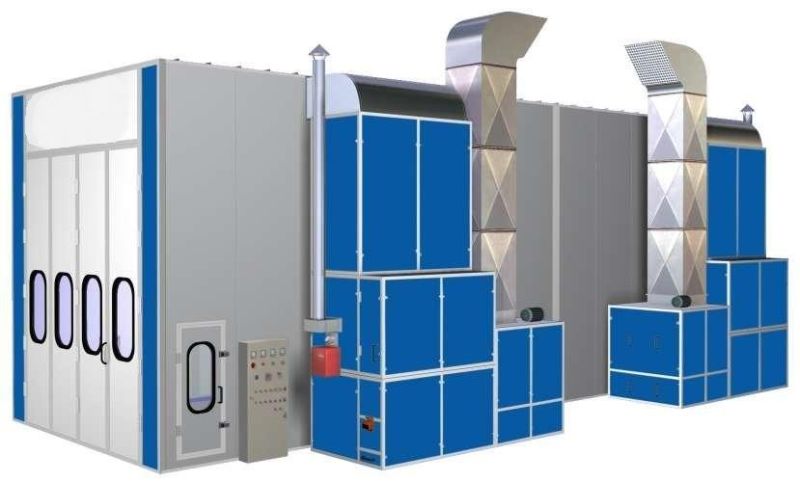

 15M Double -Intake Centrifugal Fans Riello RG5S Burner Industrial Spray Booths with baking
