• Model NO.：TQZ8560
• Color：Red
• Transport Package：Plywood Case
• Trademark：AA4C
• Origin：China
• Production Capacity：10 Units,Month

Basic Info.

Model NO. TQZ8560 Color Red Transport Package Plywood Case Trademark AA4C Origin China Production Capacity 10 Units/Month

Product Description

Features

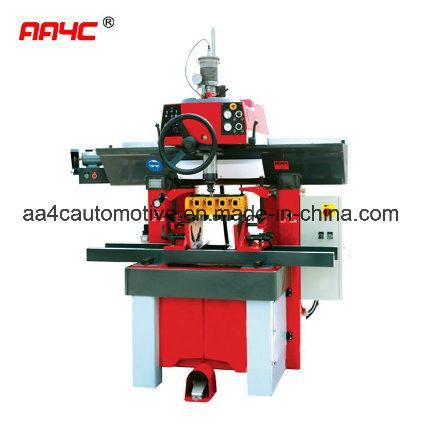

Valve seats boring machine with high availability meets the requirements of boring, reaming and cutting machining for high accuracy
Valve guides and valve seats. Light boring head  design is equipped with triple air flotation device, self-centering
System and combined motor shaft. Designed specially for repairing small-sized engine and compound-cylinder engine used on
Motorcycle and automobile. Meet the requirements of high precision machining for valve guides with a small diameter of 3mm.
· With distinctive characteristics of this new type machines that can save 30% cutting force during machining process. Ensure the
Angle accuracy of compound angle tool within a range of ± 0.5.
· Machining capacity: 16mm/0.63" - 50mm/1.97".
· Modernized design of standard machine body to agree with the improved rigidity. Dynamic and static features are optimized by
Computer to provide the most advanced machining process.
· Improved lighting system.
· Pneumatic clamping of table bars.

· Fully integrated spindle motor: Infinitely variable spindle speed, 100 to 1200 RPM, with sensorless Vector Flux Control in open loop
(extremely broad torque ratings from lowest RPM. ).
· Lightweight workhead: Built-in spindle motor and triple air-float automatic centering system. Minimal workhead inertia and maximal
Floatation for unmatched centering sensitivity.
· High-quality three color saturation painting.



Model TQZ8560

Boring diameter Φ 14-Φ 60 mm
Max. Length for Cylinder head(L× W× H) 1200× 300× 400 mm
Moter power 0.8 kw
Spindle speeds 0-1000 rpm
Spindle travel 200 mm
Plate longitudinal travel 35 mm
Clamper swing angle -45° - +55°
Air supply press 0.7 Mpa
Air supply flow 300 L/min
Overall dimensions(L× W× H) 1480× 1050× 2270 mm
Packing dimensions(L× W× H) 1900× 1300× 2200 mm
N. W. /G. W. 1050/1250 kg
