• Model NO.：BY-15-5
• Brand：Baoyues
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Product Name：Spray Painting Booth
• Usage：for Car(or Furniture) Painting, Baking
• Specifications：Customise Acceptable
• Certificate：CE, CCS, TUV, SGS
• Service：Professional Team for Installation Abroad
• Warranty：1 Year

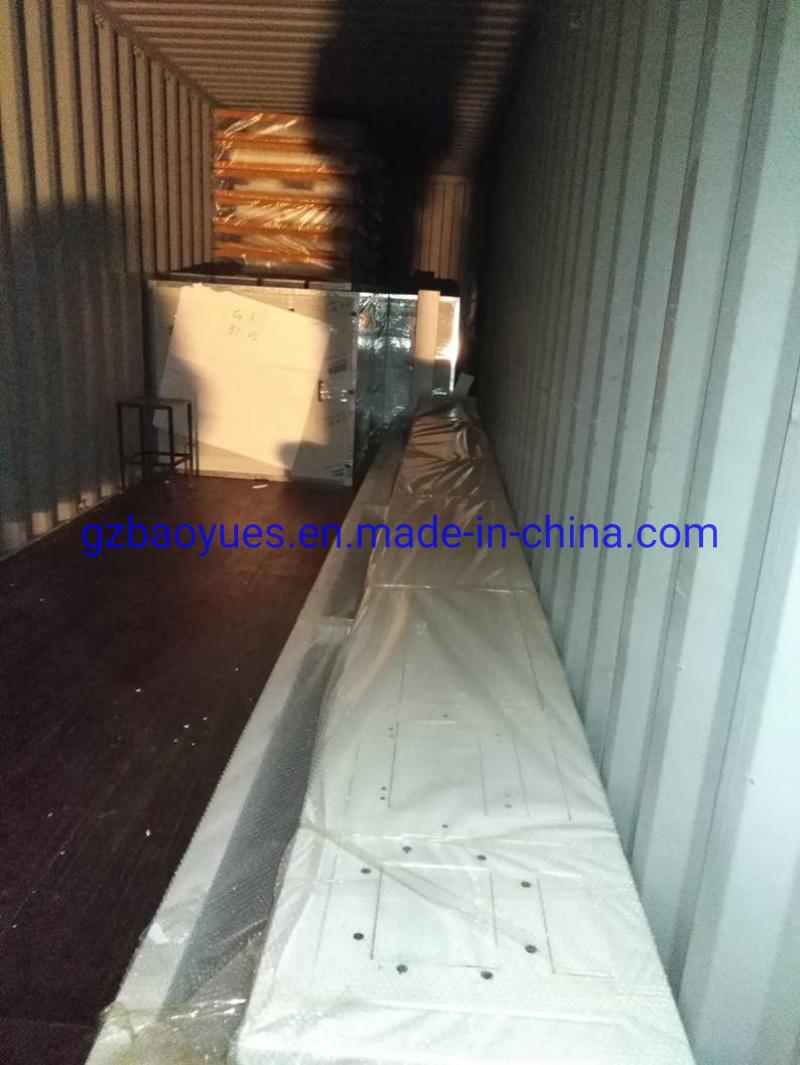

• Transport Package：Sea Transport Packing 1 Set,20gp
• Specification：CE, CCS, TUV, SGS
• Trademark：Baoyues
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：80 Pieces,Month
• Package size per unit product：2000.00cm * 500.00cm * 500.00cm
• Gross weight per unit product：15000.000kg

15000×5000×5000mm(L×W×H)Inside dimension15144×6896×5600mm(L×W×H)pitWithout basement; Exhaust air from 2 rows of pit in the ground; dimension of each pit is 13000*840mm(L*W)Main door4-fold,4000×4500(W×H; white color or optionalPersonal door2 units,700×2000(W×H);inside is polystyrene.white color or optionalWall panel4 units supporting steels and 4units profiled bars in the roof to strengthen the room body. EPS insulation wall panels:70mm thick.1150mm wide. tongue and groove interlockingconstruction,thickness:70MM EPS.width:1150mm.0.476mm,white colorLightingInclined ceiling lights:4pcs×26units=104Pcs×36W,side lights: 4pcs×18units=72pcs×36W, Philip tube with electronic ballasts; verticalset(left side 2 units, right side 8 units; rear side have 2 units.).illuminance:450LuxGenerator setting typeSideupper intake air; and exhaust air from back upper.Quadrate steel frame;outside is white power coated steel; inside is galvanized steel.with 30mm rock wool insulation inside.Intake and exhaust air system 3sets4pcs 7.5KW double-intake centrifugal fans for intake air;model:YDW:5.6M.air capacity:20000m³/h.2pcs11KW double-intake centrifugal fans for exhaust air,model:TAE-710H,belt-drive,air capacity:36000m³/h.Heating system 2set2setsRIELLO RG5s diesel burner,Maximum heat productivity:520000Kcal/h,2sets Stainless steel heat exchanger,highest working temperature 80°C, 2pcselectricdamper from spraying to baking cycle.Filtering systemPre-filter.High efficiency filter(ceiling filter)floor filter(fiber glass)M-shape activated carbon filter, exhaust fiberglass replace by level sideRoof panelGalvanized steelControl systemSpraying,risen-temperature spraying, baking; baking temperature, time setting, lighting switch, emergency stop, failure-alarm.Limited temperature device.Timeaccumulator.Temperature regulatorPower supplyAs requestHighest working temperature80°Cilluminance450LuxFree air speed>=0.25m/sTotal power57.5kwcolorWhite, blue, orange for your option

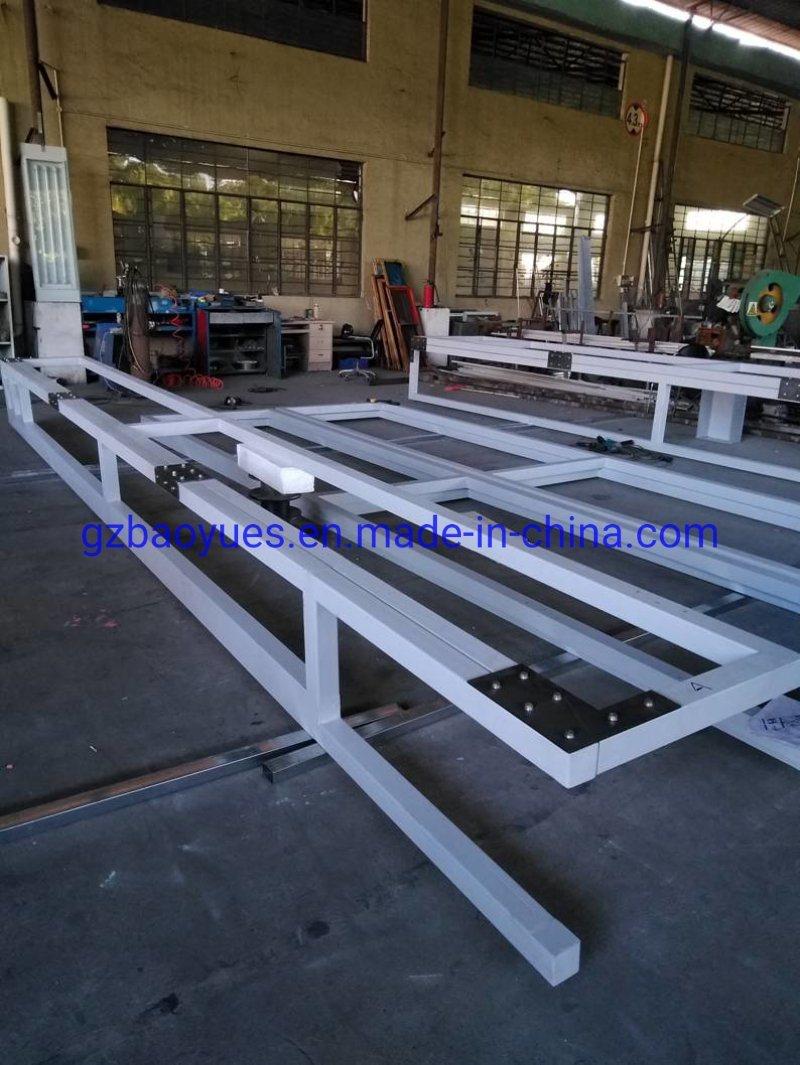

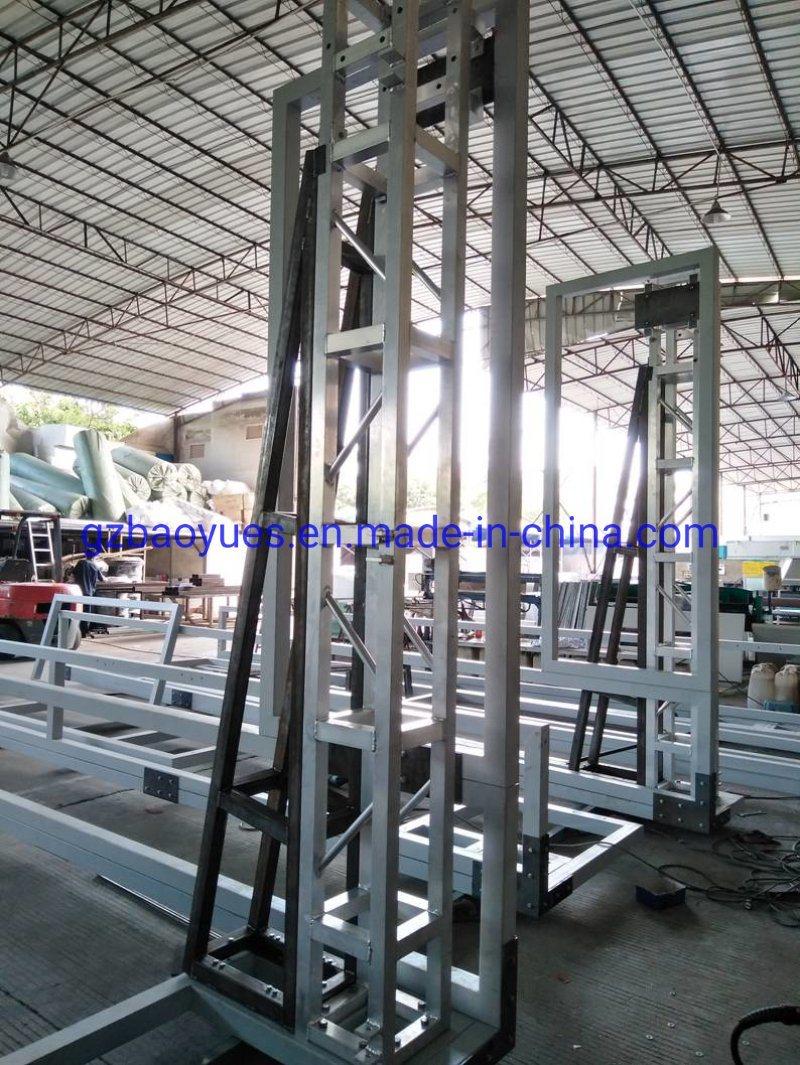

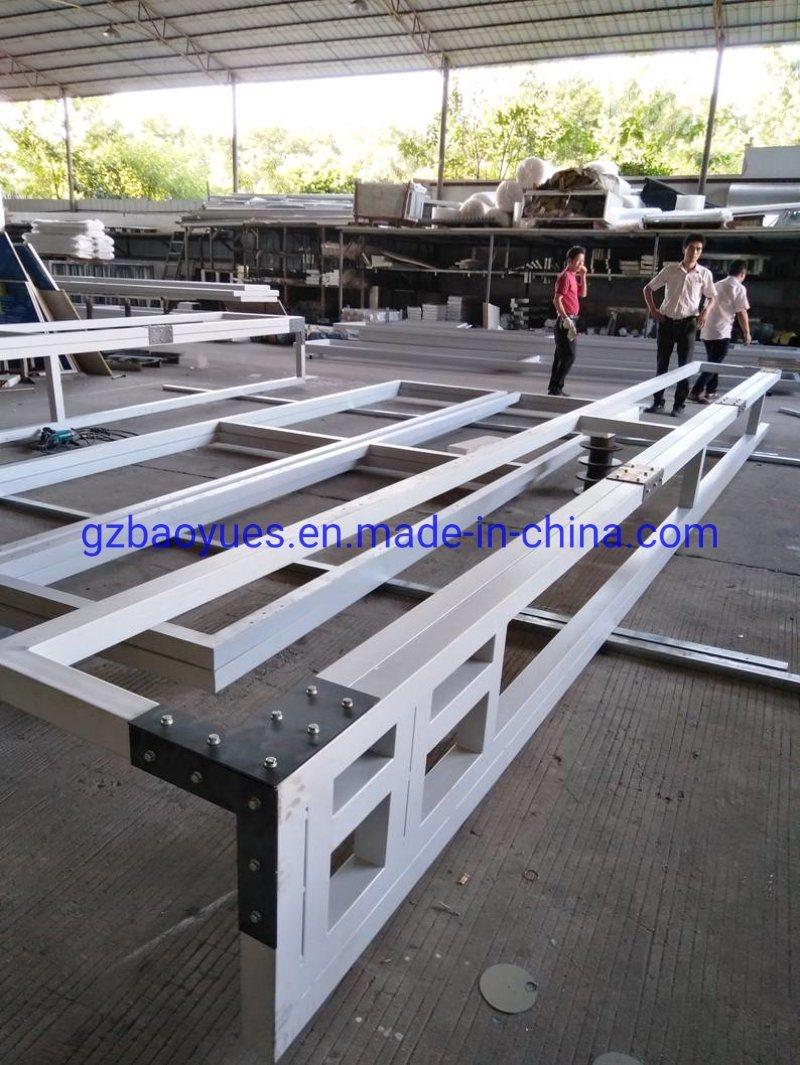

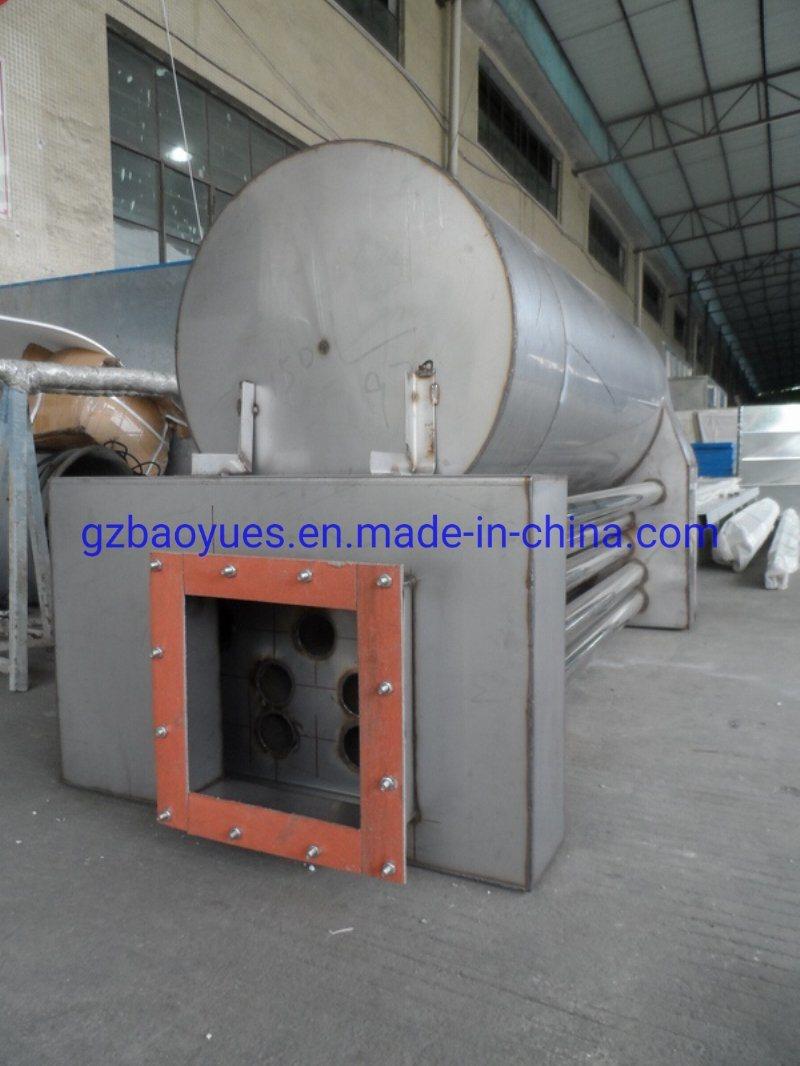

Parts details:

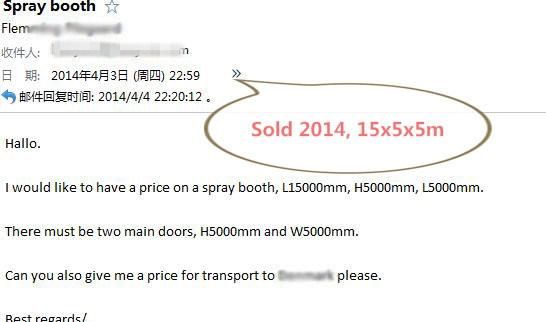

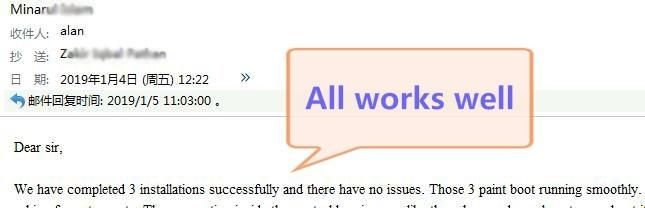

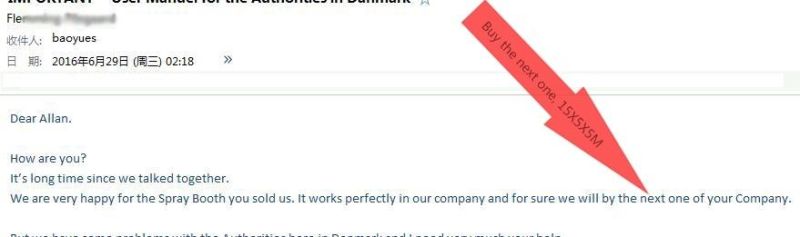

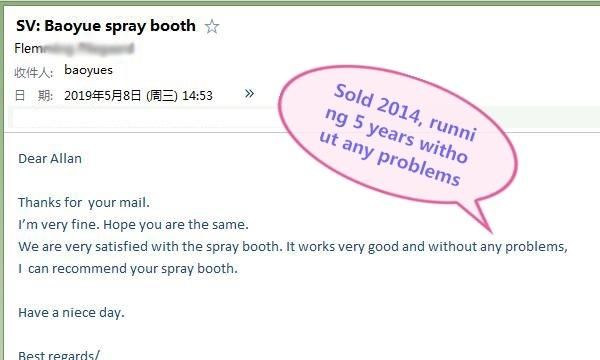

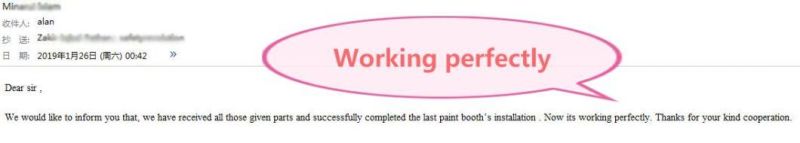

What customer saying:

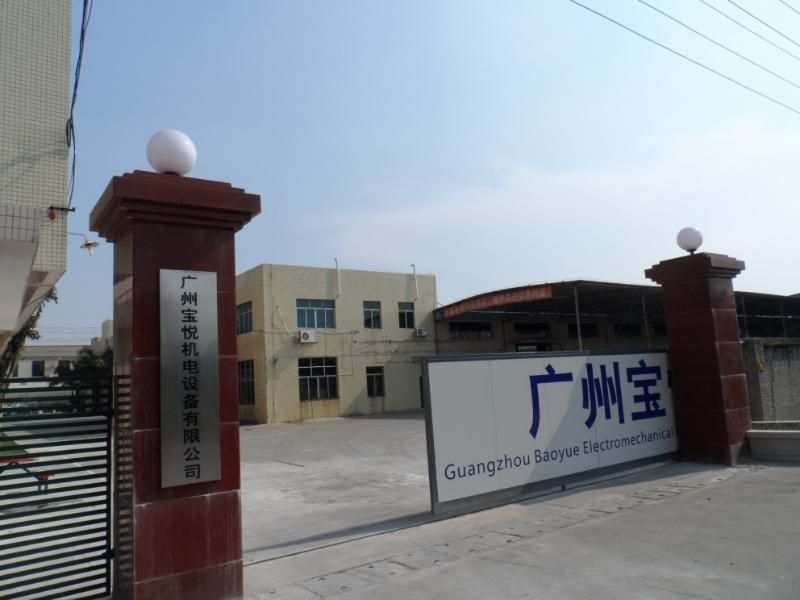

Factory show:
