• Model NO.：CRP123E
• Update Method：by Internet
• Type：Code Reader
• Transport Package：Paper Box Packing
• Specification：30*13*5cm
• Trademark：Launch
• Origin：China
• HS Code：8543709990
• Production Capacity：1000

Basic Info.

Model NO. CRP123E Update Method by Internet Type Code Reader Transport Package Paper Box Packing Specification 30*13*5cm Trademark Launch Origin China HS Code 8543709990 Production Capacity 1000

Product Description

Full OBD2 Function Auto Scanner LAUNCH X431 CRP123E Read fault,Delete Fault code, Live Data auto diagnostic scanner

Screen	5 inch
Voltage input	9-18V
Working Temperature	-10ºC ~ 55ºC
Storage Temperature	-20ºC ~ 70ºC
Dimension	8.97"(L)×4.92"(W)×1.36"(H)
Unit Weight	<565g

Features:



Support basic functions diagnostics of the four systems of overseas mainstream vehicles



Support automatic identification of VIN for the matching of vehicle models



Support all OBD functions



Support automatic generation of uploading of diagnostic report



Support engine system, automatic transmission system, Anti-lock Braking System and Supplemental Restraint System



5-inch touch screen with built-in lithium battery



Support multiple languages


Top 7 Reason To Choose CRP123E:

1. 5'inch Android Touch Screen, Easy to operate,

2.CRP123E is an upgraded Version of CRP123 and Creader VII+ , Support more car

3.. Fast VIN autodetect, CRP123E will read VIN information when you connect Car

4. Lifetime Free Update , Support One-Click Update via Wifi

5. Automatically generate and upload diagnostic reports

6. Support Multi-Protocols : OBDII , EOBD, JOBD , KOBD

7. Support Multi-languages: English, Spanish, French, German, Italian, Russian, Japanese, Korean, Portuguese



Introduction :

Creader Professional 123E is an evolutionary smart solution for passenger car diagnosis. It inherits from LAUNCHrsquos advanced diagnosing technology and is characterized by covering a wide range of vehicles, featuring powerful functions, and providing precise test result.

CRP123E support Multi-protocols (including OBDII , EOBD,JOBD, KOBD), CRP 123E also supports the system diagnosis of Engine , ABS Airbag , SRS and Transmission system.





Access to Full OBD2 Function:
Read fault ,Delete Fault code , Live Data ,Read Vehicle information ,O2 Sensor Test ,EVAP System Test , On-board mintor Test , DTC Code lookup , IML Fault indicator , View Freeze frame, I/M Readiness and add Real-Time graphing vehicles Battery Satus...

Diagnostic Report:

CRP123E support one click diagnotic record , diagnostic report , you can share it via email , one-click feedback your problem , Use this option to submit the vehicle issue to us for analysis and troubleshooting.

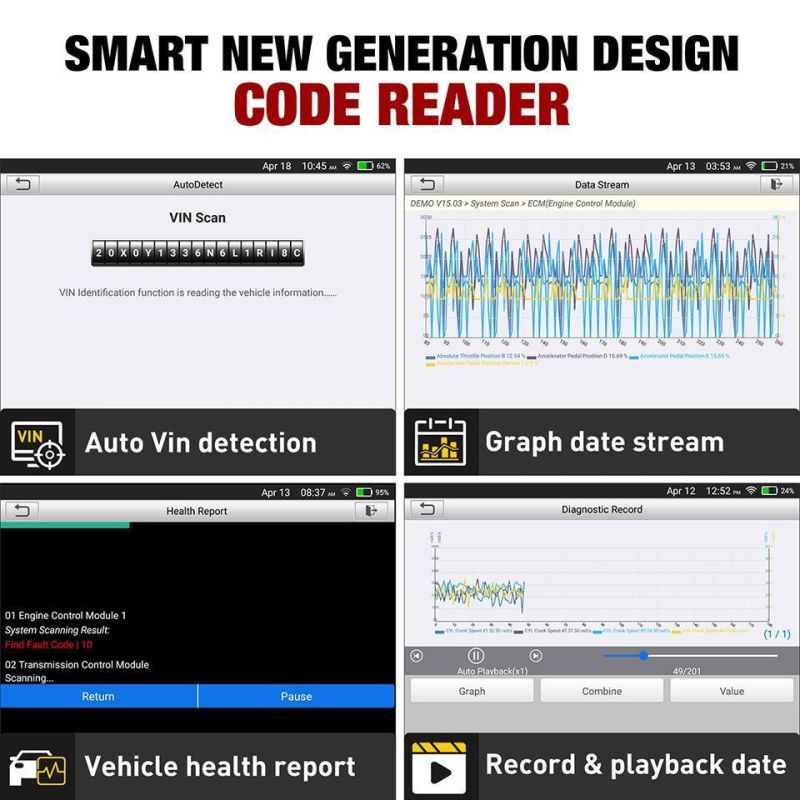

Diagnostic History: This function provides a quick access to the tested vehicles and users can choose to view the test report or resume from the last operation, without the necessity of starting from scratch

Diagnostic Feedback: Use this option to submit the vehicle issue to us for analysis and troubleshooting

TC Library: Allows you to retrieve the definition of the diagnostic trouble code from the abundant DTC database.



Smart(Auto-Detect) Diagnosis:

Once the tool and the vehicle are properly connected, the system starts auto-detect process. Once the whole process is successfully finished, a diagnostic report will be automatically generated and sent to your email box (if bound)

Manual Diagnosis: If Auto-Detect failure occurs, manual diagnosis is also available. Diagnosis functions include: Version Information, Read DTCs, Clear DTCs and Read Data Stream (supports 3 display modes: Value, Graph and Merged).

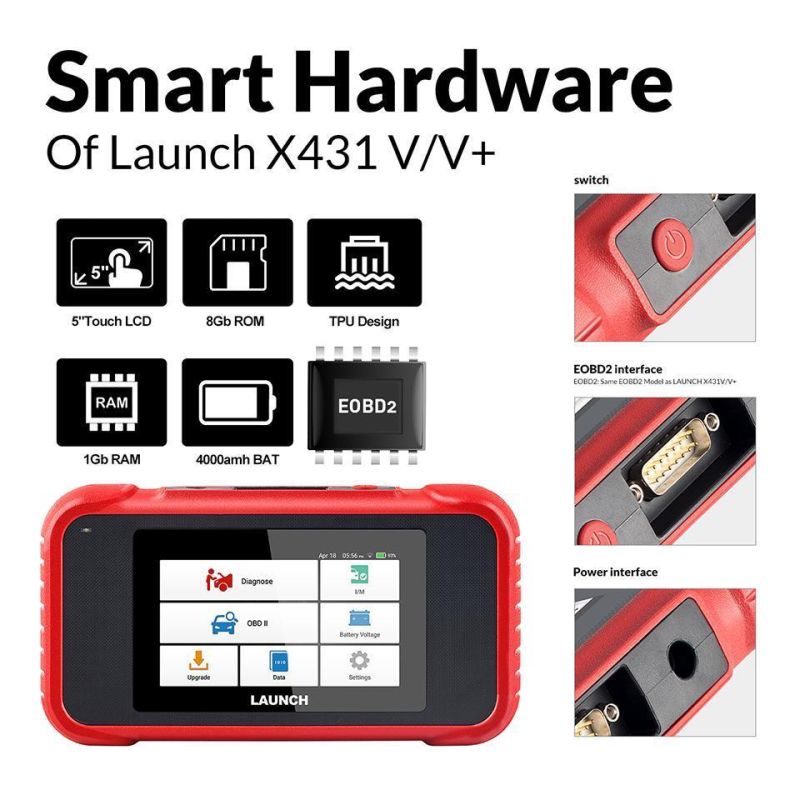

Specification:
Screen: 5'inch Touch Screen
RAM: 1G
ROM: 8GB
Battery: 4000mAh rechargeable Li-battery
OBD II input voltage range: 9~18V
Charging via:DC 5V charging cable or Diagnostic cable through connection to vehiclersquos DLC
Dimension: 228mm x 125mm x 34.5mm
Working temperature: -10 to 50degC (14 to 122 Fdeg)
Storage temperature: -20 to 70degC (-4 to 158 Fdeg)

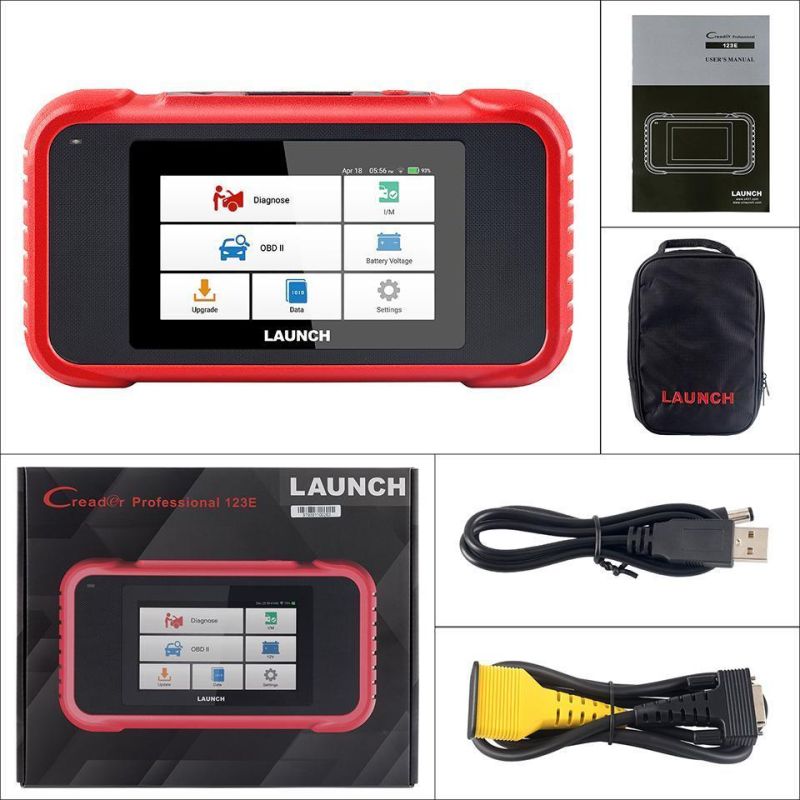

Packing List :
1. Creader Professional 123E handset
2. OBD II diagnostic cable
3. DC 5V charging cable
4. User manual
5. Carrying bag
