• Model NO.：C9370 C9370C C9372
• Certification：Ce, ISO
• Condition：New
• Transport Package：in Wooden Case ( Can Be Fumigated) , Plywood Case
• Specification：Standard, CE & ISO9001
• Trademark：TIMAC
• Origin：China (Mainland)
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. C9370 C9370C C9372 Certification Ce, ISO Condition New Transport Package in Wooden Case ( Can Be Fumigated) / Plywood Case Specification Standard, CE & ISO9001 Trademark TIMAC Origin China (Mainland) Production Capacity 100 Sets Per Month

Product Description

 Brake Lathe (C9370 C9370C C9372)


Part 1---Product discription

Features:1. Quickly, accurately and efficiently to cutting rotor.
2. Fast and slow setting allow cutting rotor.
3. Quickly, accurately and efficiently to cutting drum.
4. Finitely adjustably setting allow cutting drum.
5. Three kinds of speed 70,88,118 rpm to choose for spindle speed.
6. A convenient design allows to quickly change from rotor to drum.
7. Position of stop make the lathe stop automatically after cutting.
8. Fully equipped with adapter package.
 Parameters:

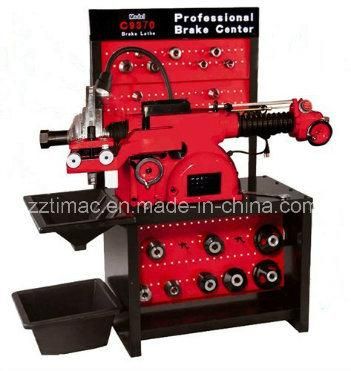

Specification	C9370
Spindle Travel	9.875" (251mm)
Spindle speed	70, 88, 118 rpm
Spindle feed speed	0.002"-0.02"(0.05mm-0.5mm)
Cross feed speed	0.002"-0.01"(0.05mm-0.25mm)
Handwheel graduations	0.002"(0.05mm)
Rotor diameter	7" -18" (180mm-457mm)
Rotor thickness	4" (102mm)
Drum diameter	6" -28" (152mm-711mm)
Drum depth	9.875" (251mm)
Motor	110V/220V/380V,50/60HZ
Gross weight	400 kg
Dimension (LxWxH)	1100x1070x1140mm

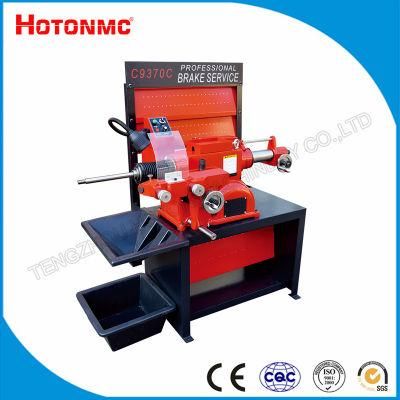

Specification	C9370C
Spindle Travel	9.875" (251mm)
Rotor diameter	7" -18" (180mm-457mm)
Drum diameter	6" -28" (152mm-711mm)
Motor	110V/220V/380V,50/60HZ
Spindle speed	70,88,118 rpm
Rotor thickness	4" (102mm)
Drum depth	9.875" (251mm)
Shipping weight	400 kg
Dimension (L×W×H)	1100mm ×1070mm×1140mm
Site requirements	1525x1270x1780mm

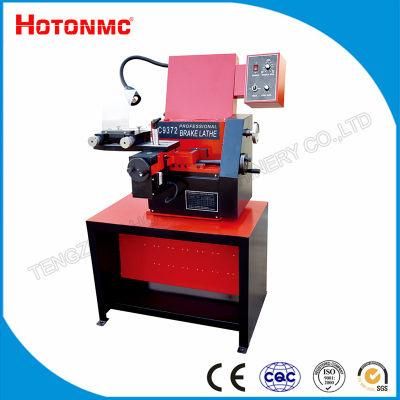

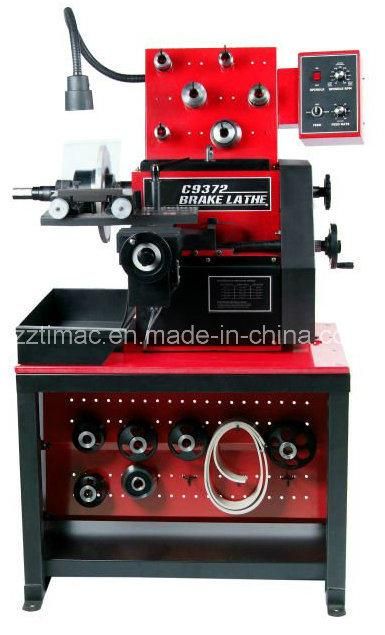

Specification	C9372
Rotor diameter	4"-24" (102-610mm)
Max. rotor thickness	2.85"(73mm)
Drum diameter	6"-28"(152-711mm)
Drum depth	9"(229mm)
Flywheel diameter	6"-24"(152-610mm)
Spindle weight capacity(standard 1" arbor)	150Ibs(68kg)
Spindle speed	70-320RPM
Feed rates-rotor and drum	0"-0.026"(0-0.66mm)
Feed rate per minute	2.54"(64.5mm)
Motor	110V/220V,50/60HZ
Gross weight	300Kg
Dimension (LxWxH)	1130x720x750mm

Part 2--- Our Services

1. Free replacing parts available in the warranty period.
    Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the
    machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer
    (relative cost born by customer).

 Part 3---Company Information "TIMEWAY MACHINE" is a registered Chinese business business located in Zhengzhou city, in the center of China, and has been opearting in the machinery industry for many years. Our factory is the joint-stock enterprise, founded in 1946, has 50 years of machine tool manufacturing history.Occupies more than 500acres, built a foundary, machining, heat treatment, assembly, quality inspection, painting, logistics and other advanced production lines. Our product mainly cover lathes, Milling, Drilling, Gringding, Sawing, Shaping/Slotting and related accessories&tools, etc.
