• Model NO.：WLD12000
• Paint Mist Treatment：Dry-type
• Condition：New
• Model：Wld12000
• External Size：12150*6600*5600mm
• Internal Size：12000*5000*4800mm
• Air Flow：31000 X 2m3 ,H
• Air Speed：0.3-0.5m,S
• Power：41kw
• Vehicle Suited：Saloon Car,Jeep,SUV
• Transport Package：Export Standard
• Specification：Truck Bus Type
• Trademark：WEILONGDA
• Origin：Guangzhou, China
• HS Code：84193990
• Production Capacity：2, 000 PCS,Year

Basic Info.

Model NO. WLD12000 Paint Mist Treatment Dry-type Condition New Model Wld12000 External Size 12150*6600*5600mm Internal Size 12000*5000*4800mm Air Flow 31000 X 2m3 /H Air Speed 0.3-0.5m/S Power 41kw Vehicle Suited Saloon Car/Jeep/SUV Transport Package Export Standard Specification Truck Bus Type Trademark WEILONGDA Origin Guangzhou, China HS Code 84193990 Production Capacity 2, 000 PCS/Year

Product Description

1. CE, ISO, AS about bus spray booth
2. Real spray booth manufactory in China
3. Welcome to visit our factory any time


External Size	12150(L)×6600(W)×5600(H)mm
Internal Size	12000(L)×5000(W)×4800(H)mm
Main Door Size	4000(W)×4800(H)mm
Air Flow	31000m³/h×2
Air Speed	0.3-0.5m/s
Operating Temperature	60-80ºC
Power	41KW
Vehicle Suited	Truck and Bus

Main features:

1. Wallboard: Sandwich style EPS (epispastics polystyrene) 75mm thickness. Colorful steel skin boards 0.476mm thickness. Galvanized steel roof panel.

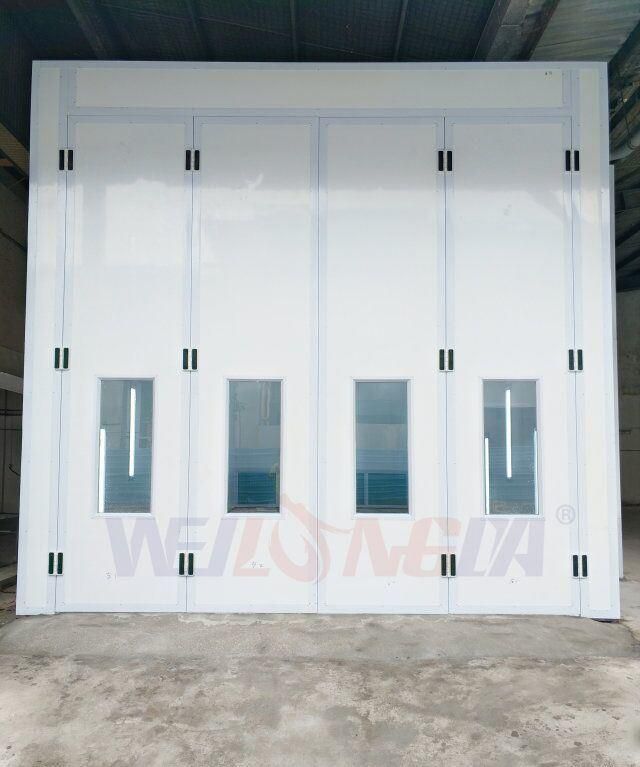

2. Door: 4 PCS of front doors with special rigid frame. Size: 4000(w) x 4800(h). 2 PCS of emergency doors.

3. Air Intake System (2sets): Each set consists of 2x5.5kw intake fan. Total 4 units of 5.5kw intake fan. BELIMO 20N electric damper.

4. Air Exhaust System (2sets): Each set consists of 1x7.5kw exhaust fan. Total 2 units of 7.5kw exhaust fan. Multi-layer fiberglass filter. Exhaust air from basement or two sides of wallboard.

5. Heating System (2sets): Each set consists of 1 unit Italy Riello G20 diesel burner, 200000Kcal/h. Total 2 units of burners, 400000Kcal/h. The heat exchanger is made of 1.5mm thickness stainless steel which features more heat dissipating surface, better heat exchange and better burner efficiency.

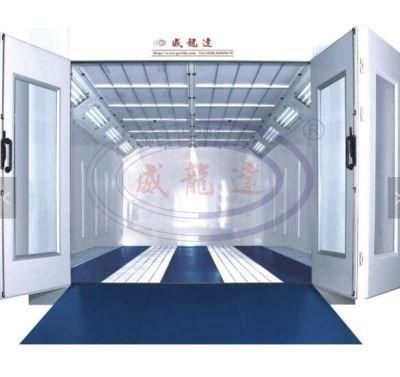

6. Lighting System: Ceiling light has 16 units x 3 PCS of 36W lamps. Side light has 18 units x 2 PCS of 36W lamps. Total 84 PCS of 40W lamps. 900 Lux.

7. Air Purification: Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.
