Wld-9000 (Luxury Type) (CE) Car Spray Booth Oven

Guangzhou Weilongda Electromechanical Equipment Co., Ltd.
  • Type：Spray Booth
  • Certification：CE
  • Substrate：EPS
  • Brand：Weilongda
  • Coating：Powder Coating
  • Airflow Direction：Cross-flow Type

Base Info

  • Model NO.：WLD-9000
  • Heating Mode：Gas
  • Paint Mist Treatment：Dry-type
  • Condition：New
  • External Size：7000*5450*3480mm
  • Internal Size：6900*3900*2800mm
  • Main Door Size：3000*2750mm
  • Power：15kw
  • Air Flow：25000m3,H
  • Air Speed：0.3-0.5m,S
  • Vehicle Suited：Saloon Car,Jeep,SUV
  • Transport Package：Export Standard
  • Specification：Standard Type
  • Trademark：WeiLongDa
  • Origin：Guangzhou
  • HS Code：8419899090
  • Production Capacity：2, 000 Sets,Year

Description

Basic Info.

Model NO. WLD-9000 Heating Mode Gas Paint Mist Treatment Dry-type Condition New External Size 7000*5450*3480mm Internal Size 6900*3900*2800mm Main Door Size 3000*2750mm Power 15kw Air Flow 25000m3/H Air Speed 0.3-0.5m/S Vehicle Suited Saloon Car/Jeep/SUV Transport Package Export Standard Specification Standard Type Trademark WeiLongDa Origin Guangzhou HS Code 8419899090 Production Capacity 2, 000 Sets/Year

Product Description

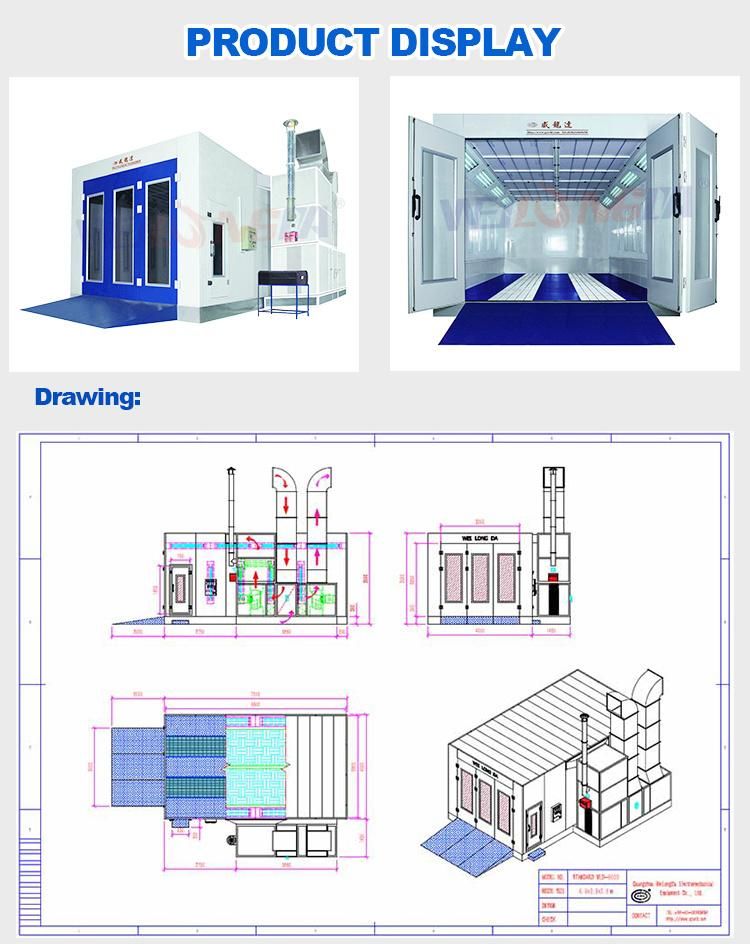

Wld-9000 (Luxury Type) (CE) Car Spray Booth Oven

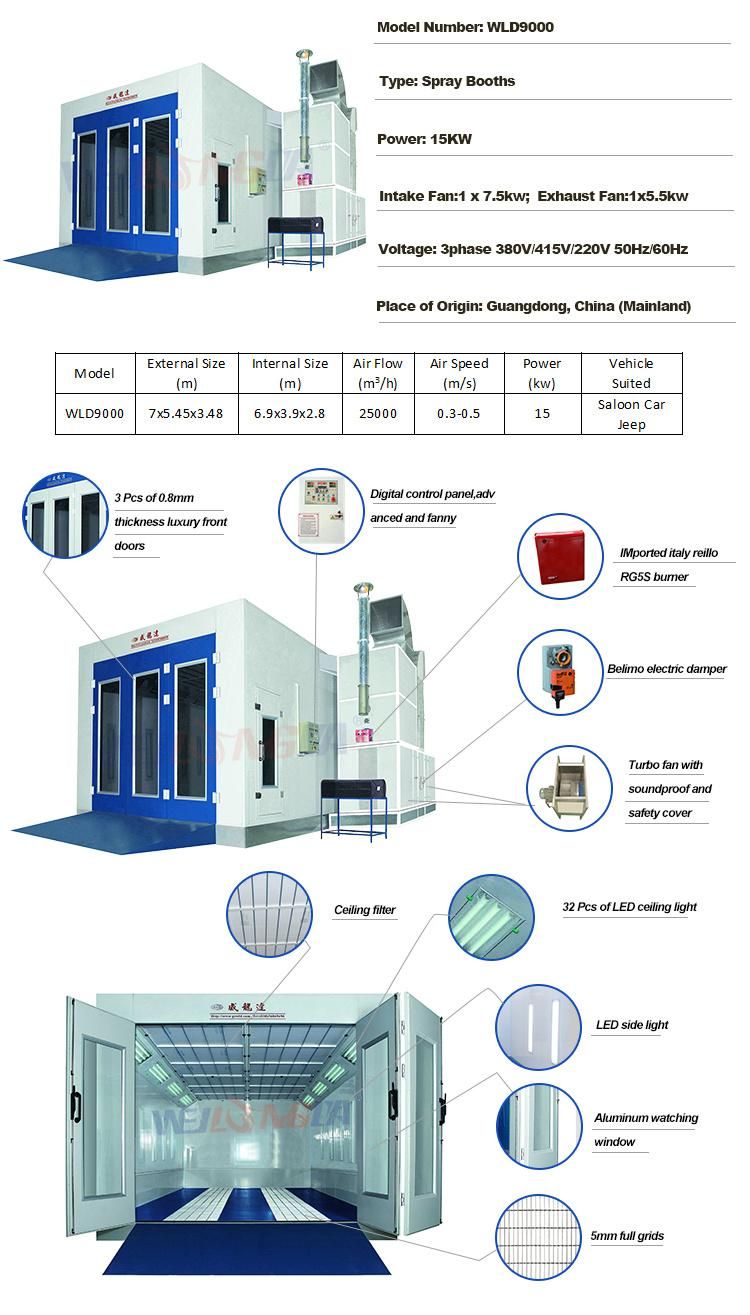

Configuration:

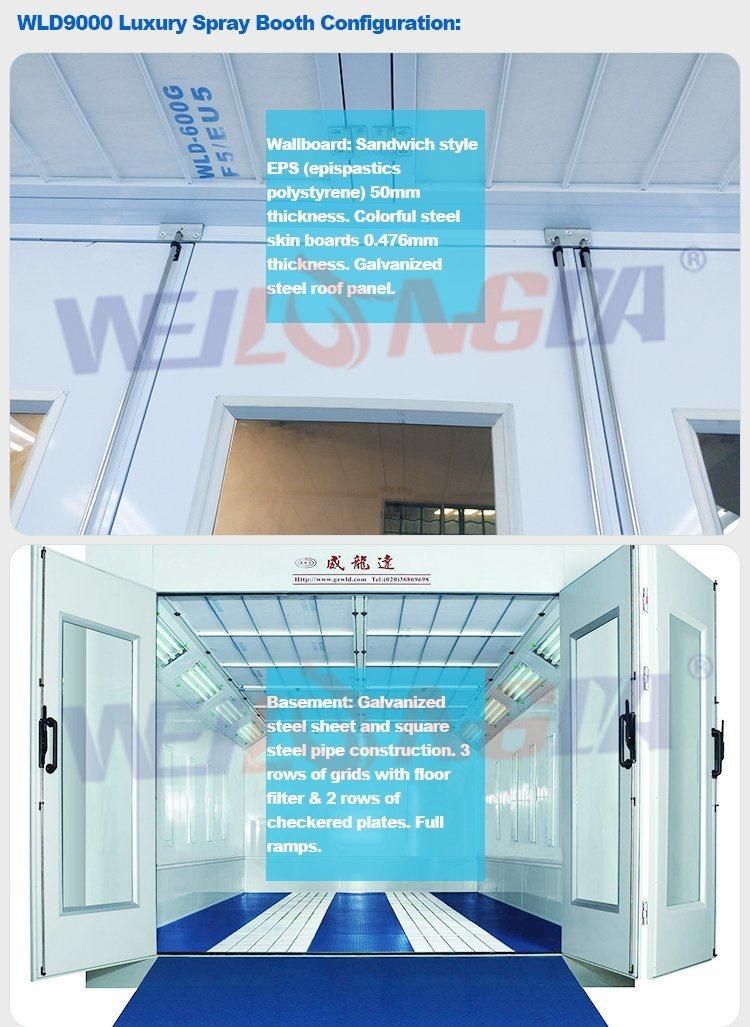

  1. Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Colorful steel skin boards 0.476mm thickness. Galvanized steel roof panel.
  2. Basement: Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plates. Full ramps.

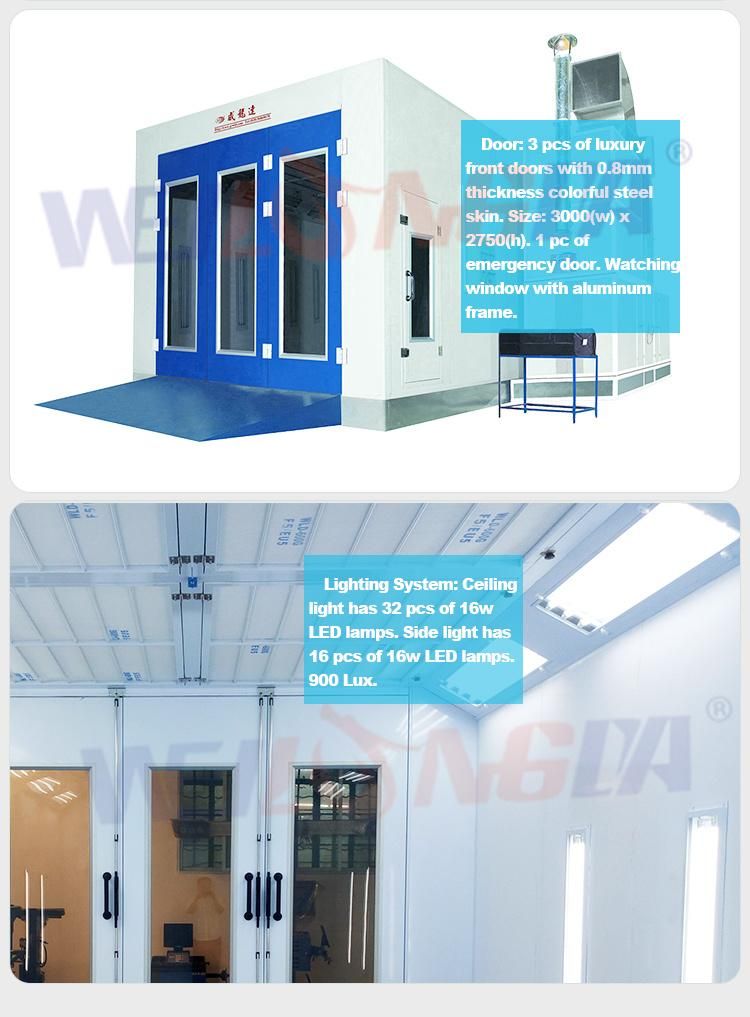

  3. Door: 3 pcs of luxury front doors with 0.8mm thickness colorful steel skin. Size: 3000(w) x 2750(h). 1 pc of emergency door. Watching window with aluminum frame.
  4. Air Circulation System: 1 x 7.5kw direct drive intake fan, 1x5.5kw direct drive exhaust fan. BELIMO 20N electric damper.
  5. Burner: Italy RielloRG5S diesel burner, 260000Kcal/h. The heating time 4-5min(20-60.C). Max. temperature at 80.C. Fuel consumption is 5-6kg/vehicle.
  6. Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.
  7. Lighting System: Ceiling light has 32 pcs of 16w LED lamps. Side light has 16 pcs of 16w LED lamps. 900 Lux.
  8. Air Purification: Dual filtering structure. The primary filter is M pattern nonwoven filter bags. It can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.
  9. Pollution Control System: Special configure with M pattern Active Carbon pocket Filter System.
