• Model NO.：WLD-V
• Length：5328mm
• Width：2000mm
• Height：300*610mm
• Weight：2480kgs
• Hydraulic Power：69MPa
• Tower Pulling Capacity：98000n
• Radius of Pulling：360°
• Air Supply Required：100psi
• Lifting Capacity：5000kgs
• Transport Package：Export Standard
• Specification：CE
• Trademark：WeiLongDa
• Origin：Guangzhou, China
• HS Code：8479899990
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. WLD-V Length 5328mm Width 2000mm Height 300*610mm Weight 2480kgs Hydraulic Power 69MPa Tower Pulling Capacity 98000n Radius of Pulling 360° Air Supply Required 100psi Lifting Capacity 5000kgs Transport Package Export Standard Specification CE Trademark WeiLongDa Origin Guangzhou, China HS Code 8479899990 Production Capacity 5000PCS/Year

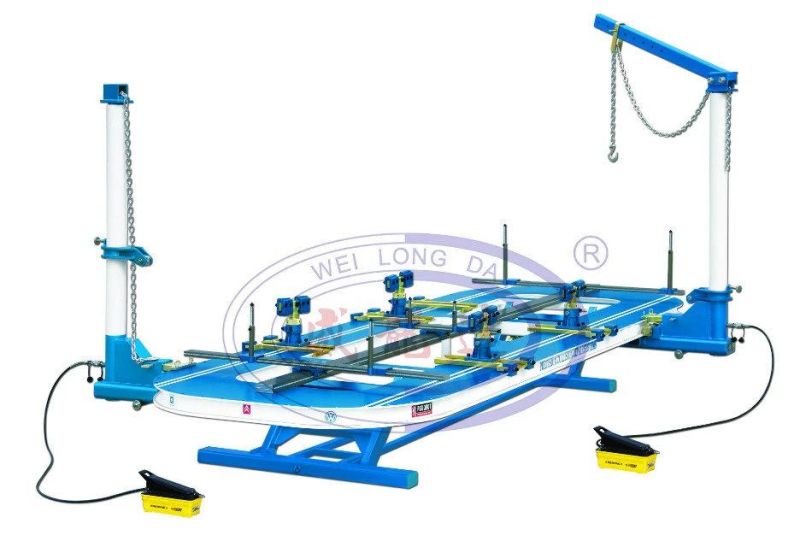

Product Description

Features:
1. The high-accuracy large bench provides an ideal place serving for several purpose.
2. The oil cylinder operating vertically has a strong pulling force up to 10 tons.
3. Various jigs and auxiliary clamps cover almost all repair situations.
4. The two movable hydraulic pulling towers can turn 360 degrees along the bench rail, making work on all sides of the vehicle fast and efficient.
5. High-precision movable three-dimensional measuring system is easy to handle.
6. The working height of the vertical lifting bench can be adjusted between 300mm and 610 mm as needed.
7. The general-purpose jigs are suitable for the positioning and fixing of cars both at home and abroad.
8. The hydraulic system imported from USA has the advantages of reliable performance and long service life.
9. A data manual for latest car models of various series is provided.

Specifications:

Working-bench Length	5328mm
Working-bench Width	2000mm
Working-bench Height	300-610mm
Equipment Overall Weight	2480kg
Hydraulic Power	69MPa
Power Pulling capacity	98000N
Radius of Pulling	360°
Air Supply Required	100PSI
Lifting Capacity	5000kg
