• Model NO.：WLD-9200
• Heating Mode：Diesel
• Paint Mist Treatment：Both Dry and Wet Type
• Condition：New
• External Size：7000*5450*400mm
• Internal Size：6900*3900*2800mm
• Main Door Size：3000*2800mm
• Total Power：20kw
• Air Flow：3000m3,H
• Air Speed：0.3-0.5m,S
• Fuel Comsumption：5-6kg,Vehicle
• Vehicle Suited：Saloon Car,Jeep,SUV
• Transport Package：Export Standard
• Specification：ISO, CE
• Trademark：WeiLongDa
• Origin：Guangzhou, China
• HS Code：84193990
• Production Capacity：2000 Sets,Year

Basic Info.

Model NO. WLD-9200 Heating Mode Diesel Paint Mist Treatment Both Dry and Wet Type Condition New External Size 7000*5450*400mm Internal Size 6900*3900*2800mm Main Door Size 3000*2800mm Total Power 20kw Air Flow 3000m3/H Air Speed 0.3-0.5m/S Fuel Comsumption 5-6kg/Vehicle Vehicle Suited Saloon Car/Jeep/SUV Transport Package Export Standard Specification ISO, CE Trademark WeiLongDa Origin Guangzhou, China HS Code 84193990 Production Capacity 2000 Sets/Year

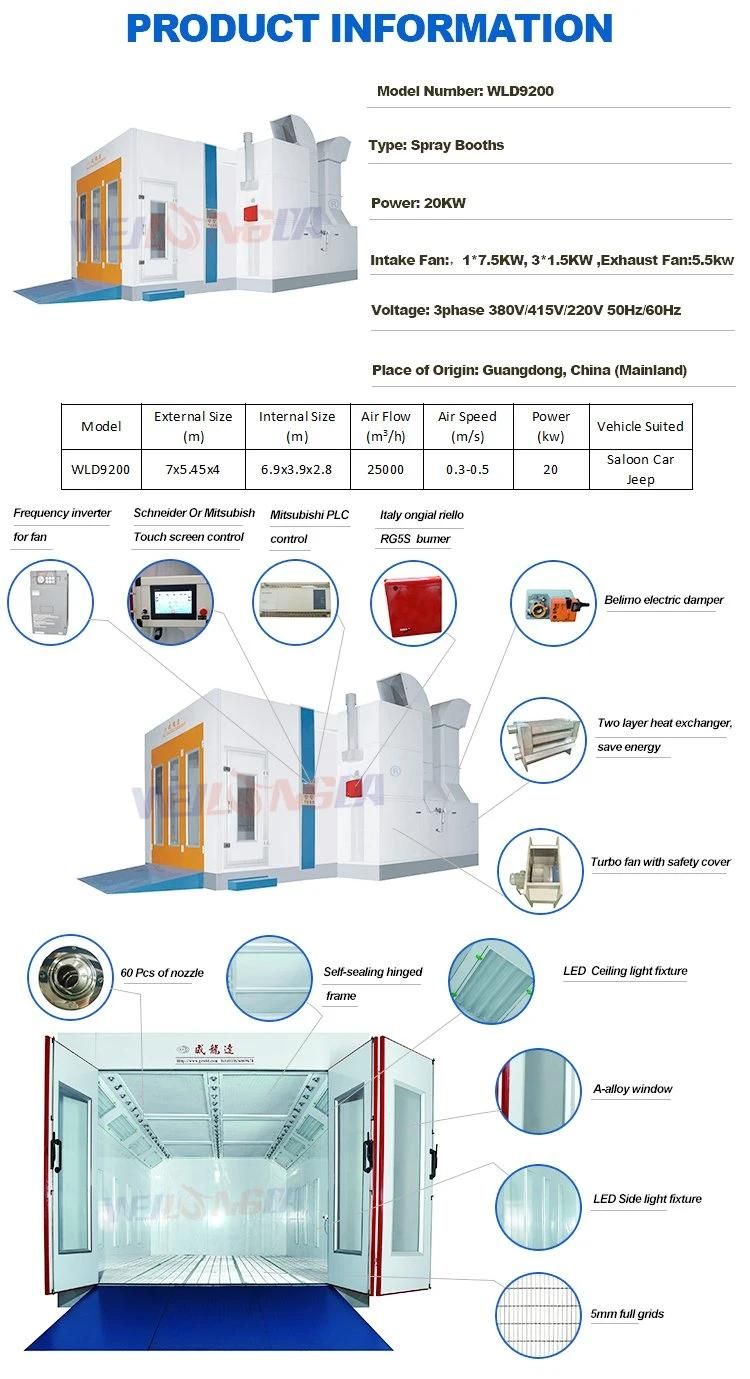

Product Description

Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Colorful steel skin boards 0.476mm thickness. Galvanized steel roof panel.Basement: Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plates. Full ramps.Door: 3 pcs of luxury front doors with 0.8mm thickness colorful steel skin. Size: 3000(w) x 2750(h). 1 pc of emergency door. Watching window with aluminum frame.Air Circulation System: 1 x 7.5kw direct drive intake fan, 1x5.5kw direct drive exhaust fan. BELIMO 20N electric damper.Burner: Italy RielloRG5S diesel burner, 260000Kcal/h. The heating time 4-5min(20-60^.C). Max. temperature
at 80^.C. Fuel consumption is 5-6kg/vehicle.Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%. Lighting System: Ceiling light has 32 pcs of 16w LED lamps. Side light has 16 pcs of 16w LED lamps. 900 Lux.Air Purification: Dual filtering structure. The primary filter is M pattern nonwoven filter bags. It can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.Pollution Control System: Special configure with M pattern Active Carbon pocket Filter System.
