• Model NO.：C9370
• Spindle Feed Speed：Min 0.002
• Inch Per Revolution：0.05 Mm,Rev
• Transport Package：Plywood Case
• Specification：CE
• Trademark：AA4C
• Origin：China
• HS Code：8458990000
• Production Capacity：1000units,Month

Basic Info.

Model NO. C9370 Spindle Feed Speed Min 0.002 Inch Per Revolution 0.05 Mm/Rev Transport Package Plywood Case Specification CE Trademark AA4C Origin China HS Code 8458990000 Production Capacity 1000units/Month

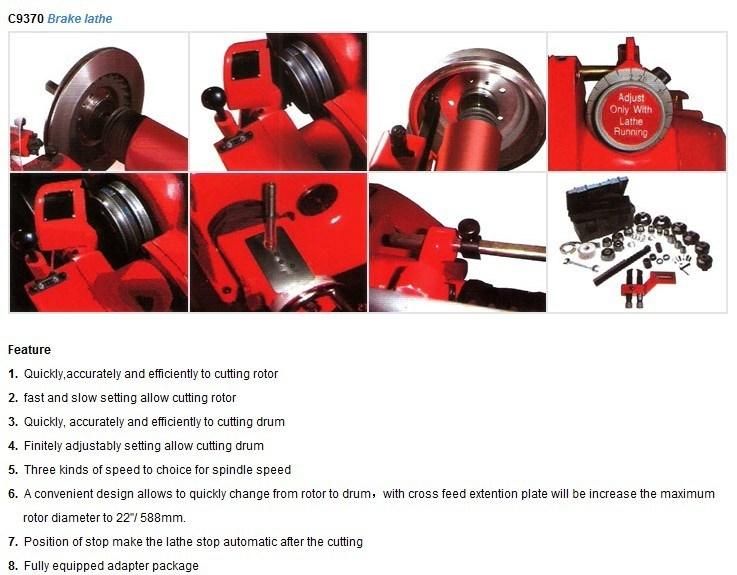

Product Description

Quickly, accurately and efficiently to cutting rotor; Fast and slow setting allow cutting rotor
Quickly, accurately and efficiently to cutting drum; Finitely adjustably setting allow cutting drum
Three kinds of speed to choice for spindle speed
A convenient design allows to quickly change from rotor to drum, with cross feed extention plate will be increase the maximum rotor diameter to 22"/ 588mm.
Position of stop make the lathe stop automatic after the cutting
Fully equipped adapter package
SPECIFICATION
Spindle Travel 9.875" / 251mm
Spindle Speed 70, 80, 118 RPM
Spindle Feed Speed Min 0.002 Inch Per Revolution / 0.05 mm/Rev
Max 0.02 Inch Per Revolution / 0.5 mm/Rev
Cross Feed Speed Min 0.002 Inch Per Revolution / 0.05 mm/Rev
Max 0.01 Inch Per Revolution / 0.25 mm/Rev
Handwheel Graduations 0.002" / 0.05mm
Rotor Diameter 7" / 180mm - 18" / 457mm
Rotor Thickness 4" / 102mm
Drum Diameter 6" / 152mm - 28'' / 711mm
Drum Depth 9.875" / 251mm
Motor 1PH 220VAC 50/60Hz 3PH 380VAC 50/60Hz
Gross Weight 400KG

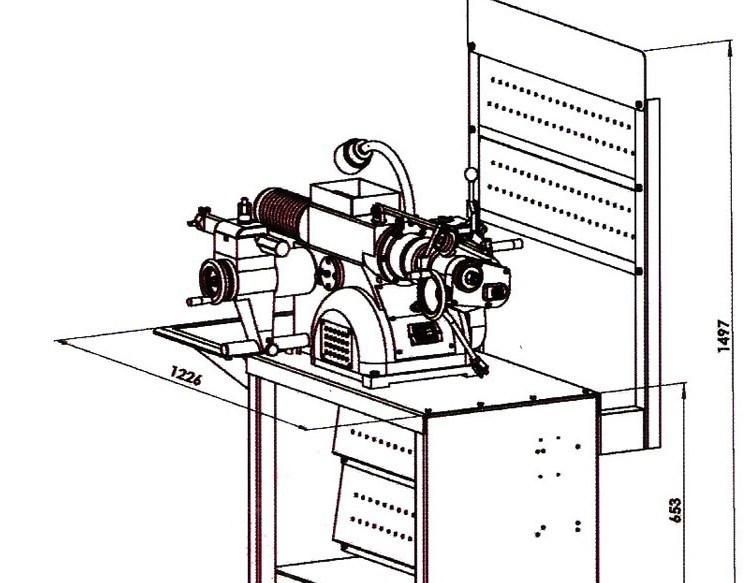

Dimension 1200X920X1140mm
