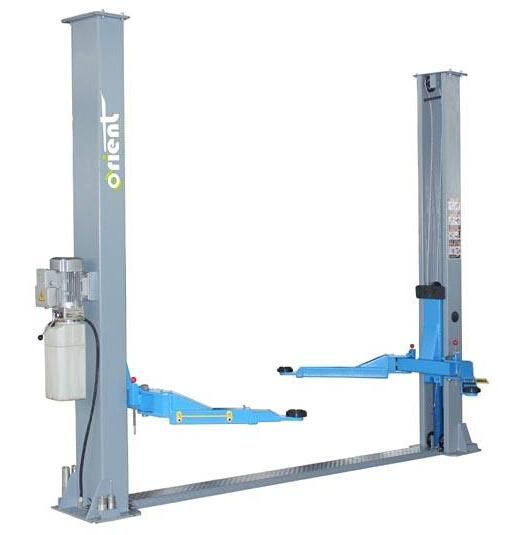

2 Post Car Lift (ORL-40Q)
Yancheng Sunrise Import & Export Co., Ltd.- Lifting Capacity：4000kgs
- Driving Type：Hydraulic
- Certification：CE, ISO
- Driving Motor Number of Mechanical Lift：1
- Condition：New
- Brand：Orient
Base Info
- Model NO.：ORL-40Q
- Design：Two Post
- Max Lifting Height：1900mm
- Min Height：110mm
- Transport Package：Standard Export Packaging
- Specification：CE & ISO
- Trademark：Orient
- Origin：China
- HS Code：84254290
- Production Capacity：500units, Month
Description
Basic Info.
Model NO. ORL-40Q Design Two Post Max Lifting Height 1900mm Min Height 110mm Transport Package Standard Export Packaging Specification CE & ISO Trademark Orient Origin China HS Code 84254290 Production Capacity 500units/ MonthProduct Description
car lift ORL-40Q
FEATURES:
*Floor plate design is ideal choice for low ceiling shop
*By two cylinder ,plate and wire rope chain balances system,lifting off and landing smooth.
*Hydraulic power unit configuration throttling device, can always djust the rate of decline. manual locked release from two sides.
*With 24V limit switch. Asymmetric column allows wider drive through clearance.
*Rubber support pad with spiral adujst the height and in stages adjust the height, optional.
*Rubber support pad door-opening protection.
*Truck adapters can optional.Have adopted 115% dynamic and 150% static loading tested.
*With guard rail, toe protection
*CE approved

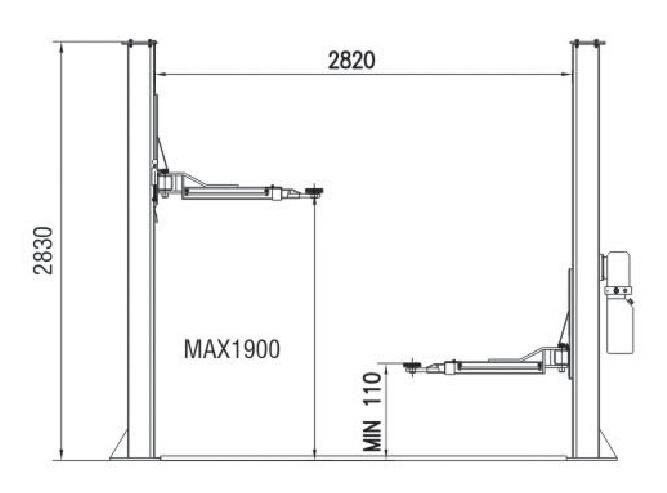

Overall Dimensions:
| Lifting Capacity | 4000kg |
| Max.Lifting Height | 1900mm |
| Minimum Height | 110mm |
| Lifting Time | 40-45s |
| Overall Height | 2830mm |
| Overall Width | 3420mm |
| Width Between Columns | 2820mm |
| Motor Power | 2.2kw |
| Power Supply | 220V/240V/380V/415V |
| weight | 592kg/636kg |
| Packing Size | 2900*530*770mm |
