• Model NO.：GL4000-A1
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Door Width(M)：3.0
• Door Height(M)：2.66
• Air Flow (M3/H)：30000
• Lighting System：Upper Light and Side Light
• Filters：High Efficiency Filter
• Color：Red Blue Orange White
• Usage：Car Painting Baking
• Vehical Suited：Saloon Car
• Warranty：Yes
• Heating System：Riello Brand Diesel Burner
• Transport Package：Iron Frame Packing and Carton Packing
• Specification：20GP
• Trademark：GUANGLI
• Origin：Guangzhou, China
• HS Code：84198990
• Production Capacity：10, 000 PCS,Year

Basic Info.

Model NO. GL4000-A1 Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Door Width(M) 3.0 Door Height(M) 2.66 Air Flow (M3/H) 30000 Lighting System Upper Light and Side Light Filters High Efficiency Filter Color Red Blue Orange White Usage Car Painting Baking Vehical Suited Saloon Car Warranty Yes Heating System Riello Brand Diesel Burner Transport Package Iron Frame Packing and Carton Packing Specification 20GP Trademark GUANGLI Origin Guangzhou, China HS Code 84198990 Production Capacity 10, 000 PCS/Year

Product Description

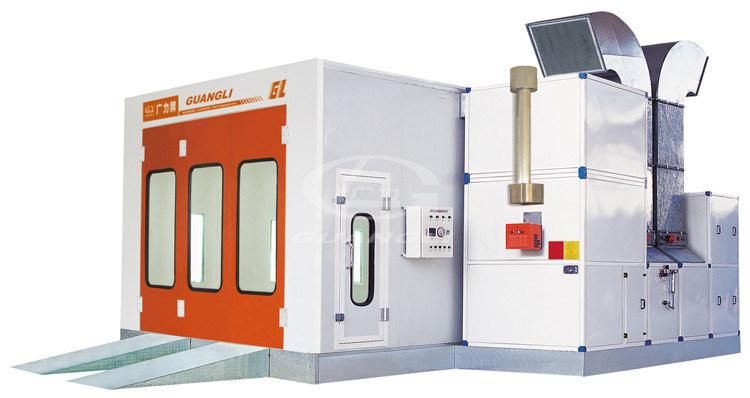

CE Approved Hot Sale Garage Equipment Car Spray Paint Booth Room for Sale (GL4000-A1)
Description
--Wall panel :sandwich style,δ=50mm,rock wool.(polystyrene is optional)
--Basement :steel strucutre,full grids .ramp:2 pcs of grids.
--Door:3 pcs of front door without aluminum side cover.1 pc of emergency door with pressure lock.
--Lengthened room as optional :outside :7.6*5.6*3.5(m) inside size:7.5*3.9*2.7(m)
--One unit of 11kw intake fan and one unit of 11kw exhaust fan.
--4m straight exhaust ducts,one 90° bend,and one 60°bend,5m straight chimney and 2 small bends.
--1 manual VCD exhaust damper,electrical VCD as optional. One pressure meter.
--Spraying/baking transition damper,automatically air controlled.
--Heat exchanger:stainless steel.Riello G20 burner.
--Roof filter:6 pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--5 pcs of floor filter and 2 pcs of air mouth filter.
--Upper light :10sets,4*40W per set. side light:8sets,4*40w.
--Control box:components is import,overload,overheat,phase-lacking protection,engine Y/△ start.
--Automatically stop when preset time is up.
--Constant temperature spraying
--Environmental filter: the equipment can be adopted M style activated carbon or drawer style activated carbon as optional.

Model	GL4000-A1
External size (m)	7.0x5.6x3.5
Internal size (m)	6.9x3.9x2.7
Entrance Width(m)	3.0
Entrance Height(m)	2.66
Fan capacity( m 3 /h )	30000
Air velocity (m/s)	0.3-0.5
Drying Temperature(ºC)	20-80
Oil consumption (L/unit)	6-8
Power (kw)	25
Suitable Automobile Type	Saloon Car

Guangli Spray Booth Show

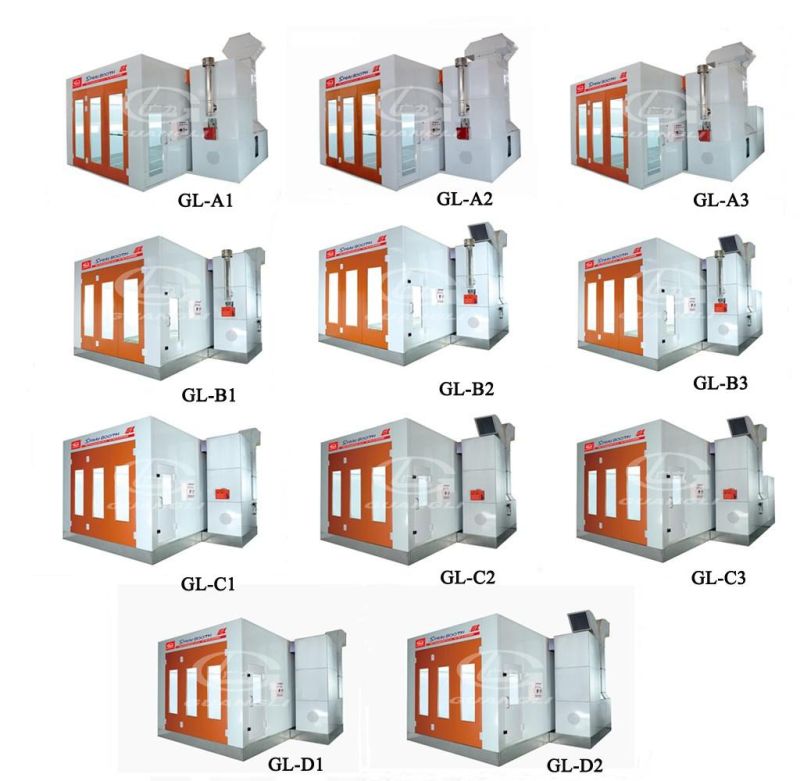

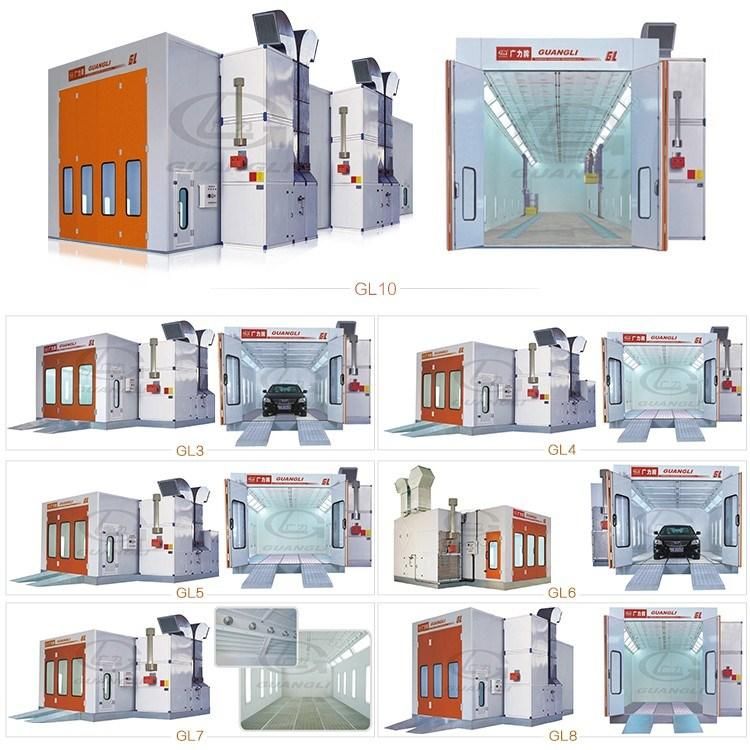

Guangli Spray Booth Series

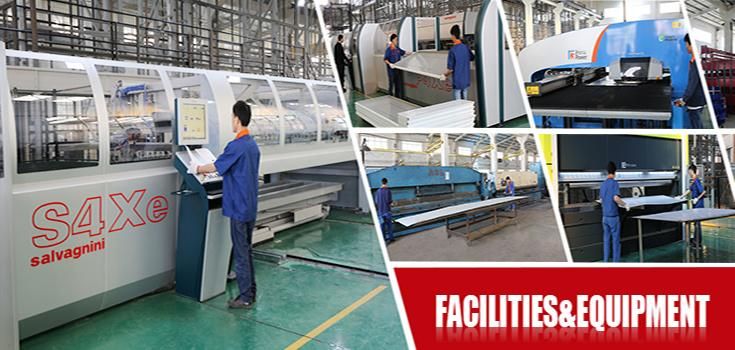

Equipment
We have the most-advanced sheet metal production line imported from Europe and have achieved the world-class production level among this industrial.


Exhibition




Service after the Sale

Our relationships with our customers don't stop once the product has been installed. Guangli offers many options for service and maintenance, and provides a full line of replacement parts and filters to ensure your products operate at peak efficiency.

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in Iron frame packing and Carton packing.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery
time depends on the items and the quantity of your order.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q6: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.

Why Choose Us
1.More than 20-year experience in Spray booth and car lift field.
2.Superb unique technology and Automatic production line.
3.Large order can be placed.
4.Advanced equipment and exquisite workmanship.
5.Durable and reliable.
6.Excellent pre-sales and after-sales service. Warmly welcome to contact:
