• Model NO.：CY-P
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Outside Dimension：7050X5050X3500mm(Lxwxh)
• Inside Dimension：6900X3900X2800mm(Lxwxh)
• Main Door：3-Folds: 3000*2750mm (Wxh), Aluminium Alloy Door
• Personal Door：1-Fold: 800*1900mm (Wxh),Aluminium Alloy Door Fram
• Wallboard：EPS Colorful Steel Skin Panel,75mm Thick,Steel 0.4
• Basement & Floor：300mm Height, 2 Grills
• Lighting System：Ceiling: 8unitsx3, Side: 6unitsx3
• Intake Fan：2X5.5kw
• Extract Fan：1X7.5kw
• Filtering System：600g High Efficiency Filter,Activated Carbon Filte
• Transport Package：Export Container ,Pallet ,Disassembly with Carton
• Specification：CE, SGS, ISO
• Trademark：OEM,Captain
• Origin：Jiangsu, China.
• HS Code：8424899990
• Production Capacity：196sets,Month

Basic Info.

Model NO. CY-P Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Outside Dimension 7050X5050X3500mm(Lxwxh) Inside Dimension 6900X3900X2800mm(Lxwxh) Main Door 3-Folds: 3000*2750mm (Wxh), Aluminium Alloy Door Personal Door 1-Fold: 800*1900mm (Wxh),Aluminium Alloy Door Fram Wallboard EPS Colorful Steel Skin Panel,75mm Thick,Steel 0.4 Basement & Floor 300mm Height, 2 Grills Lighting System Ceiling: 8unitsx3, Side: 6unitsx3 Intake Fan 2X5.5kw Extract Fan 1X7.5kw Filtering System 600g High Efficiency Filter,Activated Carbon Filte Transport Package Export Container /Pallet /Disassembly with Carton Specification CE, SGS, ISO Trademark OEM/Captain Origin Jiangsu, China. HS Code 8424899990 Production Capacity 196sets/Month

Product Description

Items	Spec
Outside Dimension	7050×5050×3500mm(L×W×H)
Inside Dimension	6900×3900×2800mm(L×W×H)
Main Door	3-folds: 3000×2750mm (W×H),  aluminium alloy door frame
Personal Door	1-fold: 800×1900mm (W×H),aluminium alloy door frame
Wallboard	EPS colorful steel skin panel,75mm thick,steel 0.476mm thick,tongue groove style,compound construction,anti-flame and heat-insulation, aluminium roof panel.

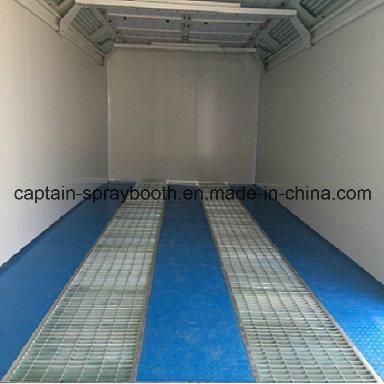

Basement & Floor	Complete steel assemble, height is 300mm, pave 3rows indented plates and 2rows grilles on the metal basement, 2Pcs ramps: 800×2000mm (W×L)/pc
Lighting System	Ceiling Lights: 8Units×3Pcs=24Pcs×40W, with electronic ballasts,power-coated light box.Side Lights: 6Units×3Pcs=18Pcs×36W, with electronic ballasts, vertically set,power-coated light box.
Generator Setting	Intake air from side back direction, quadrate steel frame, colourful coated steel plate
Intake Fan	2 sets of double-intake centrifugal fans for intake air, direct drive,5.5kw each,air capacity 30000m3/h in total.
Extract Fan	1 set of double-intake centrifugal fan for exhaust air, direct drive,7.5kw, air flow 20000m3/h in .
Number Of Air Changes (times/hour)	290
Wind Velocity At Full Load Inside The Room(M/S)	0.3m/s
Heating System	1set Riello RG5S  brand diesel oil burner, maximum heat productivity is 260,000Kcal/h, stainless steel heat exchanger, highest temperature is 80oC, electric damper executes from spraying to baking cycle .
Maximum Working Temperature	80
Heating Rate(/min 20--60)	4-6
Filtering System	Pre-filter,600G high efficiency filter(ceiling filter),floor filter(fiberglass filter),activated carbon filter.

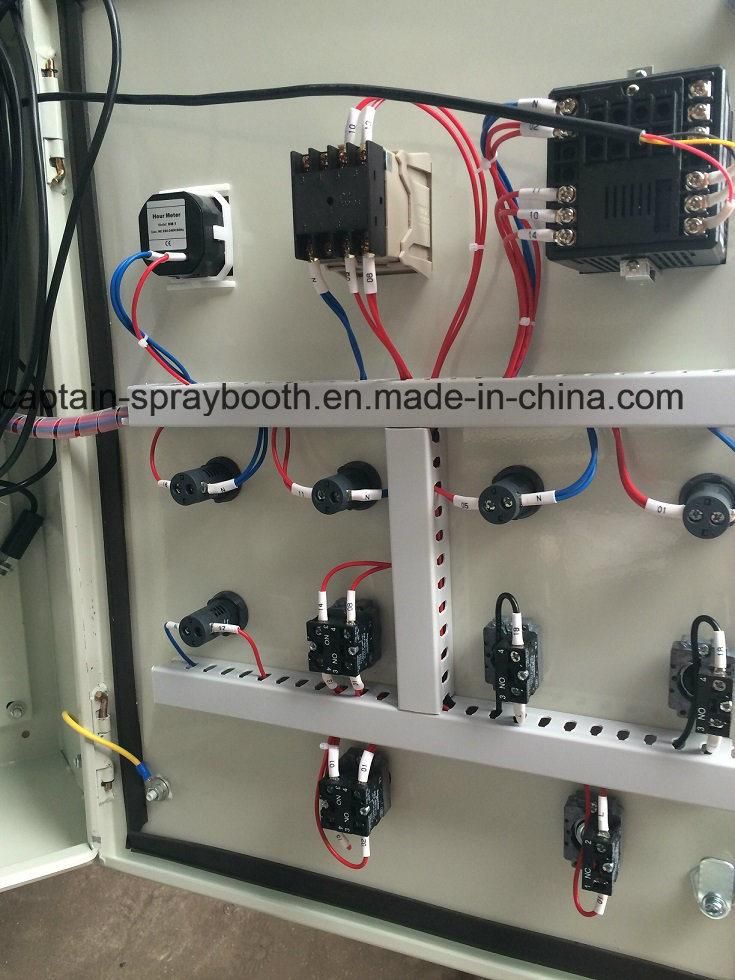

Control Panel	Spraying, heat spraying, baking temperature, time setting, failure indicator, lighting switch
Filter   Efficiency	≥98%
Noise(db)	≤75
Colour	Blue,red,white
Total power(Kw)	21KW
