• Model NO.：EPS815
• Delivering Method：Sea Shipping; Air Shipping
• Production Time：20-25 Working Days
• Gurantee：One Year of Free Maintenance for Overall Unit, EQ
• Update：on-Line
• Optional Function：6PCS Injectors Could Be Tested at The Same Time
• Bip Function：Could Include Common Rail Injector Bip
• Brand：Nant
• Factory：Real Strong Manufactory
• HS：9031200090
• Transport Package：Plywood Box
• Specification：188CM*98CM*176CM; 900kgs
• Trademark：NANT
• Origin：China
• HS Code：9031200090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. EPS815 Delivering Method Sea Shipping; Air Shipping Production Time 20-25 Working Days Gurantee One Year of Free Maintenance for Overall Unit, EQ Update on-Line Optional Function 6PCS Injectors Could Be Tested at The Same Time Bip Function Could Include Common Rail Injector Bip Brand Nant Factory Real Strong Manufactory HS 9031200090 Transport Package Plywood Box Specification 188CM*98CM*176CM; 900kgs Trademark NANT Origin China HS Code 9031200090 Production Capacity 1000 Sets/Year

Product Description

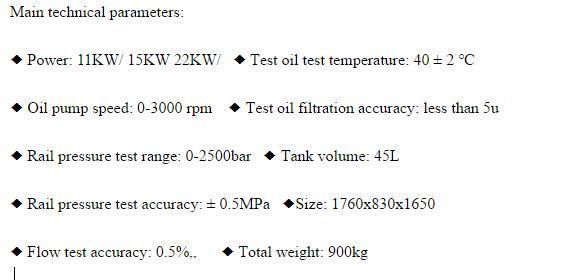

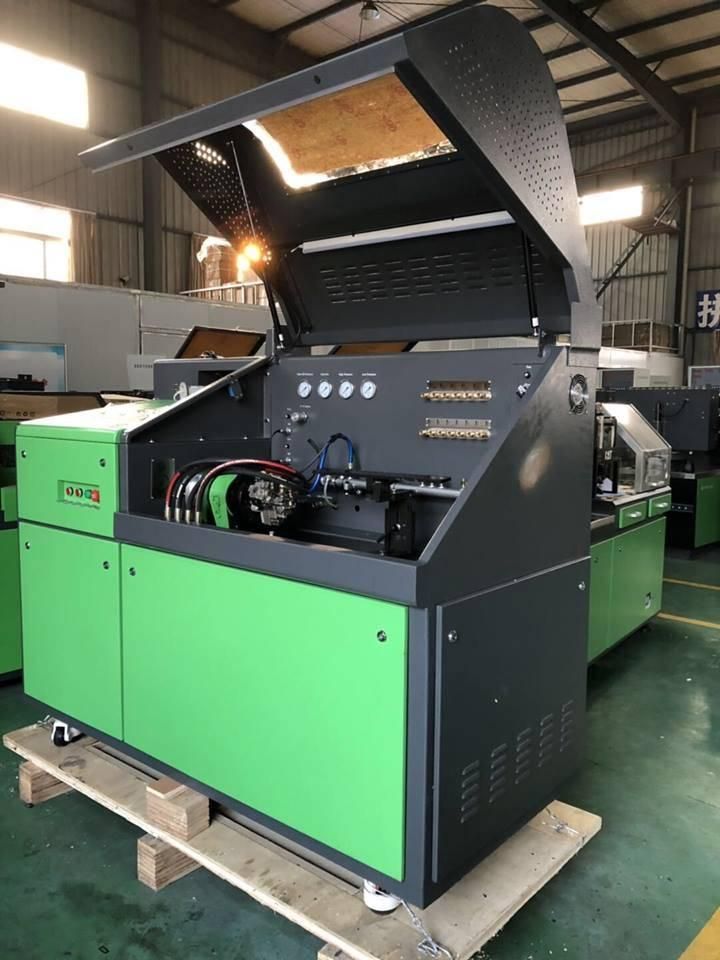

EPS815 common rail test bench


Functions and features:

1.Test the whole series of common rail injector and common rail pump

2. Includes Original Bosch pump CP3S3 and original Bosch DRV ensure pressure accuracy ± 5bar

3. Equipped with automatic constant temperature device, with constant oil temperature of 40 ± 2 ºC

4. Check the resistance and inductance of injector solenoid valve


5. Includes high precision flow sensors

6. Wireless connection of the system can realize remote monitoring for service and data upgrading

5. Software and test plan update on-line.


Optional funtions
1. injection response time (BIP) test function
2. Bosch (6 7 8 9 digits IMA coding), Denso QR coding, Delphi C2i C3i coding creation.
3. CAT 320D pump testing
4. 4pcs or 6pcs injector testing at the same time.
5. VP37 pump testing
6. VP44 pump testing.
