• Model NO.：GL-3.5-4D1
• Brand：Guangli
• Design：Four Post
• Max Lifting Weight(Kg)：3500
• Max Lifting Height (mm)：1650
• The Secondary Lifting(mm)：500
• Voltage(V)：380
• Frequency(Hz)：50
• Motor Power(Kw)：2.2
• Lifting Time：50s-60s
• Remark：Imported Pump for Four-Wheel Alignment
• Feature：4 Post Car Lift
• Style：Hydraulic Car Lift
• Trademark：GL
• Origin：Gz, China
• Production Capacity：800sets,Month

Basic Info.

Model NO. GL-3.5-4D1 Brand Guangli Design Four Post Max Lifting Weight(Kg) 3500 Max Lifting Height (mm) 1650 The Secondary Lifting(mm) 500 Voltage(V) 380 Frequency(Hz) 50 Motor Power(Kw) 2.2 Lifting Time 50s-60s Remark Imported Pump for Four-Wheel Alignment Feature 4 Post Car Lift Style Hydraulic Car Lift Trademark GL Origin Gz, China Production Capacity 800sets/Month

Product Description

China Manufacturer CE Durable maintenance equipment used 4 post car lift for sale

Four-post Lift for Four-Wheel Alignment Feature

• Collocating the imported driving power unit, reliable performance, ascending or descending steady, low noise; durable life-span;
• With lateral-sliding devices at the rear and the slots at the front; fulfilling the function of 4-wheel-alignment;
• Having 3 safety protections: Broken-rope-locking device, Mechanical hooks and Hydraulic pressure locking automatically;
• Mechanical hooks locked by pneumatic device; Capable to normal repairing jobs;
• The crossing boards & the posts formed & molded as a whole at a time; Good rigidity;
• With the secondary lift; power coated, controlled by main hydraulic pump.

Technical Specifications	GL-3.5-4D1
Max Lifting weight(kg)	3500
Max Lifting height (mm)	1650
The secondary Lifting(mm)	500
Voltage(V)	380
Frequency(Hz)	50
Motor Power(Kw)	2.2
Remark	Four-wheel alignment

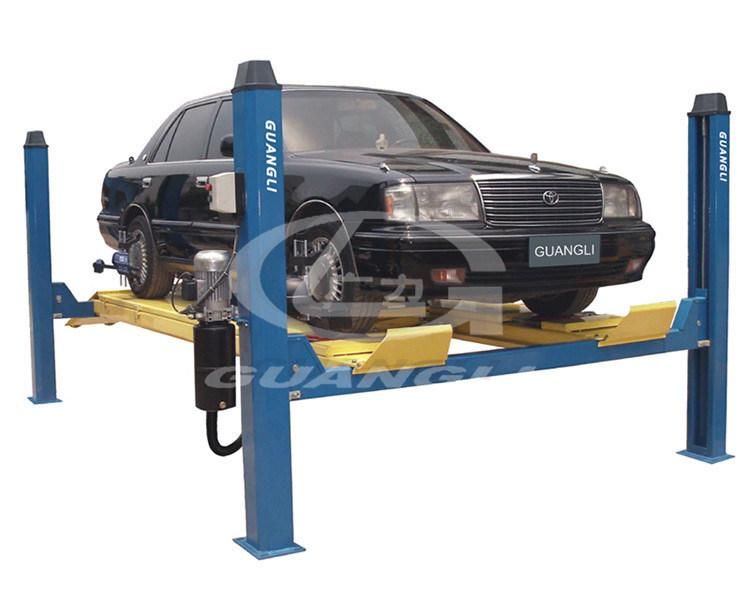

Four-post Lift Show

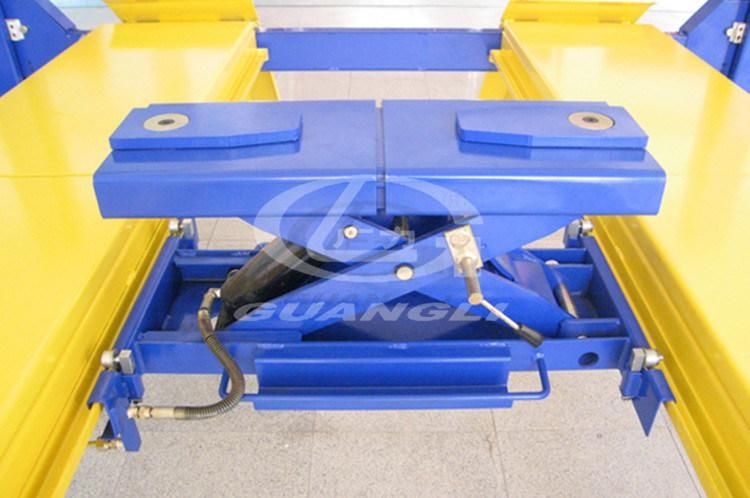

 A secondary lifting carriage is equipped, which is applicable to adjusting and repairing the tire. This carriage adopted an separately imported hydraulic drive control unit.

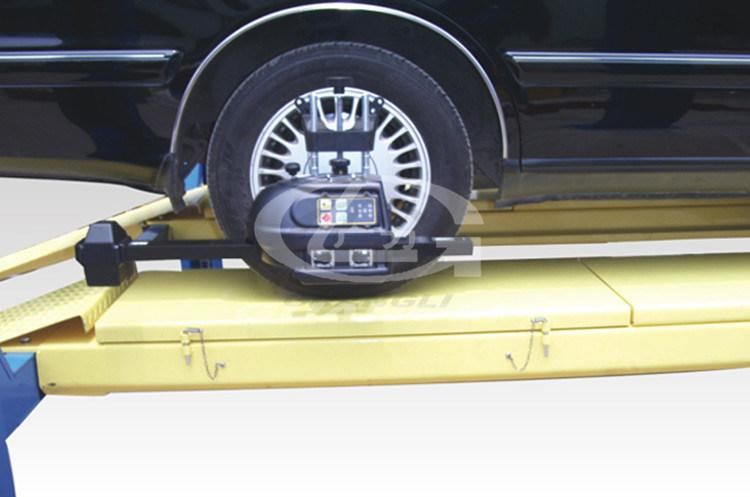

Lengthened slide plates are applicable to most automobiles of various length. When testing the tyre positioning, the slide plates shall be sliding freely; and in time of normal maintenance operation, a lock pin shall be used to lock the slide plate.

Front flutes are equipped for placing the front turning chassis. The size of the front flutes is suitable for most turning chassis. When putting on the front flute cover plate, it can use for normal maintenance operation.

Why Choose Us?

1.More than 20-year experience in Spray booth and car lift field.

2.Superb unique technology and Automatic production line.

3.Large order can be placed.

4.Advanced equipment and exquisite workmanship.

5.Durable and reliable.

6.Good pre-sales and after-sales service.

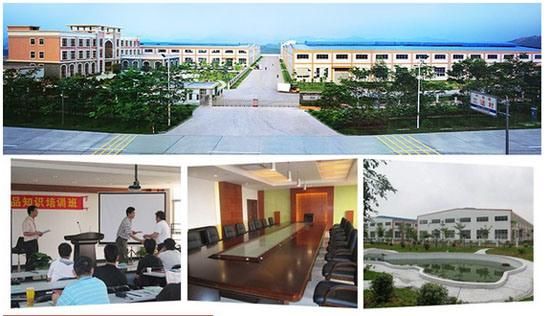

Company Profile

GZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China, having a good reputation among Chinese auto-maintenance enterprise.

GZ GUANGLI EFE CO.,LTD is professional spray booth and car lift manufacturer for 22-year technical and production experience,founded in 1994.

Our products have been used in many car manufacturers' and thought highly of:Guangzhou Honda,Dongfeng Honda,FAW Toyota,Dongfeng Peugeot,Dongfeng Nissan,BMW South China etc.

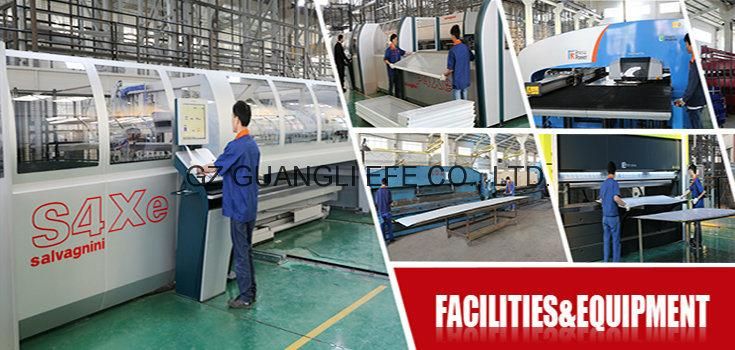

Equipment
