• Model NO.：TC980S
• Condition：New
• Rim Clamping Range (External)：12 -24 (305-610mm)
• Rim Clamping Range (Internal)：14 -26 (355-660mm)
• Max. Wheel Diameter：43 (1100mm)
• Max. Wheel Width：15 (381mm)
• Transport Package：Plywood Case
• Specification：ISO9000
• Trademark：AMCO
• Origin：China
• HS Code：8479899990
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. TC980S Condition New Rim Clamping Range (External) 12 -24 (305-610mm) Rim Clamping Range (Internal) 14 -26 (355-660mm) Max. Wheel Diameter 43 (1100mm) Max. Wheel Width 15 (381mm) Transport Package Plywood Case Specification ISO9000 Trademark AMCO Origin China HS Code 8479899990 Production Capacity 30 Sets/Month

Product Description

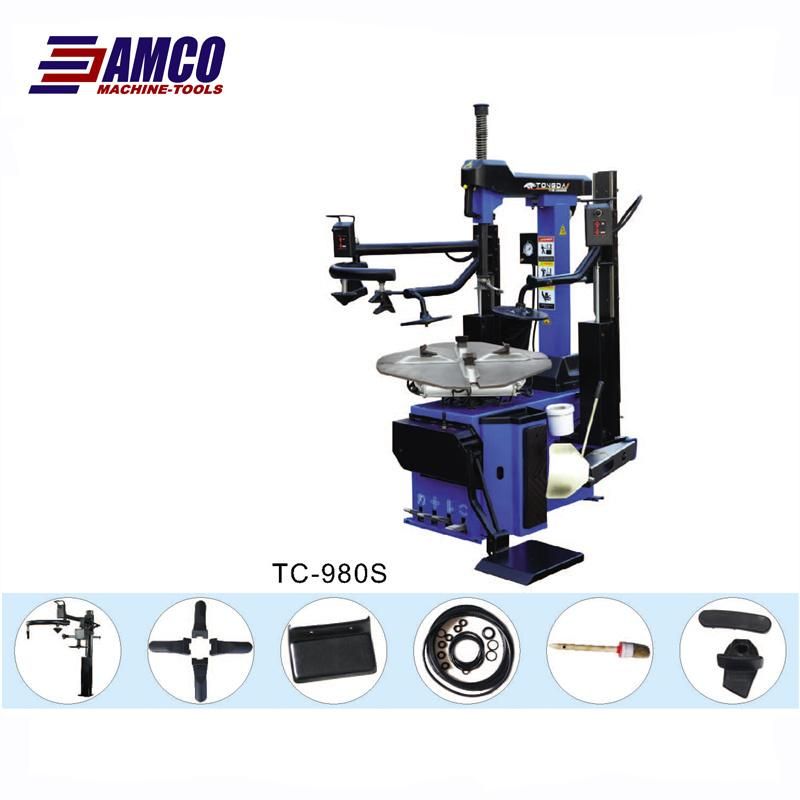

Tilt Back Car Tyre Changer TC980S

1.With self-centering function;
2.Clamping system with stepping function;
3.Tilting back tower and pneumatic locking system
4.Angles of mount/demount tool can be adjusted and calibrated;
5.The high quality polymer mounts/dismounts tool prevents the rim from damage
6.Plastic protector special for mounts/dismounts tool.
7.Wheel lift (Optional)
8.Adapter for motorcycle (Optional)
9.Bead seating inflation jets are integrated in the clamping jaws insuring quick and safe inflation (Optional)
10.Wear -resistant washer (Optional)
11.Portable air filling tank (Optional)
12. Optional colors


Power supply/ Motor power	110V/220V/380V (0.75/1.1Kw)
Air supply	8-12bar (0.8-1.2Mpa)
Rim Clamping range (External)	12 -24 (305-610mm)
Rim Clamping range (Internal)	14 -26 (355-660mm)
Bead breaker force	5500Lb (2500Kg)
Max. Wheel diameter	43 (1100mm)
Max. Wheel width	15 (381mm)
Noise	<70dB
N.W/G.W	309kg/428Kg
