Cylinder Body and Cover Surface Grinding Milling Machine (3M9735BX150)
Zaozhuang Make Machinery Co., Ltd.- Max Working Length：1500mm
- Max Working Width：350mm
- Max Working Height：800mm
- N.W.：2300kg
- Transport Package：Plywood Case
- Specification：CE, RoHS, SGS
Base Info
- Model NO.：3M9735BX150
- Trademark：ZZMM
- Origin：Shandong, China
- HS Code：84581900
- Production Capacity：30PCS,Month
Description
Basic Info.
Model NO. 3M9735BX150 Trademark ZZMM Origin Shandong, China HS Code 84581900 Production Capacity 30PCS/MonthProduct Description
It is suitable for grinding and milling all kinds of cylinder body and cover surface.Structure characters:
1, Tha spindle adopts high precision bearing, the motor is fixed on the back of the machine, which gurantee the spindle prision with high speed.
2, It adopts the plastic guide-way,running stable and flexible.
3, The feeding of work table adopts stepless adjusting, suits for processing all kinds of materials of work piece.
Specifications:
| Model | Unit | 3M9735B*130 | 3M9735B*150 |
| Worktable size | mm | 1300*500 | 1500*500 |
| Max.working length | mm | 1300 | 1500 |
| Max.working width | mm | 350 | 350 |
| Max.working height | mm | 800 | 800 |
| Emery wheel disk moving travel | mm | 60 | 60 |
| Worktable moving speed | r/min | 40-900 | 40-900 |
| Emery wheel disk diameter | mm | 360 | 360 |
| The speed of the main motor(Freequency control of motor speed) | r/min | 1400/700 | 1400/700 |
| Power of the main motor | kw | 1.5/2.4 | 1.5/2.4 |
| Feed motor power | kw | 0.75 | 0.75 |
| Cooling motor power | w | 40 | 40 |
| N.W/G.W | T | 2.2/2.5 | 2.3/2.6 |
| Overall dimension | mm | 3100*1130*2230 | 3100*1130*2230 |

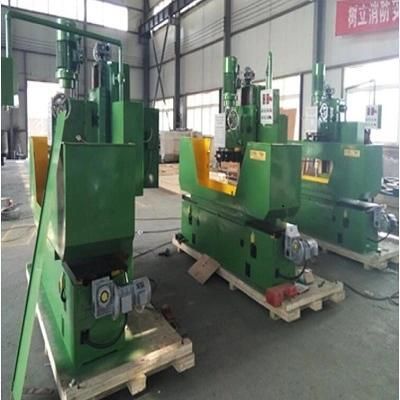

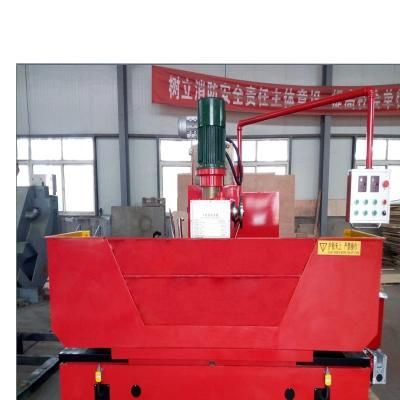

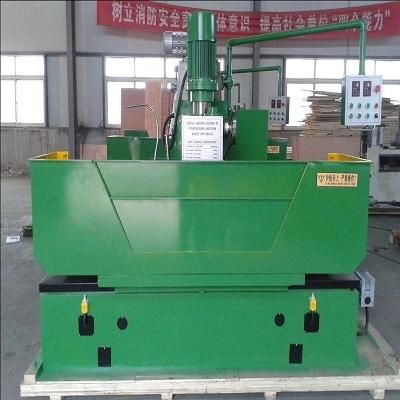

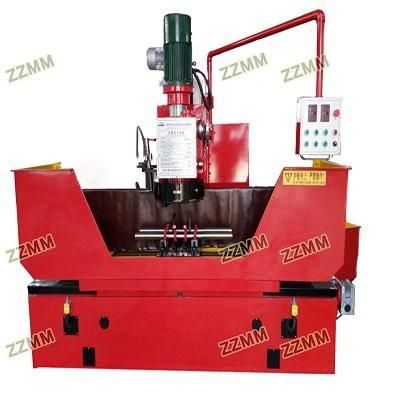

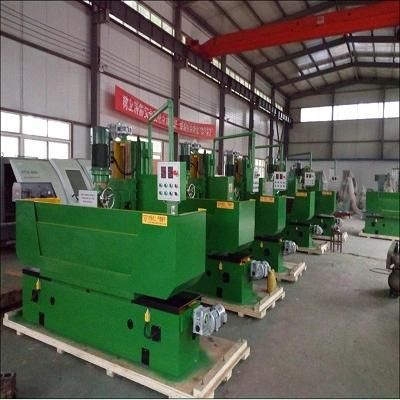

Detailed Photos of Cylinder Body and Cover Surface Grinding-Milling Machine (3M9735B*150):

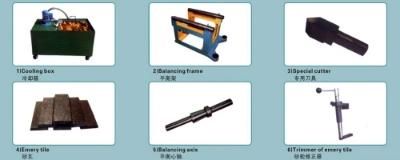

Standard accessories
