Australia Standard Ce Certificate Car Spray Booth / Paint Booth / Baking Oven
Zouping Hongyuan Eco-Friendly Mechanical Technology Co., Ltd.- After-sales Service：Available
- Warranty：12months
- Type：Spray Booth
- Certification：CCC, CE, CSA, GS, UL, ISO, SGS
- Substrate：Steel
- Brand：Hongyuan
Base Info
- Model NO.：HY-CBAU
- Coating：Painting
- Airflow Direction：Fully Undershot-type
- Heating Mode：Diesel
- Paint Mist Treatment：Dry-type
- Condition：New
- Color：Red, Blue, White
- Panel：50,75mm EPS Foam Panel
- Grate：3rows
- Ramp：2pieces
- Heating System：Gas, Diesel, Oil, Used Oil, Electric
- Filter System：4-Stage Filtration System
- Upper Light：Available
- Side Light：Optional
- Control Box：English Panel
- Standard Voltage：380V,3f&220V,1f@50Hz
- Control：Automatic
- Related Product 1：Large Truck Paint Spray Booth
- Related Product 2：Furniture Paint Spray Booth
- Related Product 3：Folding Retractable Paint Spray Booth
- Related Product 4：Wet Type Water Curtain Paint Spray Booth
- Transport Package：Proper Packing Suitable for Sea Shipment
- Specification：25cbm for a 20ft container loading.
- Trademark：Hongyuan
- Origin：Shandong, China
- Production Capacity：100 Set Per Month
Description
Basic Info.
Model NO. HY-CBAU Coating Painting Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Panel 50/75mm EPS Foam Panel Grate 3rows Ramp 2pieces Heating System Gas, Diesel, Oil, Used Oil, Electric Filter System 4-Stage Filtration System Upper Light Available Side Light Optional Control Box English Panel Standard Voltage 380V/3f&220V/1f@50Hz Control Automatic Related Product 1 Large Truck Paint Spray Booth Related Product 2 Furniture Paint Spray Booth Related Product 3 Folding Retractable Paint Spray Booth Related Product 4 Wet Type Water Curtain Paint Spray Booth Transport Package Proper Packing Suitable for Sea Shipment Specification 25cbm for a 20ft container loading. Trademark Hongyuan Origin Shandong, China Production Capacity 100 Set Per MonthProduct Description
Introduction of the Australia Standard CE Certificate Car Spray Booth / Paint Booth / Baking Oven1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

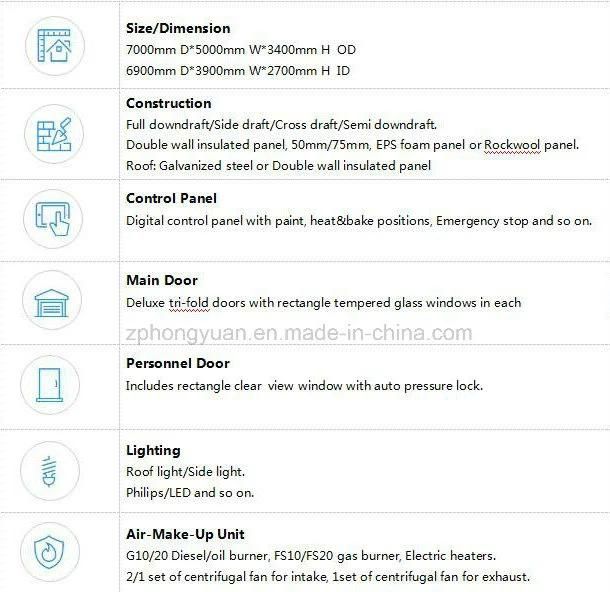

Quick Specification of the Australia Standard CE Certificate Car Spray Booth / Paint Booth / Baking Oven
| Model | HY-CB55AU standard |
| Outside Size(mm) | 7000(L)*4000(W)*3400(H) |
| Inside Size(mm) | 6900(L)*3900(W)*2700(H) |
| Front Door(mm) | 3000*2600(W*H) |
| Side Door(mm) | 650*1800(W*H) |
| Total power | <15kW |
| Voltage status | 380V/3ph&220V/1ph@50Hz |
| Wall Panel | 50mm EPS foam panel |
| Ceiling panel | Galvanized steel |
| Basement&floor | Raised metal-base (300mm high) with 3rows of grates and 2rows of diamon plates. |
| Intake | Two set of fan, motor: 4kW. |
| Exhaust | One set of fan, motor: 5.5kW. |
| By-pass | Pneumatic damper from spraying to baking cycle |
| Heating System(Oil) | Italy Riello one-stage oil burner./gas burner/electricity. |
| Filter System | 4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter |
| Lighting | Upper lights, 8units, 4*36W each. |
| Control System | 1set. |

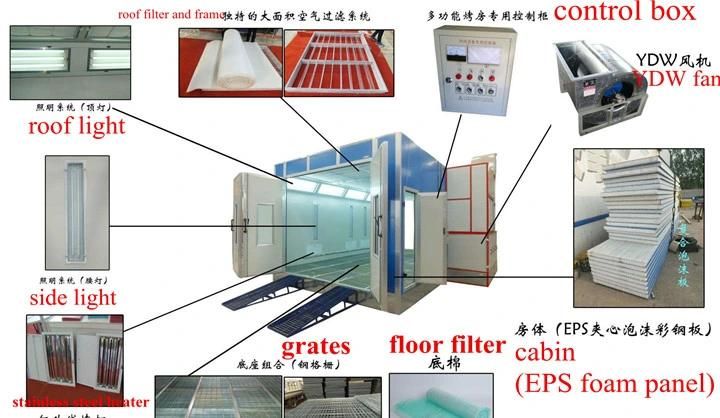

details show of Australia Standard CE Certificate Car Spray Booth / Paint Booth / Baking Oven

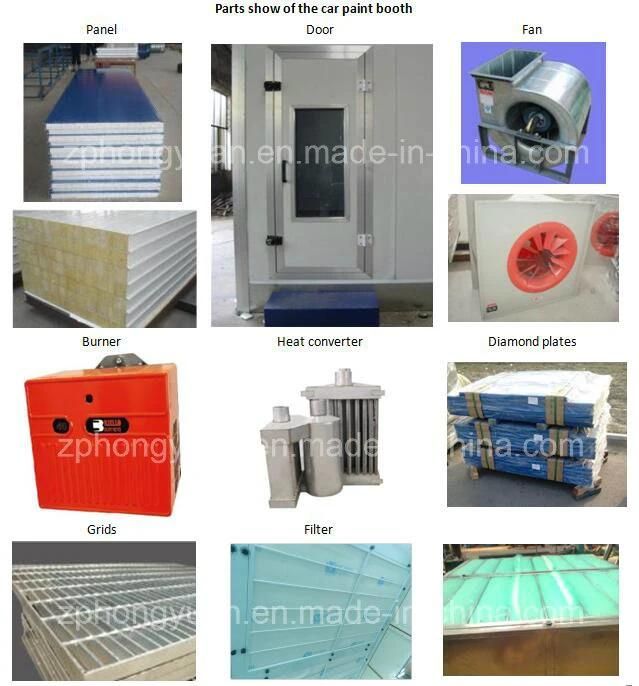

parts show of Australia Standard CE Certificate Car Spray Booth / Paint Booth / Baking Oven
Production area and equipment for Baking Car Auto Paint Spray Booth Room for Sale
Package Show of Baking Car Auto Paint Spray Booth Room for Sale

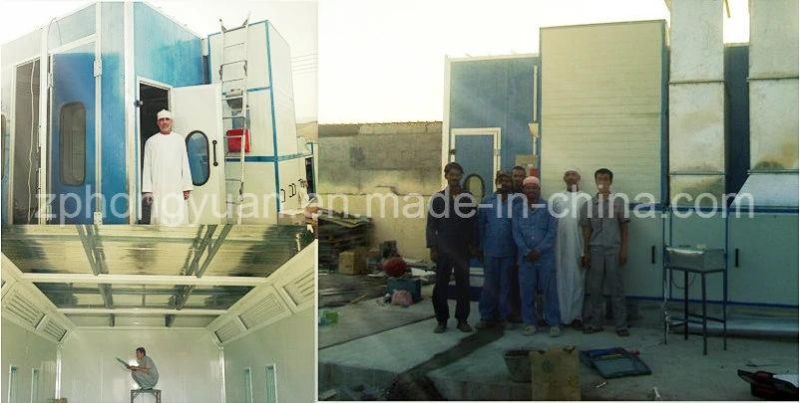

Installation abroad
Project case for paint booth
Certificate of our product and company
Our Team is serving you at any time
Send us Inquiry about Australia Standard CE Certificate Car Spray Booth / Paint Booth / Baking Oven
