• Model NO.：HY-CB40B
• Certification：CCC, CE, CSA, GS, UL, ISO, SGS
• Substrate：Steel
• Brand：Hongyuan
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：Red, Blue, White
• Panel：50,75mm EPS Foam Panel
• Grate：3rows
• Ramp：2pieces
• Heating System：Gas, Diesel, Oil, Used Oil, Electric
• Filter System：4-Stage Filtration System
• Upper Light：Available
• Side Light：Optional
• Control Box：English Panel
• Standard Voltage：380V,3f&220V,1f@50Hz
• Control：Automatic
• Drawing：Available
• User Manual：Available
• Installation Video：Available
• Related Product：Car Preparation Room Bay,Paint Mix Room
• Transport Package：Proper Packing Suitable for Sea Shipment
• Specification：25cbm for a 20ft container loading.
• Trademark：Hongyuan
• Origin：Shandong, China
• Production Capacity：100 Set Per Month
• Package size per unit product：500.00cm * 200.00cm * 200.00cm
• Gross weight per unit product：1200.000kg

Basic Info.

Model NO. HY-CB40B Certification CCC, CE, CSA, GS, UL, ISO, SGS Substrate Steel Brand Hongyuan Coating Painting Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Panel 50/75mm EPS Foam Panel Grate 3rows Ramp 2pieces Heating System Gas, Diesel, Oil, Used Oil, Electric Filter System 4-Stage Filtration System Upper Light Available Side Light Optional Control Box English Panel Standard Voltage 380V/3f&220V/1f@50Hz Control Automatic Drawing Available User Manual Available Installation Video Available Related Product Car Preparation Room Bay/Paint Mix Room Transport Package Proper Packing Suitable for Sea Shipment Specification 25cbm for a 20ft container loading. Trademark Hongyuan Origin Shandong, China Production Capacity 100 Set Per Month

Packaging & Delivery

Package size per unit product 500.00cm * 200.00cm * 200.00cm Gross weight per unit product 1200.000kg

Product Description

Introduction of the Dust Free Spray Paint Oven for Cars in Repair Garage with air compressor diesel burner electric heaters
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

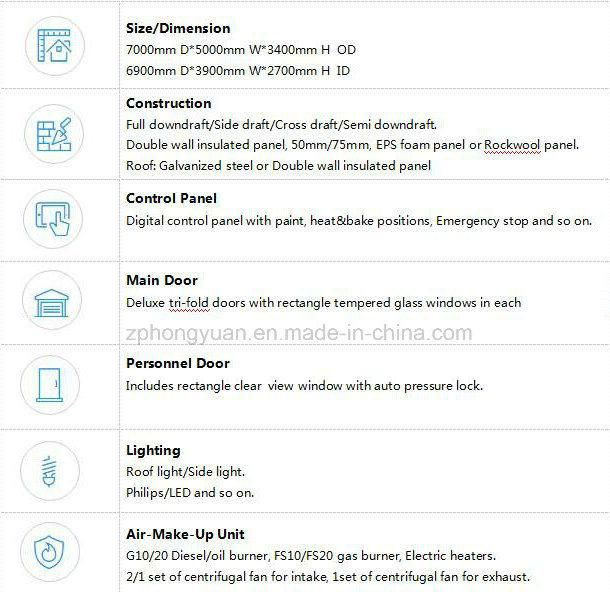

Quick Specification of the Dust Free Spray Paint Oven for Cars in Repair Garage with air compressor diesel burner electric heaters

Model	HY-CB40B
Outside Size(mm)	7000(L)*4000(W)*3400(H)
Inside Size(mm)	6900(L)*3900(W)*2700(H)
Front Door(mm)	3000*2600(W*H)
Side Door(mm)	650*1800(W*H)
Total power	<15kW
Voltage status	380V/3ph&220V/1ph@50Hz
Wall Panel	50mm EPS foam panel
Ceiling panel	Galvanized steel
Basement&floor	Raised metal-base (300mm high) with 2rows of grates and 3rows of diamon plates.
Intake	Two set of fan, motor: 4kW.
Exhaust	One set of fan, motor: 4kW.
By-pass	Pneumatic damper from spraying to baking cycle
Heating System(Oil)	Italy Riello one-stage oil burner./gas burner/electricity.
Filter System	4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter
Lighting	Upper lights, 8units, 4*36W each.
Control System	1set.

details show of Dust Free Spray Paint Oven for Cars in Repair Garage with air compressor diesel burner electric heaters


parts show of Dust Free Spray Paint Oven for Cars in Repair Garage with air compressor diesel burner electric heaters

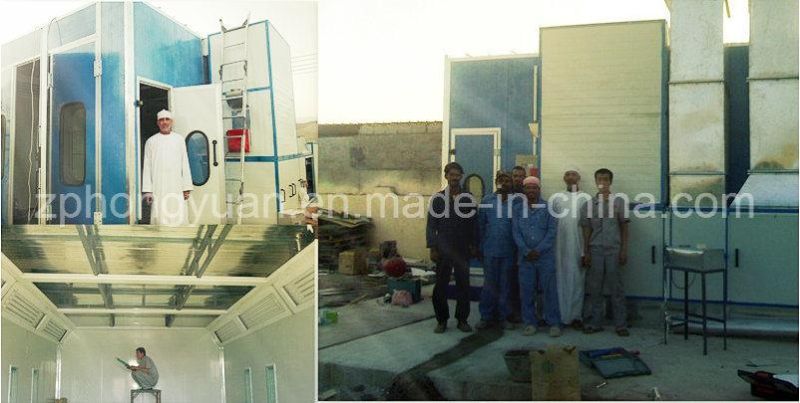

Installation abroad/Dust Free Spray Paint Oven for Cars in Repair Garage with air compressor diesel burner electric heaters

Project case for paint booth/Dust Free Spray Paint Oven for Cars in Repair Garage with air compressor diesel burner electric heaters



Certificate of our product and company

Our Team is serving you at any time


Send us Inquiry about Dust Free Spray Paint Oven for Cars in Repair Garage with air compressor diesel burner electric heaters
