High Quality Panels 50/75 mm Thick Auto Spray Booth/Car Painting Room with CE
Zouping Hongyuan Eco-Friendly Mechanical Technology Co., Ltd.- Warranty：12months
- Type：Auto Painting Spray Booth Bake Oven for Car
Base Info
- Model NO.：HY-CB55C
- Certification：CCC, CE, GS, SGS
- Substrate：Steel
- Brand：Cor
- Coating：Painting
- Airflow Direction：Fully Undershot-type
- Heating Mode：Infrared Ray
- Paint Mist Treatment：Dry-type
- Condition：New
- Color：Red, Blue, White
- Panel：50,75mm EPS Foam Panel
- Grate：3rows
- Ramp：2pieces
- Heating System：Gas, Diesel, Oil, Used Oil, Electric
- Filter System：4-Stage Filtration System
- Upper Light：Available
- Side Light：Optional
- Control Box：English Panel
- Standard Voltage：380V,3f&220V,1f@50Hz
- Control：Automatic
- Drawing：Available
- User Manual：Available
- Installation Video：Available
- Related Product：Car Preparation Room Bay,Car Paint Mix Room
- Transport Package：Proper Packing Suitable for Sea Shipment
- Specification：25cbm for a 20ft container loading.
- Trademark：N,A
- Origin：Shandong, China
- Production Capacity：100 Set Per Month
- Package size per unit product：500.00cm * 200.00cm * 200.00cm
- Gross weight per unit product：1500.000kg
Description
Basic Info.
Model NO. HY-CB55C Certification CCC, CE, GS, SGS Substrate Steel Brand Cor Coating Painting Airflow Direction Fully Undershot-type Heating Mode Infrared Ray Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Panel 50/75mm EPS Foam Panel Grate 3rows Ramp 2pieces Heating System Gas, Diesel, Oil, Used Oil, Electric Filter System 4-Stage Filtration System Upper Light Available Side Light Optional Control Box English Panel Standard Voltage 380V/3f&220V/1f@50Hz Control Automatic Drawing Available User Manual Available Installation Video Available Related Product Car Preparation Room Bay/Car Paint Mix Room Transport Package Proper Packing Suitable for Sea Shipment Specification 25cbm for a 20ft container loading. Trademark N/A Origin Shandong, China Production Capacity 100 Set Per MonthPackaging & Delivery
Package size per unit product 500.00cm * 200.00cm * 200.00cm Gross weight per unit product 1500.000kgProduct Description
Introduction of the High Quality Panels 50/75 mm Thick Auto Spray Booth/Car Painting Room with Ce1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

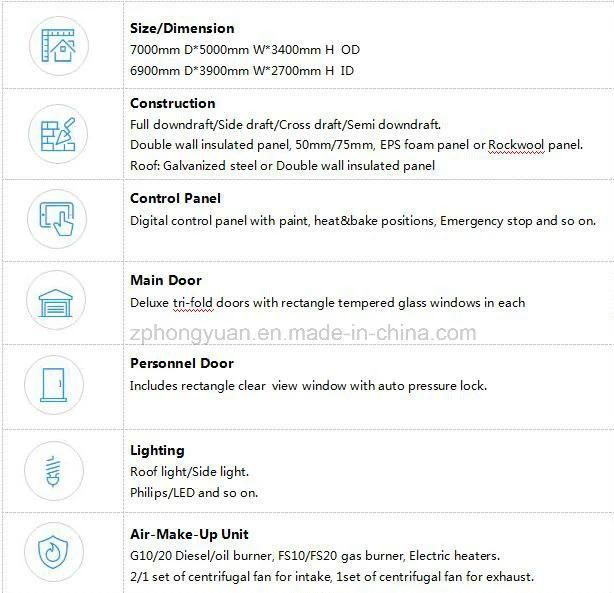

Quick Specification of the High Quality Panels 50/75 mm Thick Auto Spray Booth/Car Painting Room with Ce
Details information of the High Quality Panels 50/75 mm Thick Auto Spray Booth/Car Painting Room with Ce
| Model | HY-CB55C |
| Outside Size(mm) | 7000(L)*4000(W)*3400(H) |
| Inside Size(mm) | 6900(L)*3900(W)*2700(H) |
| Front Door(mm) | 3000*2600(W*H) |
| Side Door(mm) | 650*1800(W*H) |
| Total power | <13kW |
| Voltage status | 380V/3ph&220V/1ph@50Hz |
| Wall Panel | 50mm EPS foam panel |
| Ceiling panel | Galvanized steel |
| Basement&floor | Raised metal-base (300mm high) with 2rows of grates and 3rows of diamon plates. |
| Intake | two set of fan, motor: 4.0kW. |
| Exhaust | One set of fan, motor: 4.0kW. |
| By-pass | Pneumatic damper from spraying to baking cycle |
| Heating System(electricity) | Italy Riello one-stage oil burner./gas burner/electricity. |
| Filter System | 4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter |
| Lighting | Upper lights, 8units, 4*36W each. |
| Control System | 1set. |
Details show of paint booth with oil burner/High Quality Panels 50/75 mm Thick Auto Spray Booth/Car Painting Room with Ce
parts show of paint booth/High Quality Panels 50/75 mm Thick Auto Spray Booth/Car Painting Room with Ce
Project case for paint booth/High Quality Panels 50/75 mm Thick Auto Spray Booth/Car Painting Room with Ce
Certificate of our product and company
Our Team is serving you at any time
Send us Inquiry ABOUT High Quality Panels 50/75 mm Thick Auto Spray Booth/Car Painting Room with Ce
