Cheaper New and Used Cars Painting Equipment Spray Paint Booth Room Oven
Zouping Hongyuan Eco-Friendly Mechanical Technology Co., Ltd.- After-sales Service：Available
- Warranty：12months
- Type：Spray Booth
- Certification：CCC, CE, CSA, GS, UL
- Substrate：Steel
- Brand：Hongyuan
Base Info
- Model NO.：HY-CB55B
- Coating：Painting
- Airflow Direction：Fully Undershot-type
- Heating Mode：Diesel
- Paint Mist Treatment：Dry-type
- Condition：New
- Color：Red, Blue, White
- Panel：50,75mm EPS Foam Panel
- Grate：2rows
- Ramp：2pieces
- Heating System：Gas, Diesel, Oil, Used Oil, Electric
- Filter System：4-Stage Filtration System
- Upper Light：Available
- Side Light：Optional
- Control Box：English Panel
- Standard Voltage：380V,3f&220V,1f@50Hz
- Control：Automatic
- Drawing：Available
- User Manual：Available
- Installation Video：Available
- Related Product：Car Lift,Car Preparation Room Bay
- Transport Package：Proper Packing Suitable for Sea Shipment
- Specification：25cbm for a 20ft container loading.
- Trademark：N,A
- Origin：Shandong, China
- Production Capacity：100 Set Per Month
Description
Basic Info.
Model NO. HY-CB55B Coating Painting Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Panel 50/75mm EPS Foam Panel Grate 2rows Ramp 2pieces Heating System Gas, Diesel, Oil, Used Oil, Electric Filter System 4-Stage Filtration System Upper Light Available Side Light Optional Control Box English Panel Standard Voltage 380V/3f&220V/1f@50Hz Control Automatic Drawing Available User Manual Available Installation Video Available Related Product Car Lift/Car Preparation Room Bay Transport Package Proper Packing Suitable for Sea Shipment Specification 25cbm for a 20ft container loading. Trademark N/A Origin Shandong, China Production Capacity 100 Set Per MonthProduct Description
Introduction of the Cheaper New and Used Cars Painting Equipment Spray Paint Booth Room Oven1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:
Quick Specification of the Cheaper New and Used Cars Painting Equipment Spray Paint Booth Room Oven
| Model | HY-CB55B |
| Outside Size(mm) | 7000(L)*4000(W)*3400(H) |
| Inside Size(mm) | 6900(L)*3900(W)*2700(H) |
| Front Door(mm) | 3000*2600(W*H) |
| Side Door(mm) | 650*1800(W*H) |
| Total power | <15kW |
| Voltage status | 380V/3ph&220V/1ph@50Hz |
| Wall Panel | 50mm EPS foam panel |
| Ceiling panel | Galvanized steel |
| Basement&floor | Raised metal-base (300mm high) with 2rows of grates and 3rows of diamon plates. |
| Intake | Two set of fan, motor: 4kW. |
| Exhaust | One set of fan, motor: 5.5kW. |
| By-pass | Pneumatic damper from spraying to baking cycle |
| Heating System(Oil) | Italy Riello one-stage oil burner./gas burner/electricity. |
| Filter System | 4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter |
| Lighting | Upper lights, 8units, 4*36W each. |
| Control System | 1set. |
details show of Cheaper New and Used Cars Painting Equipment Spray Paint Booth Room Oven

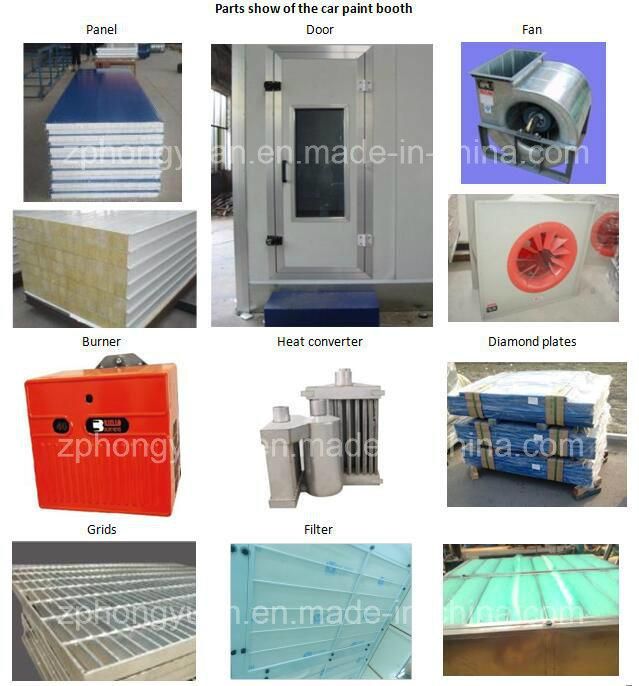

parts show of Cheaper New and Used Cars Painting Equipment Spray Paint Booth Room Oven

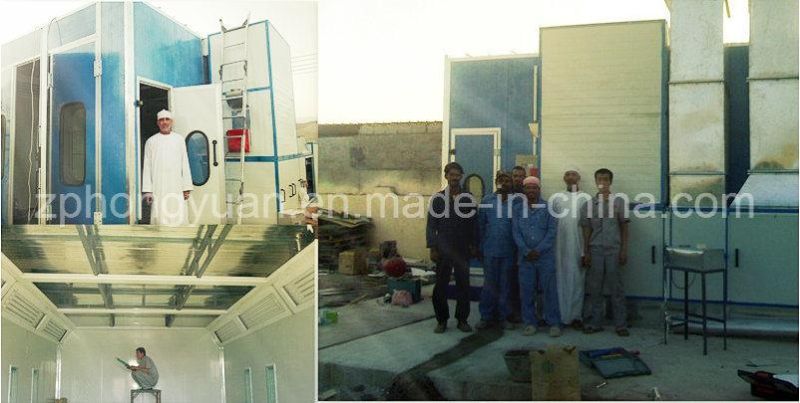

Installation abroad
Production area and equipment for Cheaper New and Used Cars Painting Equipment Spray Paint Booth Room Oven

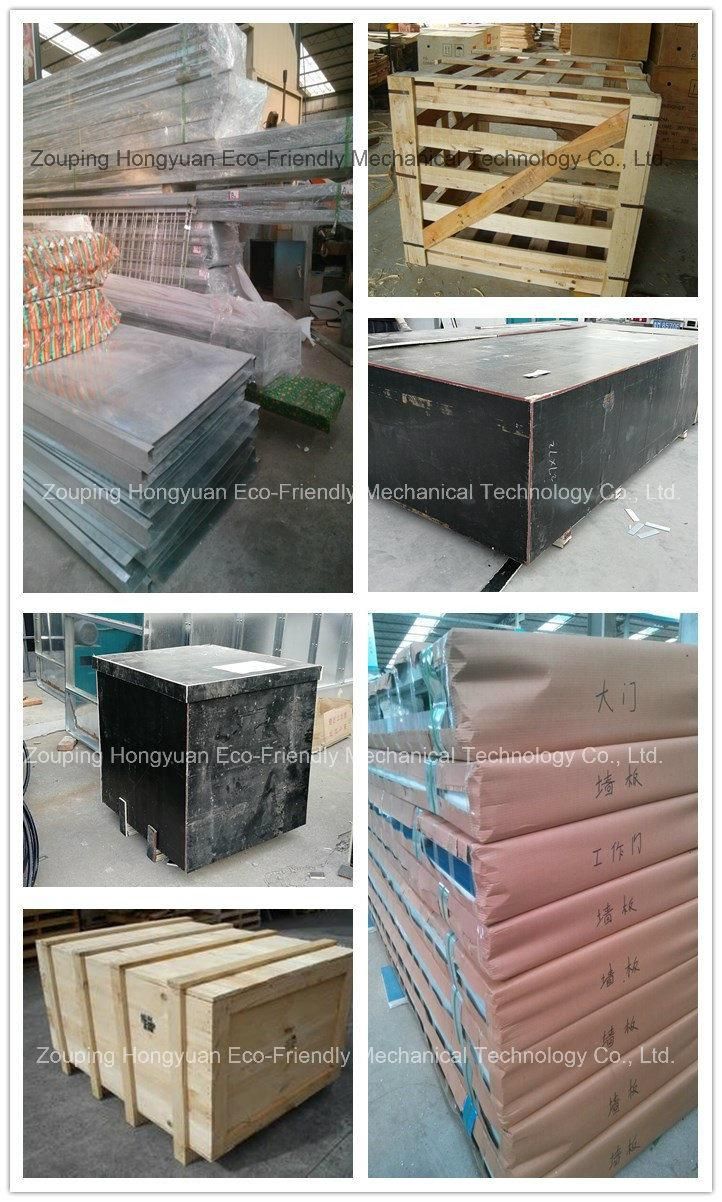

Package Show of Cheaper New and Used Cars Painting Equipment Spray Paint Booth Room Oven
Project case for paint booth
Certificate of our product and company
Our Team is serving you at any time
Send us Inquiry about Cheaper New and Used Cars Painting Equipment Spray Paint Booth Room Oven
