• Model NO.：JZJ-9100
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Inside Dimension：6900*4000*2650(mm)
• Heating System：Diesel Oil or Eletricity
• Lighting：External Lighting
• Transport Package：Normal Package Suit for Ocean Shipping
• Specification：6900*4000*2650
• Trademark：JZJ
• Origin：Jiangsu China
• HS Code：8419899090
• Production Capacity：3000set, Year

Outside Dimension (mm)7006*5350*3450(L*W*H)Inside Dimension(mm)6900*4000*2650(L*W*H)Front Door(mm)3000*2600(W*H)Service door (mm)1800*650(W*H)Total Power9.5KWCabin systemWall panel  50mm EPS sandwich panel, steel sheet thickness: 0.426mmCeiling panel0.8mm Galvanized steel sheet.Basement300mm depth, two rows grids and three rows checkered plates.RampsTwo pieces 2000*600mm rampsGlass4mm safety tempered glassWindowsRubber glass windowAir Make-up SystemAir Inlet fan system1*7.5kw turbo fanExhausted fan systemFor optionAi capacity22000m3/hAir Flowing speed0.25m/s in empty boothExhausted ducting4meters straight ducting, one 90°elbow and one 30°elbow.Purification SystemPre-filterG3 gradeCeiling filterEU5 / F5Floor filtergreen fiber glass filter / G3 gradeExhausted fan Filtersfiber glass filter and active carbonHeating SystemHeat ExchangerSUS304 material, argon arc welding.Heating burner:       BT14 diesel oil burner(gas burner for option)   Heating productivity                            140000Kcal/hSpray to baking switchPneumatic damperChimney ducting3 meters stainless ducting and one chimney elbowMax heating temperature80ºCfuel consumption6-8L/vehicleLighting SystemCeiling lights8 Units, each 4 * 36W Philips lamps. Total 1152 WSide lightsFor optionIllumination900LUXControlling systemSwitched control panelSpraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm, pressure gauge

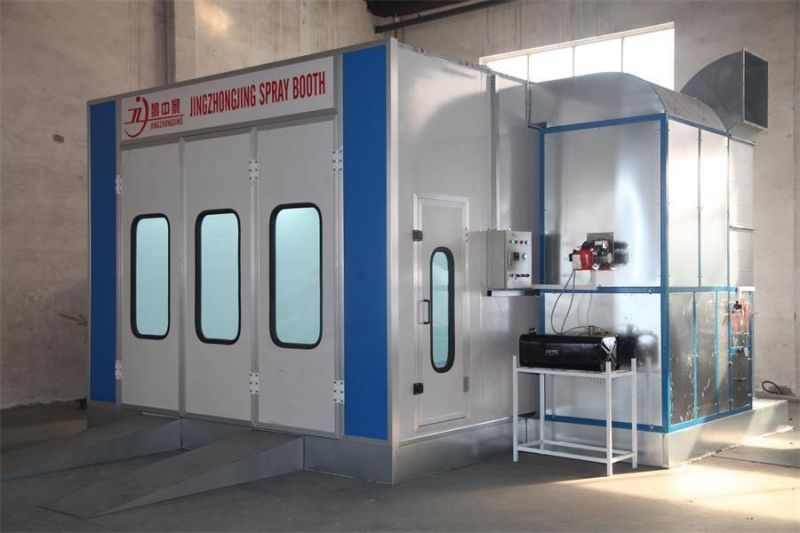

Photos:

Q: What standards are you carrying out for your products?
A: We produce according to the ISO 9001 and ISO 14001 rules.

Q: How to install the machine?
A: We will arrange 1-2 engineers to your factory to guide installation and assembly.

Q: What is your international market?
A: We have exported our products to about 50 countries and regions worldwide, such as the US, France, Singapore, Australia, the Middle East, Germany, Japan, Russia, Sweden, Finland and more

Q: What is your productivity?
A: We have two production basement - Jiangsu Jingzhongjing Industry Coating Equipment Co. Ltd and Guangzhou Jingzhongjing Industrial Painting Equipment Co. Ltd. We are specialized in automobile spray booth, automobile metal collision painting line, prep-station, shower test booth, sand blasting booth, shot blasting machine and more.
Our yearly productivity is 2,500 sets spray booth, so we can send you products quickly.

Q: Do you have the right to export?
A: Yes, we are registered in the customs and gained the right to export by ourselves.
