• Model NO.：JZJ-FB
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel Oil, Gas or LPG
• Paint Mist Treatment：Dry-type
• Condition：New
• Size：to Be Disigned
• Lighting：External Lighting
• Motors：Proof-Explosion Motors
• Transport Package：Normal Package Suit for Ocean Shipping
• Specification：CE, ISO
• Trademark：JZJ
• Origin：Jiangsu Province, China
• HS Code：8419899090
• Production Capacity：200 Sets, Month

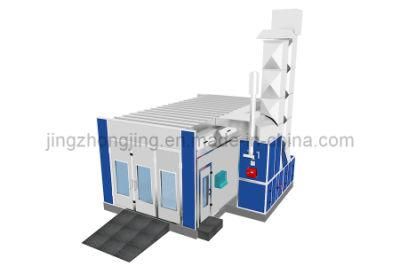

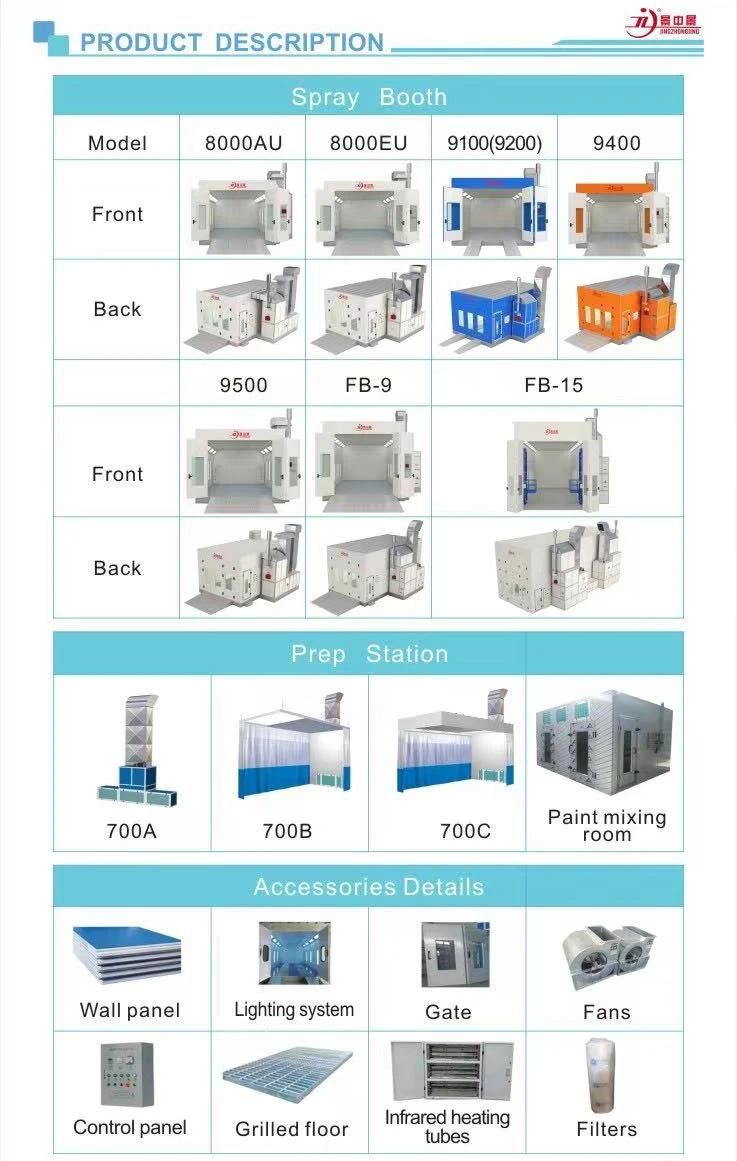

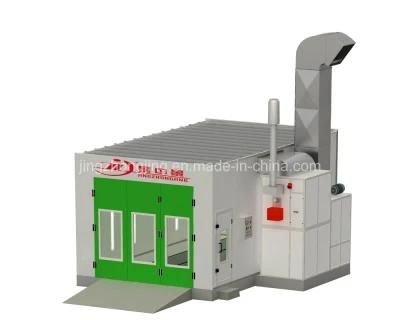

Outside Dimension (mm)8200 x 4600 x3800 (L*W*H)Inside Dimension(mm)6900×4500×3000(L*W*H)Access Door(mm)3000*2800(W*H)Service door (mm)800*2000(W*H) as the drawingTotal Power17KWService door (mm)550*1900(W*H) as the drawingCabin systemWall panel  50mmEPS panel, double face steel sheet thickness: 0.6mmCeiling panelGalvanized steel plateBasement300mm depth, full galvanized gridsBasement bearing capacity5TGlass6mm safety tempered & square frame glassWindowsSquare glass WindowsAir Make-up SystemAir Inlet fan system1*7.5KW Turbo fan, explosion-proof motorExhausted fan system1*7.5KW Turbo fan, explosion-proof motorFresh air capacity25000m3/hAir extraction capacity25000m3/hEmpty Air Flowing speed≥0.3m/s in empty boothAir Control methodOne manual damper for air inlet and exhausted systemAir Intake ducting8 meters air ducting and one weather hood, 2 sets offsetAir exhausted ducting8 meters air ducting, one flop damper and one weatherproof,2 offsetPurification SystemPre-filterG3 grade, M-shape fiber glass filterCeiling filterEU5 / F5Floor filtergreen fiber glass filter / G3 gradeExhausted fan FiltersM green fiber glass filter. Change filter areaFrom spray booth cabin inside doorsHeating SystemHeat ExchangerSUS304 stainless steel material, argon arc welding.Heating burner:       Riello FS20 gas burnerHeating productivity                            180000Kcal/hSpray to baking switch20N BELIMO brand electrical damperChimney ducting8 meters stainless steel ducting and one chimney elbowMax heating temperature80ºCHeating time4-6min(20-60ºC)Gas consumption(m³/h)8--12Lighting SystemCeiling lights40pcs* 36W Philips lampsLight box typeExternally openIllumination≥800LUXControlling systemButton type control panelspraying&baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm, pressure gauge, air switch

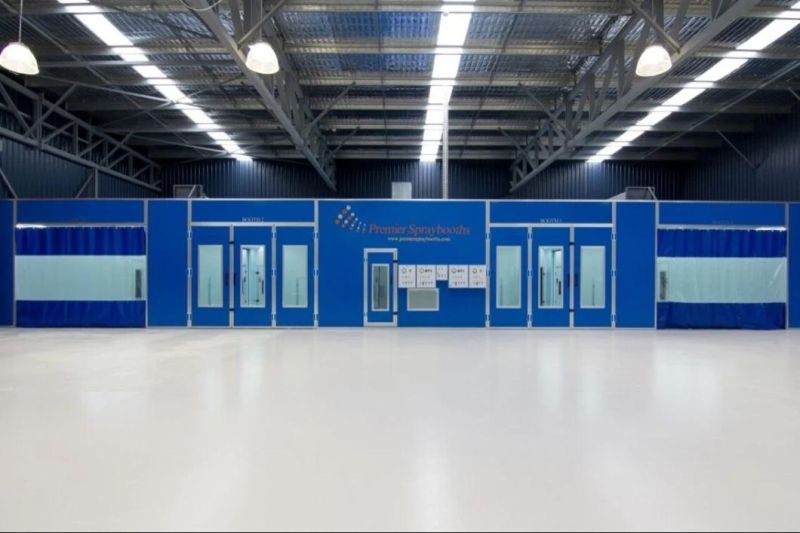

Prep-station Booth Specification
 Model:JZJ-6500-PS (Australian standard)Outside Dimension (mm)8200×4600×3800(L*W*H)Inside Dimension(mm)6900×4500×3000(L*W*H)Access Door(mm)Manual curtainService door (mm)800*2000(W*H)Total Power17KWService door (mm)550*1900(W*H)Cabin systemWall panel  50mmEPS panel, double face steel sheet thickness: 0.6mmCeiling panelGalvanized steel plateBasement300mm depth, full galvanized gridsBasement bearing capacity5TGlass6mm safety tempered & square glassWindowsSquare glass WindowsAir Make-up SystemAir Inlet fan system1*5.5kw turbo fan, explosion-proof motorExhausted fan system1*5.5kw turbo fan, explosion-proof motorFresh air capacity20000m3/hAir extraction capacity20000m3/hEmpty Air Flowing speed≥0.2m/s in empty boothAir Control methodOne manual damper for air inlet and exhausted systemAir Intake ducting8 meters air ducting and two offset and one weather hoodAir exhausted ducting8 meters air ducting and two offset and one flop damper.Purification SystemPre-filterG3 grade, PocketsCeiling filterEU5 / F5Floor filtergreen fiber glass filter / G3 gradeExhausted fan FiltersM green fiber glass filter. Change filter areaFrom spray booth cabin inside doorsLighting SystemCeiling lights40pcs* 36W Philips lampsLight box typeExternally openIllumination≥800LUXControlling systemButton type control panelExhausted switch, lighting switch, emergency stop, breakdown alarm, failure alarm, pressure gauge


Paint Mixing Room Specification
  Model:JZJ-PM (Australian standard)Outside Dimension (mm)7000×3460×3800(L*W*H)Inside Dimension(mm)6900×3410×2650(L*W*H)                                                  Service door (mm)800*2000(W*H)Total Power3KWCabin systemWall panel  50mmEPS panel, double face steel sheet thickness: 0.6mmCeiling panel50mm EPS, double face steel sheet thickness: 0.6mmBasement300mm with checkered platesAir Make-up SystemAir Inlet fan systemPanel side has Opening as the drawingExhausted fan system1*2.2kw axial fan,Model T30-4CAir extraction capacity6000m3/hAir exhausted ducting8 meters air ducting, 1 manual air damper&1circumferenceLighting SystemCeiling lights10pcs* 36W Philips lampsLight box typeExternally openIllumination≥600LUXControlling systemButton type control panelPower on/off switch, lighting switch, fan switch

Q: What standards are you carrying out for your products?
A: We produce according to the ISO 9001 and ISO 14001 rules.

Q: How to install the machine?
A: We will arrange 1-2 engineers to your factory to guide installation and assembly.

Q: What is your international market?
A: We have exported our products to about 50 countries and regions worldwide, such as the US, France, Singapore, Australia, the Middle East, Germany, Japan, Russia, Sweden, Finland and more

Q: What is your productivity?
A: We have two production basement - Jiangsu Jingzhongjing Industry Coating Equipment Co. Ltd and Guangzhou Jingzhongjing Industrial Painting Equipment Co. Ltd. We are specialized in automobile spray booth, automobile metal collision painting line, prep-station, shower test booth, sand blasting booth, shot blasting machine and more.
Our yearly productivity is 2,500 sets spray booth, so we can send you products quickly.

Q: Do you have the right to export?
A: Yes, we are registered in the customs and gained the right to export by ourselves.
