• Model NO.：JH
• Coating：Painting
• Airflow Direction：Lateral Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Outside Dimension：7000 * 5400 * 3250mm
• Inside Dimension：6900 * 3900 * 2600mm
• Front Door(mm)：2800*2500(W*H)
• Service Door (mm)：1800*650(W*H)
• Wall Panel：50mm Rock-Wool Panel, 0.5 Steel
• Basement：300mm Depth with Grids
• Ramp：Two 2000*900mm Ramps
• Heating Burner：Riello G20 Diesel Oil,Gas Burner
• Water Based Paint Drying：40 Ceiling Nozzles, 2 Centrifugal Fans
• Air Intake：2 Sets 4kw Centrifugal Fan
• Air Exhaust：1 Set 5.5kw Centrifugal Fan
• Air Speed：0.3-0.35m,S
• Voltage：220,380V or Customized
• Ventilation Type：Full Downdraft
• Total Power：15kw
• Transport Package：Export Container ,Pallet ,Disassembly with Carton
• Specification：CE, SGS
• Trademark：Captain,OEM
• Origin：Jiangsu, China.
• HS Code：8419899090
• Production Capacity：196sets,Month

7000 * 5400 * 3250(L*W*H)Inside Dimension(mm)6900 * 3900 * 2600(L*W*H)Front Door(mm)2800*2500(W*H)Service door (mm)1800*650(W*H)Total Power15KWCabin systemWall panel  50mm rock-wool panel, double face steel sheet thickness: 0.5mm Ceiling panel Galvanized steel sheet. Basement300mm depth, patented circumferential diamond plate design, middle with grids. RampTwo 2000*900mm ramps Glass6mm safety tempered glass WindowsSquare glass WindowsAir Make-up SystemAir Inlet fan system2 * 4 kw double-intake belt centrifugal fan, air capacity for each fan: 14500m3/h. Exhausted fan system1 * 5.5 kw double-intake belt centrifugal fan, air capacity 18000m3/h. Air Flowing speed0.45 m/s in empty booth, 0.35 m/s when painting. Exhausted ducting4 meters air duct, one anti-bird mesh Water based paint drying system40 units ceiling nozzles with 2 sets of centrifugal fans for drying the Water Based Paint.Purification SystemPre-filterG3 grade, Air Inlet filter Ceiling filterEU5 / F5 Floor filterGreen fiber glass filter / G3 grade Exhausted fan FiltersFiber glass filter.Heating SystemHeat ExchangerSUS304 material, argon arc welding. Heating burner:       Riello G20 diesel oil burner(gas burner for option)    Heating productivity                            200000Kcal/h Chimney ducting3 meters stainless ducting and one chimney elbow Max heating temperature
Heating time80 degree centigrade
4-6min(20-60 degree centigrade) fuel consumption5-6L /vehicleLighting SystemCeiling lights8 Units, each 4 x 36W  lamps, Total 1152 W Side lights8 Units, each 4 x 20W  lamps, Total 800 W Illumination 1200LUXControlling systemSwitched control panelSpraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm
 Design

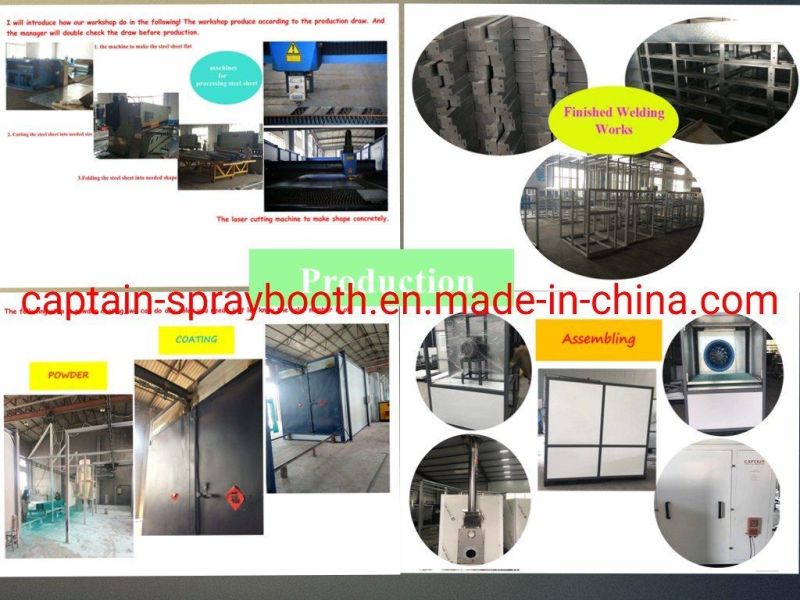

Production

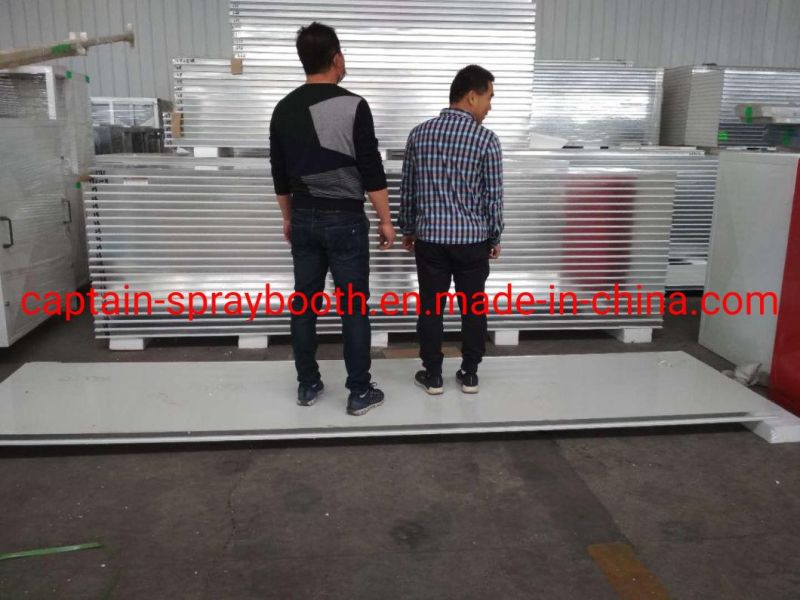

High desensity wall panel, two men stand on it, it will not bend.

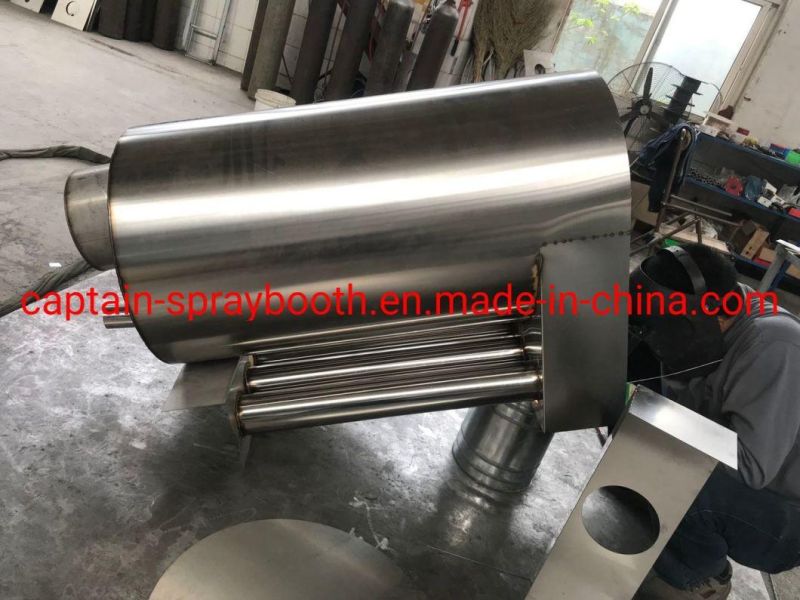

Stainless steel heat exchanger, we make ourself, our worker is professional, there is no leaking and strong enough.

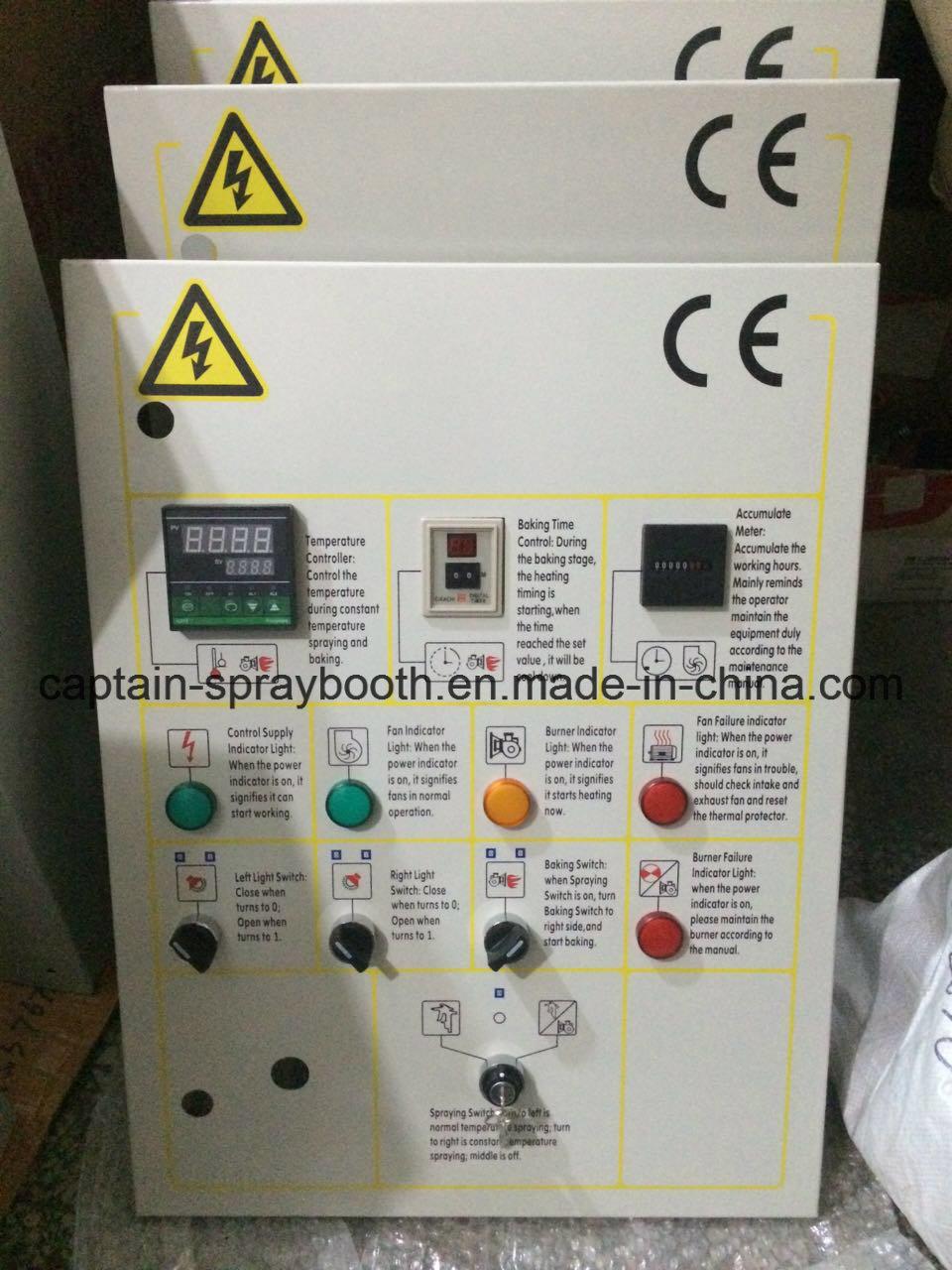

Our control box

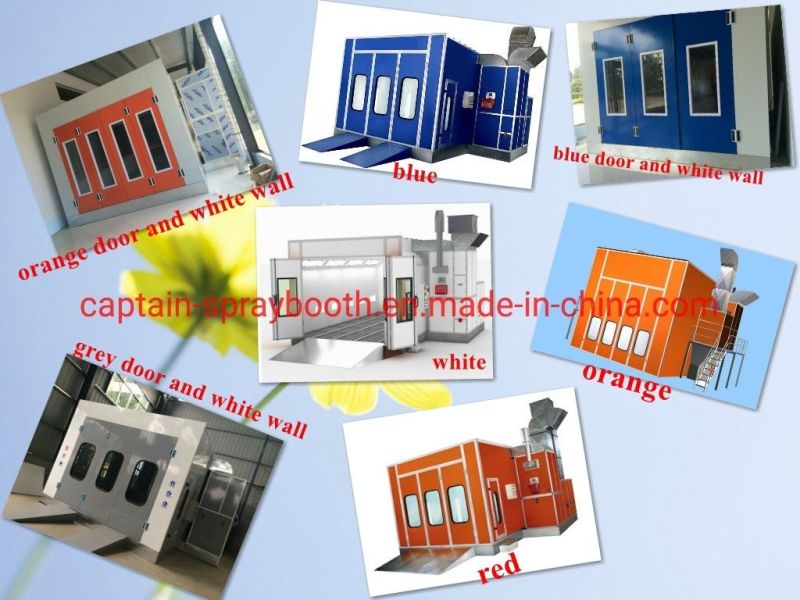

Different Colors for your choice

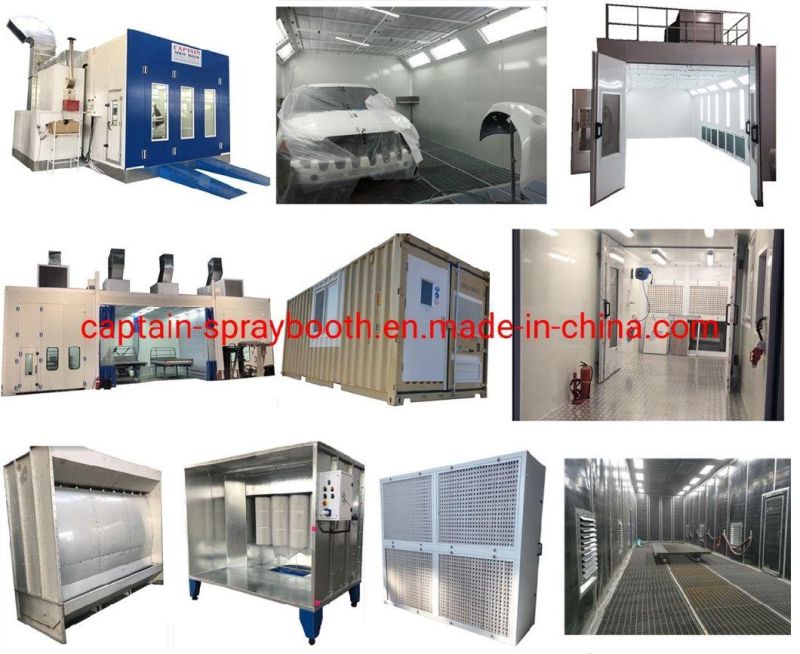

Real Photo

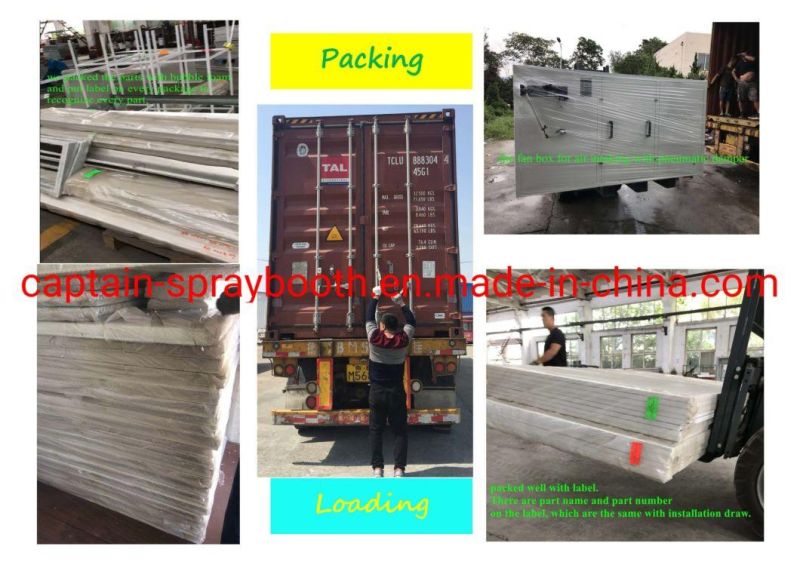

Packing and Delivery

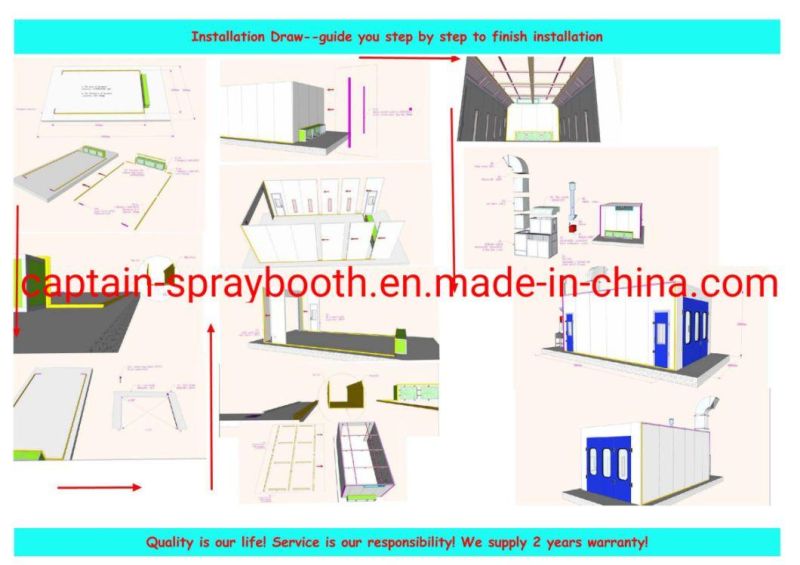

Installation

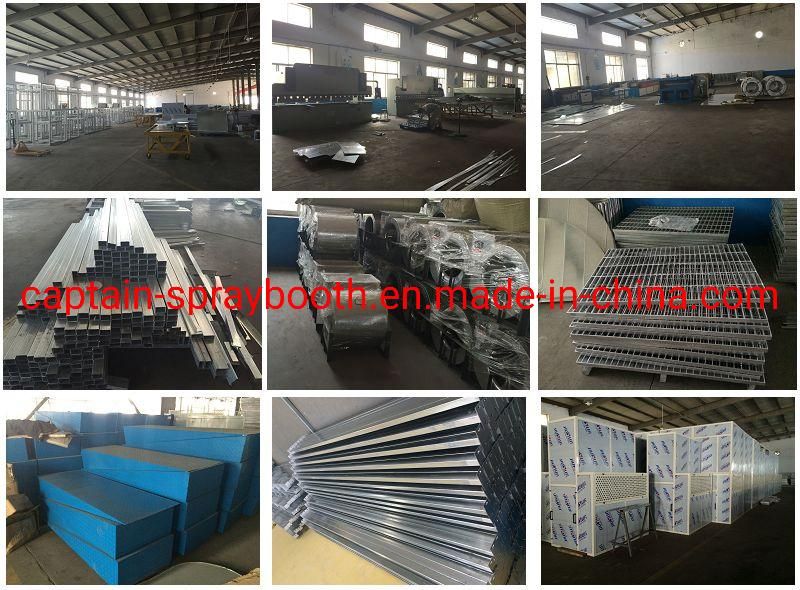

Workshop

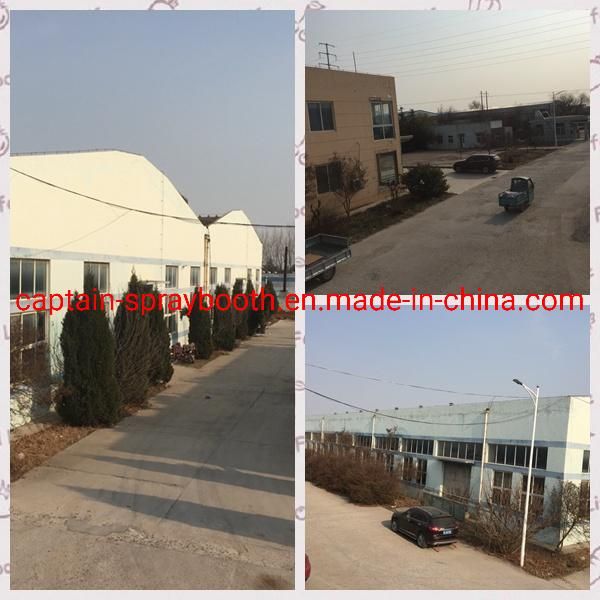

Factory View
