• Model NO.：EX-YB100
• Certification：CE, GS, UL, ISO
• Substrate：Sandwich Panel
• Brand：Captain
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Electric
• Paint Mist Treatment：Dry-type
• Condition：New
• Outside Dimension：7000 * 5400 * 3250(L*W*H)
• Inside Dimension：6900 * 3900 * 2600mm
• Front Door(mm)：2800*2500(W*H)
• Service Door (mm)：1800*650(W*H)
• Wall Panel：50mm Rock-Wool Panel, 0.5mm Steel
• Basement：300mm Depth with Grids
• Ramp：Two 2000*900mm Ramps
• Heating：3*9 Units High Energy Infra-Red Lamp
• Water Based Paint Drying System：40 Ceiling Nozzles with 2 Centrifugal Fan
• Air Intake：2 Sets 4kw Centrifugal Fan
• Air Exhaust：1 Set 5.5kw Centrifugal Fan
• Air Speed：0.3-0.35m,S
• Ventilation Type：Full Downdraft
• Filter Type：Dry
• Total Power：42kw
• Transport Package：Export Container ,Pallet ,Disassembly with Carton
• Specification：CE, SGS, ISO
• Trademark：Captain,OEM
• Origin：Jiangsu, China.
• HS Code：8424899990
• Production Capacity：196sets,Month
• Package size per unit product：700.00cm * 535.00cm * 340.00cm
• Gross weight per unit product：3500.000kg

7000 * 5400 * 3250(L*W*H)Inside Dimension(mm)6900 * 3900 * 2600(L*W*H)Front Door(mm)2800*2500(W*H)Service door (mm)1800*650(W*H)Total Power42KWCabin systemWall panel  50mm rock-wool panel, double face steel sheet thickness: 0.5mm Ceiling panel Galvanized steel sheet. Basement300mm depth, patented circumferential diamond plate design, middle with grids. RampTwo 2000*900mm ramps Glass6mm safety tempered glass WindowsSquare glass WindowsAir Make-up SystemAir Inlet fan system2 * 4 kw double-intake belt centrifugal fan, air capacity for each fan: 14500m3/h. Exhausted fan system1 * 5.5 kw double-intake belt centrifugal fan, air capacity 18000m3/h. Air Flowing speed0.45 m/s in empty booth, 0.35 m/s when painting. Exhausted ducting4 meters air duct, one flop damper, one weather hood, one anti-bird mesh Water based paint drying system40 units ceiling nozzles with 2 sets of centrifugal fans for drying the Water Based Paint.Purification SystemPre-filterG3 grade, Air Inlet filter Ceiling filterEU5 / F5 Floor filterGreen fiber glass filter / G3 grade Exhausted fan FiltersFiber glass filter. Heating        With 9 units high energy short wave infra-red lamps for heating. 3 pcs/ unit, each lamp 1 KW, total power of infra-red lamp:27KW Max heating temperature
Heating time80 degree centigrade
4-6min(20-60 degree centigrade)Lighting SystemCeiling lights8 Units, each 3 x 36W lamps, Total 1152 W Illumination 900LUXControlling systemSwitched control panelSpraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm

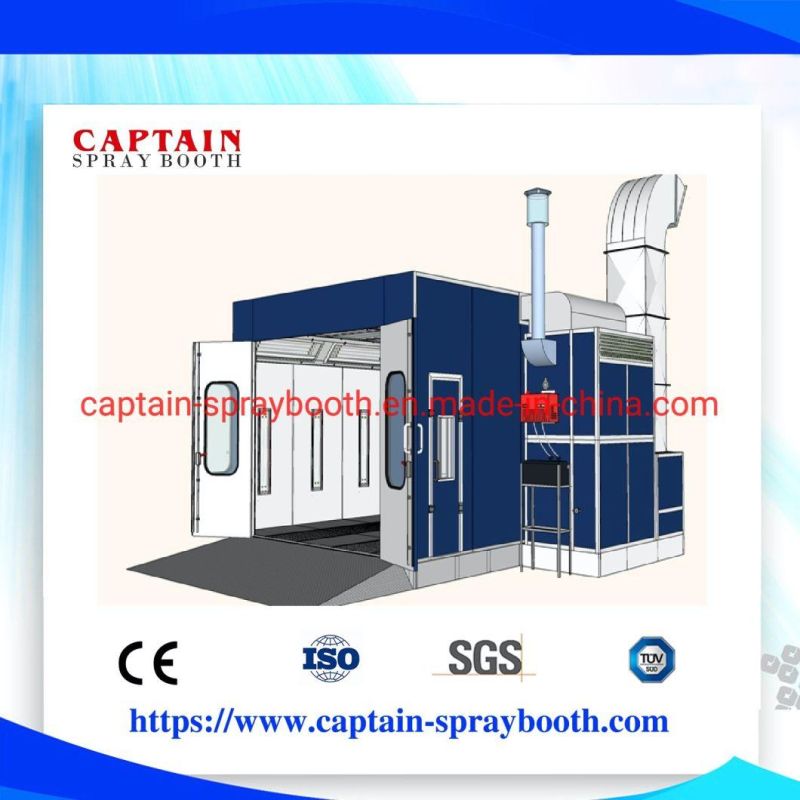

Basic Draw----we can make draw according to your need and your installation place


Production----every step we do is according to our draw, we have all kinds of advanced machines to make production precise

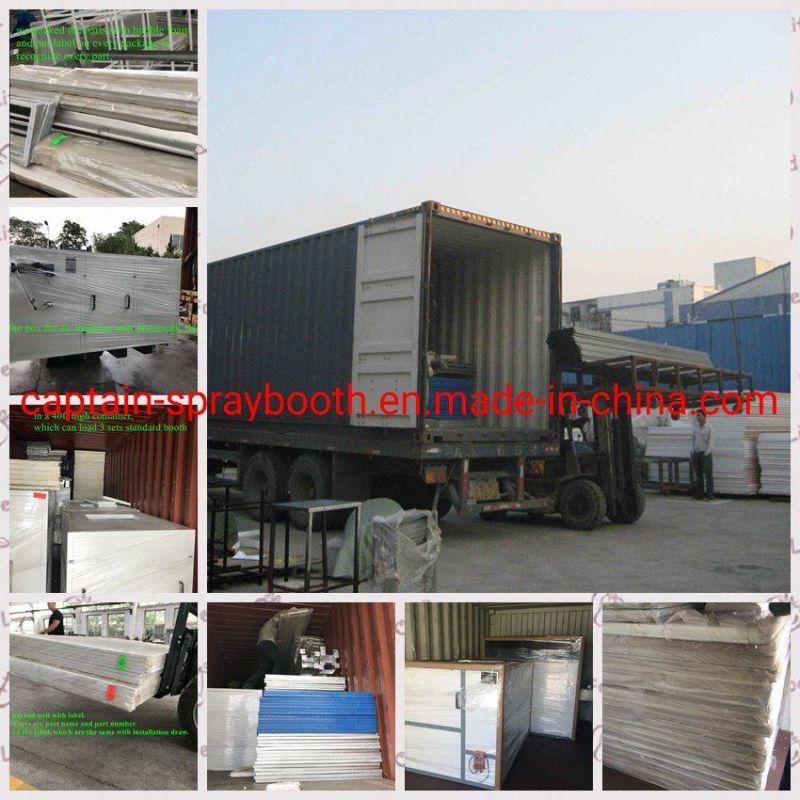

Package and Delivery----every package has a lable, we put part name and number on it. If 3 sets in one high container, we will have 3 different colors of lable for differentiate every ste.


Installation----We can give you installation draw to guide you assemble step by step, and we also have installation vedio on Youtube.

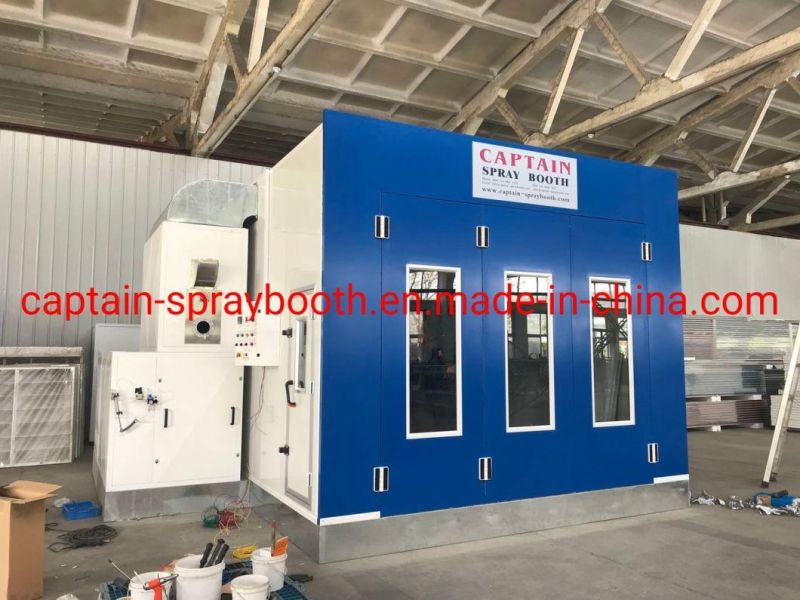

Real pictures of Installed Model----This is the model we installed ourself for testing, it works very well.

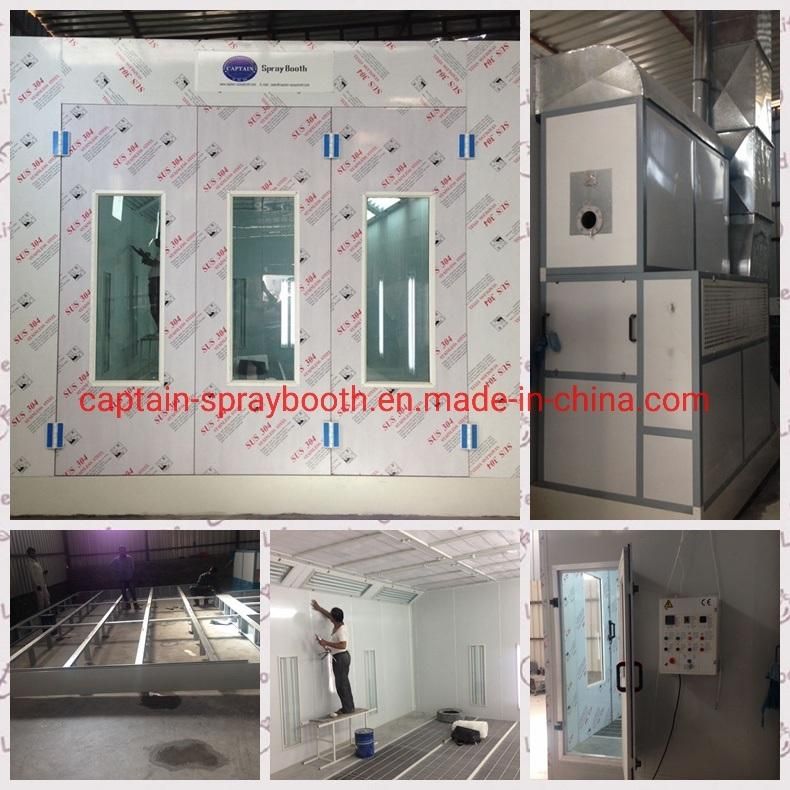

The installed models by our customers

Parts

High desensity wall panel, two men stand on it, it will not bend.


Stainless steel heat exchanger, we make ourself, our worker is professional, there is no leaking and strong enough.



Our control box is with SCHNEIDER parts


Different Colors for your choice

Workshop---- pictures for our workshop and stock, you  can see we have standard workshop and machine for producing, and enough stock for ensuring fast delivery



Factory View





Sincerely hope can get your inquiry and warmly welcome to our factory!
I'm just here waiting for you!

Introduction of our company

Captain Spray Booth(Qingdao Hua Yushun Commercial Co., Ltd)
Is a professional manufacturer of different kinds of spraybooth and we can customize according to your need and place. And also offering full garage equipments, such as following:

Car care equipment.

Car spray&baking room system

Bus spray&baking room system

Furnitue spray&baking room system

Industrial painting&baking room system

High temperature baking room system

Customized spray&bake booth and Offer car spray baking booth accossories


Services We Supply

Customized service

More Than 90% Of Our Spraying Booth Is Customized.

1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.

2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.

After-sales service

1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.

2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

3. We provide 2 years warranty.


Captain Advantages

*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !


Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.
