• Model NO.：IT-L8
• Heating Mode：Gas Heating
• Paint Mist Treatment：Dry-type
• Condition：New
• Plenum (Height)：600mm
• Extraction：350mm
• Grids Carrying Capacity：900kg,Wheel
• Walls：50mm Rock Wool Walls
• Brightness：>1000lux
• Air Volume：35, 000m3,H
• Empty Loaded Air Speed：0.24m,S
• Heats：315kw Heat Exchanger
• Maximum Working Temperature：80 Celsius
• Inverter：Schneider
• Noise：<80 dB
• Transport Package：Cargo Loaded on Steel Frame Handled by Forklifts
• Specification：8000 X 5000 X 3500mm (L X W X H)
• Trademark：INFITECH
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. IT-L8 Heating Mode Gas Heating Paint Mist Treatment Dry-type Condition New Plenum (Height) 600mm Extraction 350mm Grids Carrying Capacity 900kg/Wheel Walls 50mm Rock Wool Walls Brightness >1000lux Air Volume 35, 000m3/H Empty Loaded Air Speed 0.24m/S Heats 315kw Heat Exchanger Maximum Working Temperature 80 Celsius Inverter Schneider Noise <80 dB Transport Package Cargo Loaded on Steel Frame Handled by Forklifts Specification 8000 X 5000 X 3500mm (L X W X H) Trademark INFITECH Origin Guangzhou, China HS Code 8419899090 Production Capacity 1000 Sets/Year

Product Description

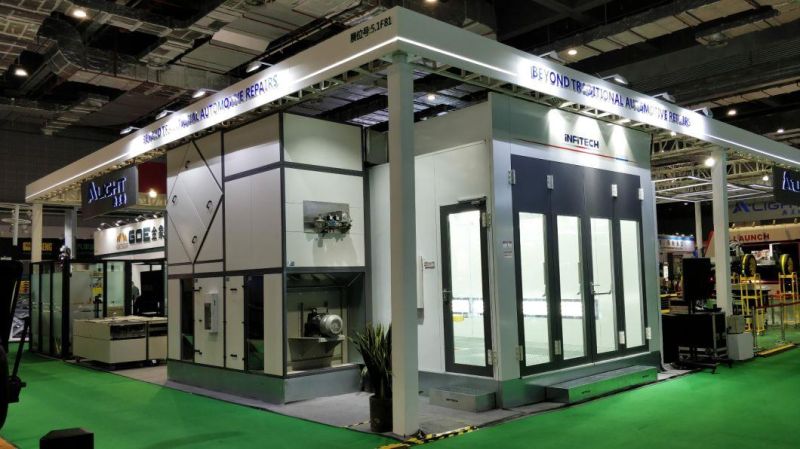

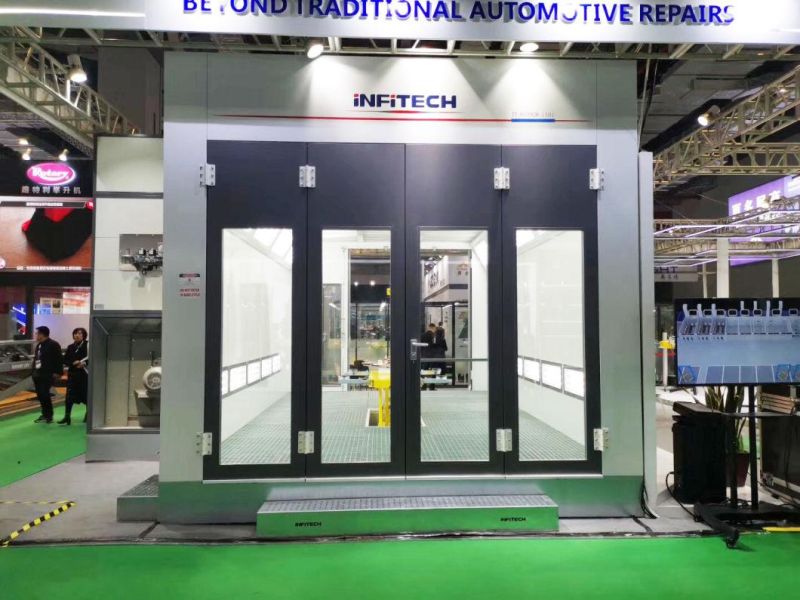

Full Downdraft Industrial Painting Baking Cabin for Heavy Duty Products
Application: painting and drying booths for industrial manufacturing
Payment terms: T/T, 50% down payment, balance before shipment
Production time: 30 days
Shipping: by sea, 1x40HQ container
Guarantee: 2 years


PARAMETERS

Item	Specifications
Model	IT-L8
Workspace dimensions	8000 x 5000 x 3500MM(L x W x H)
Entry/exit	3400 x 3400MM/set, 2 sets
Air volume	35,000m3/h
No load air speed	0.24m/s
Air exchange times	4 times/min
Max. working temperature	80ºC
Heating time	5-10 min(60ºC)
Max. calorific value	290,000kal/h
Heat exchange efficiency	93%
Brightness	≥1,000 Lux
Filtration efficiency	≥95%
Noise level	≤80 db(A)
Rated power	30kw

OVERALL DESIGN LAYOUT

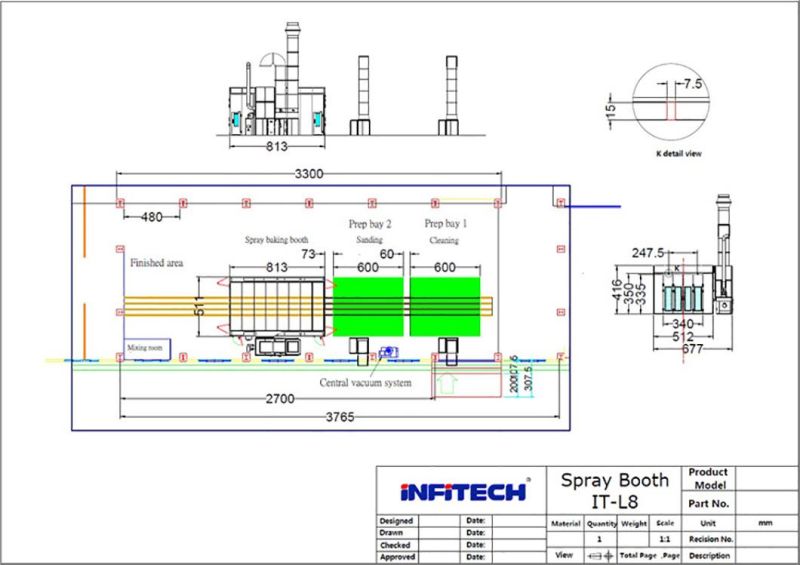

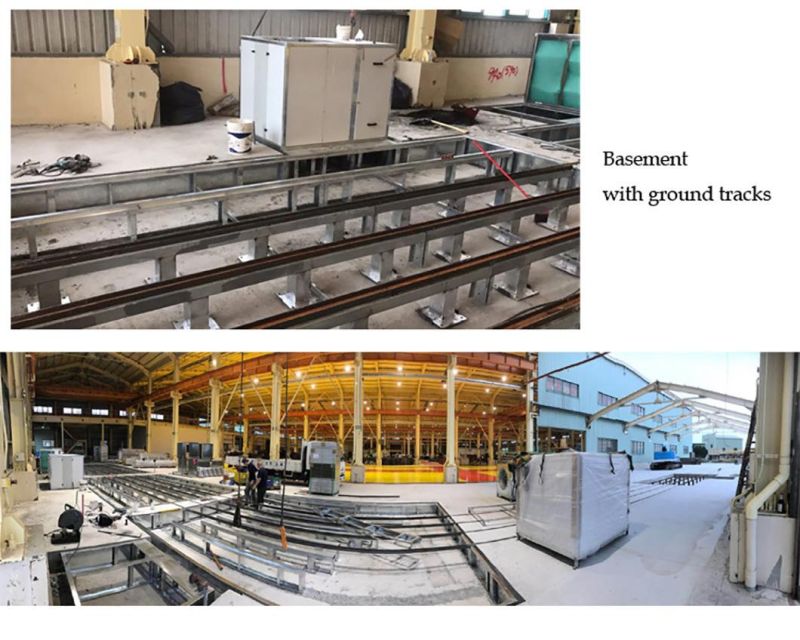

BASEMENT

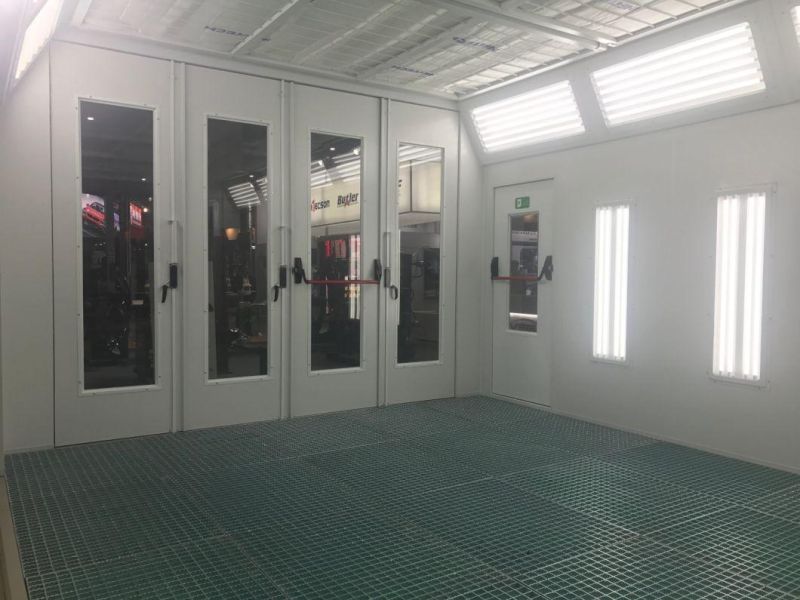

Full gratings, with floor tracks and trolleys for the conveyance of heavy duty components

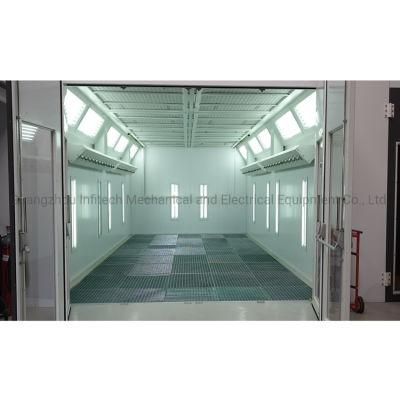

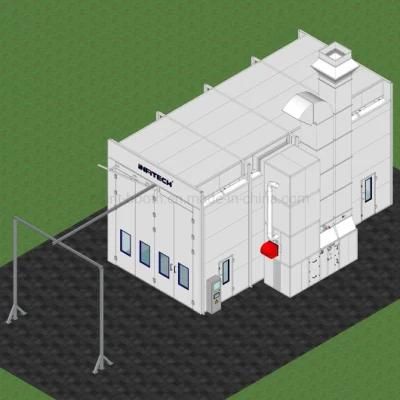

CABIN

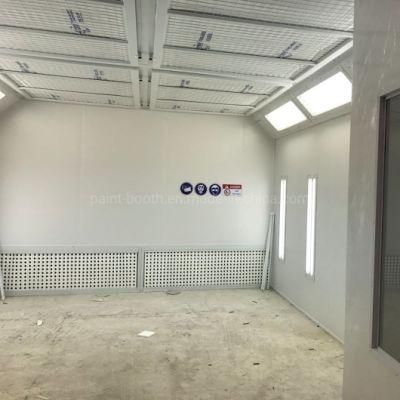

1. The side walls and ceiling walls are 50mm insulation rock wool panels. The groove and tongue connection design offer great convenience for the installation of the walls.
2. The lights are LED lamps. Illumination is designed to be over 1,000lux.
3. Plenum is 600mm high.

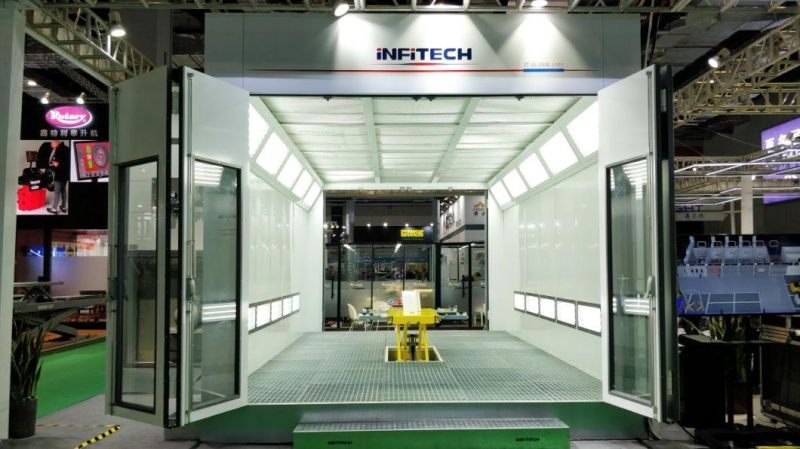

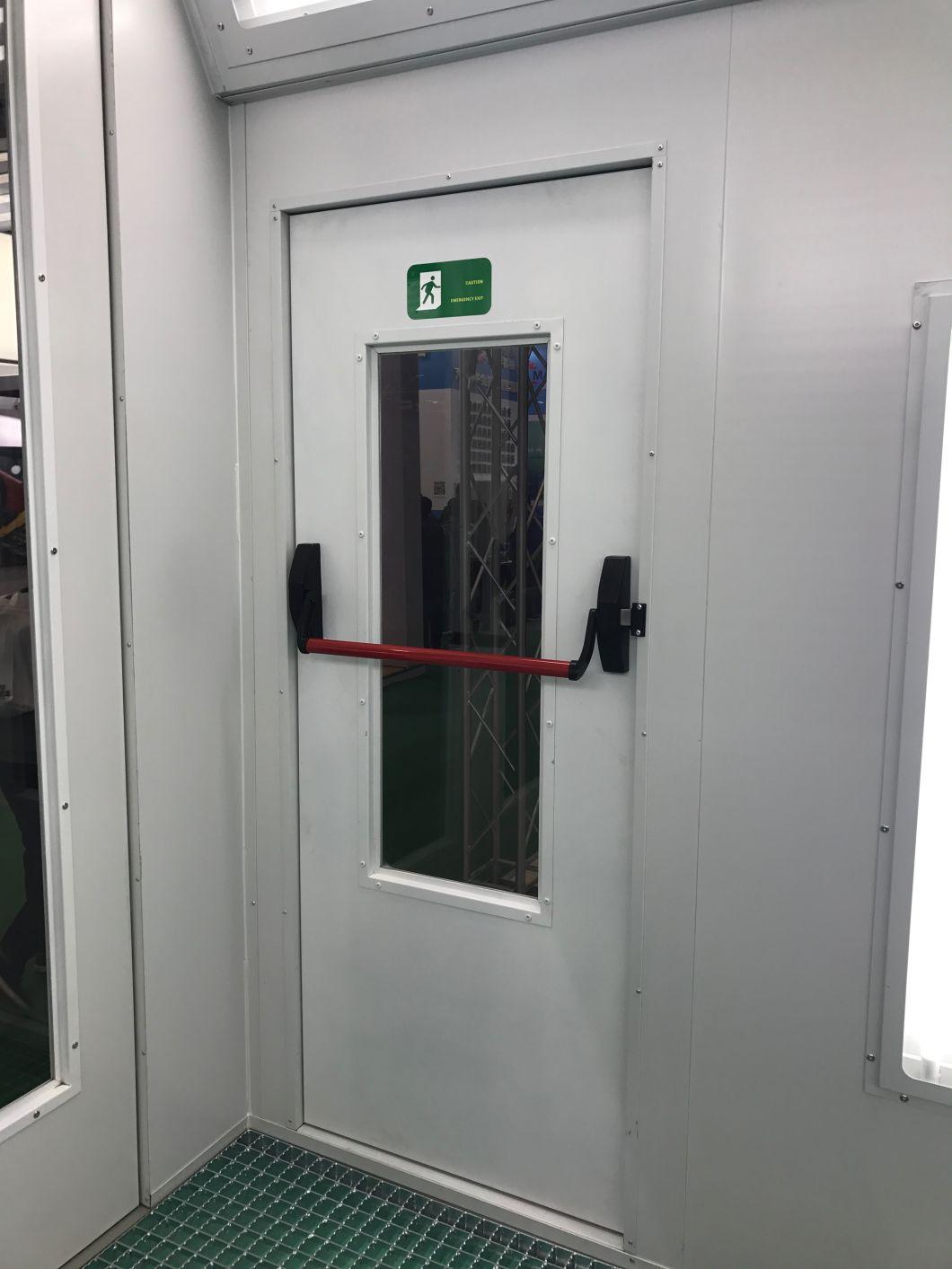

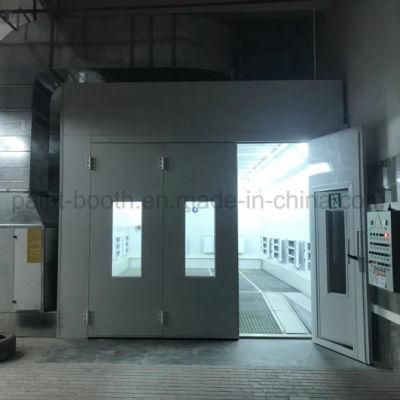

4. There is one manual entry door at each end of the booth, for the conveyance of products before and after painting and baking by floor tracks and overhead conveyance system.

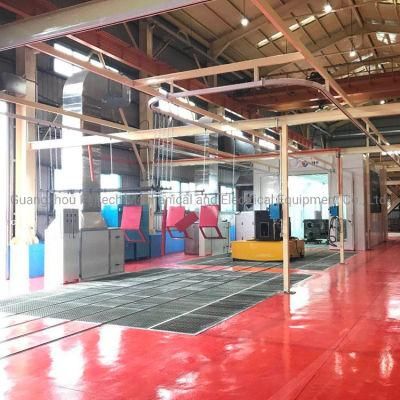

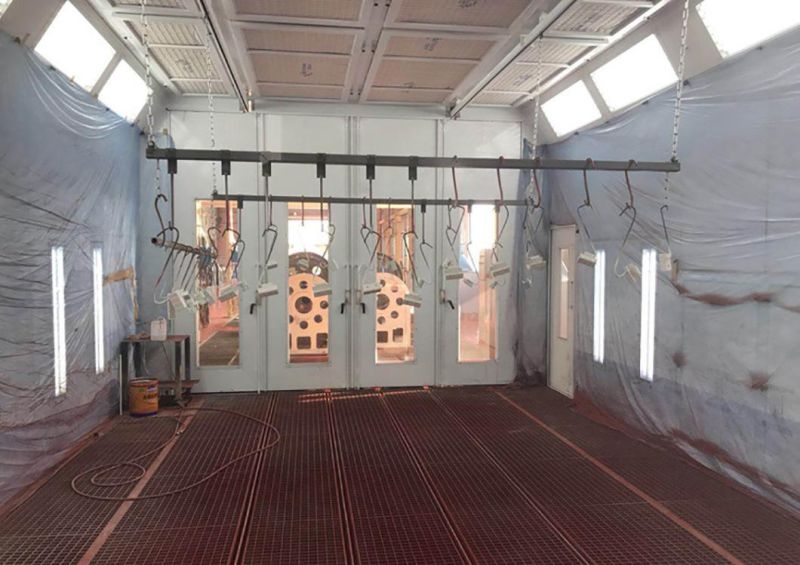

5. The overhead conveyance system is assembled to the booth structure.

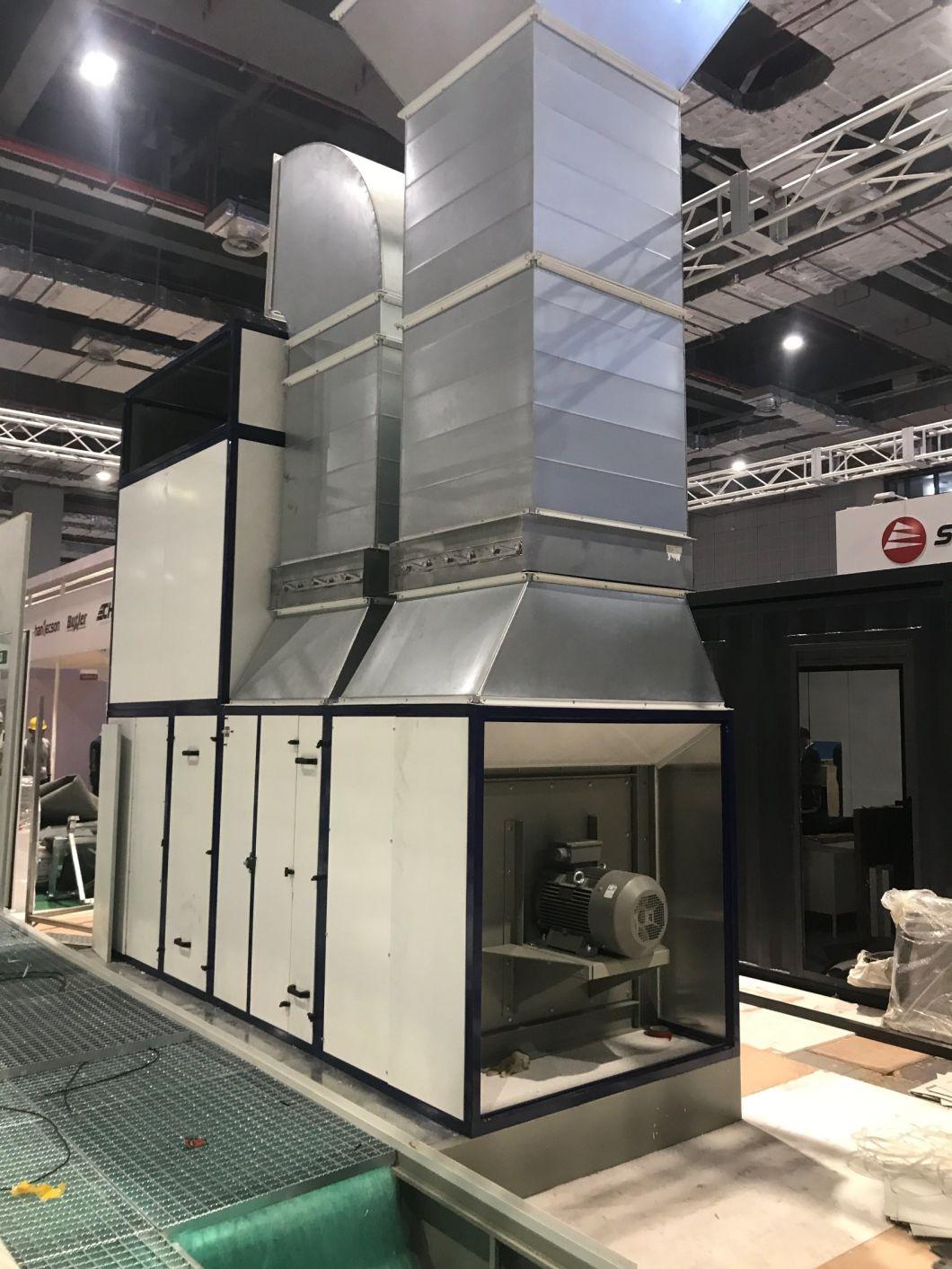

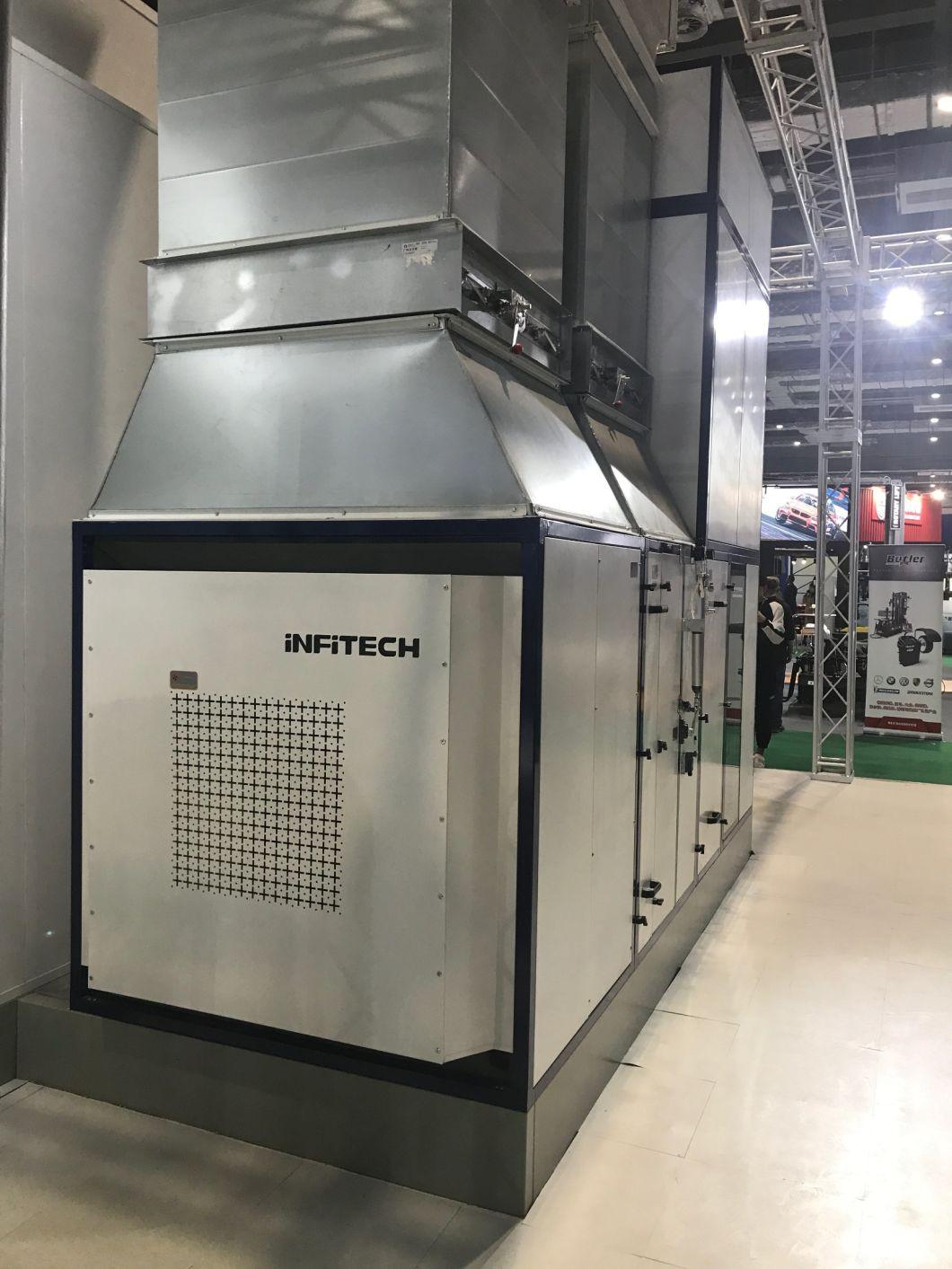

AIR HANDLING UNIT

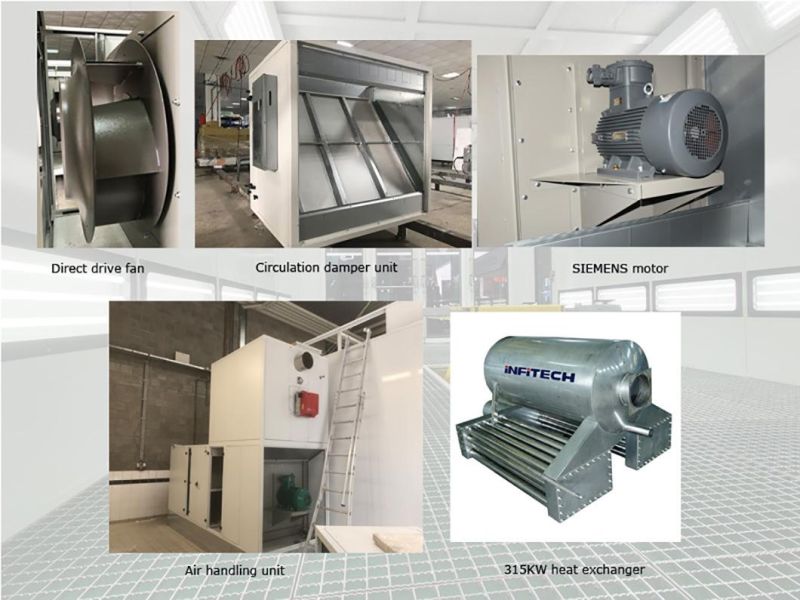

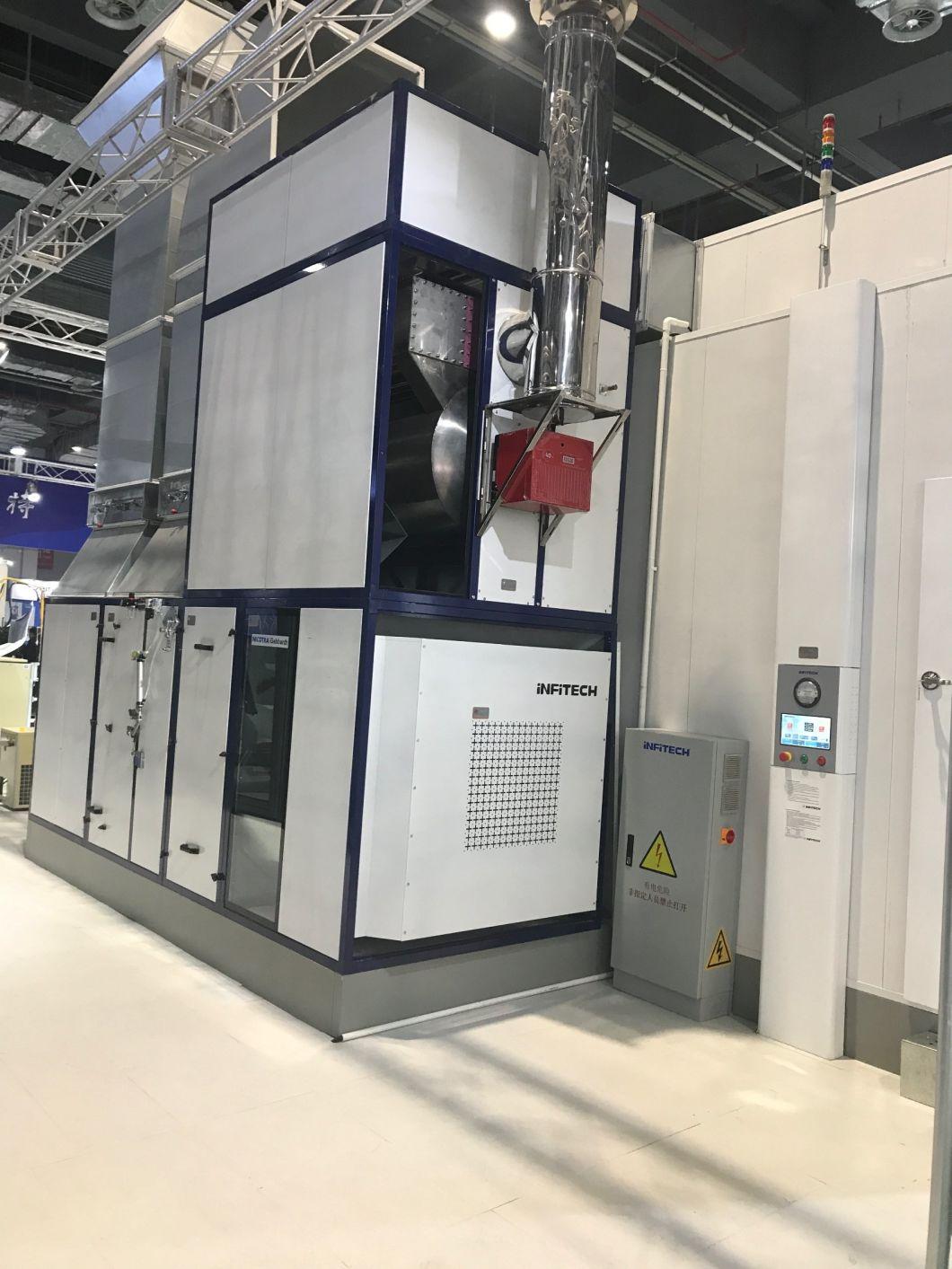

The 2x11kw air make-up unit is high performance unit designed for spray booth which requires big airflow volume and high efficiency heating. Based on working power of 11kw and resistance of 600Pa to overcome, the air volume reaches as high as 35,000m3/h. It is outstanding among the many similar products. And it helps bring valuable savings in energy consumption over years of operations.
The heat exchanger is made of stainless steel. It comes with three circulation channel, which ensures large contact surface between heat and air, greatly increasing the heat exchange efficiency.

FAQQ: I require inverter controls for the fan units.A: Yes. We do recommend adding VFDs to control the working frequency of the motors. It helps not only save operating costs, but also regulate the pressure inside the cabin.
 Q: Can the booth be built according to my dimensions required?A: Sure. It would be better you also tell us the dimensions of the products to be painted and baked. We can propose the right dimensions for your reference.
 Q: What is the brand of the motors?A: SIEMENS, ABB brands are available. The voltage can be customized according to your specific requirements.
 Q: Can you supply direct gas fired heating system for spray booth?A: Yes.
