• Model NO.：IT-SUPER-L8
• Heating Mode：Gas Heating
• Paint Mist Treatment：Dry-type
• Condition：New
• Plenum (Height)：600mm
• Extraction：350mm
• Grids Carrying Capacity：900kg,Wheel
• Walls：60mm Rock Wool Walls
• Brightness：>1,500lux
• Air Volume：35,000m3,H
• Heats：Direct Gas Fired Heating System
• Maximum Working Temperature：80 Celsius
• Inverter：Schneider
• Noise：<85 dB(a)
• Stack Light：Yes
• Empty Loaded Air Speed：0.30 M,S
• Transport Package：Cargo Loaded on Steel Frame Handled by Forklifts
• Specification：8000 X 4000 X 3000mm (L X W X H)
• Trademark：INFITECH
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. IT-SUPER-L8 Heating Mode Gas Heating Paint Mist Treatment Dry-type Condition New Plenum (Height) 600mm Extraction 350mm Grids Carrying Capacity 900kg/Wheel Walls 60mm Rock Wool Walls Brightness >1,500lux Air Volume 35,000m3/H Heats Direct Gas Fired Heating System Maximum Working Temperature 80 Celsius Inverter Schneider Noise <85 dB(a) Stack Light Yes Empty Loaded Air Speed 0.30 M/S Transport Package Cargo Loaded on Steel Frame Handled by Forklifts Specification 8000 X 4000 X 3000mm (L X W X H) Trademark INFITECH Origin Guangzhou, China HS Code 8419899090 Production Capacity 1000 Sets/Year

Product Description

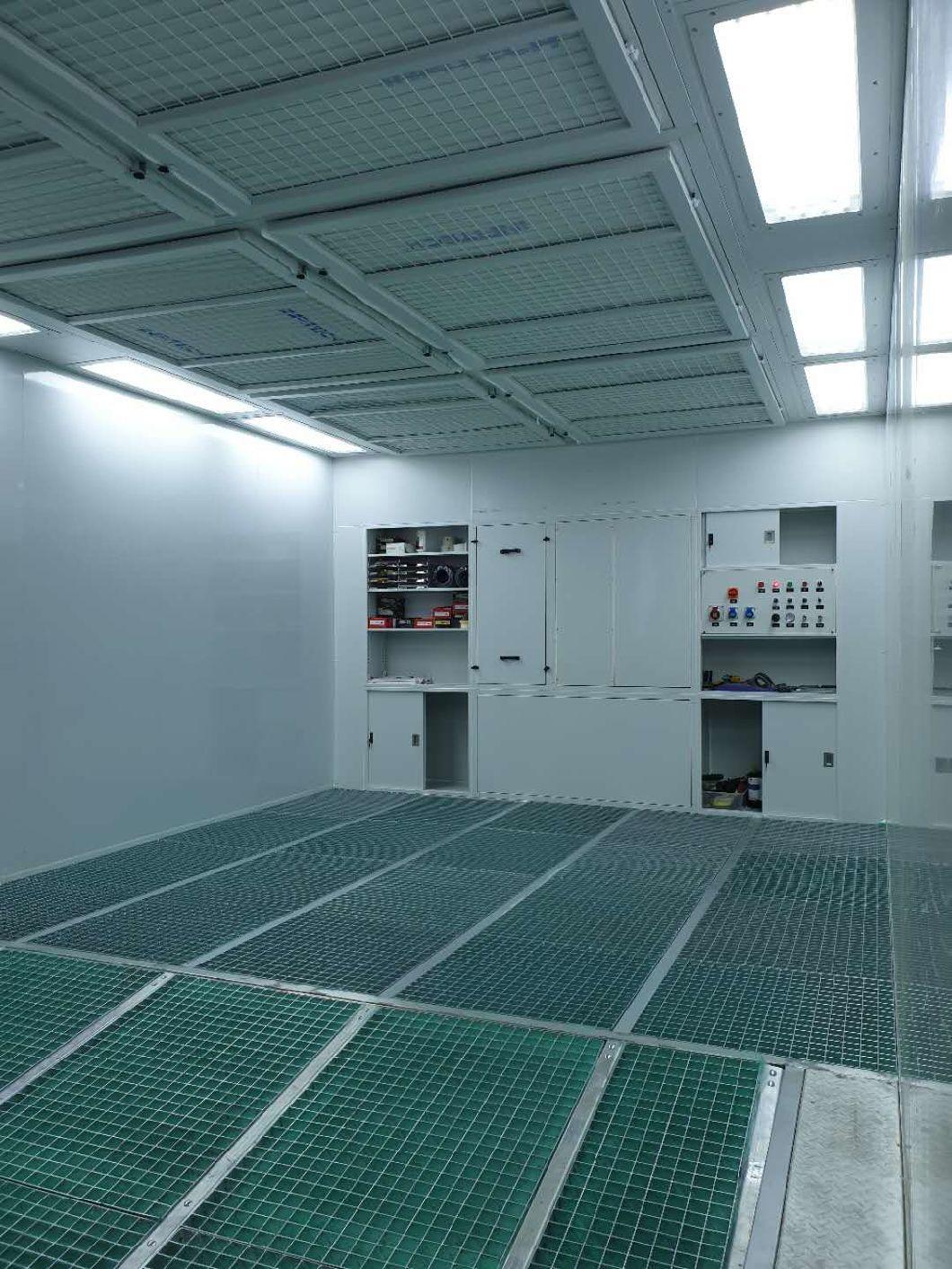

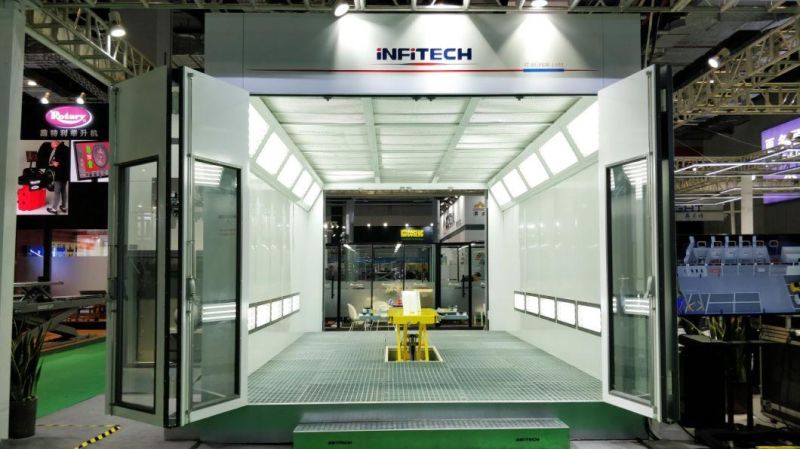

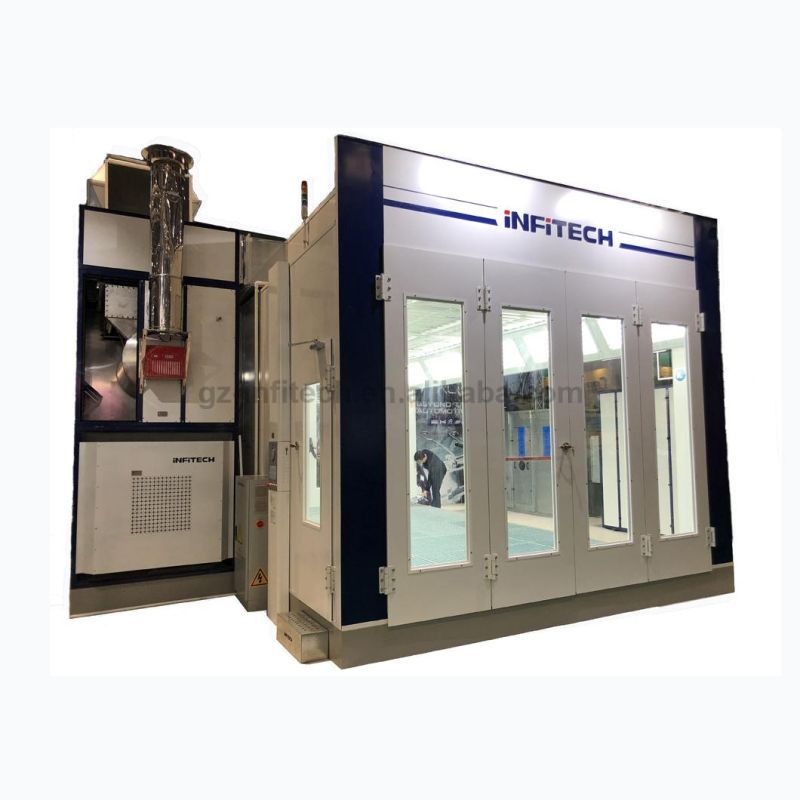

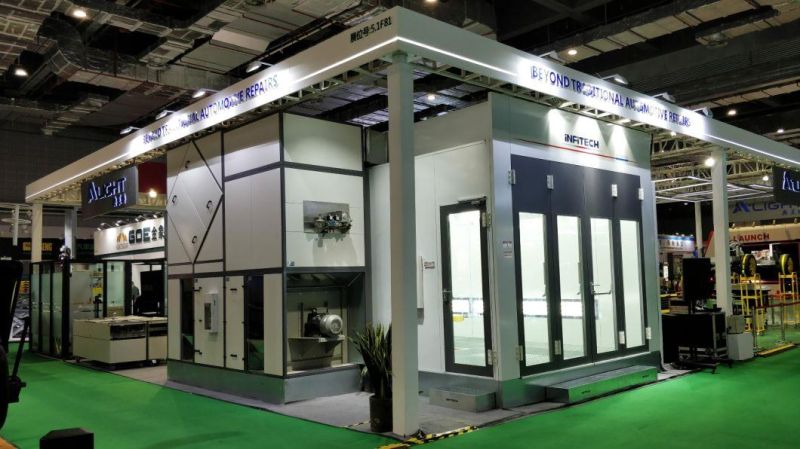

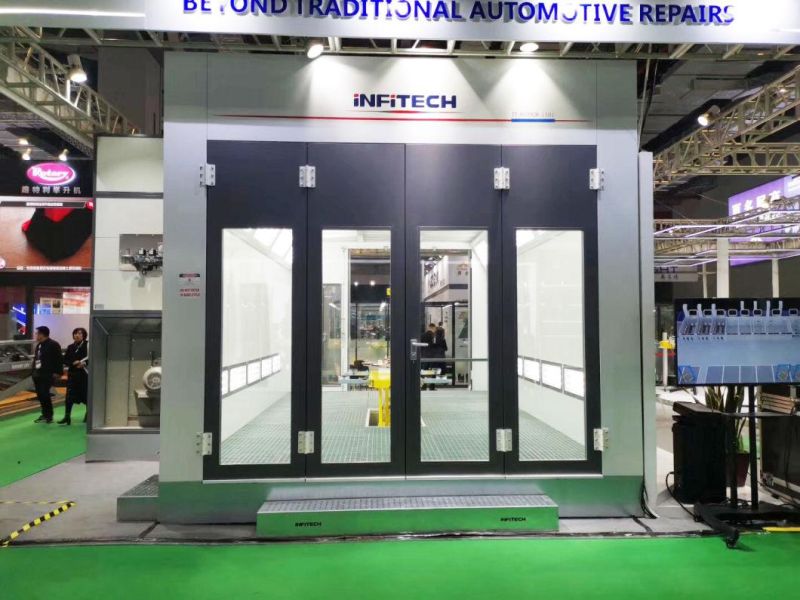

Auto Refinish Spraying Painting Booth for Saloon Cars
 Application: auto painting and baking
Payment terms: T/T, 50% deposit, balance before shipment
Production schedule: 30 days
Loading: 1x40 high cubic container


SPECIFICATIONS

Item	Specifications
Model	IT-SUPER-L8
Internal dimensions	8000 x 4000 x 3000MM(L x W x H)
Entrance door	3400 x 2900MM
Air volume	35,000m3/h
Empty loaded air speed	0.30 m/s
Air exchange times	6 times/min
Max. working temperature	80ºC
Heating time	5-10 min(60ºC)
Max. calorific value	320,000-480,000kal/h
Heat exchange efficiency	97%
Illumination	≥1,500 Lux
Filtration efficiency	≥95%
Noise	≤85 db(A)
Rated power	30kw

Booth Structure
Mechanical structure
1) The spray booth is assembled structure. The booth panels are made of color steel plate (substrate standard color: snow white) filled with heat resistant rock wool with a thickness of 50mm.
The panels are with high strength, good sealing performance and good insulation effect.
The personnel door can be installed on the left or right side of the booth (according to the actual condition of the installation site).

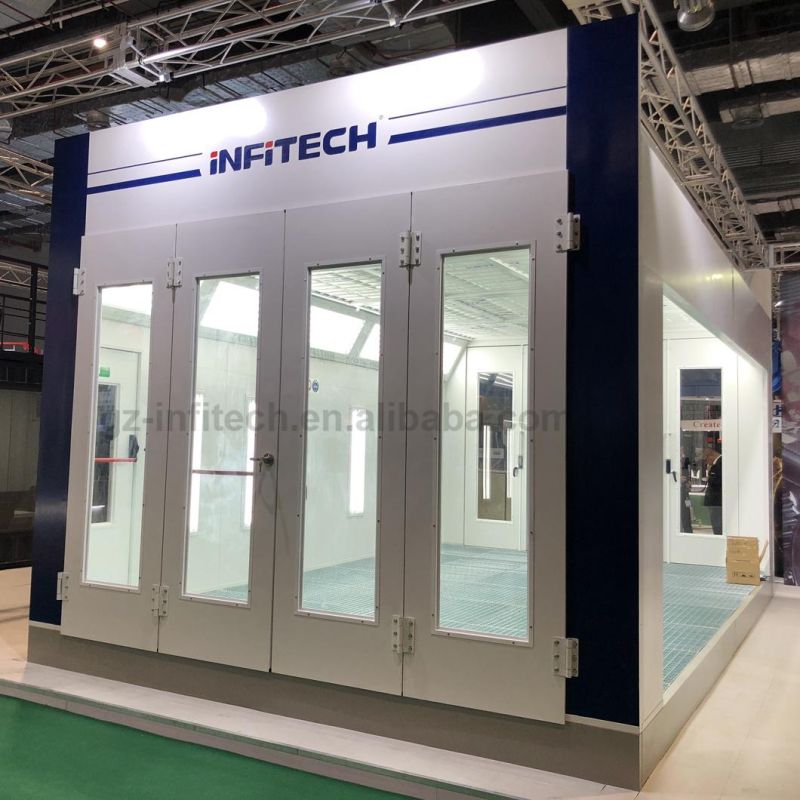

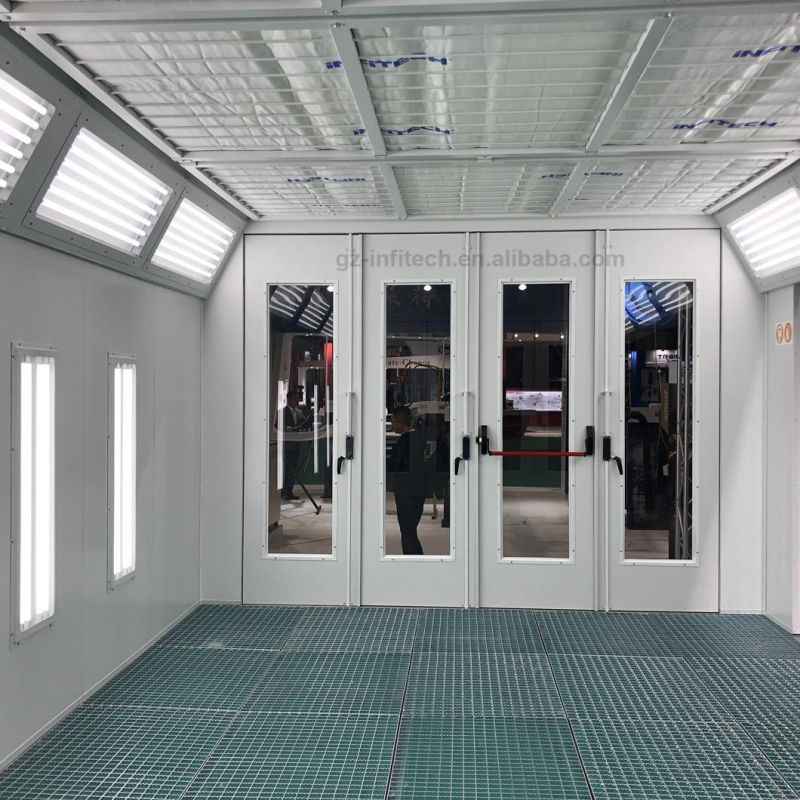

The entrance door is manual door with reinforced frame inside, which ensures high strength of the door. Also, there are observation windows on the entrance door for the observation of the working conditions inside the booth.
The extraction is through 800mm pit in the ground. The carrying capacity of the grids is 900kg/wheel.
2) The plenum adopts gantry structure made of galvanized sheet steel. It is easy to install. And it has good anti-rust and anti-corrosion performance.
3) Adopt direct drive impeller fan, with features of high performance, low noise, high temperature resistance, long service life and easy maintenance. There is pre-filter before the air inlet to ensure the cleanness of air passing through the fan.

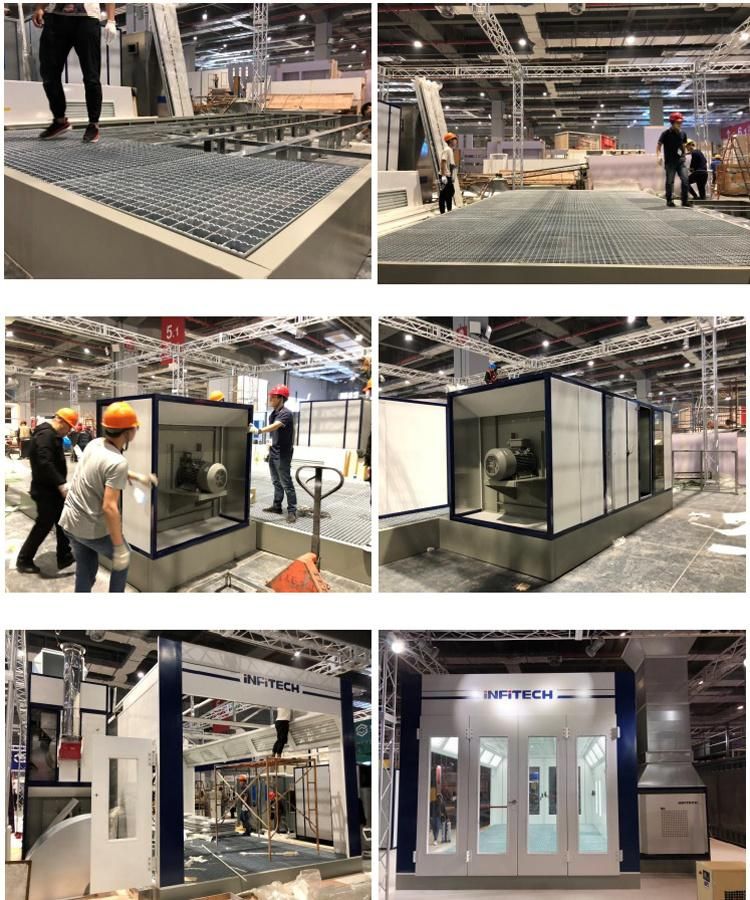

4) The paint booth is with modular design, can adapt to different installation site.

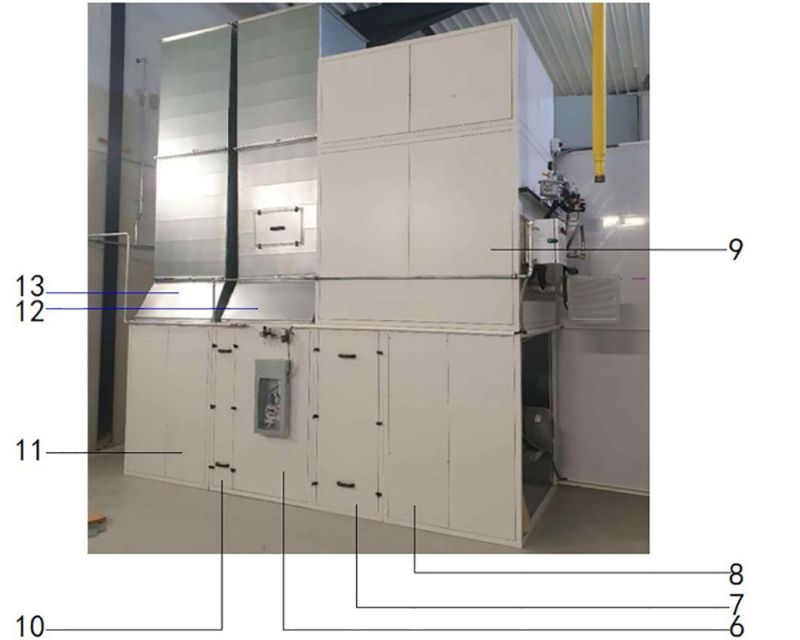

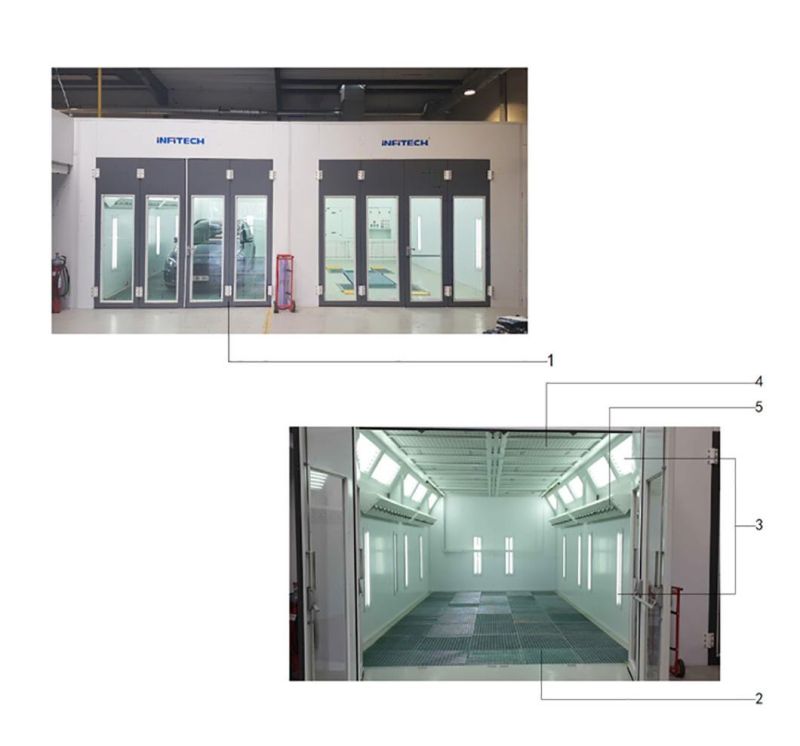

5) Booth Composition

1.Manual entrance door
2.Pit with grids and filters
3.Lights
4.Ceiling filters/filter frames
5.Air accelerator unit
6.Circulation damper
7.Pre-filter bag filter
8.Intake fan unit
9.Direct gas fired heating box
10.Exhaust filter
11.Exhaust fan unit
12.Intake air duct
13.Exhaust air duct

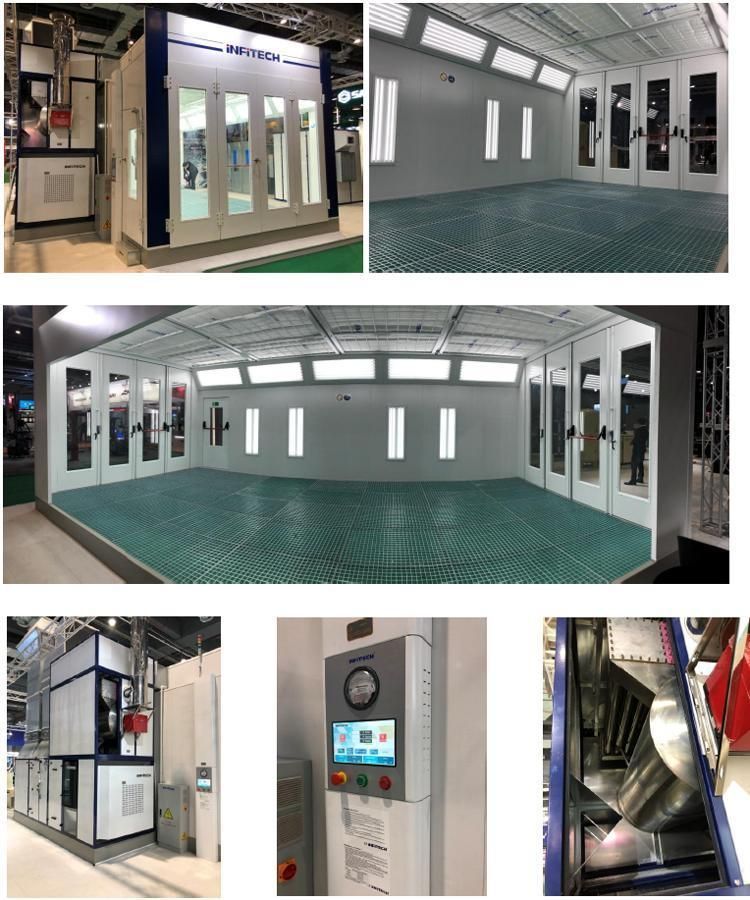

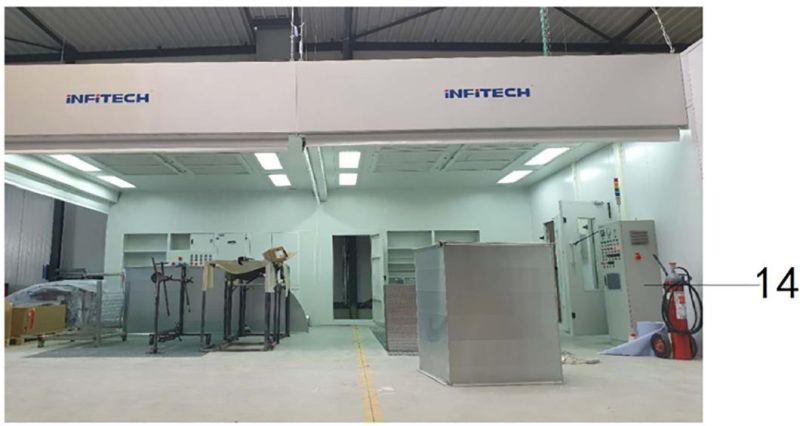

14.Electric control
