Ce Compliance Downdraft Spray Booth for Industrial Vans
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.- Type：Spray Booth
- Certification：CE
- Substrate：Steel
- Coating：Powder Coating
- Airflow Direction：Fully Undershot-type
- Heating Mode：Gas
Base Info
- Model NO.：IT-L9
- Paint Mist Treatment：Dry-type
- Condition：New
- Fan Unit：2X11kw, 35,000m3,H
- Lights：LED Lamp
- Illumination：>1,000lux
- Burner：Riello RS5d Burner

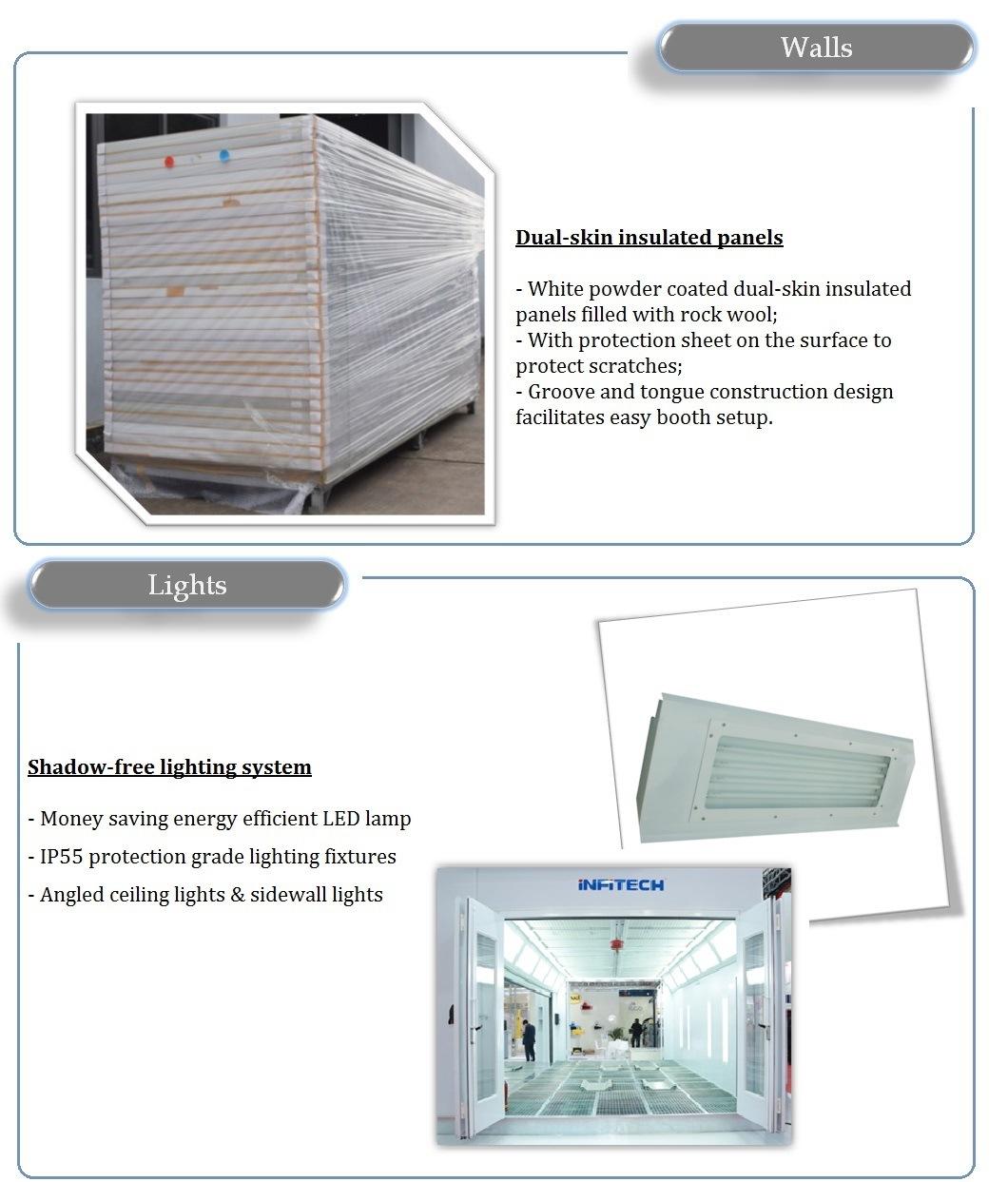

- Walls：Rock Wool Walls
- Noise：<78dB
- Transport Package：Packed on Pallets Handled by Forklifts
- Specification：9000*5000*3500mm
- Trademark：INFITECH
- Origin：Guangzhou, China
- HS Code：8419899090
- Production Capacity：1000 Pieces,Year
Description
CE Compliance Spray BoothITEMS SPECIFICATIONS Design standard BS EN 13355: 2004+A1:2009

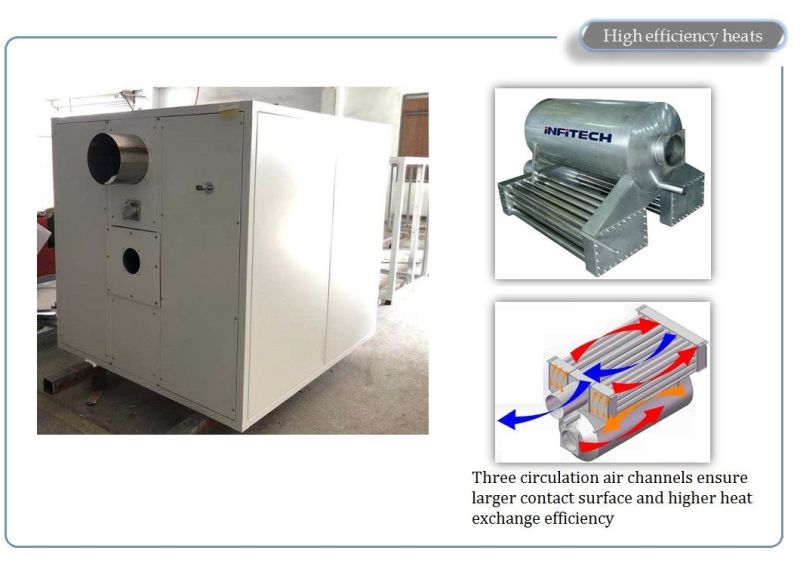

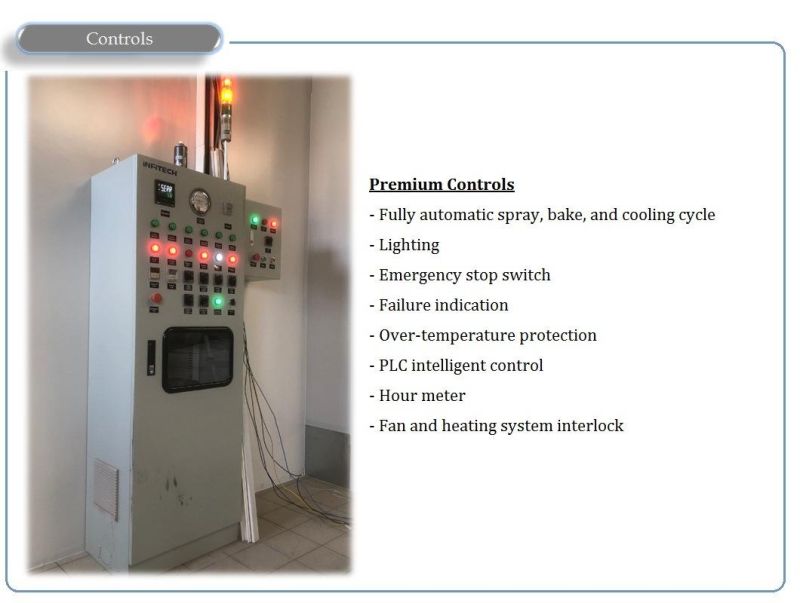

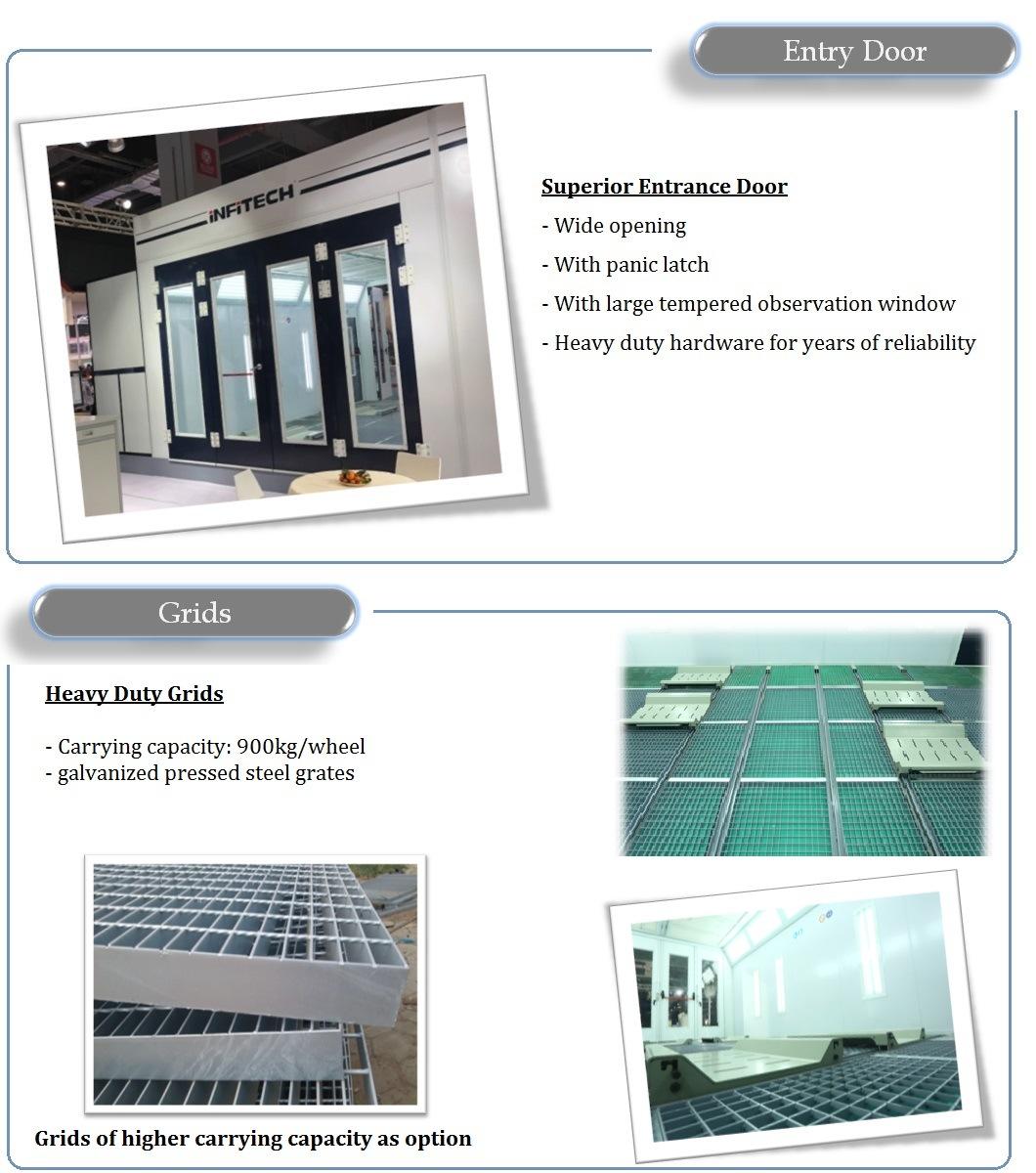

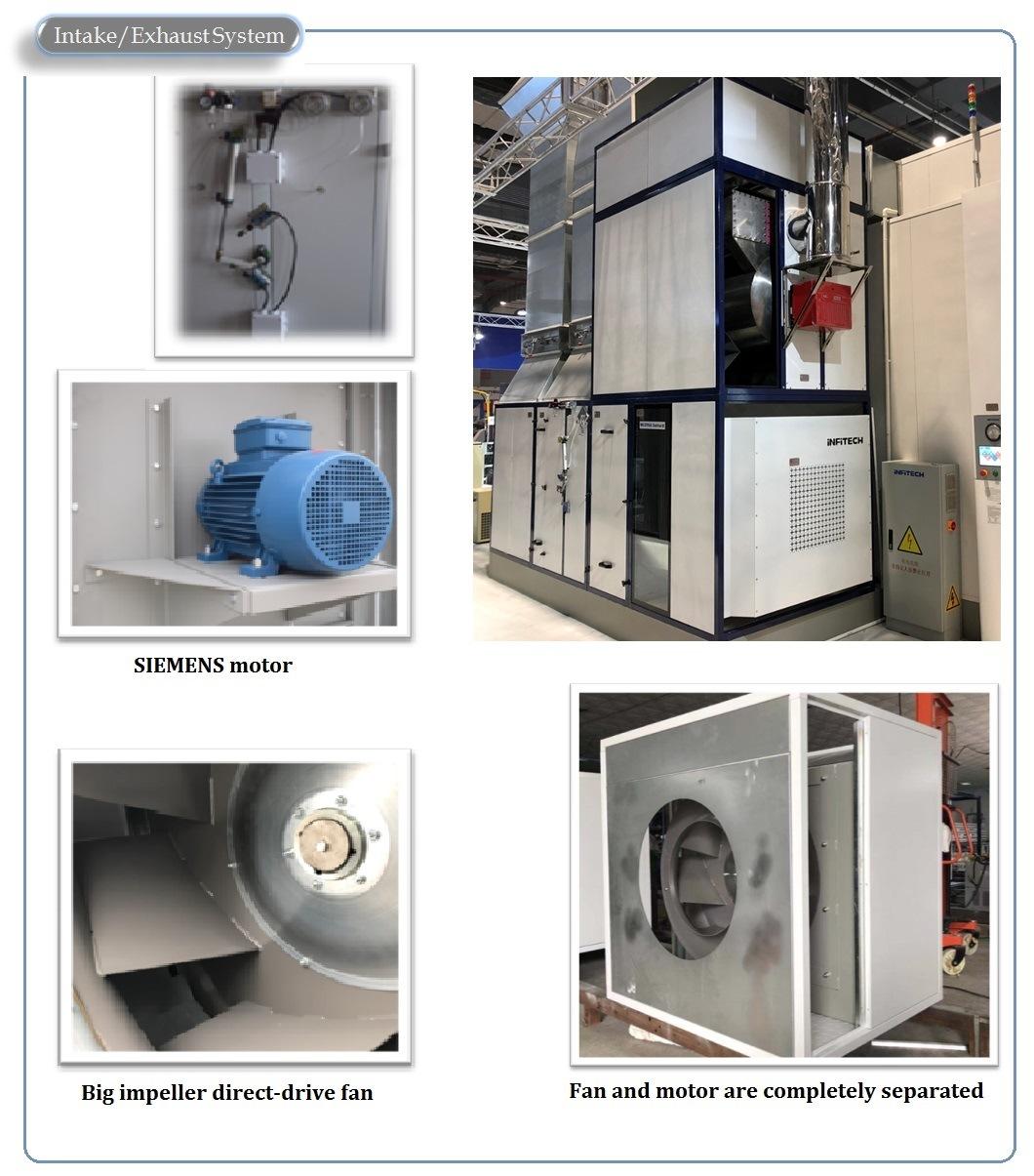

BS EN 60204: 2006+A1:2009 Internal dimensions 9000 X 5000 X 3500mm (L X W X H) External dimensions 9110 X 6750 X 4160mm (L X W X H) Airflow Downdraft Plenum 600mm high Extraction Through pit in the ground Extraction area 30m2 Entrance door 4240x3400mm (WxH), 1 set Service door 800x2000mm(WxH), 3 sets Ceiling lights (LED) 12 sets, each 6 X 18W, 1,296W total Sidewall lights 10 sets, each 2 X 18W, 360W total Brightness >1,000LUX Filters Bag filter, high efficiency ceiling filter, floor filter, exhaust filter Intake/Exhaust unit Direct-type turbine fan, 2 X 11KW SIEMENS motor Air volume 35,000m3/h Heats 315KW, RIELLO gas burner RS5D Controls CE standard control box Inverter Yes, inverter control Rated power 28KW
3. Details
4. Loading

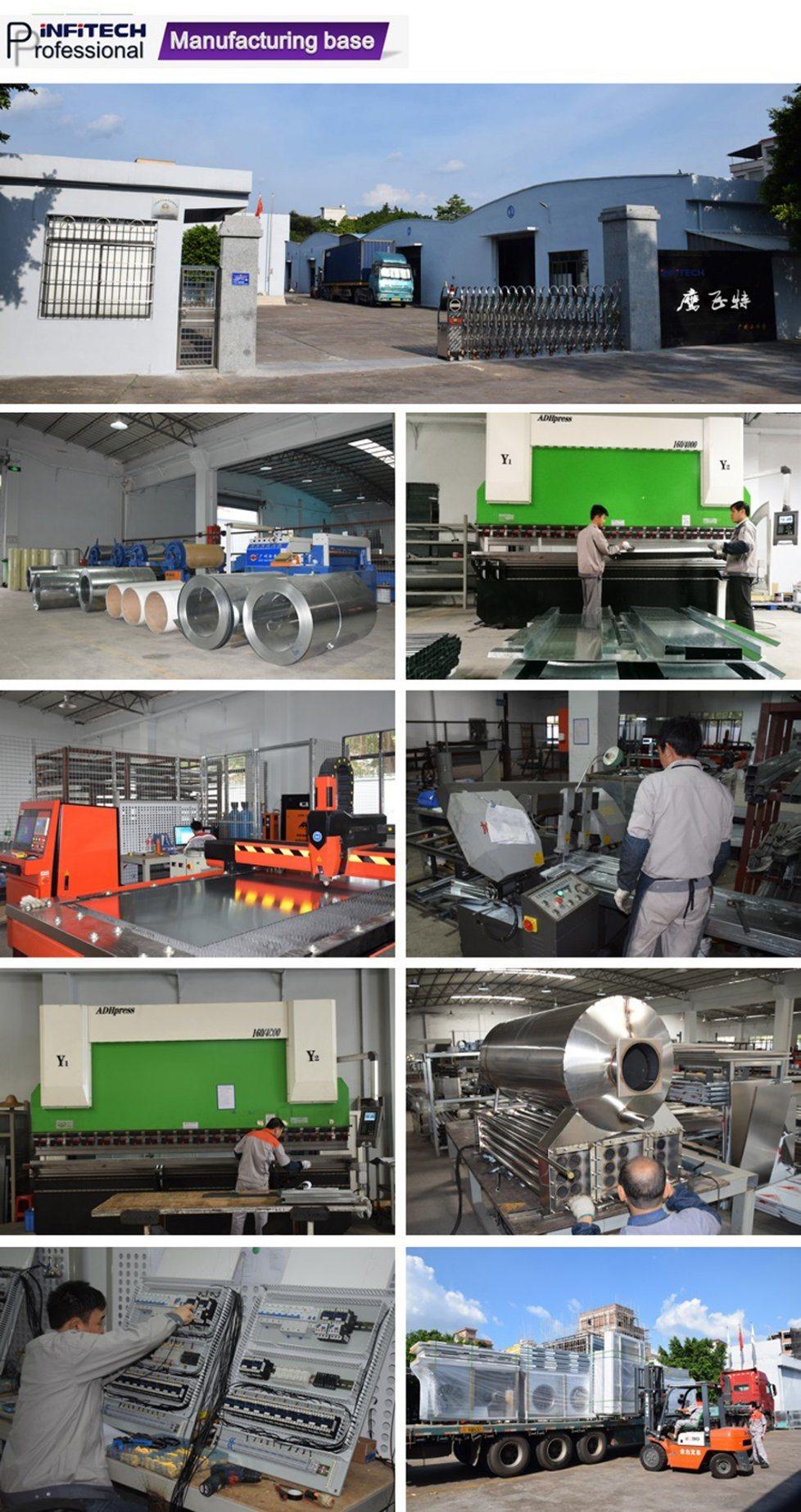

5. Factory Photos

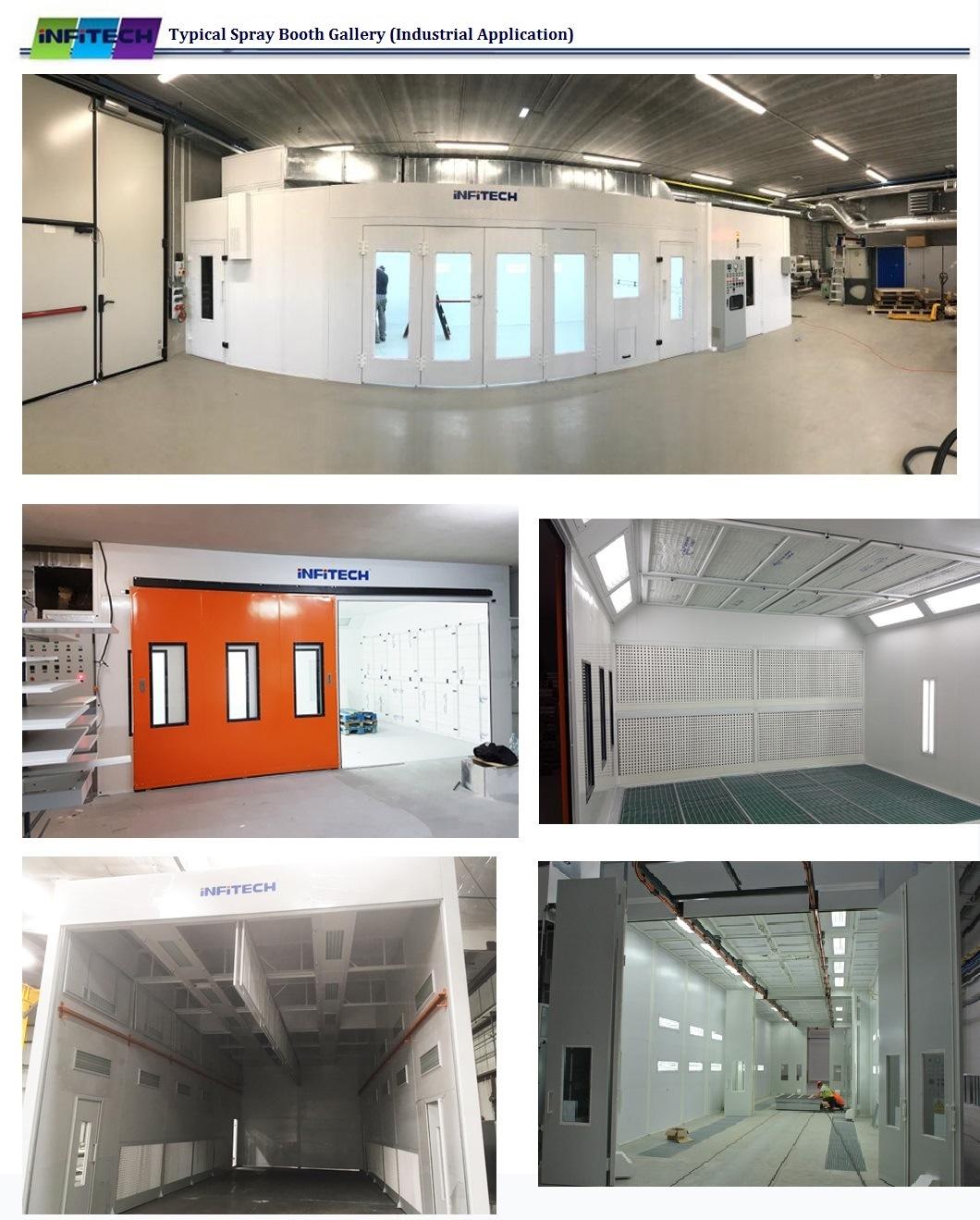

5. Spray Booth Gallery
