Infitech Multi-Bay Prep Station / Prep Booth for Sanding and Priming Cars
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.- Type：Spray Booth
- Certification：CE
- Substrate：Steel
- Brand：Infitech
- Coating：Powder Coating
- Airflow Direction：Rear Semi Downdraft
Base Info
- Model NO.：IT-PREP-5
- Heating Mode：Infrared Ray
- Paint Mist Treatment：Dry-type
- Condition：New
- Product Name：Car Prep Booth
- Keyword：Prep Booth
- Usage：Preparation and Priming for Car
- Brightness：>900lux
- Filter：High Efficiency Filter
- Fan：Big Impeller Direct Drive Fan
- Motor：Siemens
- Air Volume：18,000m3,H
- Noise：<78dB
- Warranty：2 Years
- Transport Package：Polyfoam and Metal Frame
- Specification：7000X4000X2800mm
- Trademark：INFITECH
- Origin：Guangzhou, China
- HS Code：8419899090
- Production Capacity：1000pieces,Year
Description
INFITECH multi-bay prep station / prep booth for sanding and priming cars Design standard BS EN 13355: 2004 + A1: 2009
BS EN 60204: 2006 + A1: 2009 Internal dimensions 7000 x 4000 x 2800mm (L X W X H) External dimensions 8520 x 4000 x 3260mm (L X W X H) Plenum height 400mm Entry/Exit Electric soft curtain door, 3800x2650mm(BxH) Divider door Electric soft curtain door, 6000x2800mm(BxH) Ceiling lighting 8 sets, each 4 X 18W, 576W total, LED lamp Brightness >900LUX Purification Pre-filter, ceiling filter, floor-level filter Air intake Direct-type turbine fan, 5.5KW, SIEMENS motor Air exhaust Direct-type turbine fan, 5.5KW, SIEMENS motor Air volume 18,000m3/h Empty loaded air speed +/-0.18m/s Controls CE standard control box Special items Electrical and tool cabinet Rated power 15KW
4) Features
Three axis infrared heating system

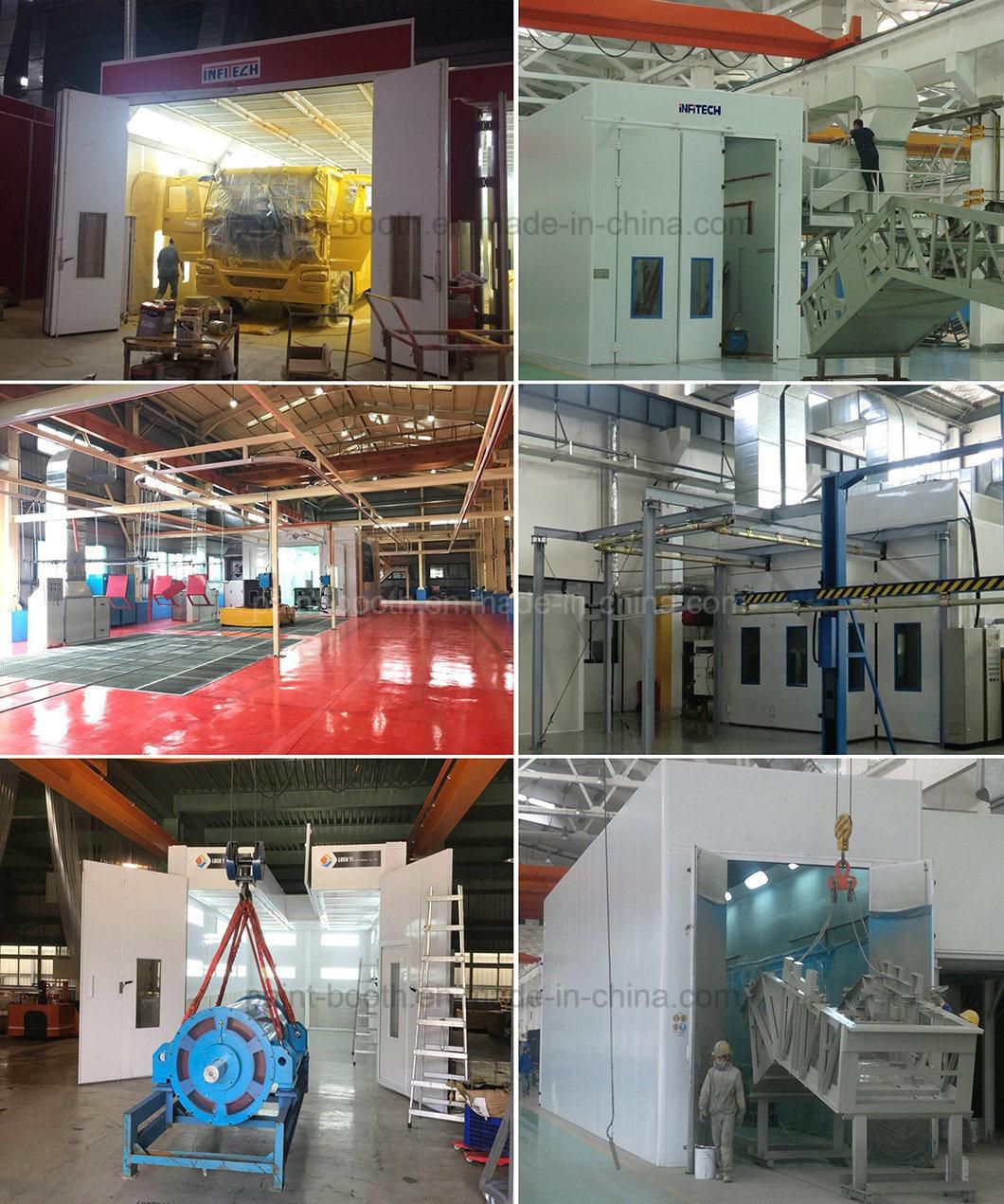

5) Engineering Case

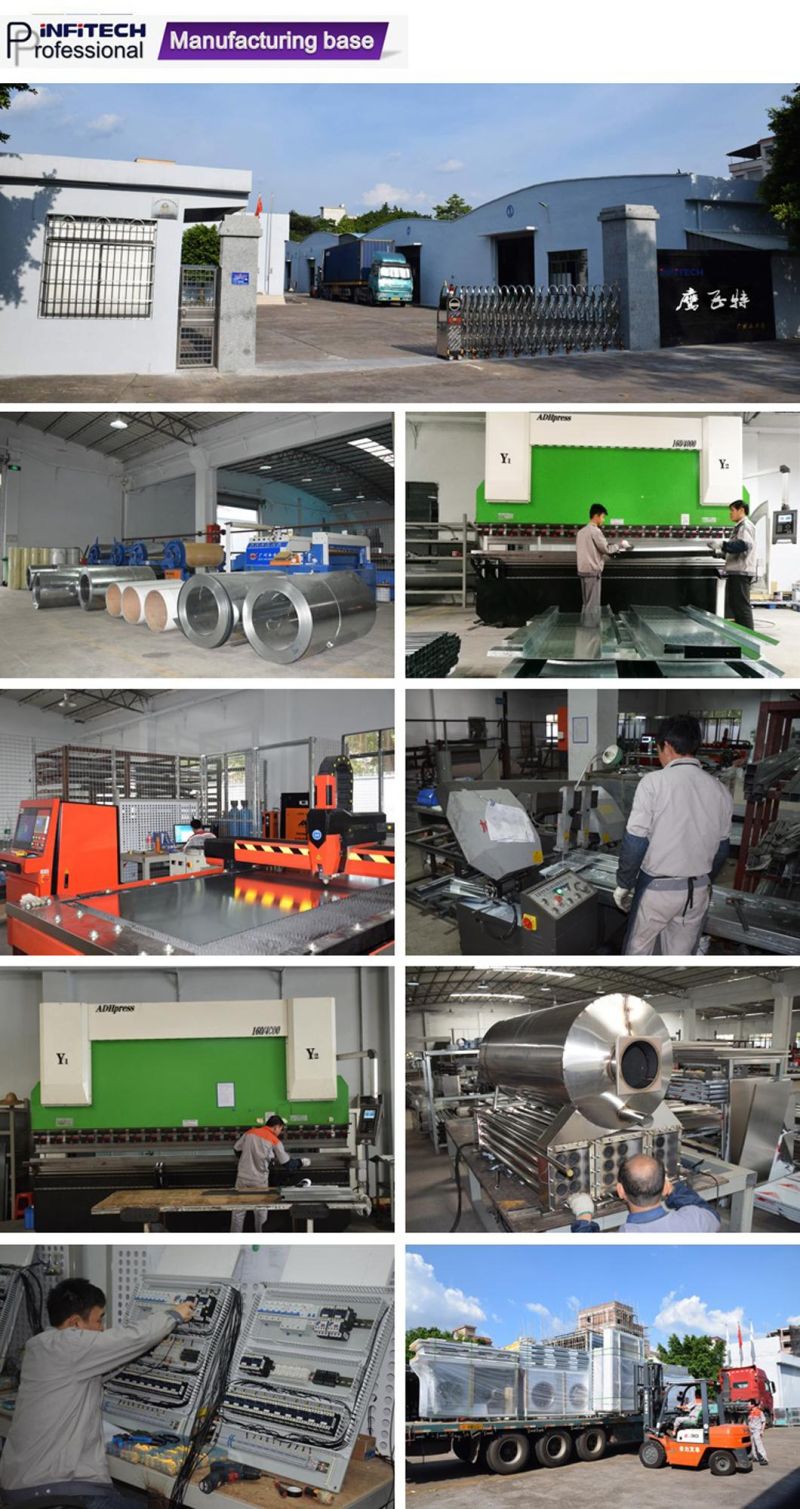

6) Company Information
Guangzhou Infitech is professional manufacturer of customized European standard spray booths in China. We stick to European standard for spray booth since the business started. What we supply ranges from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit your customers' individual needs.
BS EN 60204: 2006 + A1: 2009
4) Features
Three axis infrared heating system
- Adopt high quality IRA infrared short-wave heating lamps (total power: 6X1KW) certified by international special light source lab.
- The system is mounted at the lead rails at the top of the booth, and it can move freely in any directions. The flexible swing arm allows the lamps to be in any position of the booth.
- The lamps are lifted by gas spring.
5) Engineering Case
6) Company Information
Guangzhou Infitech is professional manufacturer of customized European standard spray booths in China. We stick to European standard for spray booth since the business started. What we supply ranges from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit your customers' individual needs.
