Down Draft Car Paint Cabin Painting Cabin Spray Cabin for European Market

Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.
  • After-sales Service：24 Hours After Service
  • Warranty：2 Years
  • Type：Spray Booth
  • Certification：CCC, CE
  • Substrate：Steel
  • Brand：Infitech

Base Info

  • Model NO.：IT-SUPER-L8
  • Coating：Powder Coating
  • Airflow Direction：Fully Undershot-type
  • Heating Mode：Gas
  • Paint Mist Treatment：Dry-type
  • Condition：New
  • Color：White
  • Walls：50mm Rock Wool
  • Plenum：600mm High
  • Basement：350mm High
  • Ramp：Pneumatic
  • Personnel Door：800X2000mm
  • Entrance Door：3400X3250mm
  • Illumination：>1,500lux
  • Motor：2X11kw, Explosion-Proof
  • Fans：Big Impeller, Centrifugal
  • Heat Exchanger：315kw
  • Burner：Gas Burner, Riello RS5d
  • Noise：<78dB
  • Usage：Auto Painting and Baking
  • Key Word：Automotive Spray Booth
  • Transport Package：Polyfoam and Metal Frame
  • Specification：8000x4000x3000mm
  • Trademark：INFITECH
  • Origin：Guangzhou, China
  • HS Code：8419899090
  • Production Capacity：900 Sets,Year

Description

Down Draft Car Paint Cabin Painting Cabin Spray Cabin For European MarketITEMSSPECIFICATIONSDesign standardBS EN 13355: 2004+A1:2009
BS EN 60204: 2006+A1:2009Internal dimensions8000 X 4000 X 3000mm (L X W X H)External dimensions8110 X 5760 X 4010mm (L X W X H)Plenum600mm highBasement350mm highEntrance door1 set, 3400 X 3250mm (W X H)Personnel door2 sets, 800 X 2000mm (W X H)Walls50mm rock wool panelsCeiling lighting (LED)10 sets, each 6 X18W, 1,080W totalSidewall lighting (LED)10 sets, each 2 X 18W, 360W totalBrightness>1,500LUXFiltersPre-filter, high efficiency filter, floor-level filter, exhaust filterAir intakeDirect-type turbine fan, 11KW explosion-proof motorAir exhaustDirect-type turbine fan, 11KW explosion-proof motorAir volume35,000m3/hEmpty loaded air speed+/-0.30m/sAir exchange times6 times/minMaximum working temperature80ºCHeat exchanger power315KWBurner (Max. calorific value)RIELLO gas burner RS5D (two stage)ControlsCE standard control boxRated power30KW
4) Packaging & Loading
Down Draft Car Paint Cabin Painting Cabin Spray Cabin for European Market

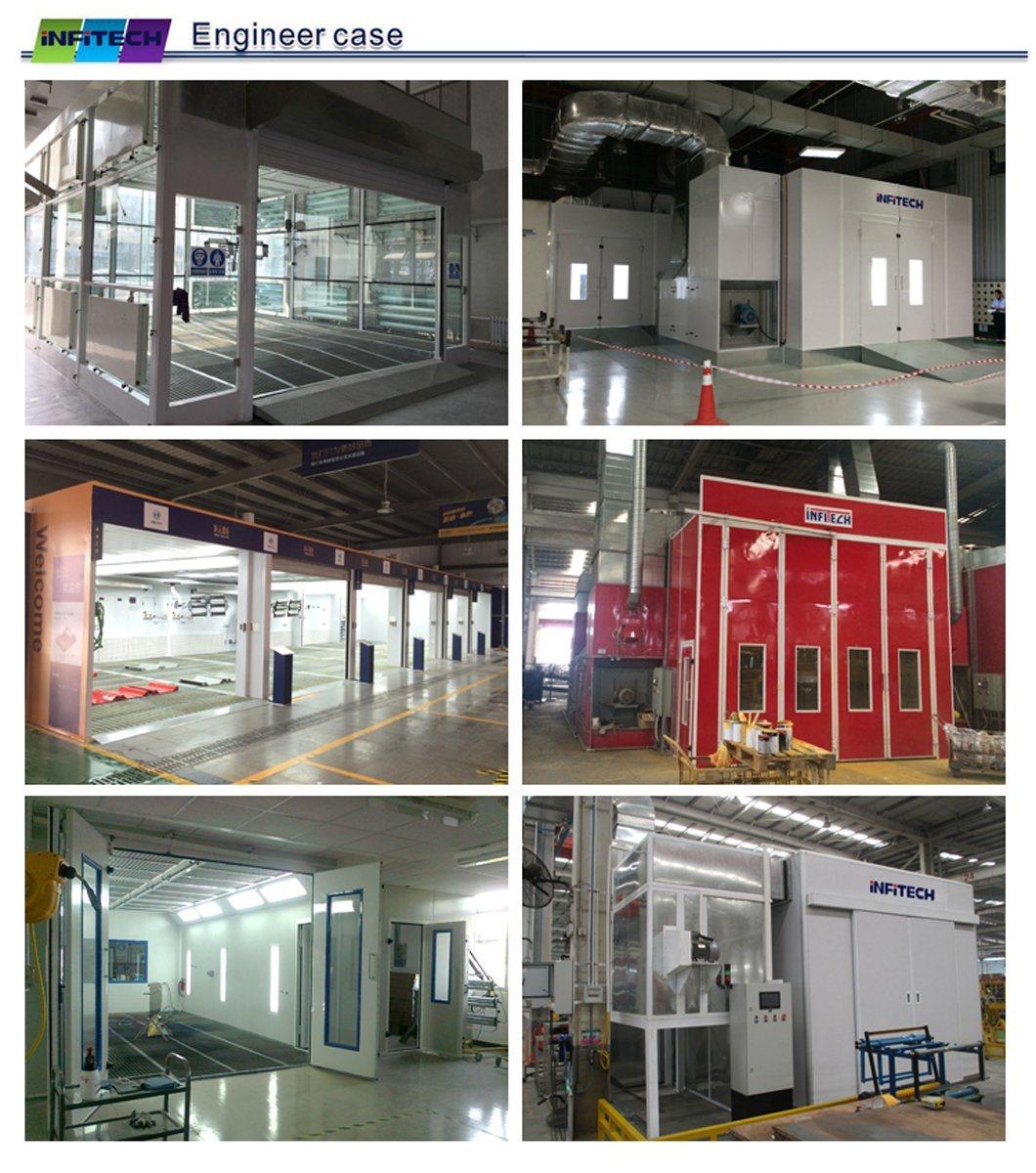

5) Engineering Cases
Down Draft Car Paint Cabin Painting Cabin Spray Cabin for European Market


6) Company Profile
INFITECH is professional manufacturer of CE certified spray booth. We offer complete solution including design and layout, manufacturing, installation and maintenance. We take pride in delivering professional and ideal solution that is tailored to specific requirements, while maximizes profits for shop owners.
Down Draft Car Paint Cabin Painting Cabin Spray Cabin for European Market
Down Draft Car Paint Cabin Painting Cabin Spray Cabin for European Market

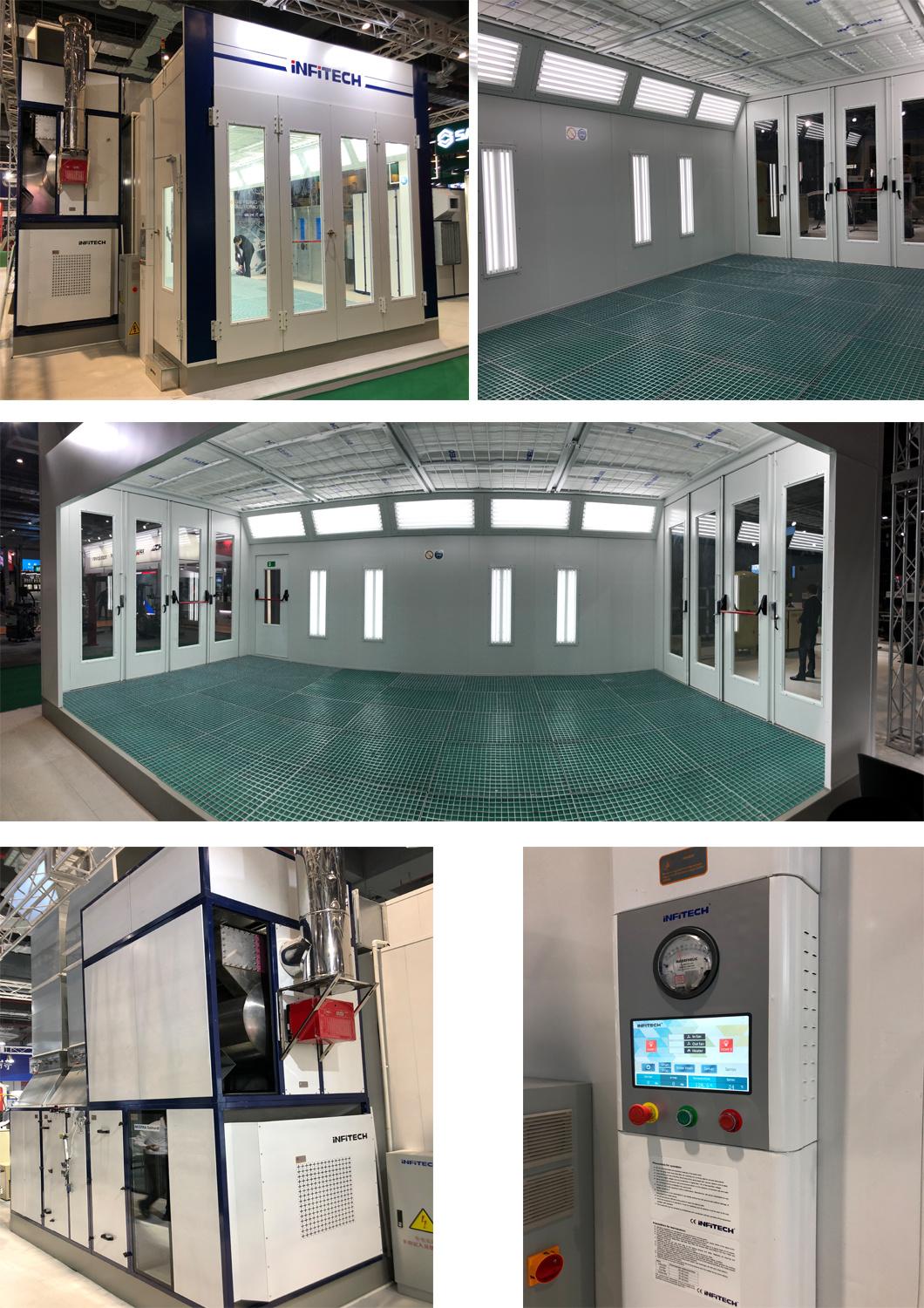

6) INFITECH at exhibition
Down Draft Car Paint Cabin Painting Cabin Spray Cabin for European Market
Down Draft Car Paint Cabin Painting Cabin Spray Cabin for European Market

Thank you for viewing!
