Australian Standard Premium Downdraft Commercial Spray Painting Baking Cabin for Auto Refinish Workshop
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.- Type：Spray Booth
- Certification：CE
- Substrate：Steel
- Coating：Powder Coating
- Airflow Direction：Fully Undershot-type
- Heating Mode：Gas
Base Info
- Model NO.：IT-SUPER-L8
- Paint Mist Treatment：Dry-type
- Condition：New
- Color：White
- Walls：50mm Rock Wool
- Plenum：600mm High
- Basement：350mm High
- Ramp：Pneumatic
- Personnel Door：800X2000mm
- Entrance Door：3400X3250mm
- Illumination：>1,500lux
- Motor：2X11kw, Explosion-Proof
- Fans：Big Impeller, Centrifugal
- Heat Exchanger：315kw
- Burner：Gas Burner, Riello RS5d
- Noise：<78dB
- Usage：Auto Painting and Baking
- Key Word：Automotive Spray Booth
- Transport Package：Polyfoam and Metal Frame
- Specification：8000x4000x3000mm
- Trademark：INFITECH
- Origin：Guangzhou, China
- HS Code：8419899090
- Production Capacity：900 Sets,Year
Description
High Performance CE Certified Spray BoothITEMSSPECIFICATIONSDesign standardBS EN 13355: 2004+A1:2009
BS EN 60204: 2006+A1:2009Internal dimensions8000 X 4000 X 3000mm (L X W X H)External dimensions8110 X 5760 X 4010mm (L X W X H)Plenum600mm highBasement350mm highEntrance door1 set, 3400 X 3250mm (W X H)Personnel door2 sets, 800 X 2000mm (W X H)Walls50mm rock wool panelsCeiling lighting (LED)10 sets, each 6 X18W, 1,080W totalSidewall lighting (LED)10 sets, each 2 X 18W, 360W totalBrightness>1,500LUXFiltersPre-filter, high efficiency filter, floor-level filter, exhaust filterAir intakeDirect-type turbine fan, 11KW explosion-proof motorAir exhaustDirect-type turbine fan, 11KW explosion-proof motorAir volume35,000m3/hEmpty loaded air speed+/-0.30m/sAir exchange times6 times/minMaximum working temperature80ºCHeat exchanger power315KWBurner (Max. calorific value)RIELLO gas burner RS5D (two stage)ControlsCE standard control boxRated power30KW
4) Packaging & Loading

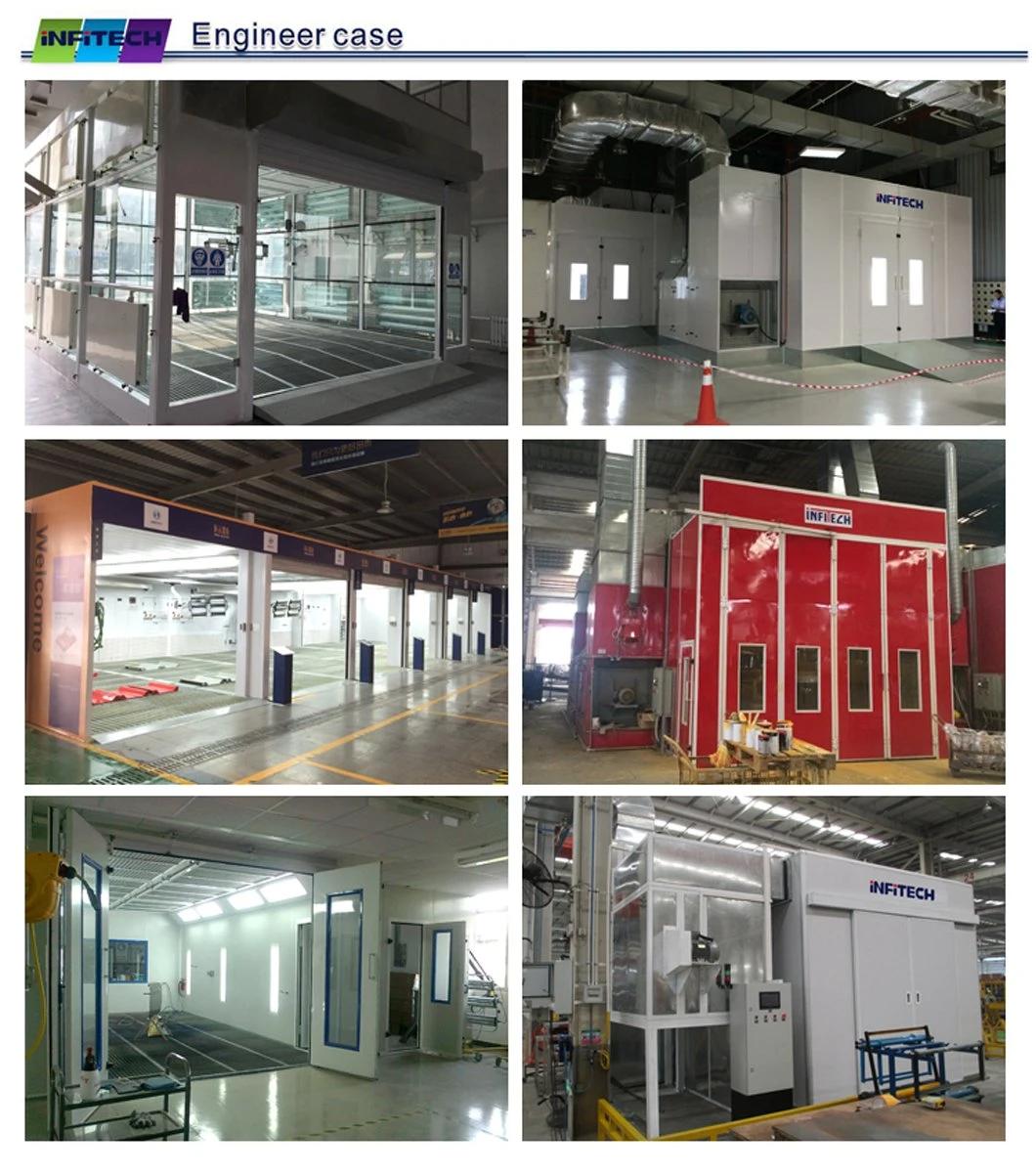

5) Engineering Cases
6) Company Profile
INFITECH is professional manufacturer of CE certified spray booth. We offer complete solution including design and layout, manufacturing, installation and maintenance. We take pride in delivering professional and ideal solution that is tailored to specific requirements, while maximizes profits for shop owners.
6) INFITECH at exhibition
Thank you for viewing!
