• Model NO.：IT-SUPER-701
• Coating：Powder Coating
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Empty Loaded Air Speed：0.28m,S
• Illumination：>1,000lux
• Filter：High Efficiency Filters
• Walls：50mm Rock Wool Panels
• Fans：Direct-Drive Fans
• Motor：7.5kw, Siemens
• Heat Exchanger：232kw
• Burner：Riello Diesel Burner Rg5d
• Control：CE Standard
• Plenum Height：600mm
• Noise：<78dB
• Lamp：LED
• Entrance Door：3400X2700mm
• Extraction：Through Pit
• Transport Package：Polyfoam and Metal Frame
• Specification：6900x4000x2800mm
• Trademark：INFITECH
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：900 Sets,Year

Auto Spray Booth Car Spray Booth Auto Paint Booth Auto Spray Booths For Passenger CarsITEMSSPECIFICATIONSDesign standardBS EN 13355: 2004+A1:2009
BS EN 60204: 2006+A1:2009Internal dimensions6900 X 4000 X 2800mm (L X W X H)External dimensions8470 X 4110 X 3460mm(L X W X H)Plenum600mm highBasementPit for extractionEntrance door1 set, 3400X2700mm (W X H)Divider door (Electric plate roll-up door)1 set, 6000X2400mm (W X H)Walls50mm thick rock wool panelsCeiling lighting (LED)8 sets, each 6 X 18W, 864W totalSide lighting (LED)4 sets, each 2 X 18W, 144W totalBrightness>1,000LUXFiltersPre-filter, high efficiency filter, floor-level filter, exhaust filterAir intakeDirect-type turbine fan, 7.5KW SIEMENS motorAir exhaustDirect-type turbine fan, 7.5KW SIEMENS motorAir volume28,000m³/hEmpty loaded air speed+/-0.28m/sAir exchange times6 times/minMaximum working temperature80ºCHeat exchanger power232KWBurnerRIELLO diesel burner RG5D (two stage)Heat recovery systemYes.ControlsCE standard control box, with inverter controlRated power20KW CE Certified Preparation BayITEMSSPECIFICATIONSDesign standardBS EN 13355: 2004+A1:2009
BS EN 60204: 2006+A1:2009Internal dimensions6900 X 3400 X 2800mm (L X W X H)External dimensions8100 X 3560 X 3460mm(L X W X H)Plenum600mm highExtraction A
Extraction BA: Pit for extraction
B: Through exhaust plenum chambers at the backEntrance door1 set, 3200X2600mm (W X H)Divider door (Electric plate roll-up door)1 set, 6000X2400mm (W X H)Walls50mm thick rock wool panelsCeiling lighting (LED)8 sets, each 4 X 18W, 576W totalBrightness>800LUXFiltersPre-filter, high efficiency filter, floor-level filter, exhaust filterAir intakeDirect-type turbine fan, 5.5KW SIEMENS motorAir exhaustDirect-type turbine fan, 5.5KW SIEMENS motorAir volume18,000m³/hEmpty loaded air speed+/-0.21m/sAir exchange times4 times/minHeatOverhead infrared heating systemControlsCE standard control box, with inverter controlRated power20KW

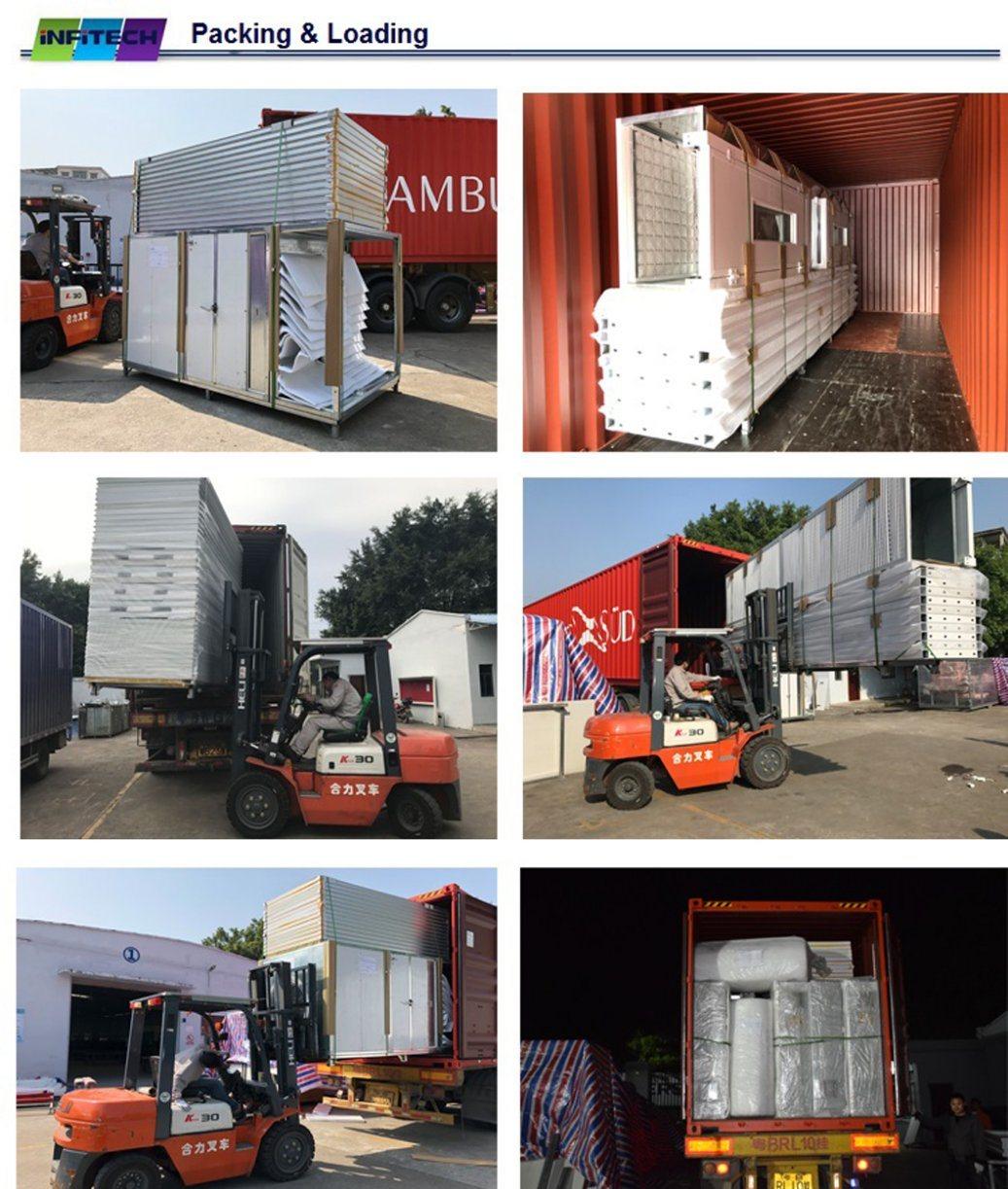

3. Packaging and Loading

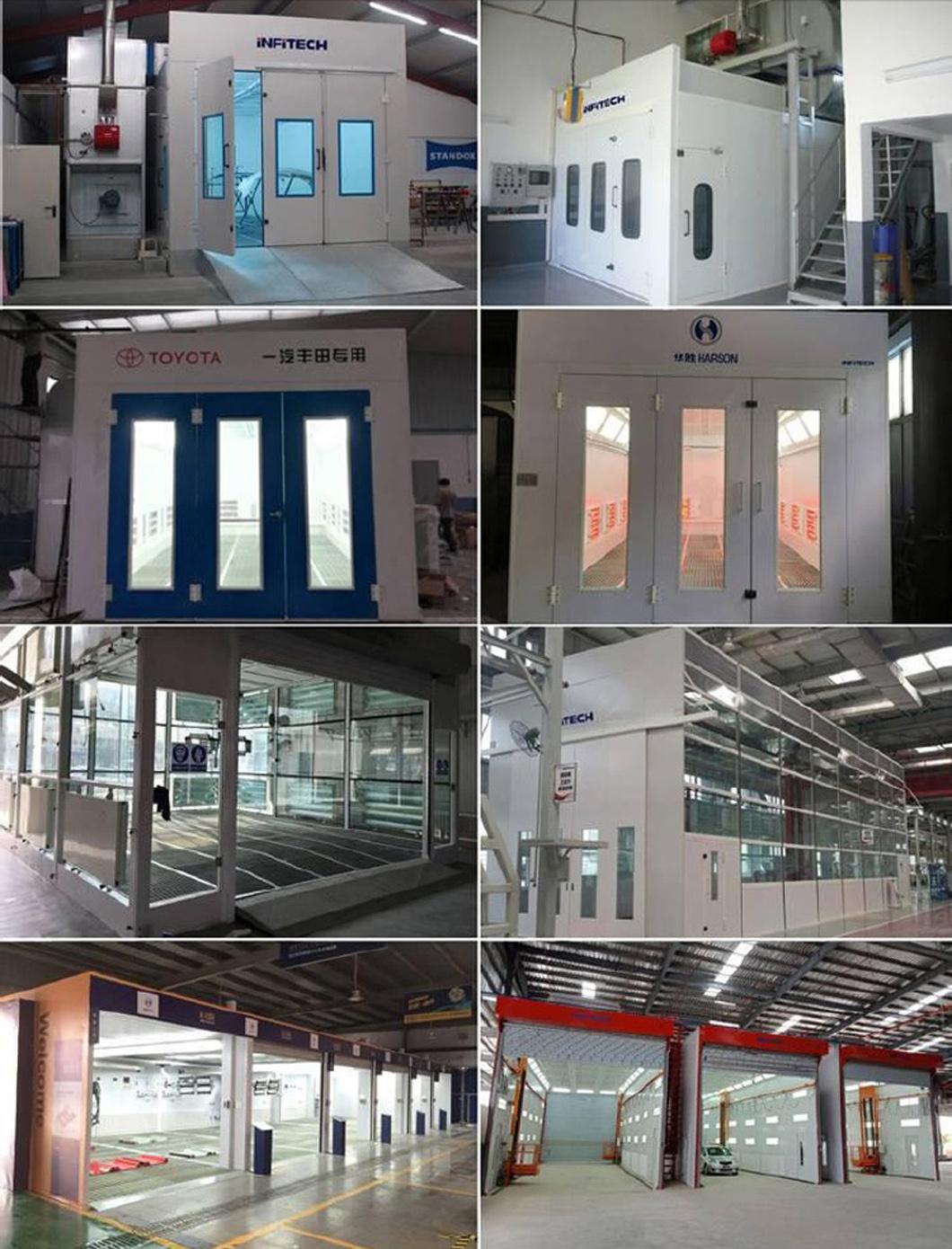

4. Typical Spray Booth Projects Display


5. Company Information
INFITECH is professional manufacturer of CE certified spray booth. We offer complete solution including design and layout, manufacturing, installation and maintenance. We take pride in delivering professional and ideal solution that is tailored to specific requirements, while maximizes profits for shop owners.

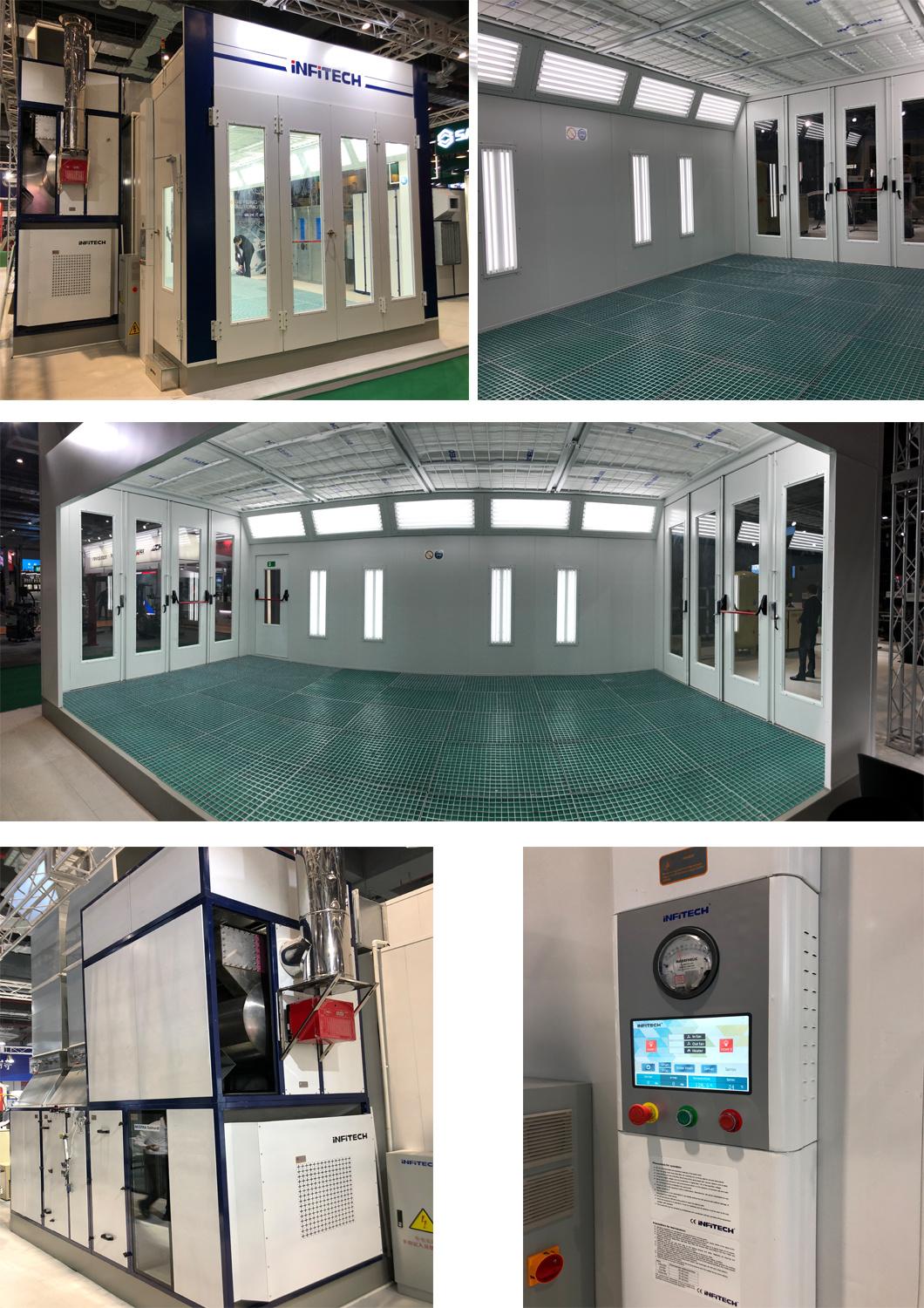

6. INFITECH at exhibition


Welcome to send your inquiries!
